2hp 3hp 5hp 15hp 20hp 25hp 30hp vertical electric submersible pump price

FOB Reference Price:Get Latest Price
$1,000.00 - $5,000.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
Yamei
Model Number:
FYS
Structure:
Single-stage Pump
Usage:
acid, alkali, water etc
Application:
chemical pump
Power:
Electric
Fuel:
Electric
Pressure:
High Pressure
Name:
vertical electric submersible pump price
Flow:
1.6-400m3/h
Head:
5-0m
Mesher depth:
10-15cm
Voltage of motor:
380V
Medium temperature:
<150 degree
Material under water:
Stainless steel, Iron, Plastic etc
Color:
Red, Green, Grey or Customized
Package:
wood carton
MOQ:
1set
Theory:
Centrifugal Pump
Standard or Nonstandard:
Standard
Supply Ability
Supply Ability:
350 Set/Sets per Month
Packaging & Delivery
Packaging Details
2hp 3hp 5hp 15hp 20hp 25hp 30hp vertical electric submersible pump price: standard wood carton package
Port
Shanghai
Video Description
Product Description

Summary of 2hp 3hp 5hp 15hp 20hp 25hp 30hp vertical electric submersible pump price

FYS series fluoroplastic vertical submerged pump is a single-stage single-suction long-shaft submerged pump developed by our company in combination with similar products at home and abroad. The pump is suitable for conveying temperature from 0 °C to +80 °C, without solid particles. Corrosive medium with abrasives.

All parts of the FYS series submerged pump that are in contact with the medium are all coated with fluoroplastic. The lower sheath is made of high quality silicon carbide and has the advantage of strong corrosion resistance.

Pump performance range: flow rate 1.6m3/h~100m3/h, head: 5~50m

FYS series corrosion-resistant vertical submerged pump must have a liquid level higher than 180mm above the impeller centerline when starting
Parameter of 2hp 3hp 5hp 15hp 20hp 25hp 30hp vertical electric submersible pump price
Product Name
2hp 3hp 5hp 15hp 20hp 25hp 30hp vertical electric submersible pump price
Flow
1.6-400m3/h
Head
5-50m
Material of flow parts:
PPH, PVDF, F46 etc wear resistant and corrosion material
Medium temperature
0-105 centigrade
Medium
with solid particles, abrasive corrosive media.
Working principle
Centrifugal working principle
Max depth under water:
1.8m
Max depth of mesher
15cm
Working voltage
220v/240v/380V

Features of 2hp 3hp 5hp 15hp 20hp 25hp 30hp vertical electric submersible pump price

FYS type plastic liquid corrosion-resistant chemical pump is characterized by vertical installation. The pump body, impeller and some parts of the pump are immersed in the liquid, so the occupied effective area is small, the shaft seal has no leakage, so it is suitable for conveying corrosive, Toxic, volatile, flammable and explosive liquids. According to the corrosion and temperature of the medium to be transported, the liquid contact material of the pump is divided into: reinforced polypropylene.

Materials of 2hp 3hp 5hp 15hp 20hp 25hp 30hp vertical electric submersible pump price

- Polypropylene PP
- Polyvinylidene fluoride PVDF
- Hydraulic parts (impeller, volute casing,
casing cover) also available in
Polyethylene or high density PE
For special requirements designs without
lower sleeve bearing are possible

Submersion Depth of 2hp 3hp 5hp 15hp 20hp 25hp 30hp vertical electric submersible pump price

The YMKL type pump is available with lengths of
500, 1000, 1500, 1750 mm; for designs
using intermediate bearings in sizes
2000, 2500 and 3000 mm.
Extension of submersion depths within
given limits as well as adjustment to intermediate lengths is made possible by connecting a corresponding suction
piping to provide the exact setting.
Related Products of 2hp 3hp 5hp 15hp 20hp 25hp 30hp vertical electric submersible pump price for Customer to Choose!

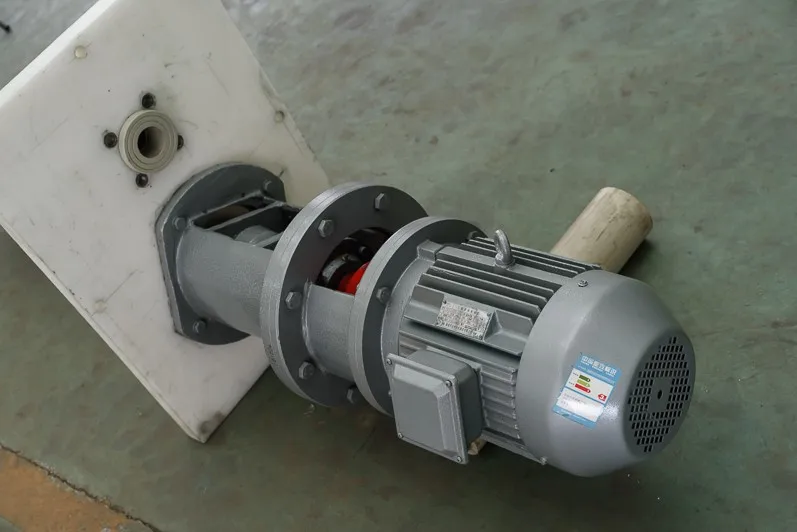

Detailed Images

Advantages of 2hp 3hp 5hp 15hp 20hp 25hp 30hp vertical electric submersible pump price

1. Generally the motor power is 380V, but if you need,it can be customized.
2. The coupling and crank-set can guarantee the axle stable and guarantee the lifespan of pump.
All the flow passage components are made of PPH, PVDF, F46 etc which is wear resistant and corrosion material.
3.Generally, the mesher is 10-15cm with holes in different directions. The particle and impurities can be filtered out.


Structure Chart

Structure specification of 2hp 3hp 5hp 15hp 20hp 25hp 30hp vertical electric submersible pump price

YMKL series pump is composed with pump body, impeller, pump cover, support pipe, outlet pipe, shaft, pump frame, under plate, protective covering, filer cover and so on.
The electrical machinery of YMKL series pump fixes on the electric rack with the bolts, transmission passes the flexible coupling. The pump body, support pipe and pump frame fasten with body, fixed on the under plate, the pump installs through the ledger plate in the vessel.
Company Information

Jiangsu Yamei Pump Group

Our company integrates mechanical processing, hot and cold machining, investment casting, research and production together. We have complete production equipment, physical and chemical tests and inspection methods. The max high voltage test can reach 380V 10KW and the max power can reach 800KW.
There are 6 workshops and six department, specializing in the production of "Yamei" Brand stainless steel corrosion, wear-resistant chemical centrifugal pump and  non-metallic fluorine plastic pump. The main materials are 321, 316, 316L, CD4Mcu, 304, 304L, 904, K alloys, T, Hastelloy, UHMWPE, F46, etc which suitable for the transportation of acids, alkalis, salts and other media under various working conditions

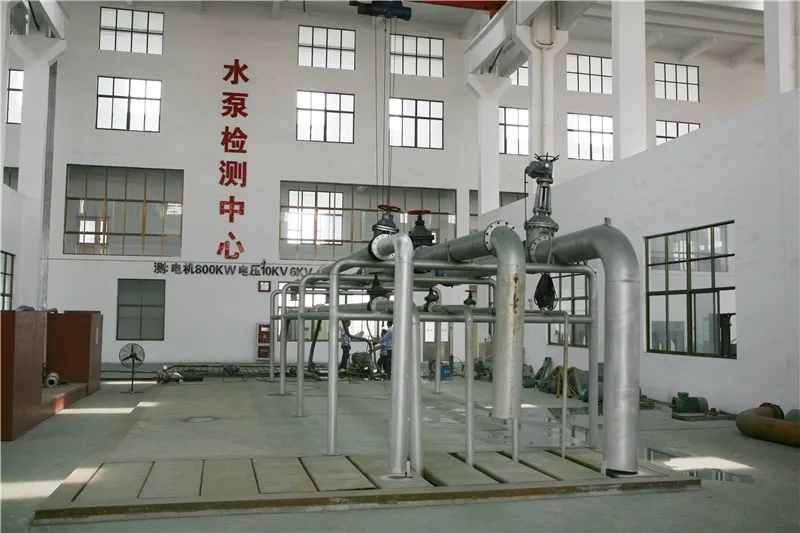

Pump Test

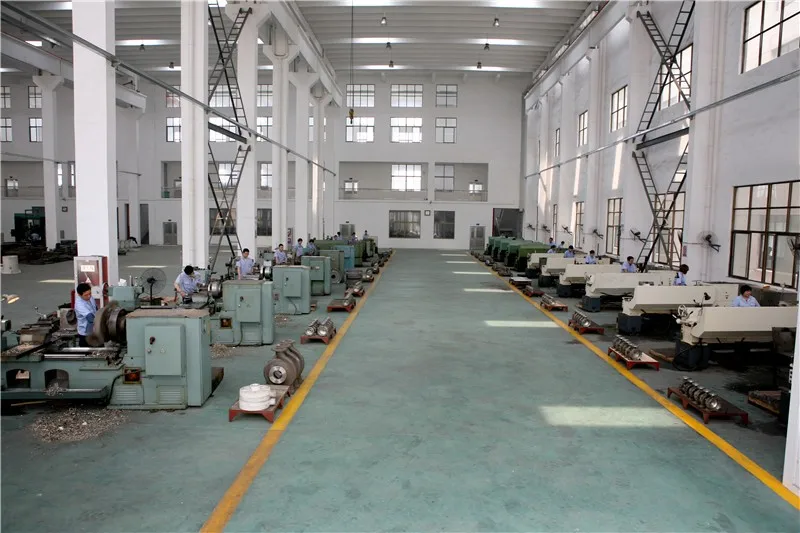

Work Shop

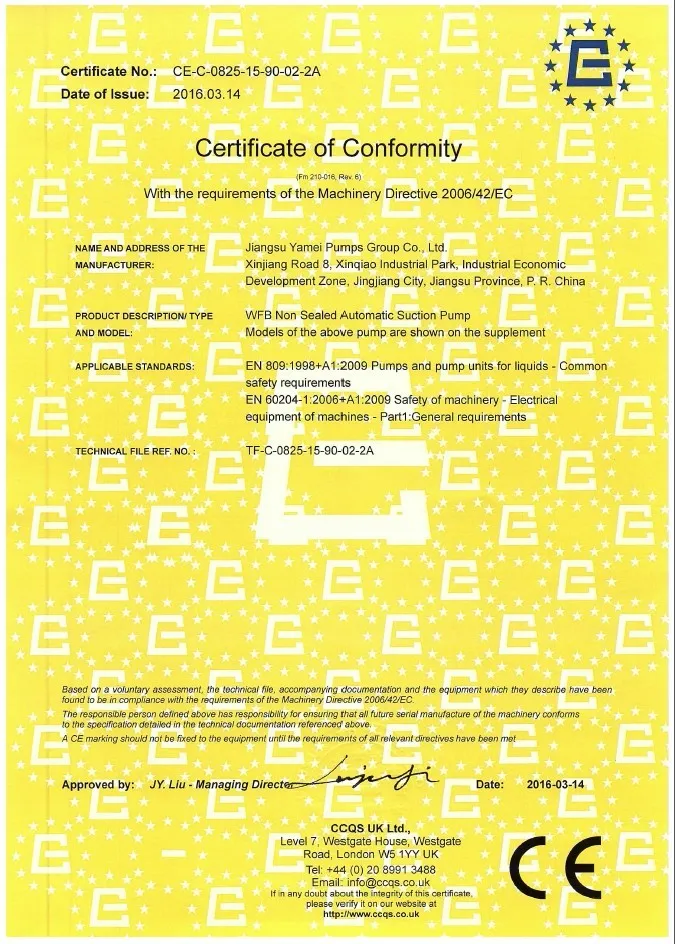

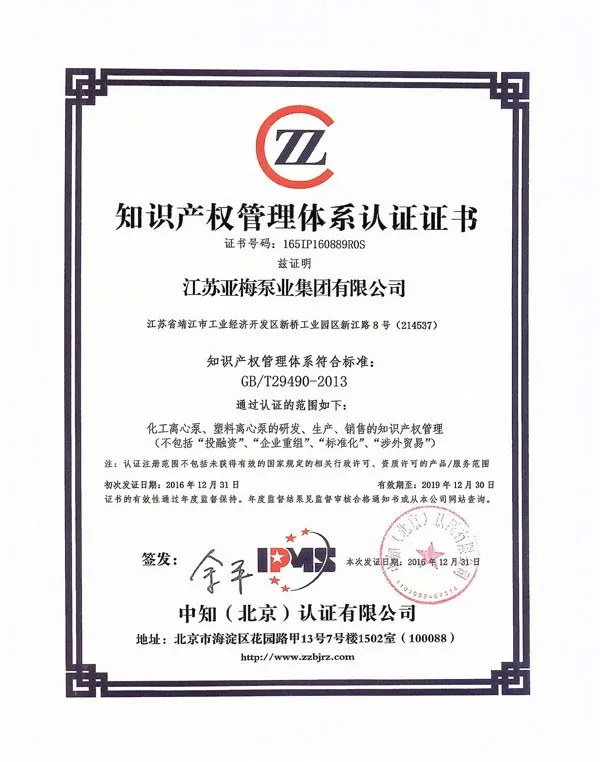

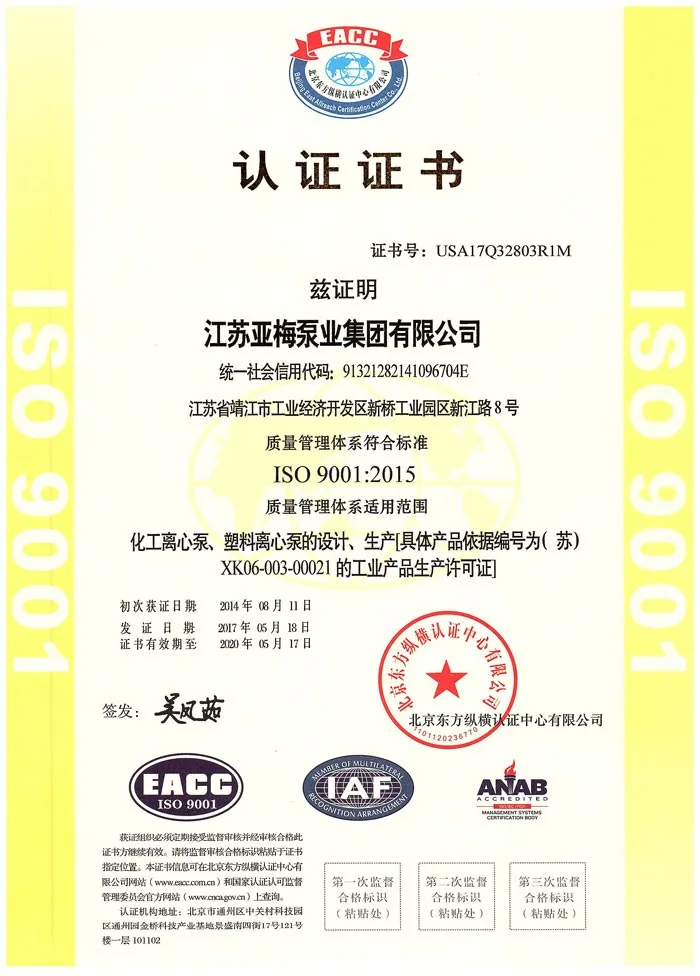

Certification of 2hp 3hp 5hp 15hp 20hp 25hp 30hp vertical electric submersible pump price

Both Yamei pump group and Yamei pump had won many awards and own many certifications. Below are some certification for you to reference!

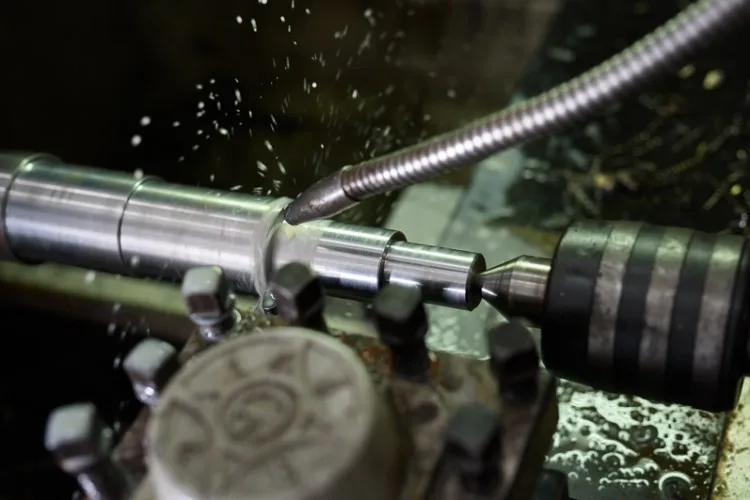

Producing Process

Below is the detailed process of 2hp 3hp 5hp 15hp 20hp 25hp 30hp vertical electric submersible pump price, helps you know more about our producing. If you need the videos or e-catalogue of pump, pls contact us !

Application

Medium and application of 2hp 3hp 5hp 15hp 20hp 25hp 30hp vertical electric submersible pump price

Vertical centrifugal pumps of type YMKL have been developed specially for discharging aggressive, lightly contaminated
liquids such as acids, alkalis and chemical effluents.

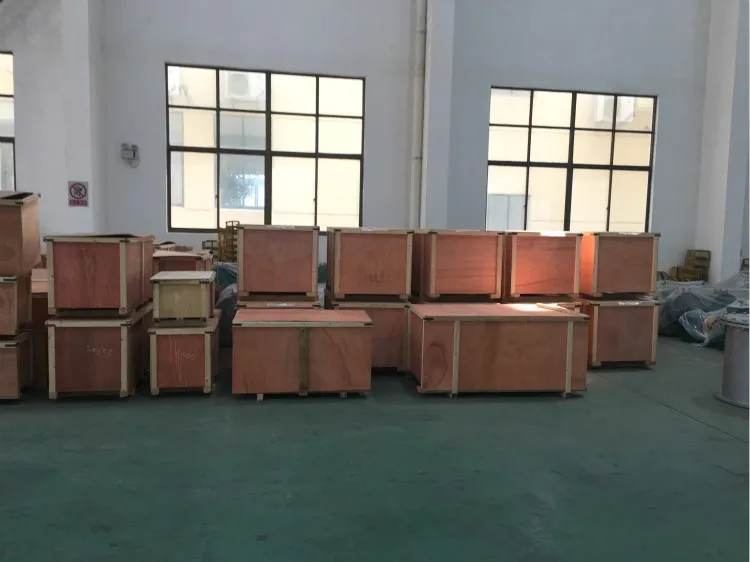

Packing & Delivery

package for 2hp 3hp 5hp 15hp 20hp 25hp 30hp vertical electric submersible pump price

HS code: 8413709990
Package:
Standard wood package.
Each pump will be put into one bubble, sealed box and packed the bo by packing belt.
OEM package:
Name plate can be changed as your instruction and packing design as your OEM design
Contact Information

For more information about 2hp 3hp 5hp 15hp 20hp 25hp 30hp vertical electric submersible pump price, pls contact us freely!
