2mm SS MS sheet metal plate shearing machinery electric cutting/shearing machine price

$1,424.59 - $3,054.81 / Set | 1 Set (Min. Order)
Model Number:
Q11-2*1300
$1,457.77
- +
available
Q11-2*1500
$1,505.77
- +
available
Q11-2*2000
$2,577.19
- +
available
All 5 Options
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
25 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Warranty:
3 Years
Place of Origin:
Anhui, China
Brand Name:
Aoxuan
Condition:
New
Dimension(L*W*H):
3100*1050*1150mm
Weight:
1300kg
Certification:
CE ISO
Rated Power:
4.5kw
Voltage:
380V 220V Optional
Type:
electric cutting machine
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction works
Key Selling Points:
Easy to Operate
After-sales Service Provided:
Engineers available to service machinery overseas, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support, Video technical support
Name:
Shearing Machine/Cutting Machine
Max cutting width:
1000-2500mm
Max cutting thickness:
2mm
No. of strokes:
20 rpm
Rake angle:
2°14'
Adj.distance of backgauge:
500mm
Power of main motor:
3kw
Operation:
Foot switch
Overall dimension:
2600*1050*1150mm

Packaging & Delivery

Selling Units:
Single item
Single package size:
310X105X115 cm
Single gross weight:
1300.000 kg
Package Type:
1. Outside package is standard export wooden case. 2. Inside package is stretch film with three layers winding in surface to avoid crash during the transportation. 3. As the clients requests. apply to :2mm SS MS sheet metal plate shearing machinery electric cutting/shearing machine price
Lead Time :
Quantity(Sets) 1 - 3 >3
Est. Time(days) 25 To be negotiated
Product Description

2mm SS MS sheet metal plate shearing machinery electric cutting/shearing machine price

1) This machine is used for the shear sheet metal in line, metal materials should be tensile strength of less than 450 N/mm2, non-metallic material including rubber, plastics,when cut hot plate temperature should below 50 °C, The machine can make only intermittent shear in full load, if tensile strength is higher , shear thickness should be reduced.
2) The machine is applicable to uncoiling, leveling, shearing,workshop of production line for plate processing
3) The machine base is steel- welding , the structure is compact, good rigidity.
4) Track of blade movement is precision casting copper,less friction
5) Upper guide can adjust until achieve a good shear section, below blade can adjust via welding screw make the cutting mouth smooth
6) Feeding devices use spring pressure , the clamps have mat piece, pressure force is big, and not easy to damage the sheet metal surface.
7) The machine iuse completely independent closed gear box transmission system, move directly connection with main axil, compact structure, gear have good lubrication, low noise and long life.
8) The machine equipped with pneumatic clutch device, high friction, long service life, clutch speed is high so that improve the shearing spee
d.

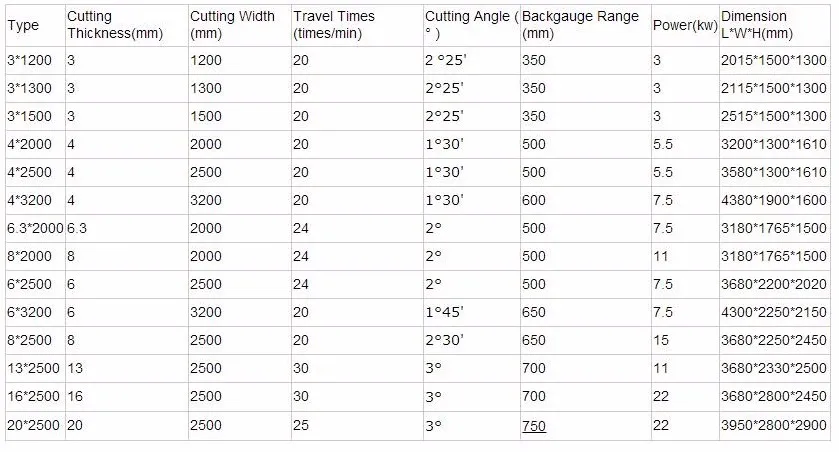

Product Paramenters

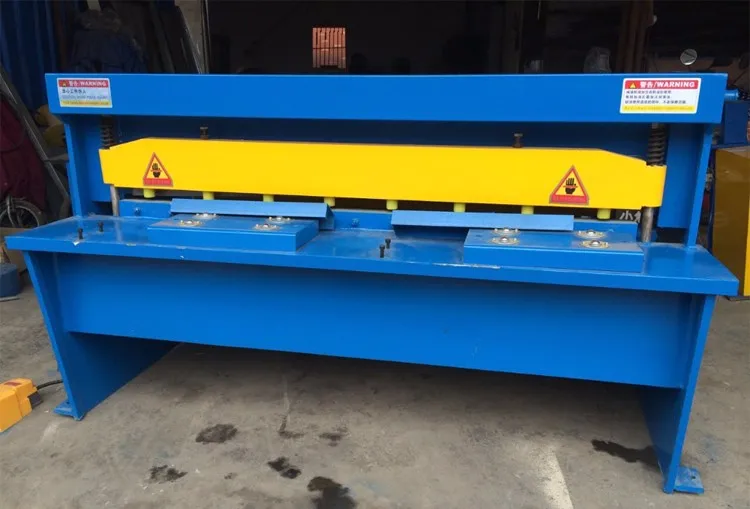

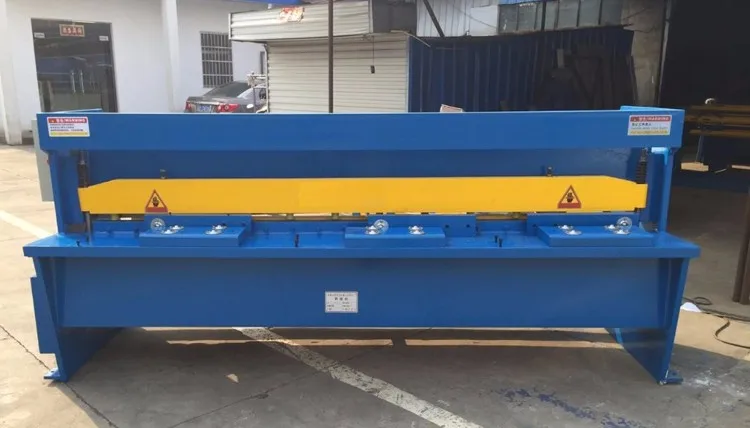

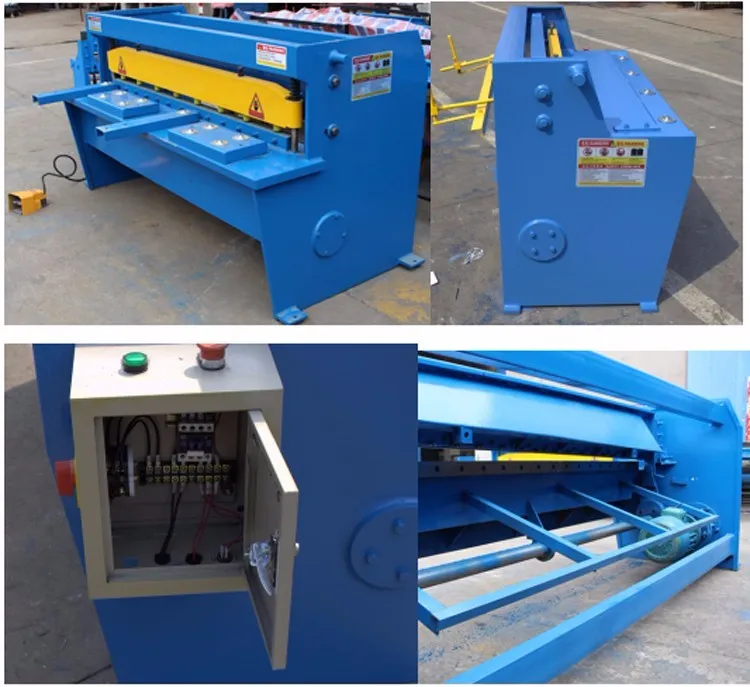

Detailed Images
2mm SS MS sheet metal plate shearing machinery electric cutting/shearing machine price
Certifications
Packing & Delivery

2mm SS MS sheet metal plate shearing machinery electric cutting/shearing machine price

Packing Detail:

☂ Each Electric Cutting Machine with plastic film package first, then placed in a wooden case, wooden case with a foam filling.

✈ We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers
and ship them abroad.

Delivery Detail :

☀ Shipped in 30 days after payment.
Our Company
2mm SS MS sheet metal plate shearing machinery electric cutting/shearing machine price
Our Service

Pre-sales.

* Project design, performance introduction, technical agreement, contract signing, packaging
* Inquiry and consulting support.
* Sample testing support.

In-sales.

* We will provide you with the latest progress in the product assembly, packaging and transportation.

After-sale.

* We will provide free accessories for the damage to non - human parts.
* Training how to install the machine, training how to use the machine with video and so on
* And our technical staff can go abroad to provide technical guidance.

Our Company
Anhui Aoxuan Heavy Industry Machine Co., Ltd.is founded in 2013 in Maanshan city of Anhui province
Recommend Products
RFQ
1. Are you the manufacture?Can we visit your factory?

We are manufacturer and we are located in Anhui,China.And we have our own design team for products design.
And welcome you visit our factory and check our machine qualtiy on spot,any question will be solved on spot at first time.

2.What's your main product and what is your main foreign market?

Our main products are press brake,shears machine,press,cutting machine,locking machine ,auto duct line and related products.
Our main foreign market are Asia, North America, Europe, Africa.

3. what are the advantages of your machines?And how can i believe the quality of your product?

The main configuration is to import quality products, and Professional product quality inspection team ensure machine in
top-quality, precision and life.
For example,Germany Bosch-Rexroth Valve group,Germany Siemens Main Motor,Schneider Electrics system and so on.
Once tested as qualified .our machine would be sent out.So The quality of our product is stable and reliable.

4. And are you able to update the production process Information in time after placing our order?

After confirming your order ,we would keep you updated of production details of emails and photos.

5. Can we be your agent?

Yes,we are looking for Global agent we will help agent improve the market ,and supply all the service like machine technical
problem or other after-sales problem, meanwhile ,you can get big discount and commission.

6. Payment terms?

T/T, L/C, Western Union, Paypal, Alibaba Secure Payment ect.

7.Are you provide product metal parts and provide us technical guidance?

Wearing parts,Disassembly tool(free) are what we could provide.And we can give you technical guidance.Our technical staff can go
abroad to provide you with technical guidance.

8. How long is your warranty?

13 months free warranty, life-long maintenance.

9.Do you accept customer Logo and customized ?

we accept kinds of customized ,including logo and machine .
