3.34 inch 320x320 600 nit micro hd round lcd display

  • 1-9 Pieces
    $33.00
  • 10-49 Pieces
    $30.00
  • 50-99 Pieces
    $28.00
  • >=100 Pieces
    $26.00
Supplier Type:
Other
$
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
3 day(s) after payment received
Samples: $30.00 /Piece, 1 Piece (Min. Order): Buy Samples
Contact Supplier
Samples - $30.00 /Piece, 1 Piece (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
Kingtech/ELSUN
Model Number:
PV033400AR17A
Display Size:
3.34inch
Type:
TFT
Resolution:
320*320
shape:
round/circular
Interface:
MIPI (Command Mode)
viewing direction:
12 o' clock
Brightness:
600cd/m2
outline dimension:
66.20(H)X69.30(V)X2.66(T)
AA:
Diameter 60mm
driver IC:
ST7796SI
LED Numbers:
6 LEDs Seria

Packaging & Delivery

Selling Units:
Single item
Single package size:
25X16X6 cm
Single gross weight:
0.5 kg
Package Type:
Specializing in the production of small size LCD screen since 2003 plastic tray for safe oversea shipment
Lead Time :
Quantity(Pieces) 1 - 1 >1
Est. Time(days) 3 To be negotiated

3.34 inch 320x320 600 nit micro hd round lcd display

1.39 oled round flexible original thin tft lcd touch screen

600 nits 3.34 " SQVGA mipi dsi interface circle lcd display key mechanical data  :




Item   kingtech 3.34 inch 320x320 600 nit micro hd round lcd display
Model NoPV033400AR17A
Resolution 320(RGB) X 320
Outline Dimension 66.20(H)×69.30(V)×2.66(T)
Active Area(mm)Diameter 60mm
Interface MIPI (Command Mode)
Viewing Angle  12 o’ clock
LED Numbers 6 LEDs Seria
Warranty  12 months
Driving IC ST7796SI
Display Mode TM with Normally White
Technology Type a-si TFT
Pixel Pitch (mm) 0.1875 x 0.1875
Pixel Configuration R.G.B. Vertical Stripe
Surface treatment: HC
Operating   Temperature   -20 to +70℃
Storage Temperature   -30 to +80℃
Color Depth 16M dithering
Brightness600  nits

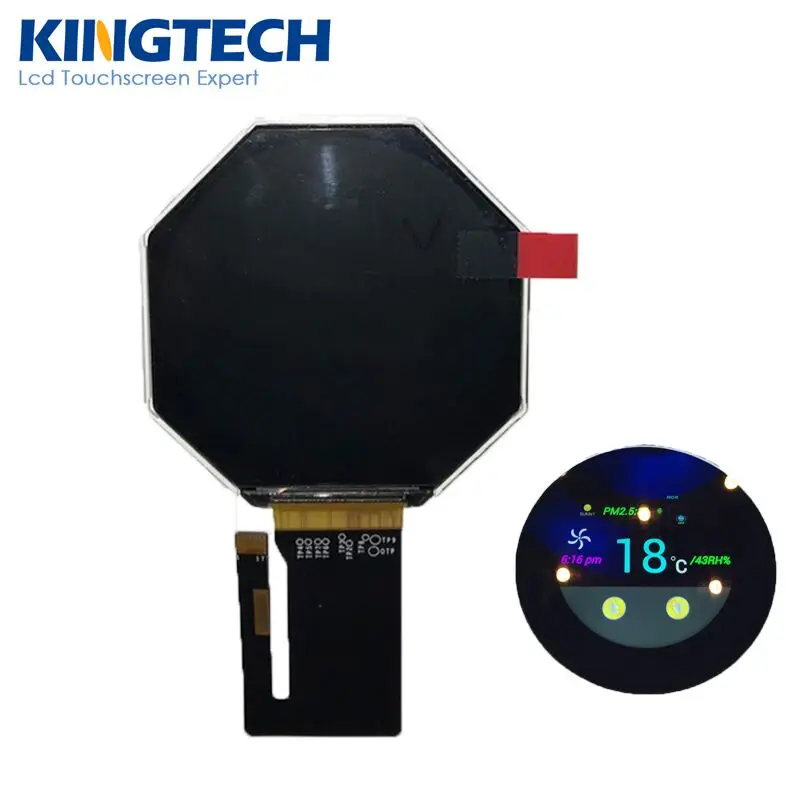

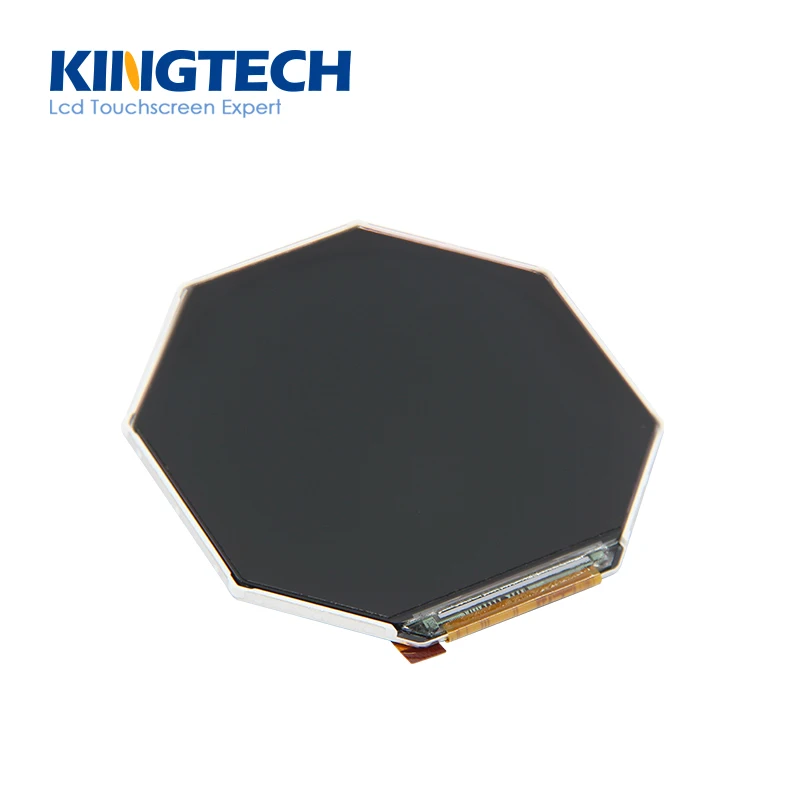

3.34 inch 320x320 600 nit micro hd round lcd display  front picture:


3.34 inch 320x320 600 nit micro hd round lcd display  application

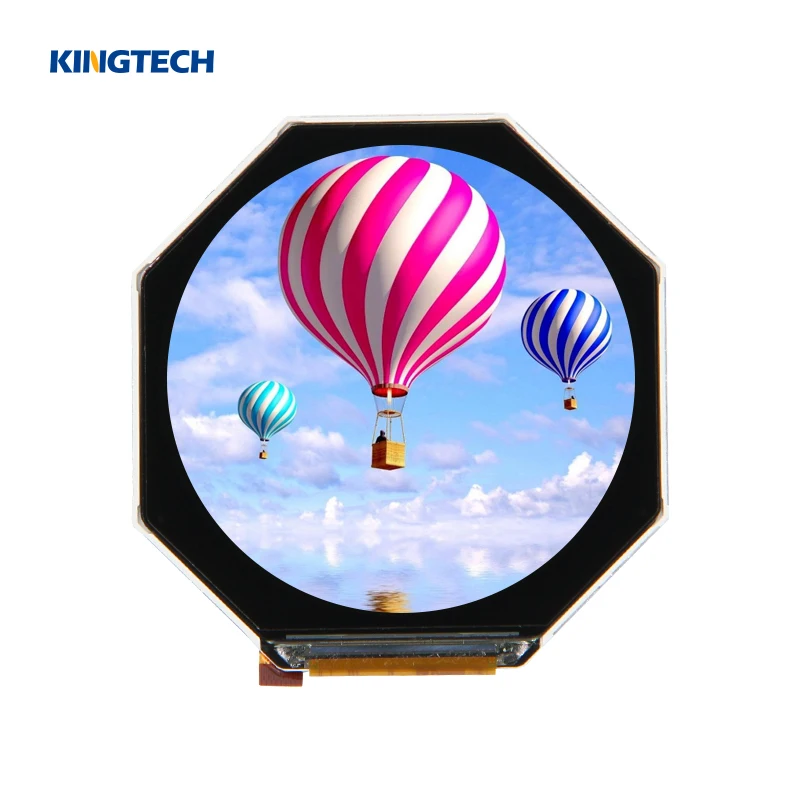

3.34 inch 320x320 600 nit micro hd round lcd display, pure round active area


3.34 inch 320x320 600 nit micro hd round lcd display HDMI to MIPI transfer board





HDMI to MIPI.png



600 nits 3.34 " SQVGA mipi dsi interface circle lcd display mechanical drawing






Similar round tft LCD , please click below Model No to review product details



Size and FeatureModel NoPixelOutline DimensionTP
1.22" round displayPV12200YQ13IPS240*20434.66(W)*34.82(H)*1.14(T)CTP
1.3" round displayPV1301B2CZ0360*36040.53(W)*35.34(H)*1.54CTP
1.3'' Round AMOLEDPV013002T45B360*36035.34(W)*36.84(H)*0.678(T)tool
1.39"Round AMOLEDPV013901PY20B400*400  38.6 (W)×40.5(H)×0.7(T)CTP
RemarkODM and OEM are welcome



Full automatic line to bond LCD panel, IC and FPC together as FOG for mass production.  Semi-automatic line for sample making and small order assembly.

We can handle sample and small orders flexibly.  We don't have strict MOQ requirement.  Thousand class cleaning room to  assemble backlight and FOG

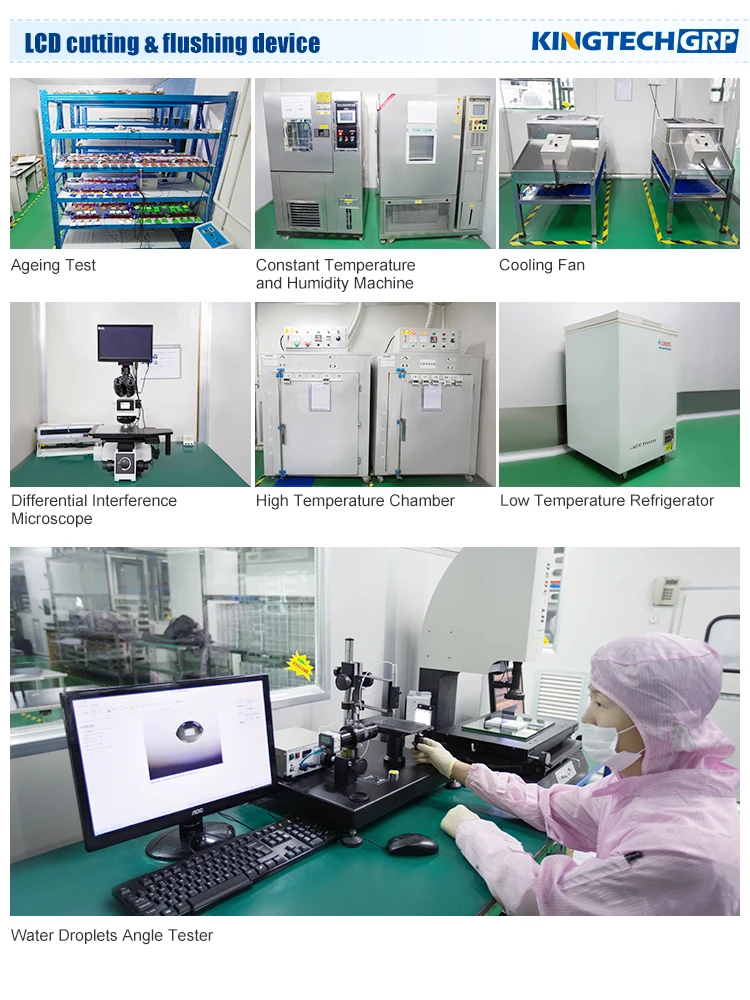

For every new model, before mass production, we do reliability test to ensure our material choice and our workmanship are designed properly.

This can help to avoid reliability issues happening at our customer side


Our factory cutting LCD panel from mother glass into smaller pieces.

We also etch LCD panel to be thinner for some hand hold devices, which request slim and light weight

2-LCD panel cutting.jpg



1.39'' full color oled display

Other product products, please click below Model No to review product details



Size and FeatureModel NoPixelOutline Dimension
1.3'' Round AMOLEDPV013002T45B360*36035.34(W)*36.84(H)*0.678(T)
1.39"Round AMOLEDPV013901PY20B400*400  38.6 (W)×40.5(H)×0.7(T)
2.4" IPS TFT LCDPV0241F2CZ0_V00240*32042.72(W)*60.7(H)*2.21(T)
3.34'' Round TFT LCDPV033400AR17A320*32066.20(W)×69.30(H)×2.66(T)
3.5" IPS/Free viewing anglePV0350B2Z10320*48053.76(W)*84.18(H)*3.30(T)
3.5" 480*640 TransflectivePV03501LZR40C480*64063.00(W)×85.00(H)×2.9(T)
4.0" IPS/Free viewing anglePV0401FT25B480*80057.14(W)* 96.85(H) *1.93(T)
4.3" high brightnessPV043WQ-CTNC4001480*272105.5(W)*67.1(H)*2.95 (T)
4.3"  IPS/Free viewing anglePV04300FT40C480*80061.46(W)*104.75(H)*2.20
5.5''  IPS/Free viewing anglePV05502FT39D720*128076.8(W) * 137.4(H) * 2.7(T)
10.1" 1000nits IPS/free viewingPV10101LZR40B-C1280*800229.80(W)*149.00(H)*5.95(T)
RemarkODM and OEM are welcome



1.39 oled round flexible original thin tft lcd touch screen

2-our advantage .jpg



YearEvent
1995--2003 Founder of Kingtech work in LCD display moudule enterprise
2003Start distribution for LCD panel and Driver IC
2006Started LCD display module R&D, manufacturer, export
2009Establish factory to cut LCD panel to smaller size
2013Acquisition a factory to etch LCD panel to be thinner
2014Became Alibaba Top10 supplier
2016Establish our backlight factory
2016Award of Alibaba B2B Good Faith Demonstration Base
 MissionTo be custom small and middle size LCD module specialist


1.39 oled round flexible original thin tft lcd touch screen

lcd module.jpg

Main Parameters:
