3 4 5 8 axis Cnc machining center VMC 850 machine price vertical 6 axis 5axis multi head 3d 4d 5d 220v single phase

FOB Reference Price:Get Latest Price
$25,000.00 - $30,000.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Model Number:
VMC640L
Condition:
New
Type:
Vertical
Place of Origin:
Jiangsu, China
Brand Name:
Sammlite
Voltage:
380V/50Hz
Dimension(L*W*H):
2000*1900*2800mm
Certification:
ISO CE
Worktable Size:
750*360mm
Max. Load:
300kg
X/Y/Z travel:
600/400/500mm
Spindle Taper:
BT40
Distance between each T-slot:
90mm
Width of T-slot:
18mm
No.of T-slot:
5
No. of knives:
16/24
Positoning accuracy:
0.003
Net Weight:
5200kg
Weight:
3400kg
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
12 Months
Power(W):
5.5/7.5kw
Supply Ability
Supply Ability:
50 Set/Sets per Month
Packaging & Delivery
Packaging Details
Wooden Case
Port
Shanghai Port
Lead Time :
20 Working Days After Receiving Advance Payment

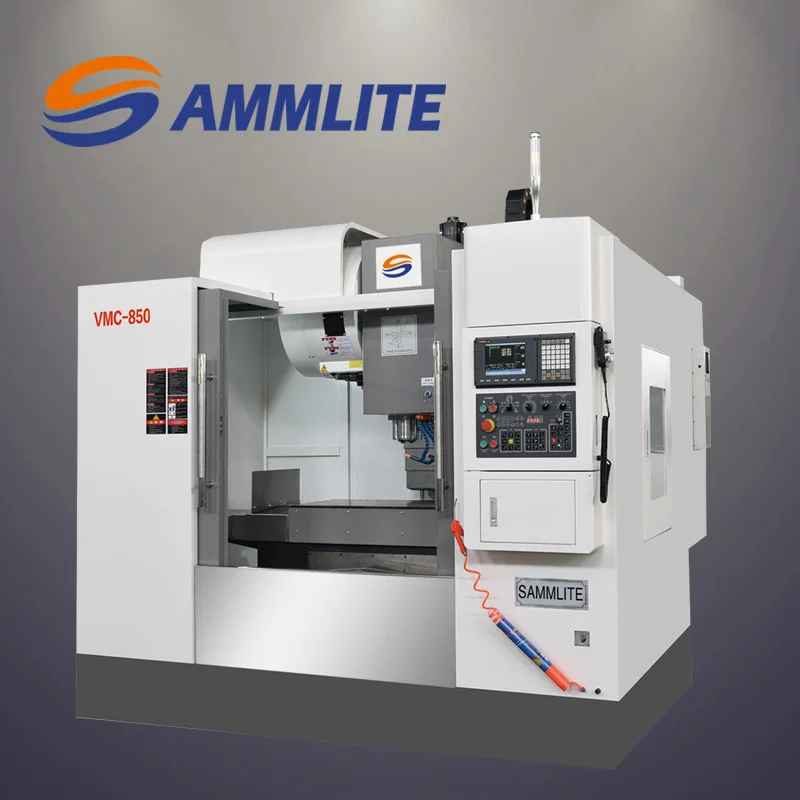

Machine Center

3 4 5 8 axis Cnc machining center VMC 850 machine price vertical 6 axis 5axis multi head 3d 4d 5d 220v single phase

All the electric accessories are of good function and quality.
Considering the actual production, we take the most suitable structure to ensure the machine work more quiet and smooth.
This machine can be widely used in many aspects.

Item
UNIT
VMC540L
VMC640L
VMC800L
VMC850L
VMC1060L
VMC1265L
Worktable Size
mm
650*400
750*360
1000*360
1000*500
1300*600
1500*600
No.of T-slot
3
3
3
5
5
5
Width of T-slot
mm
14
14
14
18
18
18
Distance between each T-slot
mm
125
95
95
90
120
120
Max. Load
kg
250
300
300
400
800
900
X/Y/Z longitudinal/lateral/vertical travel
mm
500/400/300
600/400/500
800/400/500
850/500/540
1000/600/650
1200/650/650
Spindle axis to column surface
mm
450
460
460
600
700
700
Spindle Taper
BT30
BT40
BT40
BT40
BT40
BT40
Spindle nose to working table surface
mm
150-480
120-620
120-620
120-660
120-770
120-770
Spindle speed
rpm
8000
8000
8000
8000
8000
8000
Max cutting feed rate
mm/min
10000
6000
6000
6000
6000
6000
Guide Rail Type
Linear Guide
Linear Guide
Linear Guide
Linear Guide
Linear Guide
Linear Guide
3-axis displacement(X,Y,Z)
m/min
48/48/16
24/24/16
24/24/16
24/24/16
24/24/12
24/24/12
Knife Library type
Clamp Arm Type
Disc Type
Disc Type
Disc Type
Disc Type
Disc Type
No. of knives
16
16/24
16/24
20/24
20/24
20/24
Average tool exchange time
sec
1.8sec
1.8sec
1.8sec
2.1sec
2.1sec
2.1sec
Positoning accuracy
mm
0.005
0.008
0.008
0.008
0.008
0.008
Repeat positioning accuracy
mm
0.003
0.006
0.006
0.006
0.006
0.006
CNC system
Mitsubishi M70F//Taiwan SYNTEC 6MD-H
FANUC 0i mate-MF/Mitsubishi M70B\/Siemens828D/Taiwan SYNTEC
FANUC 0i mate-MF/Mitsubishi M70B\/Siemens828D/Taiwan SYNTEC
FANUC 0i mate-MF/Mitsubishi M70B\/Siemens828D/Taiwan SYNTEC
FANUC 0i mate-MF/Mitsubishi M70B\/Siemens828D/Taiwan SYNTEC
FANUC 0i mate-MF/Mitsubishi M70B\/Siemens828D/Taiwan SYNTEC
Main motor
KW
7.5
7.5
7.5
11
15
15
Dimension
mm
1650*2320*2700
2000*1900*2800
2600*1900*2800
2700*2300*2700
3200*2500*2900
3500*2550*2900
Net Weight
kg
2200
3400
3600
5200
6750
6850
Standard Configuration
Siemens controller system
Water tank cooling system
Automatic lubrication device
Outer protection cover
Spindle blowing device
Handheld air gun
Electric control cabinet
Transformer
Heat exchanger in electric cabinet
standard output interface
Working lamp
Three color warning lamp
LCD
Manual pulse generator
Tool
Operating manual
Transformer
Electric control cabinet
Transformer
Optional configuration
Carousel type or disc type tool changer
Spindle oil cooling device
High spindle speed 10000-15000rpm
Coolant through spindle
Chain type/Sprial type chip removal
Disc type oil-water separator
CNC rotary table ( Forth axis or fifth axis)
Air conditioner in electric cabinet
Related Products

Surface Grinding Machine

Single Cut EDM Machine

Die Sinking EDM Machine

Multi-cut EDM Machine

Vertical Machine Center

Vertical/Horizontal Milling Machine

Our service

Customers' Feedback

Our Certificate

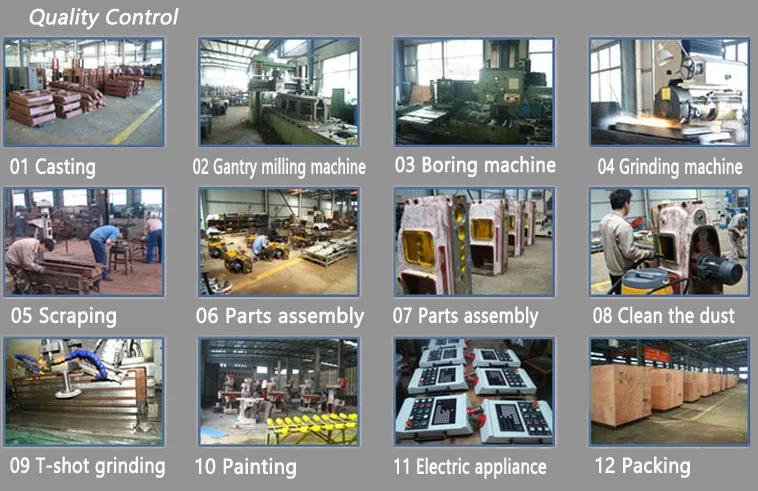

Our Factory

Jiangsu Sammlite Machinery Co.,Ltd is located in Nantong City, Jiangsu Province, a large-scale machine tool manufacturing enterprise in East China. The main products of company are gantry machining center, vertical machining center, CNC lathe, surface grinder, vertical knee type milling machine, turret universal rocker milling machine, etc. Products are widely used in mould manufacturing, auto parts, wind power, nuclear power, ocean ships, military aerospace, college teaching fields and etc. We do not only enjoy best-selling in domestic market, but also export to Southeast Asia, the Middle East, Brazil, India, Africa, Europe, the United states and some other countries and regions.
