3.7KW KDS Electric Car Sepex DC Motor XP-2067-S 48V

FOB Reference Price:Get Latest Price
  • 1 - 49 Pieces
    $315.00
  • >=50 Pieces
    $300.00
Lead Time:
Quantity(Pieces) 1 - 50 51 - 100 >100
Est. Time(days) 3 5 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Anhui, China (Mainland)
Brand Name:
KDS
Model Number:
XP-2067-S
Voltage(V):
48V
Output Power:
3.7Kw
Usage:
Car
Certification:
CCC, CE, ROHS, UL
Type:
Other
Torque:
Other
Construction:
DC SepEx Motor
Commutation:
Brush
Protect Feature:
Waterproof
Speed(RPM):
2500 rpm
Continuous Current(A):
10A
Efficiency:
IE 4
Voltage:
48V
Operating voltage:
48V
Field current:
10A
Armature current:
105A
Rated speed:
2500 rpm
Dimensions:
231.60*154.99 mm
Package weight:
28.9 kg
Package environmental rating:
IP20
Port:
Shangahi/Guangzhou/Ningbo
Warranty:
1 year
Supply Ability
Supply Ability:
3000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Carton/Pallet
Port
Shanghai/Guangzhou/Ningbo
Lead Time :
Quantity(Pieces) 1 - 50 51 - 100 >100
Est. Time(days) 3 5 To be negotiated
Product Description

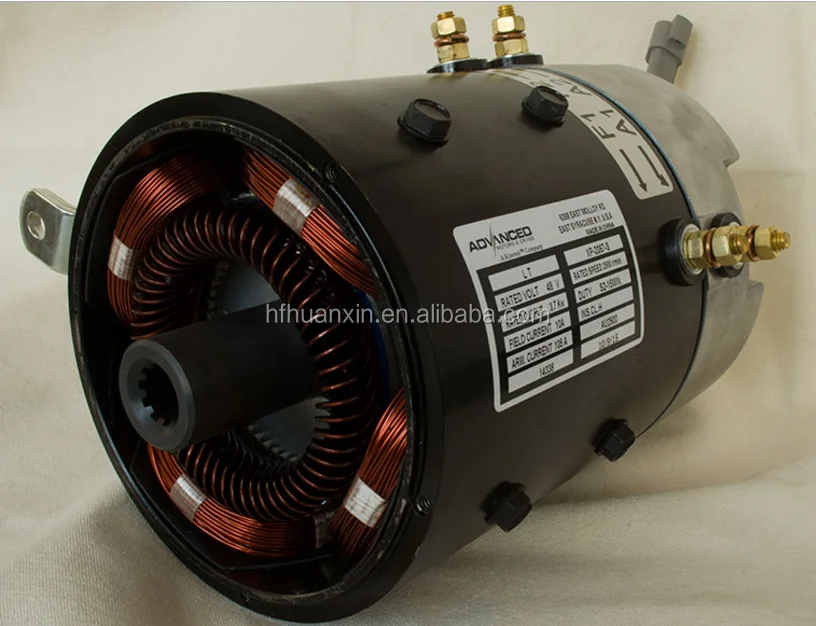

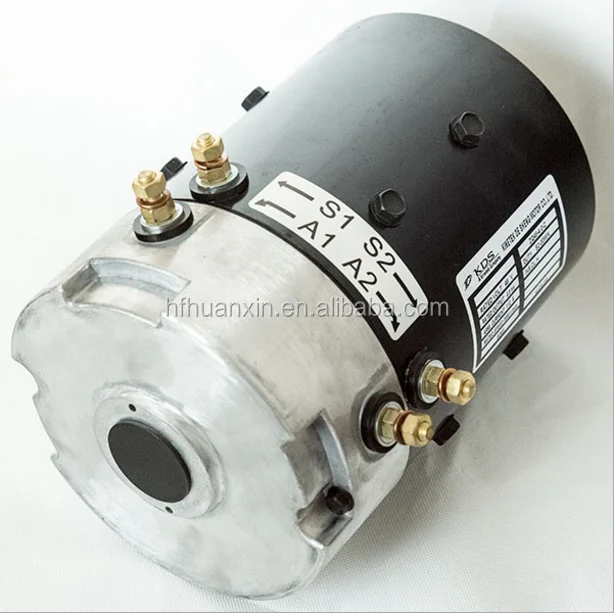

     3.7KW KDS Electric Car Sepex DC Motor XP-2067-S 48V

Specifications:

                   Nominal power rate: 3.7 kW
                   Operating voltage: 48V
                   Rated speed: 2500 rpm
                   Field current: 10A
                   Armature current: 105A
                  Speed sensor mating connector is included (different type connector is possible, for example an AMP waterproof 3-Pin connector)
                  Insulation: class H

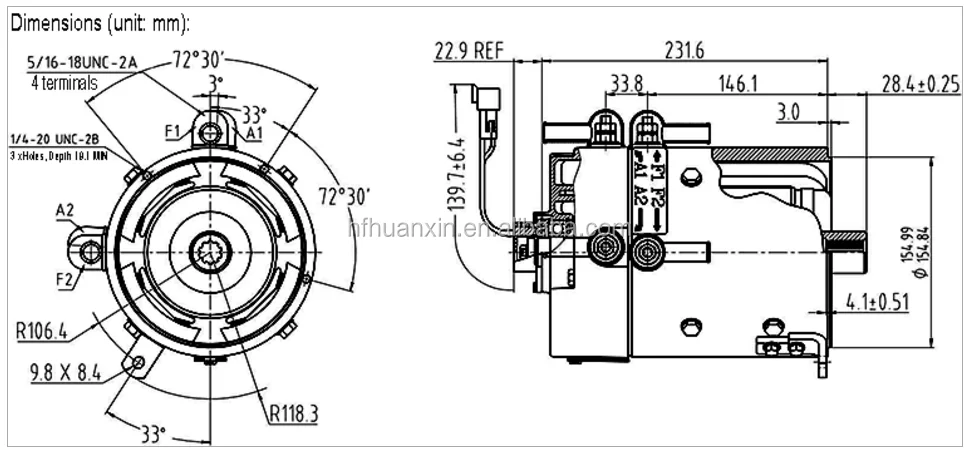

                  Dimensions (L×Ø): 231.60 × 154.99 mm
                  Package weight: 28.9 kg
                  Package environmental rating: IP20

Notice: this SepEx motor XP-2067-S is the product of AMD (made by Chinese manufacturer KDS), applied in multiple electric vehicle models of CLUB CAR (part number: 102775101), and other electric cart makers.
Notice:
XP-2067-S can work with CURTIS 1266A-5201 SepEx controller and CURTIS 1268-5403 SepEx controller. We can also provide the controller assemblage of 1268-5403.
For more application details (spline, transmission, etc.), please contact us ...

Detailed Images
Our Company

       Hefei Huanxin Technology Develop Co., Ltd. has been devoting ourselves to developing and manufacturing and other since 2004. We are located in Hefei, Anhui Province, with convenient transportation access. We employ over 101 - 200 People staff members. We have achieved great improvement since our company was founded in 2004. We abide by the motto of First-class quality, Reasonable price, Best service and Professional product support.

On Exhibition
Certifications
Packing & Delivery

Package: Normally we use the standard exporting packaging. We also can according to clients' request .

Shipping :
           1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier we are co-operating at present.
           2. By Air: Delivery from the Shanghai airport to customers’ destination city air port.
           3. By Sea: Delivery from the Shanghai sea port .
