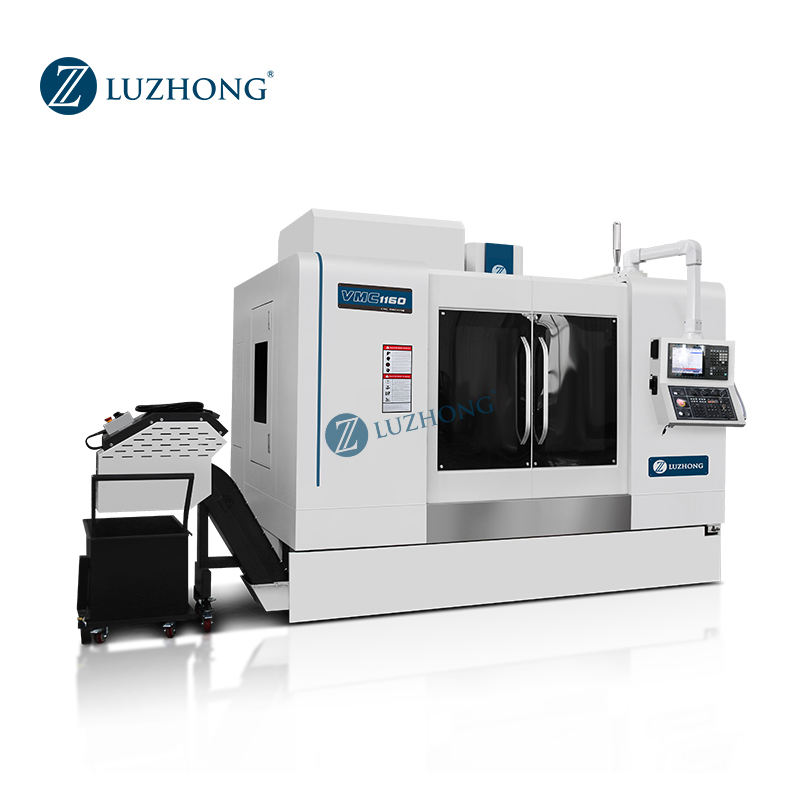

3 Axis 4 axis 5 axis VMC1060 Milling Machine CNC Vertical Machining Center for sale

  • >=1 Sets
    $34,300.00
Model Number:
VMC1060
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Manufacturing Plant, Factory
Condition:
New
Type:
Vertical
Place of Origin:
Shandong, China
Brand Name:
Luzhong Machine Tool
Voltage:
380V
Dimension(L*W*H):
2380x1950x2300
Weight (T):
3400
Power (kW):
5.5
Certification:
ISO CE
Warranty:
1 year paid for home service
After-sales Service Provided:
Online support, Video technical support
Key Selling Points:
Eco-friendly
Table Travel (X) (mm):
1000
Table Travel (Y) (mm):
600
Table Travel (Z) (mm):
600
Table Size (mm):
1200x600
Product name:
3 Axis 4 axis VMC1060 Milling Machine CNC Vertical Machining Center
Machine Type:
Vertical Machine Centers
Max Spindle speed:
8000r/min
Spindle taper:
BT40
X-axis travel:
1000mm
Y-axis travel:
600mm
Z-axis travel:
600mm
Repeat positioning accuracy:
±0.004mm
Application:
General Machinery Processing
Product Certification Verified
CE Certified.
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
The Package of our vertical machining center is export standard plywood case with iron pallet below ,very strong and durable .
The vertical machining center will be shipped to customers by land freight or sea freight .
Port
Any port in china
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated
Video Description

3 Axis 4 axis 5 axis VMC1060 Milling Machine CNC Vertical Machining Center for sale

Product Description

Features:

1. High quality resin sand

2.Taiwan spindle

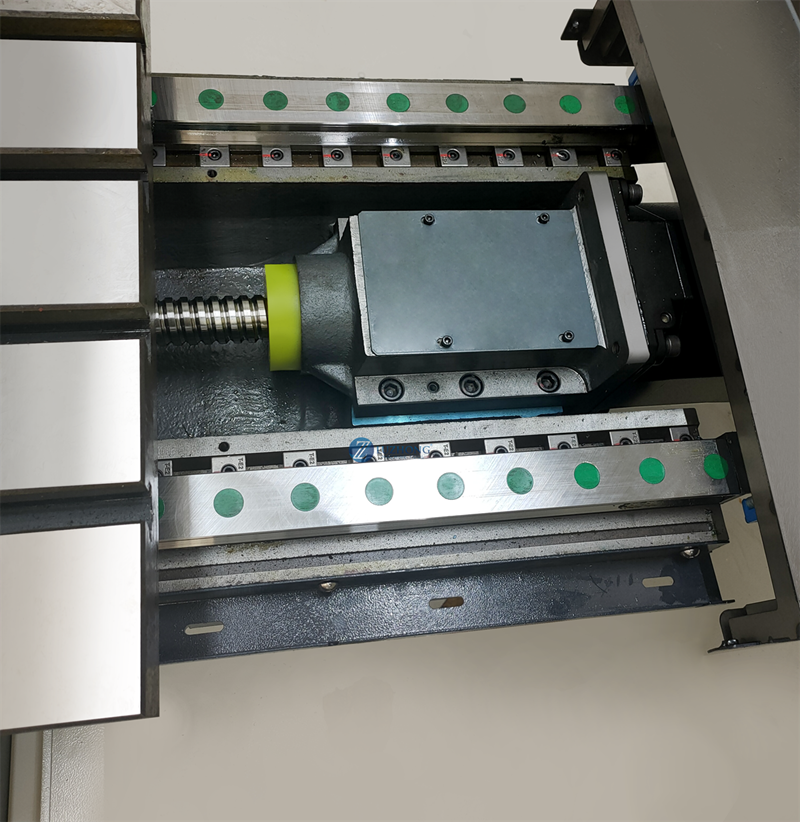

3.Taiwan ball screw and locking nut

4.Taiwan pressure cylinder

5.Japanese NSK bearing germany R+W coupling

6.Automatic lubrication system

7.Chip conveyor at optional

Application:

This VMC is suitable for mechanical processing and mold making .And it can asapt to the processing requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling ,tapping ,boring ,etc.

Product Main technical parameters:

Specifications

Unit

VMC650

VMC850

VMC1060

Table size

mm

800X400

1000X500

1200X600

Table Maximum load

kg

450

500

600

X/Y/Z axis travel

mm

650X400X500

800X500X500

1000X600X600

Distance between spindle center and column surface

mm

469

571

667

Distance between spindle end face and worktable surface

mm

100-600

150-650

100-700

X/Y/Z max. feed speed

mm/min

10000

10000

10000

X/Y/Z max. rapid traverse

m/min

24/24/20

24/24/20

24/24/20

Max. spindle speed

r/min

8000

8000

8000

Spinder taper



BT40

BT40

BT40

Spindle motor

kw

5.5/7.5

7.5/11

11/15

X/Y/Z axis servo motor

kw

1.0/1.0/1.5

2.0/2.0/2.0

2.5/2.5/2.5

X/Y/Z motor connection



direct

direct

direct

X/Y/Z guid rail form



3 axis linear guide

3 axis linear guide

3 axis linear guide

T slot (number-width-pitch)



3-18-125

5-18-90

5-18-100

Repeat Positioning Accuracy

mm

±0.003

±0.003

±0.003

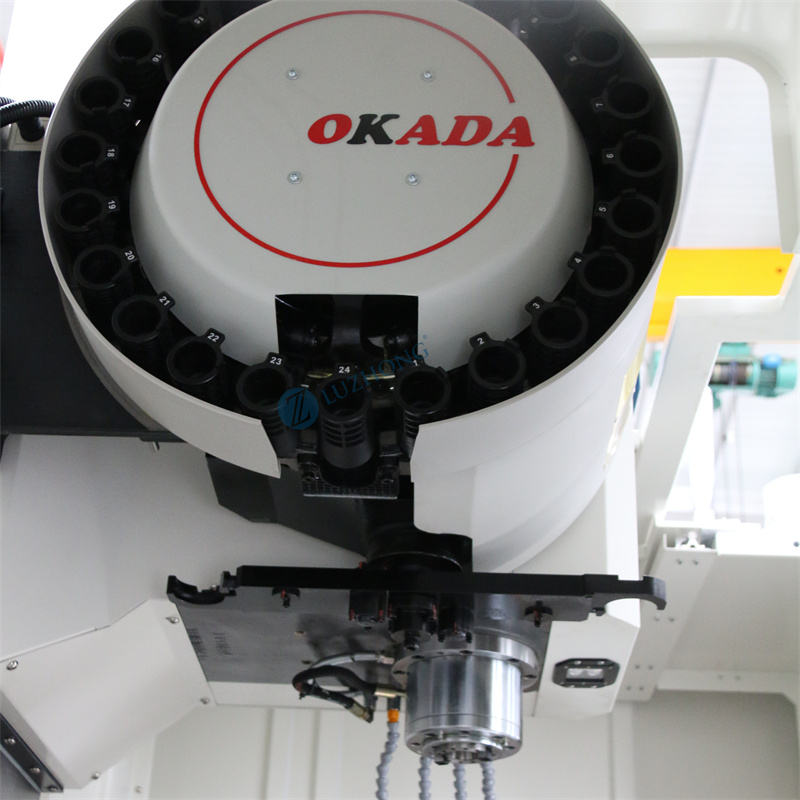

Tools type



Armless: 12 /arm:16

Armless: 16/arm:24

Armless: 16/arm:24

Max. Tool weight

kg

7

8

8

Max tool length

mm

250/350

250/350

250/350

Eletric Capacity

KVA

10

11

16

Machine Dimension

mm

2300x2200x2400

2880x2450x2700

3340x2800x2700

Machine weight

kg

4500

6000

7000
