3 Spindles Pneumatic Tool Changing ATC Woodworking CNC Router atc spindle 3.5kw kitchen cabinet door making machine

FOB Reference Price:Get Latest Price
$2,500.00 - $6,999.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
CNC or Not:
CNC
Place of Origin:
Shandong, China (Mainland)
Brand Name:
senke
Model Number:
SKW-1325DC
Voltage:
220V/380V
Power(W):
3.5KW
Dimension(L*W*H):
1300*2500*200mm
Weight:
1500kgs
Certification:
CE ISO
Control system:
original NC- studio cotrol system/customer can optional
Motor:
Stepper /servo motors
Spindle power:
3.5kw air cooling spindle
Software:
Artcam/Type3
Color:
choose
Guida:
Taiwan HIWIN square rails
body structure:
thicked steel made
Spindle:
Watercooling/aircooling Spindle
Transmission:
Rack and pinion
Application:
Woodworking
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
2 Years
Supply Ability
Supply Ability:
200 Set/Sets per Month
Packaging & Delivery
Packaging Details
standard export wood box
Port
qingdao/shanghai/tianjin
Lead Time :
7-12 working days
Product Description

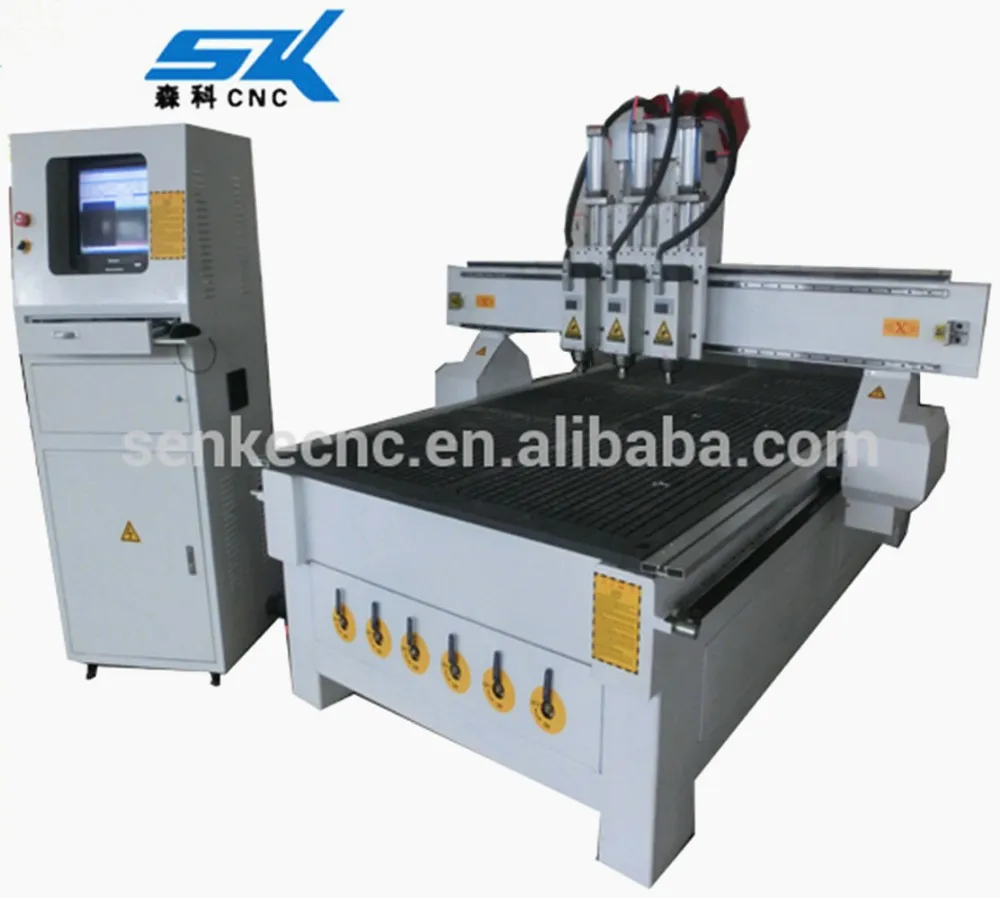

3 Spindles Pneumatic Tool Changing ATC Woodworking CNC Router atc spindle 3.5kw kitchen cabinet door making machine

Features:


1. Integrally cast lathe bed, firm and noon-deforming, high rigidity and high accuracy, good performance and durability.
2. One machine can complete the workload of several machines at the same time, saving production time and cost ,enhancing the working efficiencye.
3. stepper motors & servo motors and drivers,high speed,long life and higher precision
4. big size gear rack keep the machine run stabely
5. dust collect and vacuum table for optional choose.


Technical Parameters
Model
SKW-1325DC size as needed
Working Area (X*Y*Z mm)
1300*2500*200mm/ according to models
X, Y  movement
Rack and pinion
Z movement
Ball screw transmission
Guide
Taiwan HIWIN square rails
Max Moving Speed
43000mm/min
Max Engraving Speed
2500mm/min
Spindle power
3KW 4.5KW watercooling/ Aircooling spindle(choose)
Spindle Speed
18000-24,000rpm
Control system
Original NC-studio/DSP optional
Drive motors
Stepper motors (servo motors & drivers optional)
Working Voltage
220V /380V or customized
Command code
G Code
Software
Artcam , type 3 ,etc
Optional parts
1.vacuum table,vacuum pump
2.Whole set dust collector system
Detailed Images

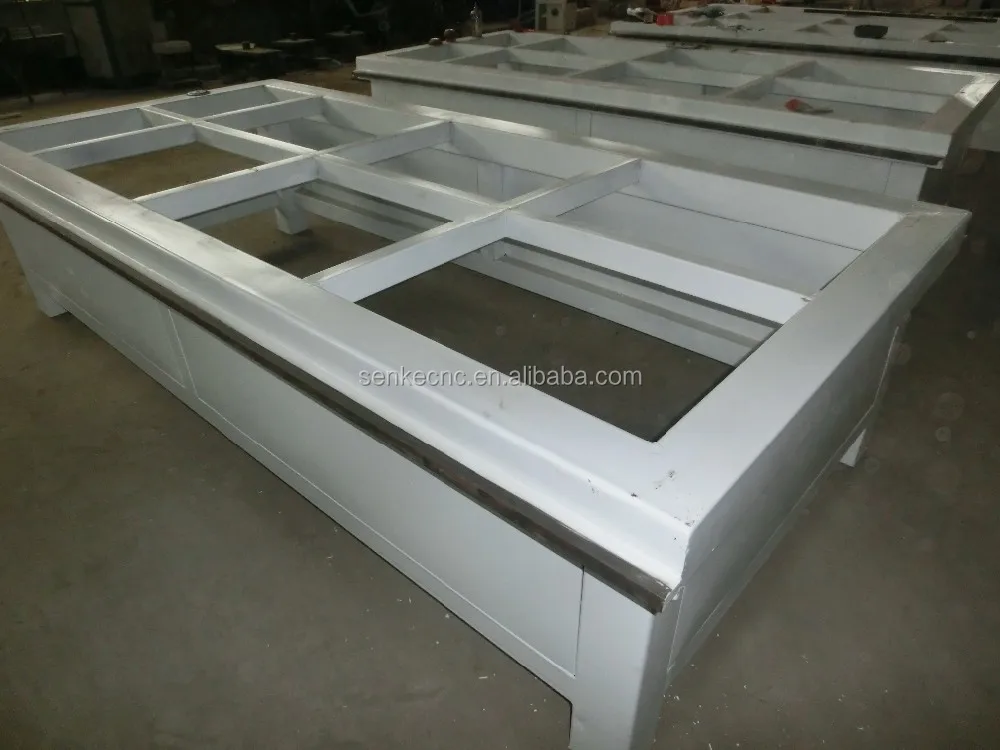

        intergrally cast lathe bed

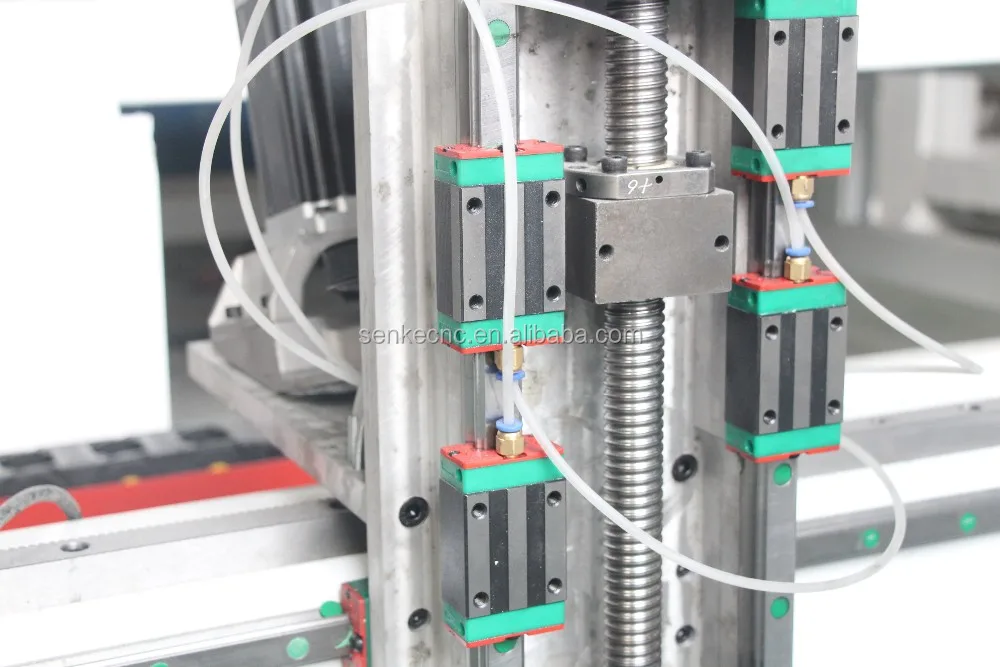

         Taiwan ball screw

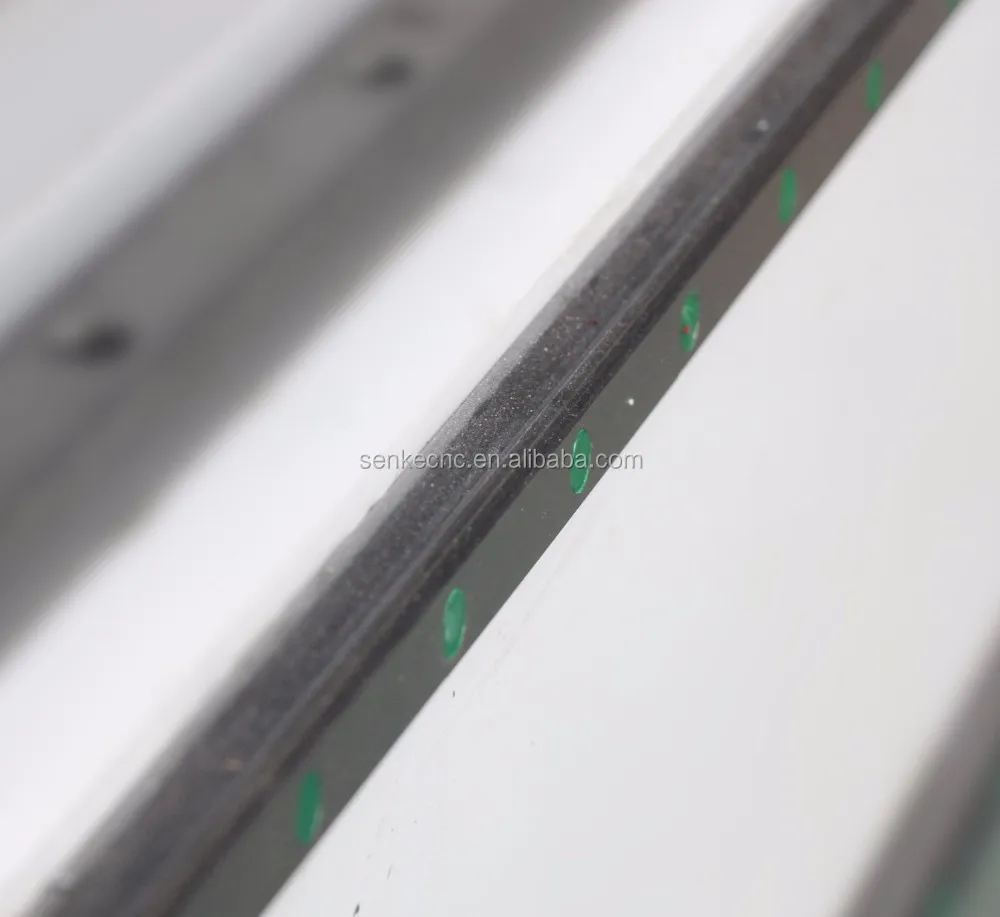

     Taiwan HIWIN square rails

          3.5kw aircooling spindle

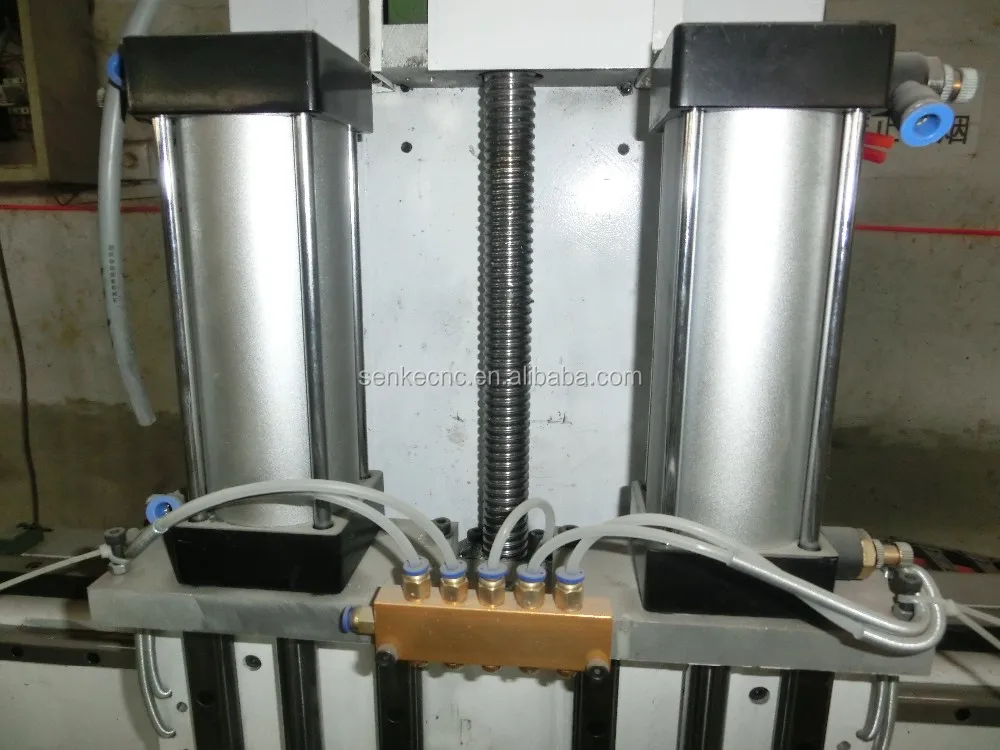

    pneumatic cylinder system

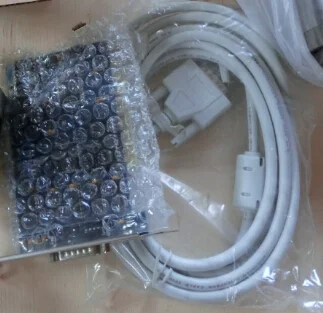

 Original NC- studio controller

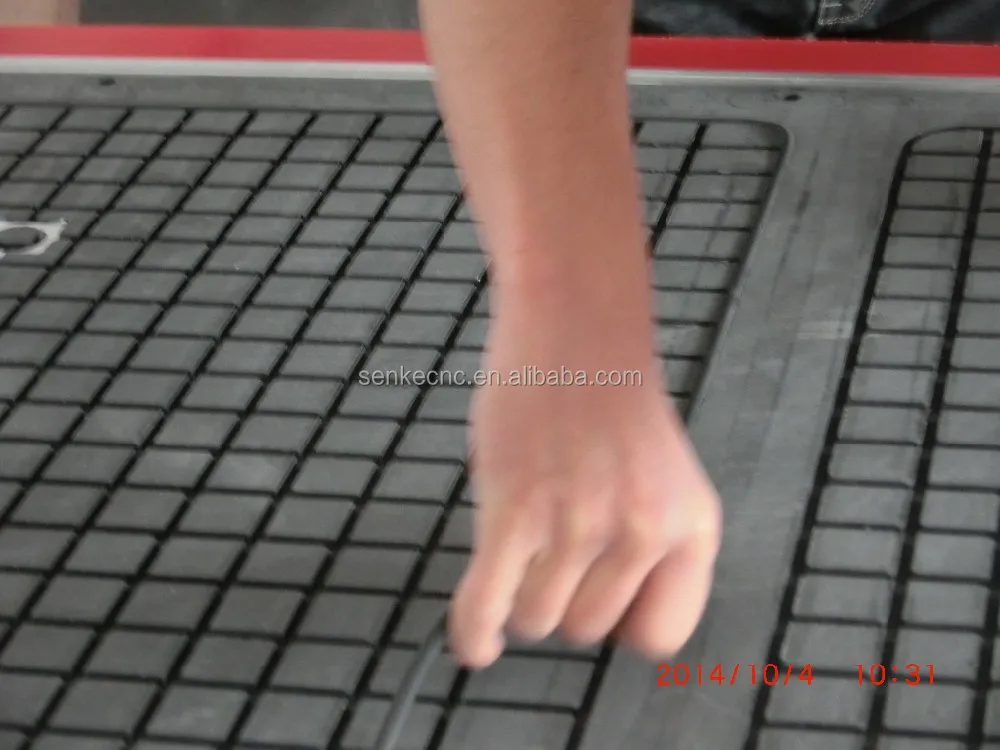

           Vacuum table

              Vacuum pump

 automatic lubrication system

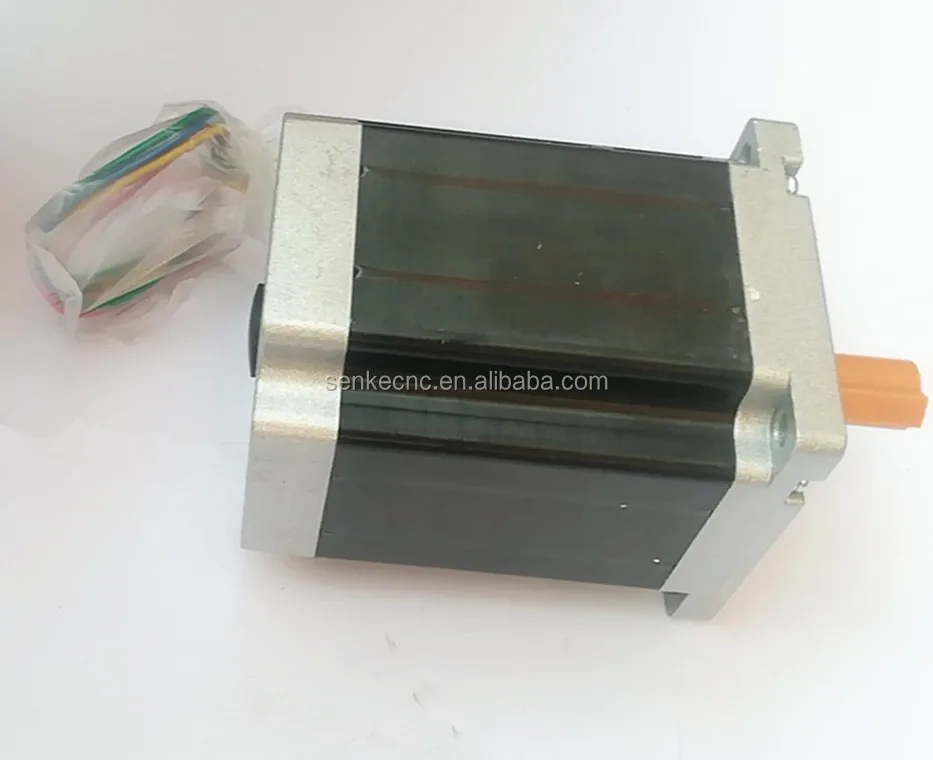

           Stepper motors

            Dust collection

strongest steel made dargon gate



Application

1. Wood furniture industry
Doors; Cabinets; Tables; Chairs.
Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.

2. Advertising industry
Signage; Logo; Badges; Display board; Meeting sign board; Billboard
Advertising filed, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.

3. Die industry
A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, and other non-metallic mold.

4. Artwork and Decoration
wood crafts; gift box; jewelry box

5. Others
Relief sculpture and 3D engraving and Cylindrical object.

Samples
Our Service

1.Manufacturer directly
2.Quatity guarantee for 2 years
3.Door to door service available
4. First class engineersgive 24-hour service on Internet and telephone,free instructions and problem solving.
5.Free training to make sure you master the operating of our machine

Packing & Delivery
Our Company

Office

Factory

Certificate

Main product

Customer feedback
FAQ

Q.how shall I choose the models?
different models suitable for different materials,just tell us,what your mainly materials,what the materials size and what the mainly job need the machine do. we senke engineer will supply you the best solutions.

Q.what kind materials your machine can process?
according to parts adopt,the senke cnc equipment suitable for all kinds of materails,including metals and non-metals,such as types of wood,marble,granite,metals(aluminum,brass,cooper,steel etc),foam(EPS),PVC,PCB board,double-colour board,glass,tiles etc etc.

Q.tell me about the controller?
the commonly market use for cnc machine including,NC-studio,mach 3,DSP,SYNTEC etc,according to models choose,senke adopt NC-studio as standard

Q.what other accessories included?
please kindly contact we seller,we will supply you the detailed senke machine packing list.
