3 Ton Industrial salt water seawater flake ice machine

FOB Reference Price:Get Latest Price
$200.00 - $2,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
GPB 0.5
Output:
3 tons per day
Lead Time:
Quantity(Sets) 1 - 10 >10
Est. Time(days) 25 Negotiable
Report Suspicious Activity
Overview
Quick Details
Power(W):
2.49KW
Ice Shape:
Flake Ice
Dimension(L*W*H):
1280X800X800
Warranty:
1 Year
After-sales Service Provided:
Field installation, commissioning and training, Field maintenance and repair service, Online support
Condition:
New
Capacity:
0.2-3.0 tons
Place of Origin:
Shandong, China (Mainland)
Brand Name:
Grand
Voltage:
3P/380v/50HZ
Weight:
300KG
Certification:
CE
Liner Material:
carbon steel
Ice thickness:
1.5~2.2mm
Control system:
Automatic Control System
Refrigerant:
R507
Evaporating Temperature:
-20℃
Condensing Temperature:
+35℃
Cooling Type:
Air Cooliing
Daily capacity:
0.2-3 Ton
Refrigerating capacity:
2-18KW
Supply water pressure:
0.15-0.5Mpa
Supply Ability
Supply Ability:
1000 Set/Sets per Year
Packaging & Delivery
Packaging Details
wooden package or contaniners
Port
Qingdao/Shanghai/Guangdong/Tianjin
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 10 >10
Est. Time(days) 25 To be negotiated
Product Description

Flake Ice machine Application Field:

1 supermarkets and sea food markets

2 ,chicken processing

3 Fresh preservation for fruit, vegetable

4 Fishery cooling and packing

5 Slaughtering industry

6 Pharmaceutical application

Working Condition

1. Standard ambient temperature: 25ºC

2. Standard water inlet temperature: 18ºC

3. Evaporating temperature: -20ºC

4. Condensing temperature: 40ºC (air cooled) / 38ºC (water cooled)

5. Power supply: 3P/380V/50Hz

6. Flake ice thickness: 1.8-2.3mm

7. Refrigerant: R404A (R22 and R717 are optional)

Advantages

Advantages of flake ice machine

1 Small footprint

2 The product flake ice is dry, not easy to agglomerate

3 Good fluidity and good hygiene

4 Large contact area with fresh food, not easy to damage the preservation products

Working Principle

Ice making principle

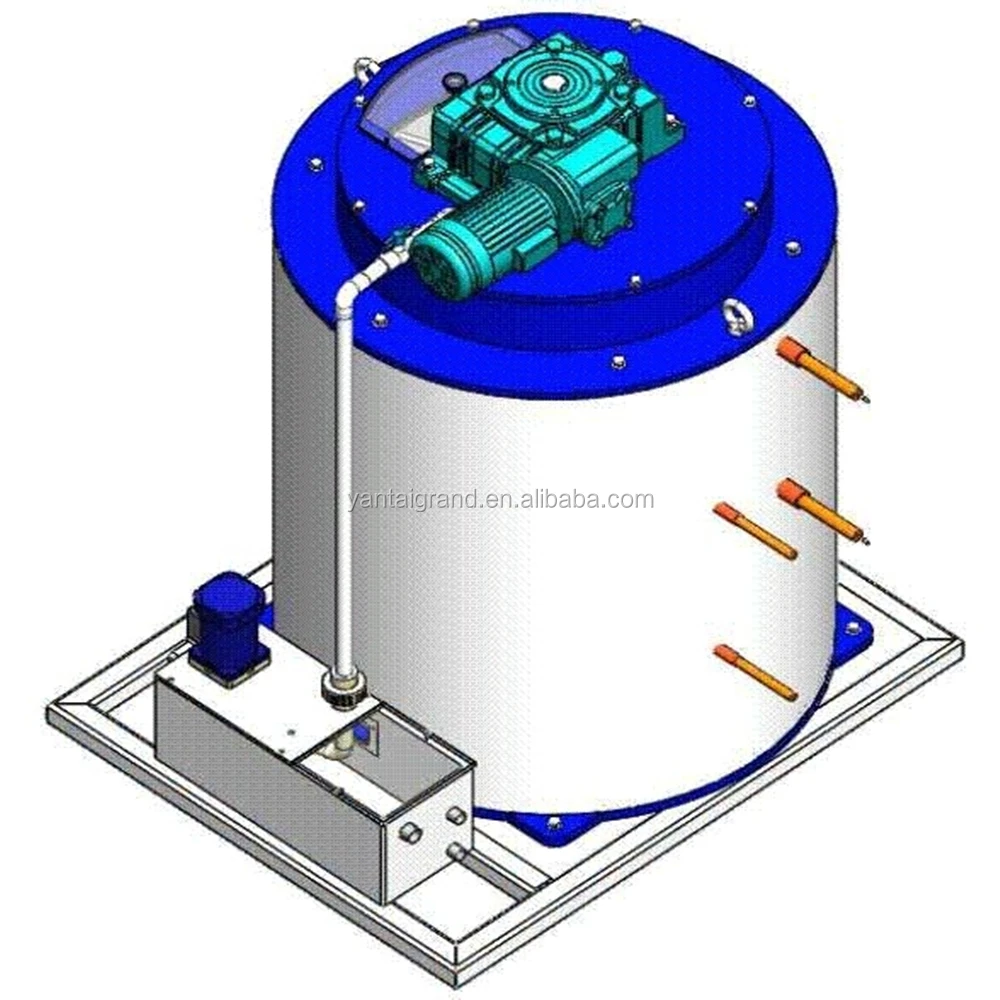

The water enters the water distribution tray from the water inlet of the flake ice machine evaporator, and the water is evenly sprinkled on the inner wall of the evaporator through the sprinkling water pipe to form a water film; the water film exchanges heat with the refrigerant in the evaporator flow path, and the temperature dropped rapidly, a thin layer of ice is formed on the inner wall of the evaporator, which is broken into pieces of ice under the squeezing of the ice knife and falls into the ice storage from the ice falling port. Part of the water that has not formed into ice passes through the water tray and returns from the water return to the cold water tank through the cold water circulation pump.

Ice making cycle

By replenishing the water valve, the water automatically enters a water storage tank, and then the water is pumped through the flow control valve to the splitter head, where the water is evenly sprayed onto the surface of the ice maker, flowing through the ice maker like a water curtain On the wall, the water is cooled to the freezing point, and the water that has not been frozen by evaporation will flow into the reservoir through the porous tank and resume the cycle.

Ice picking cycle

When the ice reaches the required thickness (normally, the thickness of the ice is 1.5-2.2 MM), the hot gas discharged from the compressor is redirected back into the wall of the ice maker to replace the low temperature liquid refrigerant. This forms a film of water between the ice and the wall of the evaporation tube. This layer of water will act as a lubricant when the ice falls freely into the groove below by gravity. The water produced during the ice picking cycle will pass through the porous tank back into the water reservoir, which also prevents the wet ice from being discharged by the machine.
