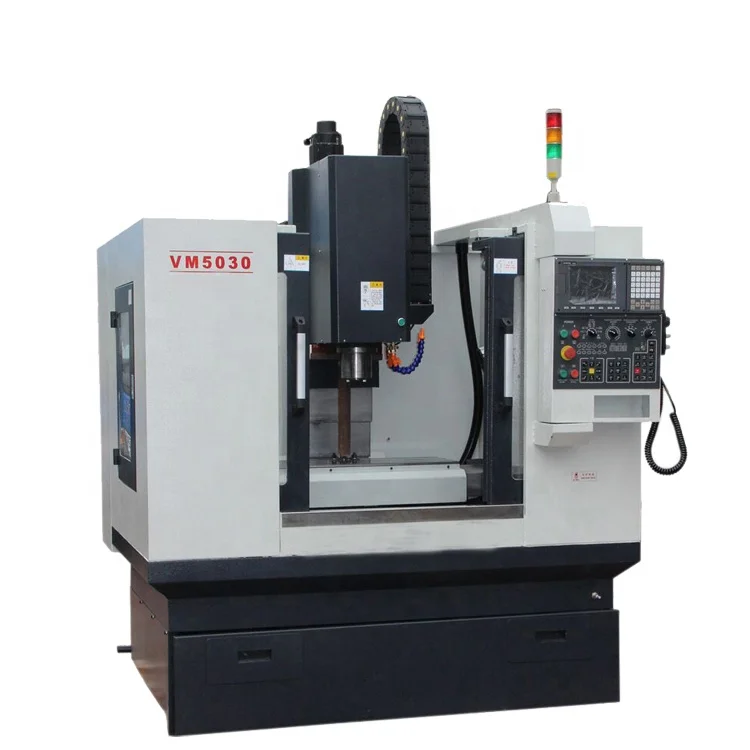

3 axis or 4 axis rotary table automatic tools changer chip conveyor cnc milling machine VMC5030

FOB Reference Price:Get Latest Price
US $17,950-22,000 / Sets | 1 Set/Sets (Min. Order)
Table Size:
630x280mm
Report Suspicious Activity
Overview
Quick Details
Table Travel (mm):
500x280x400
Repeatability (X/Y/Z) (mm):
0.075
Positioning Accuracy (mm):
0.015
Condition:
New
Place of Origin:
Shandong, China (Mainland)
Brand Name:
HIENCE
Model Number:
VMC5030
Type:
Vertical
CNC or Not:
CNC
Voltage:
380V
Power(W):
3.7KW
Dimension(L*W*H):
1900mm*1800mm*1900mm
Weight:
2100KGS
Certification:
CE ISO SGS
Warranty:
1 Year
After-sales Service Provided:
No after-sales service, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support, Video technical support, Engineers available to service machinery overseas
Color:
Optionl red or white or other color
protective cover:
armour-protected
Guide rail:
Box Way Type Or Linear type
Guide rail cover:
Optional
ATC:
optional
Chip conveyor:
Optional

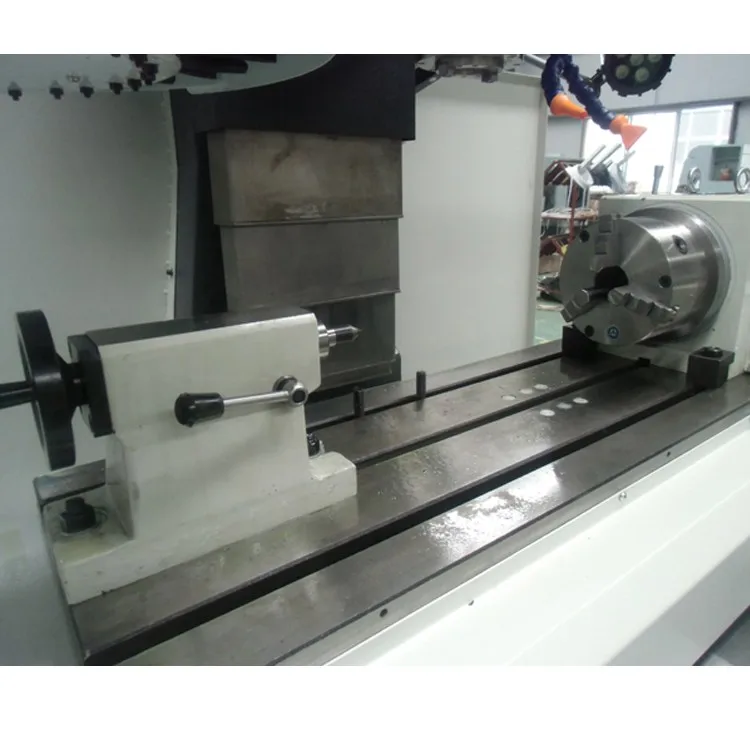

4 axis:
optional
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
Free fumigation wooden cases or fumigation wooden cases.
Port
Qingdao, Ningbo, Shanghai, Tianjin
Lead Time :
Quantity(Sets) 1 - 5 >5
Est. Time(day) 30 To be negotiated
Product Description

Configuration and specification

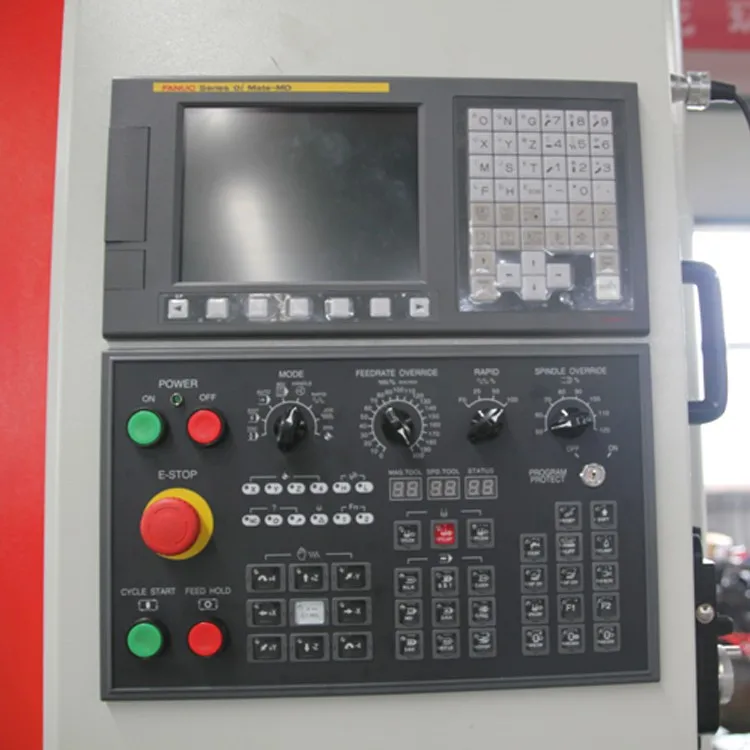

1. Control system: KND system, Optional SYNTEC LNC from Taiwan, GSK , SIMENES FANUC,

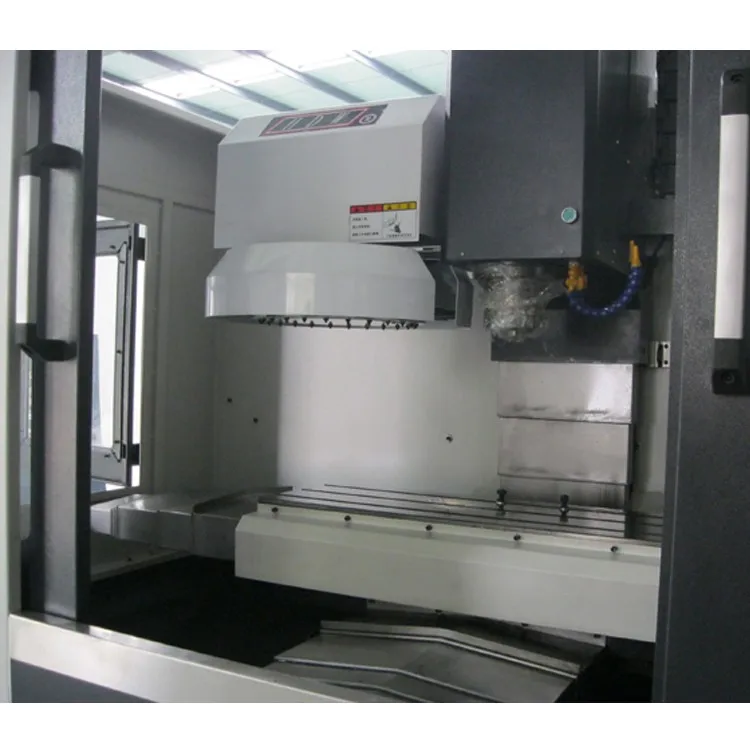

2.6 tool ATC
3.Three axis box way type, Option linear guide rail.

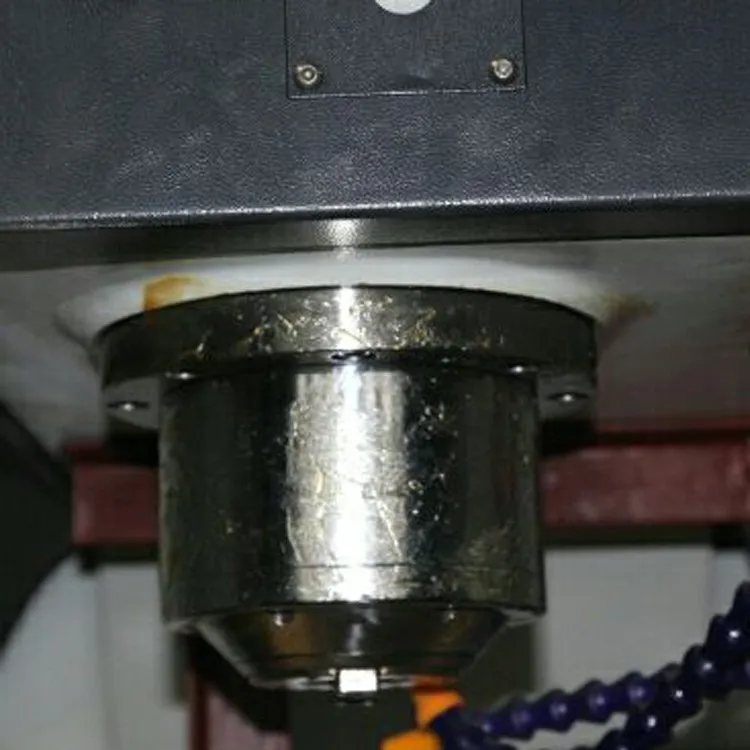

4.Taiwan BT30 spindle unit
5.Precision ball screw
6.Coolant system, Self lubrication system. Lighting system
Items
Specification
Table size(mm)
630×280
T type groove (Number-width(mm)–gap(mm))
3-14-80
The workbench maximum load(kg)
300
Travel of X axis (mm)
500
Travel of Y axis(mm)
280
Travel of Z axis(mm)
400
The spindle end to the work surface(mm)
100-500
The center of spindle to guide rail face(mm)
395
Taper hole of spindle
BT30
Highest speed of spindle(Rpm)
100-8000
Power (kW)
3.7
Rapid feed speed of X/Y/Z axis (m/min.)
15/15/12
Fast cutting speed of X/Y/Z axis(m/min)
10/10/5
Width of Wire rails X/Y/Z(mm)
20
positional accuracy (mm)
0.001
repeated positioning accuracy
 0.008
Capacity
6 tools
Max tool size
120
Max tool weight
6kg
Weight(kg)
2100
Dimension(mm)
1900×1800×1900
Voltage
3 phase 380V
