3 led module for street light 150w led street lamp 5 years warranty

  • 2-39 Pieces
    $121.00
  • 40-99 Pieces
    $117.00
  • >=100 Pieces
    $111.00
Emitting Color:
Cold White Warm White White
Lamp Power(W):
120
$
- +
available
150
$
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
15 day(s) after payment received
Customization:
Customized logo (Min. Order: 100 Pieces)
Customized packaging (Min. Order: 100 Pieces)
Samples: $121.50 /Piece, 1 Piece (Min. Order): Buy Samples
Contact Supplier
Samples - $121.50 /Piece, 1 Piece (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Light Source:
LED
Input Voltage(V):
100-270
Lamp Luminous Flux(lm):
24000
CRI (Ra>):
70
Working Temperature(℃):
-40- 50
Working Lifetime(Hour):
50000
IP Rating:
IP65
Certification:
CE, CQC, EMC, LVD, RoHS, SAA
Warranty(Year):
5
Place of Origin:
Zhejiang, China
Brand Name:
BOPIN
Model Number:
BSL48Z-F3D
Beam Angle(°):
TypeI/ TypeII/ TypeIII/ TypeIV
Application:
ROAD
Product name:
Led Street Lamp
Keyword:
150w street light
IK Rating:
IK10
Driver:
Meanwell/Inventronics/BOPIN
Pole mounting diameter:
40mm to 60mm
Lamp Luminous Efficiency(lm/w):
100- 150lm/w
Size:
596*314*123mm
Net Weight:
6.5kg
warranty time:
5 years
Delievery Date:
5-7 working days for sample

Packaging & Delivery

Selling Units:
Single item
Single package size:
75X39X20 cm
Single gross weight:
9.5 kg
Package Type:
1pc/CTN, 40pc/PALLET; Along protective films inside, packing belt, and wodden tray. Load for 20FT: 670pcs; Load for 40FT: 1670pcs.
Picture Example:
package-img
Lead Time :
Quantity(Piece) 1 - 2000 >2000
Est. Time(days) 15 To be negotiated
Product Description

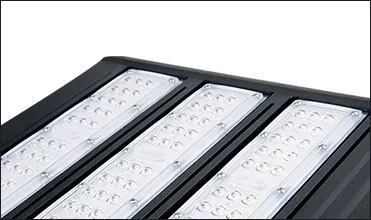

      Optical Lens

            Imported optical lens with high lighting
            transmittance, anti-UV materials, secondary
            light dissipation technology.





      Heat Dissipation

           Lamps heat dissipation radiators use tensile
           aluminum with high thermal conductivity, with
           rational heat distribution, thermal equilibrium.

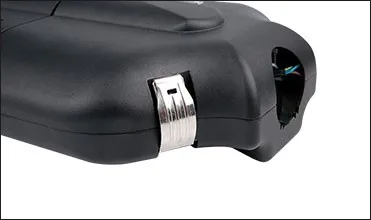

       Buckle Design

            Lamps covers use buckle design, make the replacement and maintenance more quickly

            and easily, as well as have simple and

            beautiful appearances.

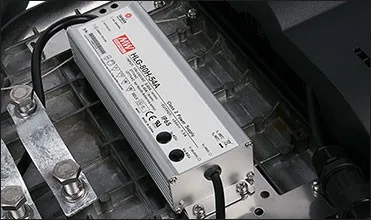

      Branded LED Driver

          Can achieve intelligent lighting control and

          6KV/10KV surge protection. Provide excellent performance and lifespan.

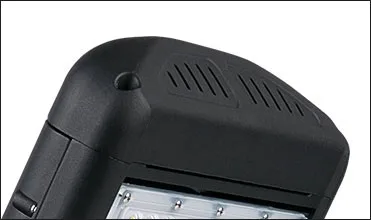

       Die-Casting
       Aluminum Housing

            A: Rear Cover, To prevent leafs and bird dung.
            B: Holes in Housing, better air convection and
            better heat dissipation.
            C: Gaps between modules, solve the problem of
            dust and water deposition.

Modular Design

Lamps adopt modular design, both dust cover and modules are modular which can be easily for regular stock up, so
that the demand for different customized specifications can be achieved.

Technical Parameters
Model No.
BSL18Z-F3D
BSL18Z-F1D
BSL32Z-F3D
BSL36Z-F3D
BSL48Z-F3D
BSL54Z-F3D
BSL64Z-F3D
BSL72Z-F3D
BSL80Z-F3D
BSL90Z-F3D
Wattage
60W/70W
100W/120W
150W/180W
200W/240W
250W/300W
Input voltage
AC100-270V 50/60HZ
LED driver
Meanwell Driver/Inventronics driver /BOPIN driver
LED chips
Lumileds
Lumileds
Lumileds
Lumileds
Lumileds
Rating
IK10,IP65
IK10,IP65
IK10,IP65
IK10,IP65
IK10,IP65
Light efficacy
100lm/w-150lm/w
CCT
3000K/4000K/5000K/5700K/6500K
CRI
75±5
75±5
75±5
75±5
75±5
Power factor
>0.95
>0.95
>0.95
>0.95
>0.95
Lamp materil
Die-casting Aluminum+PC
Pole  mounting diameter
Suitable for 40mm to 60mm pole
Warranty
5 years
5 years
5 years
5 years
5 years

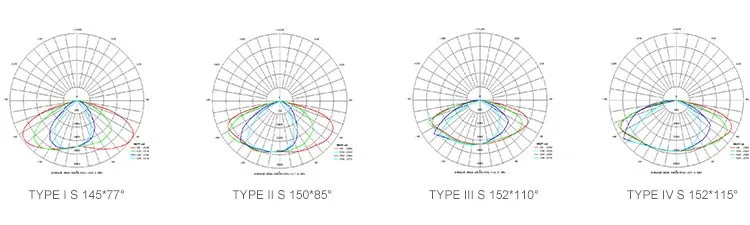

Distribution Curve

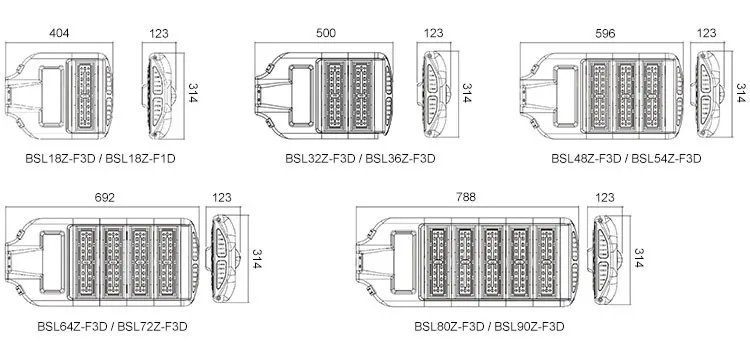

Product Size

Model NO.
Product size(mm)
Net weight(kg)
Packing size(mm)
Gross weight(kg)
BSL18Z-F3D
BSL18Z-F1D
404*314*123
3.5
440*360*170
5
BSL32Z-F3D
BSL36Z-F3D
500*314*123
5.7
540*314*123
7
BSL48Z-F3D
BSL54Z-F3D
596*314*123
7
640*314*123
8
BSL64Z-F3D
BSL72Z-F3D
692*314*123
8.3
730*314*123
9.5
BSL80Z-F3D
BSL90Z-F3D
788*314*123
9.6
820*314*123
11

Distribution Mode

Applications

General lighting for all area and site lighting for parking lot, playground ,highway,village road,seaside road and etc. Available to replace traditional MH or HPS luminaires up to 400W.

Our Company
Customer Photos
FAQ

Q: What's the MOQ for my order? What's the lead time for my order?
A: MOQ: 1 sample for checking& testing, we accept the small trial order.
     5 working days for sample,15 working days for mass production.

Q: What else power of lamp do you have? I need 1 type of 60W power.
A: Yes, for No.F14L model, we have 60W, 80W, 100W, 120W, 150W, 180W for options.

Q: What's the warranty time of your products?
A: 5 years (from goods received), It depends on the different product. during the warranty time, we are responsible for the quality issues.We will help to find the problem and solve it.Or send you new products.

Q: Would you please send me sample to Chinese warehouse?
A: Yes, please kindly let me know the warehouse address& zipcode.

Q: Could you add my LOGO to your lamp?
A: Yes, surely, please kindly send us LOGO file by JPG/PDF.

Q: What driver you can use in the LED street light?
A:Meanwell driver,inventronics driver,BOPIN driver,SOSEN driver and so on.Customized is accept.
    We also can supply Dimming control,DALI control,10kv surge protection driver.

Q: Do your street light can use in smart city control system?
A: Yes.
