30-60KW ce approved waste oil burner engine heater factory for sale

FOB Reference Price:Get Latest Price
$1,500.00 - $2,500.00 / Units | 1 Unit/Units (Min. Order)
Model Number:
KVH1000
Power(W):
30-60kw
Lead Time:
Quantity(Units) 1 - 1 >1
Est. Time(days) 20 Negotiable
Report Suspicious Activity
Overview
Quick Details
Type:
Air Heater
Power Source:
all kinds of waste oil,diesel oil
Dimension(L*W*H):
1100x550x550mm
Weight:
210kg
Warranty:
one year
After-sales Service Provided:
Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Online support
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
KING VITAL
Voltage:
220V Or 110V
Certification:
CE
Product name:
waste oil heater
Heat exchanger:
stainless steel combustion chamber
heat supply area:
200-600sq.m(2000-6000 sq.ft )
oil consumption:
3-5L/H
output power:
30-60KW
max.otuput heat:
50,000Kcal/H(200,000Btu/H)
working pressure:
0.5bar (7psi)
fuel:
all kinds of waste oil,diesel oil
Application:
basement,garage,workshop etc
business type:
original manufacturer
Supply Ability
Supply Ability:
1000 Unit/Units per Month
Packaging & Delivery
Packaging Details
1 unit:
plywood box with foam for sea ship
package size:173*86*77cm(1.146cbm)
G.W:210kg
Port
Qingdao
Picture Example:
package-img
Lead Time :
Quantity(Units) 1 - 1 >1
Est. Time(days) 20 To be negotiated
Video Description
Product Description
Model
KVH1000
Heat Supply Area
200-600sq.m(2000-6000 sq.ft)
Size(LxWxH)
110x55x55cm
Heat Exchanger
stainless steel combustion chamber
Draught Fan System
two 350mm(dia) YWF
Oil Consumption
3-5L/H
Output Power
30-60KW
Max.Output Heat
50,000Kcal/H(200,000Btu/H)
Air Output
6000m3/H
Fan Motor
0.3KW
Chimney Diameter
100mm
Power Supply
220V 50HZ or 110V 60HZ
Working Pressure
0.5bar(7PSI)
Must work with external air compressor
smallest capacity is 0.3-0.5cbm/min
Fuel
all kinds of waste oil,waste mixed oil,diesel oil
Application
garage,workshop,chicken house etc
✔available fuel list
used engine/motor oil
used crankcase oil
used transmission oil
used hydraulic oil
used synthetic oil
waste machine shop cutting oil
used grades #1,#3,#4 heating oils
used tyre/rubber pyrolysis oil
used diesel oil
used cooking oil/used vegetable oil
soybean oil/animal fat oil
used mixed oil
waste car/truck oil
waste plastic oil
sewage/sump oil
corrupt/dirty oil
bitumen/asphalt oil
liquid residual oil
diesel oil/clean oil/
refined oil
.........
✘gasoline,heavy oil,water



★removable window shade


★spray treatment in the casing surface

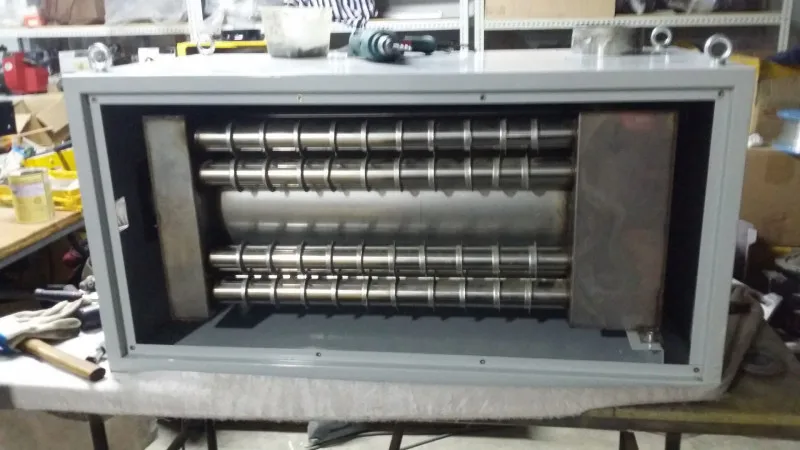

★304 stainless steel chamber room


★durable

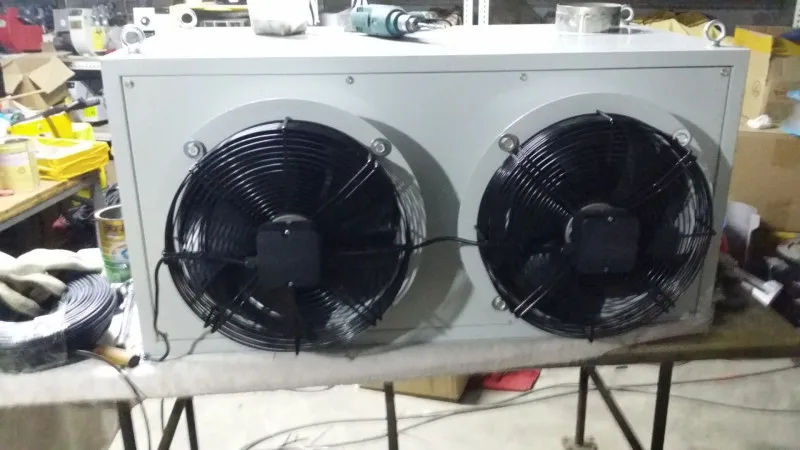

★two fans


★chimney connector on the top,no smoke



★easy operation panel


★fully automatic


★5 minutes to release warm air

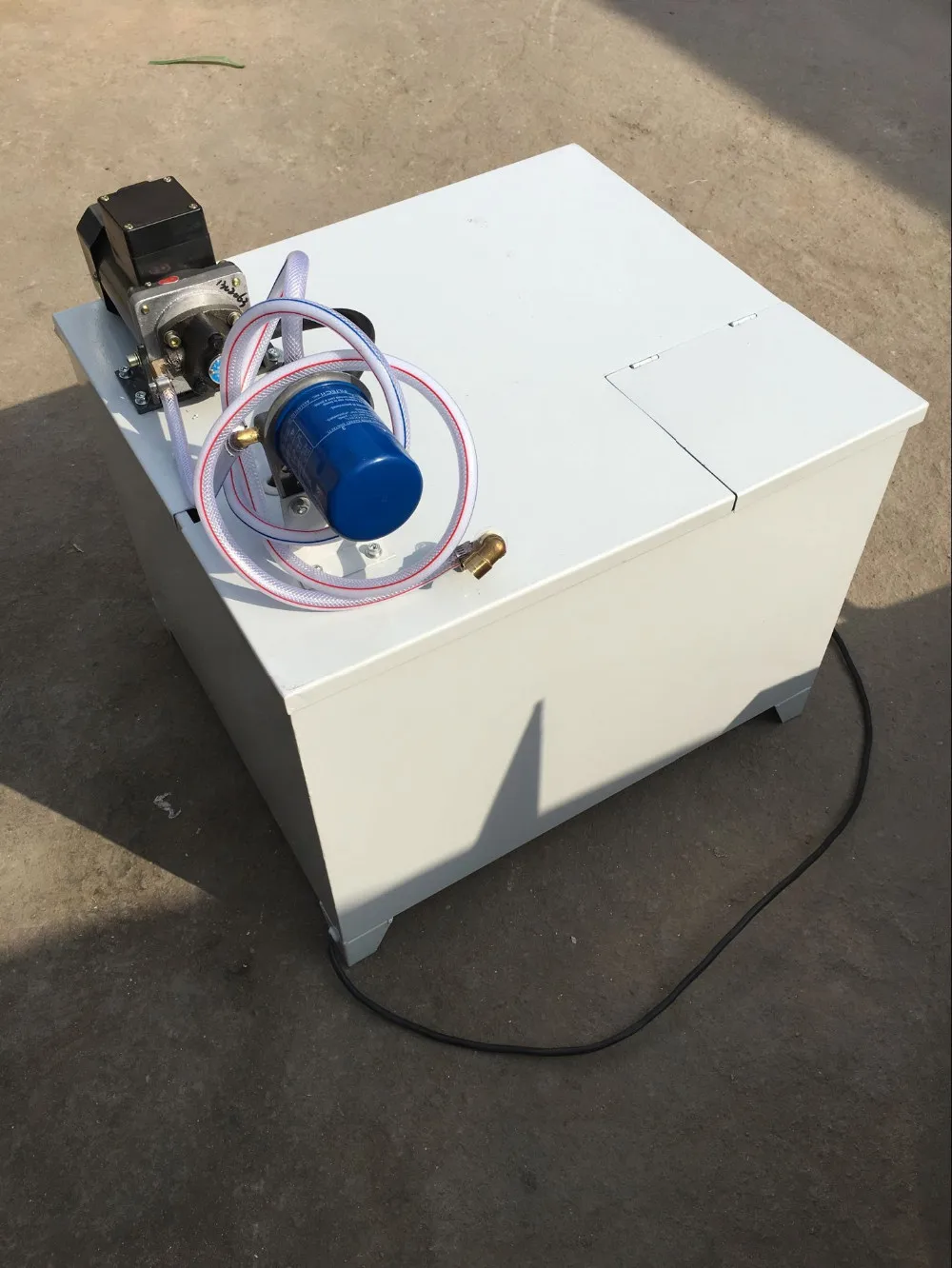

★external 100L big tank,whole oil pump&filter system etc are included





★high sensitive temperature senor included

Video:

https://youtu.be/G-Wkp6D-NHs (manual video)

Safety Precautions

micro switch

Stop the burner when oil level is not between the two oil float

Photo cell

Stop the burner when there is no light

oil pump

Stop the burner when oil pumps more than 2 mins

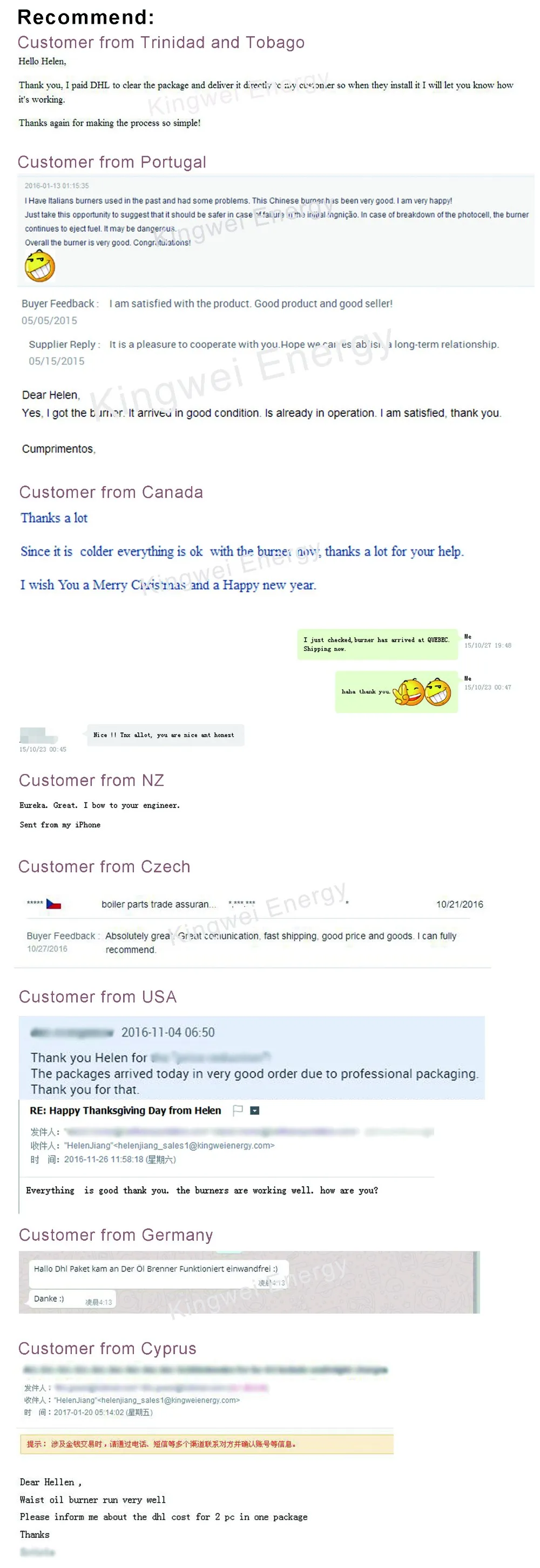

Buyer Feedback

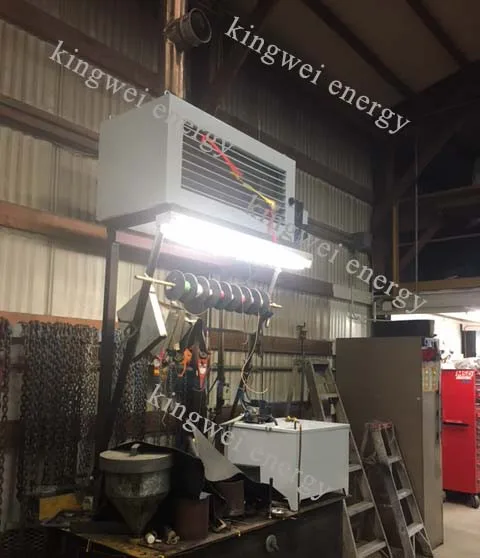

Pictures from USA Customer

FAQ


1.misfunction and solution:

●mal button lights,quick flicker turns to slowly flicker.

Press reset button to see if burner is back to work.If not,take off the photo cell and wipe.

●Mal button is alway light,reset button can't press.

In this case,power off and connect the power again.

It is a normal misfunction,because new burner,there is no oil in oil pump and filter.Pump can't supply oil within 2 mins,oil float gives message to print board,to shut down the burner for protection.

●Heat button is lighting,then light the mal button.

There is too much water in the oil.

use the valve in the bottom of the small tank to leak water.

Stilling oil for a night,let me water and oil seperate.

●Ignition rod is striking fire,but no fire.

Use the tool to remove the nozzle,check if it has been blocked,change the rubber pad too.

The tool and rubber pads are also with the burner,we send you for this situation.

If you meet other problem,contact us first .


2.Have you improved and innovated your product?

As a factory,we improve and innovate all the time,we take customers requirment seriously.For example:

We insulate copper in demand of NZ customer need.

We use one air compressor for two or three air solenoid system,to reduce the cost for customer.

If you have any requirement for burner,please let me know.


3.Customers have their own oil system,no need of oil pump system.Is that ok?

Yes,it's ok.Please let me know first.To see if we have to change the print board accordingly.


4.Do customers need to prepare the pre-filer?

No.We have it with the burner.If you have your own ideas,then it's ok.


5.Comparing waste oil burner within air pump,some diesel modified burner and other waste oil

burner brand,what's the difference?

We are true waste oil system,differ from waste oil burner within compressor,diesel modifed burner or other brand.

For example,we design the photo cells specifically for waste oil burner,more sensitive and precision than photodiodes.


6.Is necessary the burner working with 1 unit outside compressor?

Yes.It is.Because the simple principle is high pressure atomizing.


7.what's the air compressor would match your burner&heater?

KV-03,KV-05,KV-10,KV-20,KV-30 matches around 0.3-0.5cbm/min(5-9L/s) ac

KVH-1000,KVH-2000,KVH-5000 and KVH-6000 matches around 0.3-0.5cbm/min(5-9L/s) ac

Unit conversion:1cmb/min=16.7L/s


8.I am not so familiar about waste oil burner,which type should I choose?

It's ok.Contact us,we will guide you the best burner.


9.Can I pay by credit card instead of going to bank?

Yes,it's ok.Just let us know.
One Package Service

Machine Tool Workshop



Foundry Workshop






Assembled by handwork



Fire test,debug,record before

leaving factory



package according to different

situation



Transport

●By express,such as dhl
●By air
●By sea
●By land

After-sale service

●check carefully when you receive

the parcel,accessories are somewhere within the parcel.

●check the manual and video

carefully before operation.Manual is not within the parcel,your sales will send to your email.

●If there is any trouble when using

the machine,please take a video for

us.We will tell you how to manage.

Refund Guarantee

●We do all the business by alibaba      trade assurance order.In this case,if we fail to product quality and delivery time,alibaba will pay your loss.

●You can put an trade assurance order directly or ask your sales to draft it for you.

Contact&Social Page

Contact name: Helen Jiang
ID:cn1513245264
Phone/whatsapp/wechat: 86-130 1251 3355
Fax: 0532-68876247
Skype: live:15110a39c97c5b18

email:helenjiang_sales1@ kingweienergy.com(no blank after @)

linkedin: https://cn.linkedin.com/in/waste-oil-burner-supplier-bb4770ba
facebook: https://www.facebook.com/wasteoilburnersupplier
youtube: https://www.youtube.com/channel/UCrIv63Y1ri9tFY_g8DzKO4Q
https://www.youtube.com/channel/UCd2DtCB7ma4BzUwCRPVs4ow
shop on alibaba:Http://jinweijieneng.en.alibaba.com/

Office&factory address:No997 Wangsha Road Chengyang District Qingdao Shandong China

Model Comparison
Kingwei Waste Oil Heater Comparison
Model
Oil Consumption
(liter per hour)
output power
(kw)
max.output heat
(btu/h)
heat supply area
(sq.m)
Feature
2-3
14-55
12,000
below 200
▪Small light economic
▪Hanging,save space
▪External 54L oil tank included
▪openable chamber,asbestos free
3-5
30-60
20,000
200-600
▪Hanging type
▪External 100L oil tank included
▪warm air outlet:window-shades
6-8
80-120
40,000
600-800
▪Portable type
▪popular in garage
▪Inside 100L oil tank
▪warm air outlet:window-shades
6-8
80-120
40,000
800-1000
▪warm air outlet:two independent duct
▪special for chicken house
▪Portable type
▪Inside 100L oil tank
13-15
150-200
80,000
1000-1200
▪big power
▪warm air outlet:four independent duct
▪portable
▪inside 100L oil tank
▪apply for both indoor and outdoor

Unit conversion:

1 liter≈0.24gal(American&UK)

1 Kcal/h=4Btu/h

1 square meter≈0.1 square foot

*heat supply area also depends on space height
