3000W Series 230VAC/400VAC On/Off Grid 1 Phase Hybrid Solar Inverter
- Shipping:
- Support Sea freight
- Lead Time:
-
Quantity(Sets) 1 - 5000 >5000 Est. Time(days) 15 Negotiable
- Brand Name:
-
SWT
- Model Number:
-
Hybrid 3KW
- Output Power:
-
3kw
- Input Voltage:
-
170-280VAC
- Output Voltage:
-
202/208/220/230/240 VAC
- Output Current:
-
13A
- Output Frequency:
-
Low Frequency
- Output Type:
-
Single
- Size:
-
107*438*480MM
- Type:
-
DC/AC Inverters
- Weight:
-
15.5KG
- Product name:
-
Hybrid Solar Inverter
- Communication:
-
RS232/USB
- Color:
-
Green
- Mppt Voltage Range::
-
250-450VDC
- Keyword:
-
On/Off Grid or hybrid
- Output waveform:
-
Pure Sine Wave Output
- Feature:
-
Built-in timer
- Peak power:
-
9KW
- Mounting::
-
Wall Mounting
- Operating Temperature:
-
0 to 40 ℃
- Supply Ability:
- 10000 Set/Sets per Month Hybrid Solar Inverter
- Packaging Details
- Carton and wooden box or pallets for Hybrid Solar Inverter
- Port
- Xiamen
- Lead Time :
-
Quantity(Sets) 1 - 5000 >5000 Est. Time(days) 15 To be negotiated
Online Customization
3000W Series 230VAC/400VAC On/Off Grid 1 Phase Hybrid Solar Inverter
Advantage:
-It is based on grid-tied system. You could sell electricity.
-It is with a back-up battery. You could use storage power in the night.
-Programmable multiple operation modes: Grid-tie, off-grid and grid-tie with backup.
-Monitoring software for real-time status display and control
Features:
-3kw, 5.5kw, 10kw, On-Grid Inverter with Energy Storage
-Self-consumption and Feed-in to the grid
-Programmable supply priority for PV, Battery or Grid
-User-adjustable battery charging current suits different types of batteries
-Programmable multiple operations modes: Grid tie, Off grid, and grid-tie with backup
-Built-in timer for various mode of on/off operation
-Multiple communication for USB, RS-232, Modbus and SNMP
-Monitoring software for real time status display

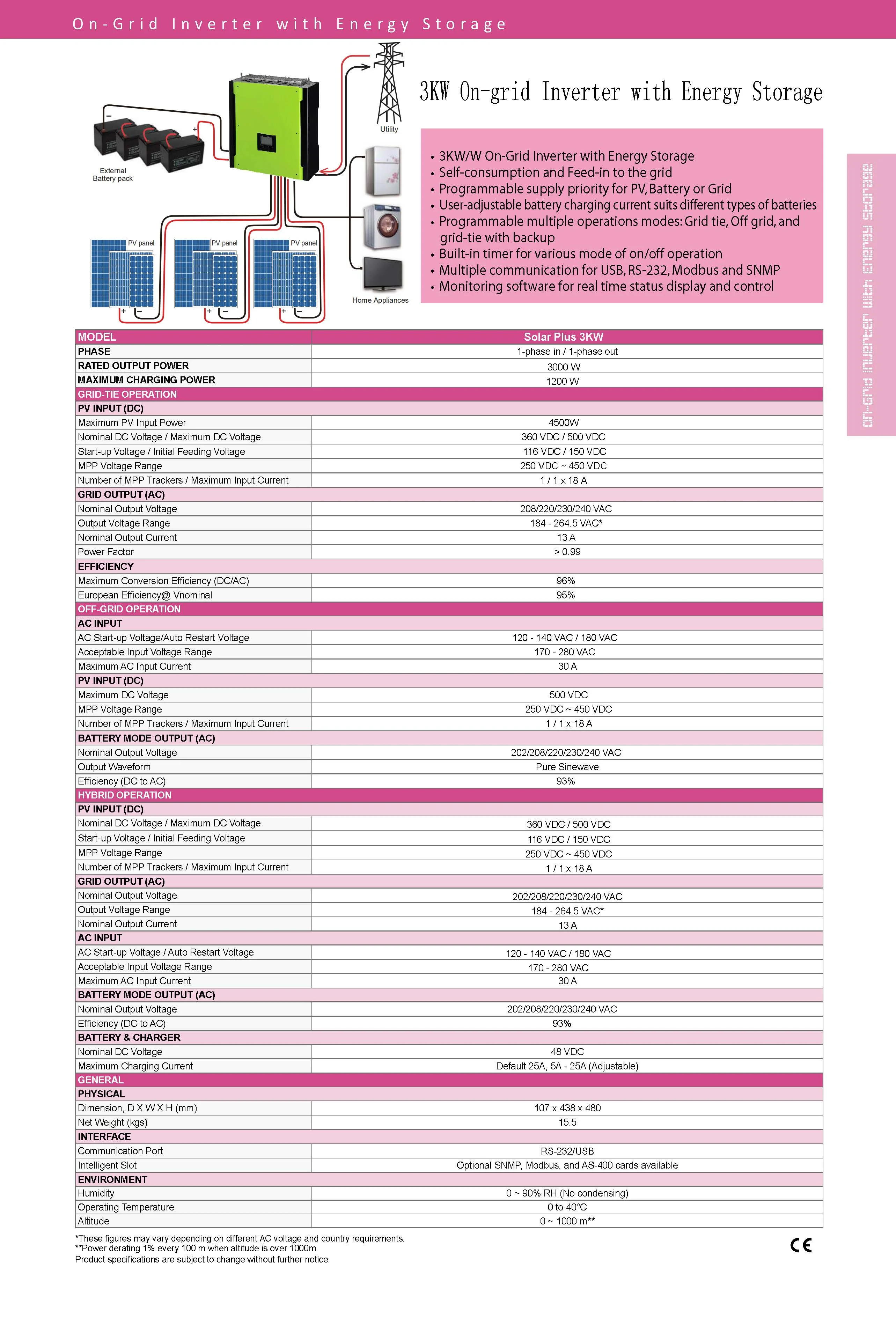

MODE | Solar Plus 3KW | Solar 5.5 KW | Solar Plus 10KW |
PHASE | 1-phase in / 1-phase out | 3-phase in / 3-phase out | |
RATED OUTPUT POWER | 3000W | 5500W | 10000W |
Maximum PV Input Power | 4500W | 6500W | 14850W |
MAXIMUM CHARGING POWER | 1200 W | 2880W | 9600W |
Nominal DC Voltage / Maximum DC Voltage | 360 VDC / 500 VDC | 360 VDC / 500 VDC | 720VDC / 900 VDC |
Start-up Voltage / Initial Feeding Voltage | 116 VDC / 150 VDC | 116 VDC / 150 VDC | 320 VDC / 350 VDC |
MPPT Voltage Range | 250 VDC ~ 450 VDC | 120 VDC ~ 450 VDC | 400 VDC ~ 800 VDC |
Maximum DC Voltage | 500VDC | 500VDC | 900VDC |
Output Voltage Range | 184 - 264.5 VAC* | 184 - 264.5 VAC* | 184 - 264.5 VAC* |
Number of MPP Trackers / Maximum Input Current | 1 / 1 x 18 A | 2 / 2 x 13 A | 2 / 2 x 18.6 A |
Nominal Output Voltage | 208/220/230/240 VAC | 202/208/220/230/240 VAC | 230(P-N)/400 VAC(P-P) |
Low Battery(DC) Cut-offVoltage | 40VDC-60VDC | ||
Communication Port | RS-232/USB | ||
Intelligent Slot | Optional SNMP, Modbus, and AS-400 cards available |

Three Mode in One
1.Grid-Tie+Battery Backup
2.Grid-Tie Only
3.Off Grid Only

About us
Xiamen Sweet Power Tech Co., Ltd. is a leading manufacturer of power protection products and service solutions. Main products including UPS, Solar Power Inverters, Hybrid System Inverters, Solar Charge Controller, Batteries, Solar Panel and Solar Power System.
Engaging in processing, production, R&D, sales, and service, we have more than 10 years of experiences in production and international trade. Based on the theory of combining with the export-oriented economic entities, a reputation has been established with passion, quality, innovation, and reliability. Thus, our advantages are obviously shown: advanced power protection technology, outstanding service, complete customer satisfaction and unmatched confidence within the industry.
Now we are currently searching for new business partners to build strong relationships around the world. OEM and small trial orders are available to us. We will do our best to strengthen the customer's brands and market growth, and believe it's gonna be a lasting mutual beneficial cooperation.
Quality
To deliver international quality products, SWT Power had been certified by following policies:ISO 9001, CE, IEC, SAA, SONCAP. In the future, SWT Power continues to follow existing rules and regulations, and to be certified by different international rules and regulations.
1.Q: Are you trading company or manufacturer ?
A: We are factory, welcome to visit our factory at any time.
2.Q: How long is your delivery time?
A: Generally it is 5-7 days if the goods are in stock. 15-20 days if the goods are not in stock, it is according to quantity.
3.Q: Do you provide samples ?
A: Yes, we could offer the sample with the best discount.
4.Q: What is the MOQ ?
A: We don't have MOQ for first order.
5.Q: What is your terms of payment ?
A: Payment<5000USD, 100% in advance. Payment≥5000USD, 30% T/T in advance, balance before shippment.
