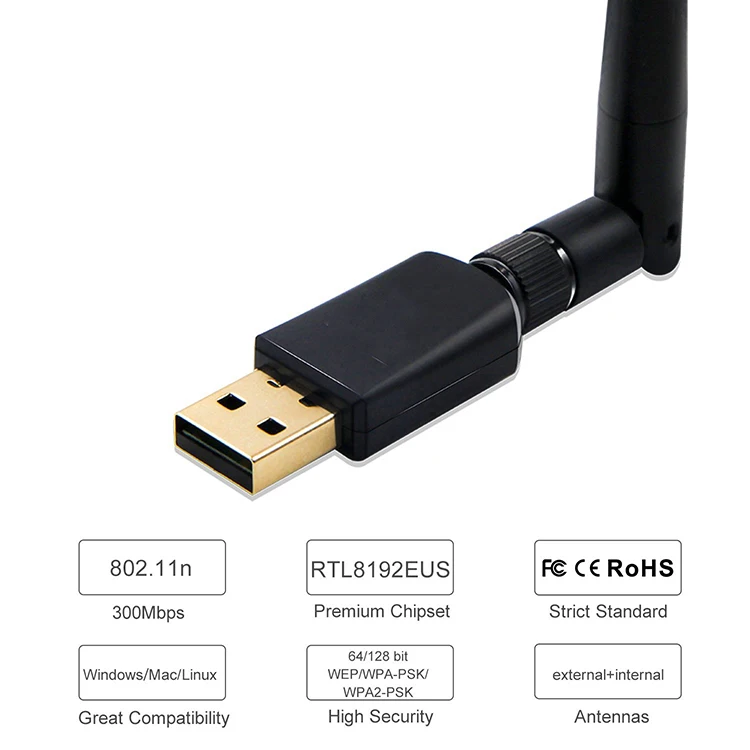

300Mbps Wireless Adapter 2.4GHz WiFi USB Dongle with High Gain External Antenna

Feedback Ratings
$4.58 / Piece | 10 Pieces (Min. Order)
Color:
$4.58
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
2 day(s) after payment received
Customization:
Customized logo (Min. Order: 10 Pieces)
Customized packaging (Min. Order: 10 Pieces)

More

Graphic customization (Min. Order: 10 Pieces) Less
Contact Supplier
Samples - $1.00 /Piece, 1 Piece (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Products Status:
Stock
Application:
Desktop
Type:
Wireless
Kind:
External
Transmission Rate:
300Mbps
Interface Type:
USB2.0
Certification:
CE, RoHS
Brand Name:
RCD
Model Number:
RCD USB2.0300M
Place of Origin:
Jiangsu, China (Mainland)
Chipset:
Realtek RTL8192EUS
Wireless Standards:
IEEE 802.11 b/g/n
Frequency Range:
2.4-2.4835GHz
Transmit Power:
<20dBm(EIRP)
Wireless Security:
64/128 bit WEP
Operating Temperature:
0℃~40℃ (32℉~104℉)
Humidity:
10%~90% non-condensing
Warranty:
1 Years
Modulation Type:
OFDM/CCK/16-QAM/64-QAM

Packaging & Delivery

Selling Units:
Single item
Single package size:
15X1.2X1.2 cm
Single gross weight:
0.02 kg
Package Type:
Neutral Packing / Customized
Lead Time :
Quantity(Piece) 1 - 2000 >2000
Est. Time(days) 2 To be negotiated

300Mbps Wireless Adapter 2.4GHz WiFi USB Dongle with High Gain External Antenna:





ChipRealtek RTL8192EUS
Host Interface
USB
Standard
WiFi: IEEE 802.11 b/g/n
Frequency Range
2.4G (2.4-2.4835GHZ)
Antenna

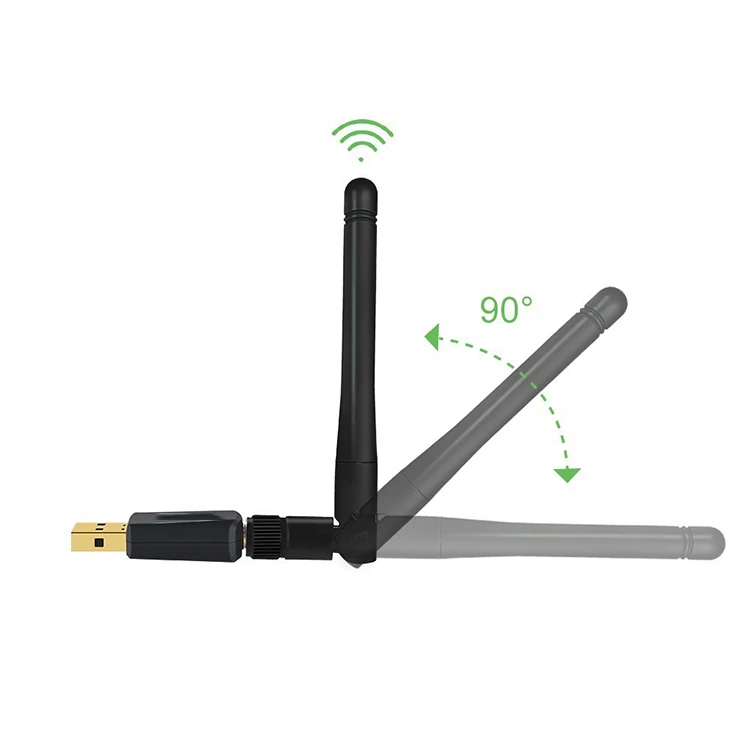

External 5dBi antenna
Power supply
DC 5V (±0.3V)
Working ModeInfrastructure, Ad-Hoc
Data Transfer Rate150/135/54/48/36/24/18/12/9/6 /1M
Spread SpectrumDSSS
Receive sensitivity

54M/135M:-72dBm@10%PER

11M:-85dBm@8%PER
6M:-88dBm@10%PER

1M: -90dBm@8%PER

RF Power

135M: 16dBM,

54M:16dBM,

11M:19dBM

Power Consumption

Sleep mode 1.1mA@ 5V,
RX Active HT40 MCS7 91mA@ 5V,

RX Power saving,DTIM=1 15mA@ 5V,

RX listen 6mA@ 5V,

TX HT40,MCS7@15dBm 98mA@ 5V,

TX CCK 11m@19dBm 202mA@ 5V,

Clock source 40MHz
RF Chains2.4G:1T1R
Operating ChannelWiFi 2.4GHz:
11: (Ch. 1-11) – United States(North America)
13: (Ch. 1-13) – Europe
14: (Ch. 1-14) – Japan
Transmission distance

WiFi: Indoor <100M,outdoor <300M

Operating temperature0ºC~50ºC
Operating humidity10%~90% RH
Storage temperature-40ºC~85ºC
