300T 4 meters hydraulic cnc press brake with DA52 controller Customs Data

FOB Reference Price:Get Latest Price
$18,000.00 - $27,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
WE67K
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 Negotiable
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Anhui, China
Brand Name:
Aoxuan, Aoxuan
Material / Metal Processed:
Carbon Steel
Automation:
Automatic
Extra Services:
End Forming
Certification:
CE ISO
Item Name:
China wholesaler WE67K manual sheet metal profile bending machine
Raw Material:
Steel Bar, Sheet / Plate Rolling
Type:
Hydraulic Bending Tools
Application:
Stainless Steel Strip Bending
Usage:
Metal Sheet Rolling Cutting Bending
Color:
Black/red/green/blue/gray or Customized
Warranty:
2 Years
Function:
Bending Alimunum Steel
Voltage:
380V 220V Optional
Machine Type:
Press Brake
Power:
Hydraulic
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
100 Set/Sets per Month China wholesaler WE67K manual sheet metal profile bending machin
Packaging & Delivery
Packaging Details
standard package or according to your requirements for China wholesaler WE67K manual sheet metal profile bending machine.
Port
Shanghai China
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated
Product Description

China wholesaler WE67K manual sheet metal profile bending machine

CNC hydraulic press brake with DA52S 3+1 axis

Delem controller of DA52S

3+1 axies backage with BOKE Aluminum alloy rear stock

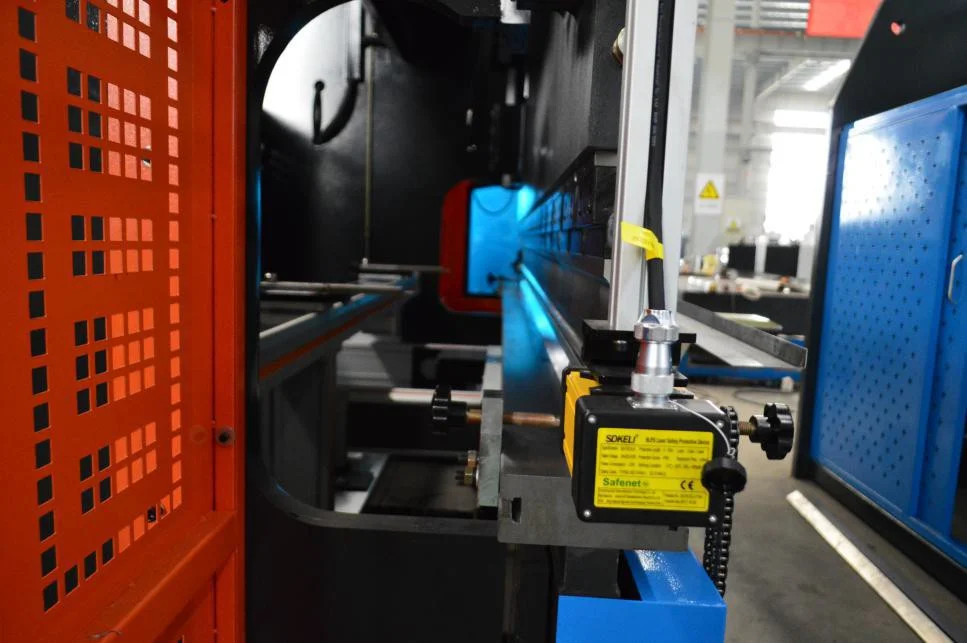

                                   Laser protection


Main Features:
1.Totally EU streamlined design,Monoblock by welding robots & aparatus and stress relief process by Annealing treatment.
2.All Faraday machines are designed using SOLID WORKS 3D programming and made with enhanced ST44-1 quality steel with the latest technology.
3.MB8 Series are among the highest rated machines which will help you increase your productivity and keep costs at minimum levelwith its user friendly CNC controller and low cost hydraulic maintenance.
4.High quality and repetitive bending is obtained by using synchronized cylinders and valves.
5.Automatic axis referencing and calibrating when machine is turned on.
6.Rigid upper beam runs on 8-point bearings with bending precision of 0.01 mm
7.Well-known top and bottom tool brands are long lasting stiffened and provide precise bending. Silent high pressure pump.

Standard Equipment:
1.3 & 4- axis Delem DA52s programming mode CNC control.
2.Full synchronisation of Y1 + Y2 axes with proportional hydraulic valve system and constant monitoring by CNC system to +/- 0.01mm accuracy
3.High precision linear scales for measurement of stroke depth mounted on side frames rather than top beam to prevent any distortion in accuracy as beam comes under load
4.CNC-controlled X & R-axis as standard ballscrew backgauge with servo drive motors.
5.Light guards
6.Two micrometric backgauge finger-stops with lateral adjustment
7.Steel mono-block construction
8.Polished chrome plated and ground cylinders
9.Long stroke and large open height dimensions
10.High approach and return speeds for production bending.
11. Euro style quick release top tool holders with intermediaries including wedges for crowning
12.88 degree sectionalised goose neck top tool
13.4 way sectionalised multi vee bottom tool
14.Double footswitch control and pendant type control arm.
15.AKAS laser tooling guards
16.Electrically interlocked side guards
17.Electrically interlocked read access door

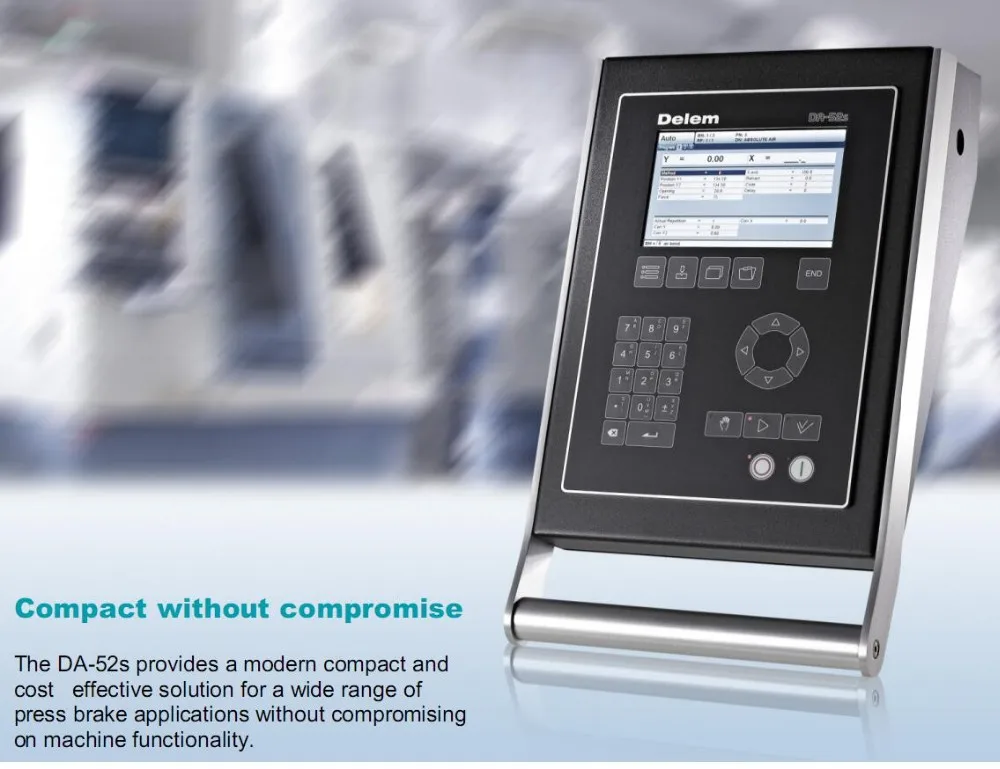

Delem DA52s CNC Press Brake Control system:
1.6,4" VGA colour LCD (TFT)
2.Numerical, one page programming
3.Quick, one-page programming
4.Up to 4 axes (Y1, Y2, and 2 auxiliary axes)
5.CNC Crowning control
6.USB, peripheral interfacing
7.Tool/material/product library
8.Servo, frequency inverter and AC control for backgauge axes.

The best bending results You can bend longer and deeper parts with standard SC/MB8-Bend Series.

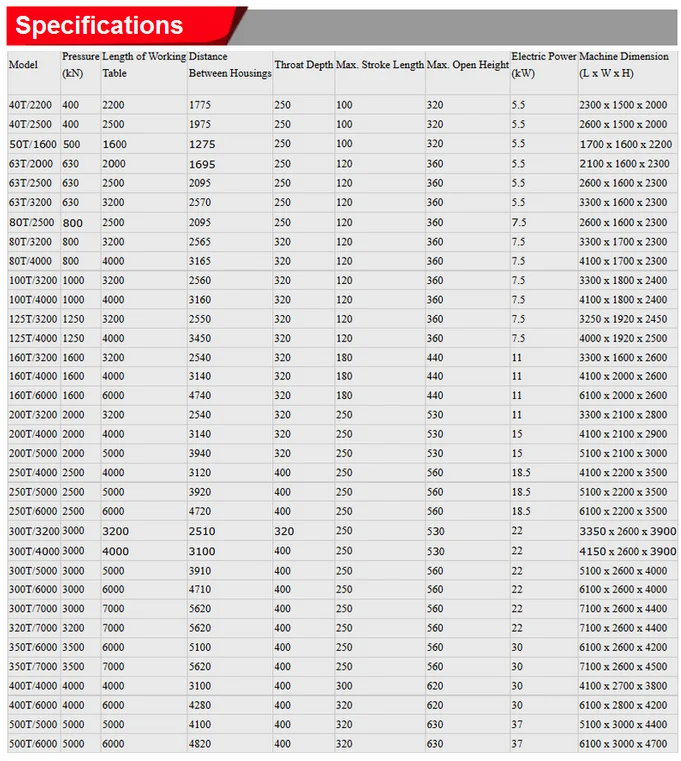

Technical parameters
