304 316 316L Decorative metal cable weaving mesh building curtain wall wire mesh facades sun shade screen

FOB Reference Price:Get Latest Price
$0.10 - $1.00 / Meters | 500 Meter/Meters (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
SOKAB CABLE
Model Number:
SK-Spiral Cable
Insulation Material:
Excellent imported TPE
Type:
Low Voltage
Application:
Industrial
Conductor Material:
Copper
Jacket:
Excellent polyurethane TPE-E
Product Name:
spiral power cable
Insulation Color:
red, blue, gray
Sheath Color:
Black,red, bule, green, gray
Insulation material:
Excellent imported TPE
Sheath material:
excellent Polyurethane or TPE-E
Voltage:
300/500V, 450/750V
Package:
Normally packed in wooden drum, or as per customer's request
Warranty period:
2 years
Brand:
SOKAB CABLE
Performance:
Cold and fire resistant.
Supply Ability
Supply Ability:
1500 Kilometer/Kilometers per Month
Packaging & Delivery
Packaging Details
Standard package per seaworthy wooden box, case. Or any package as per customer request.
Port
Shanghai, Ningbo

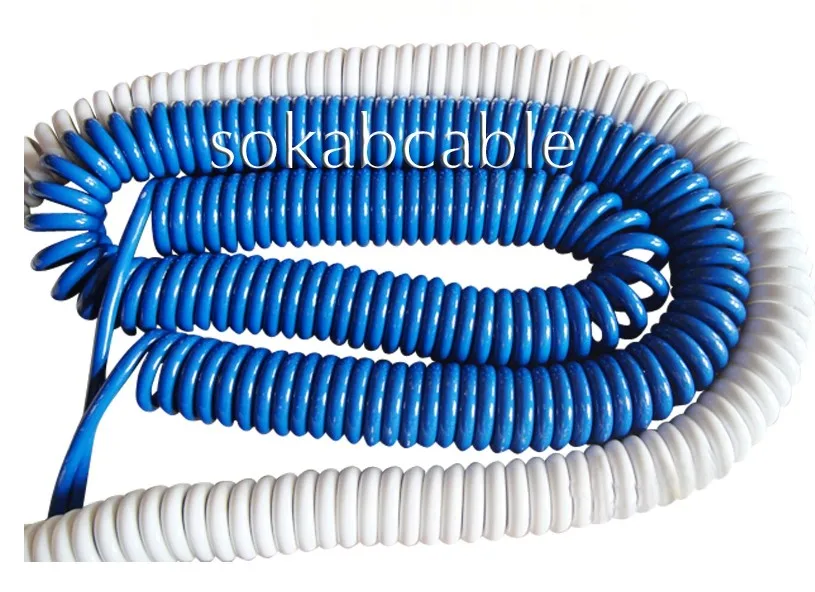

Product Description

1. Description:

High resilience spiral cable, with oil resistance, wear-resisting,cold resistance, and whether resistance


2. Applications:

This cable is designed for electrical tools, transportable machines and devices, for agricultural machines, as control cables in machine tools and machine engineering. High  flexible cord for high mechanical stress, especially abrasion, for dry, damp and wet locations as well as outdoors.


3. Construction
Copper conductor
stranded bare copper/ tinned copper wire, conform to CDE0295 CLASS 5
Inuslation
 Excellent imported TPE
Wrap
special non-woven fabrics
Sheath
excellent Polyurethane or TPE-E
Sheath color
black (other colors and types are available on request)

4. Standard:

DIN 47100, other standard such as: BS, AS/NZS, UL upon request

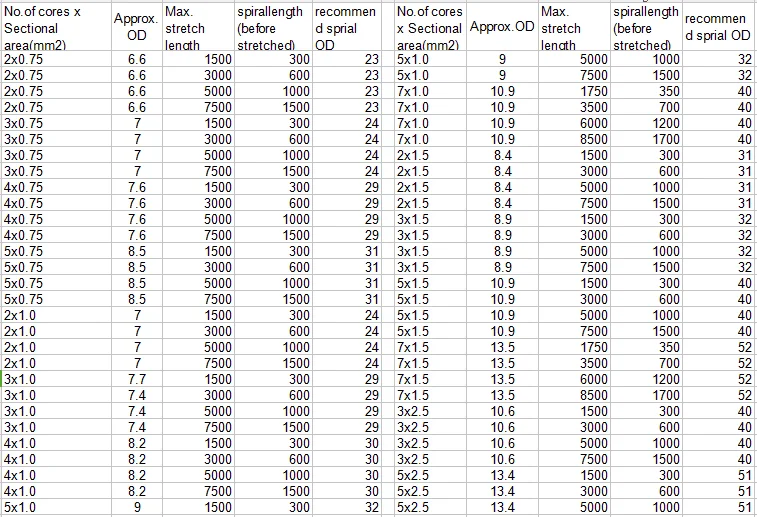

5. Specification:



6. Technical data:

Rating voltage: 0.7-1.0mm2 300/500V, above 1.5mm2: 450/750V
Test voltage: 3000V
Insulation resistance: >20Gohmxcm

Working temp: -35 ℃ to +80℃


7. Certificates:


CE, CB, RoHS, KEMA, SABS, UL, TUV, VDE, SON, SAA, SGS applied
