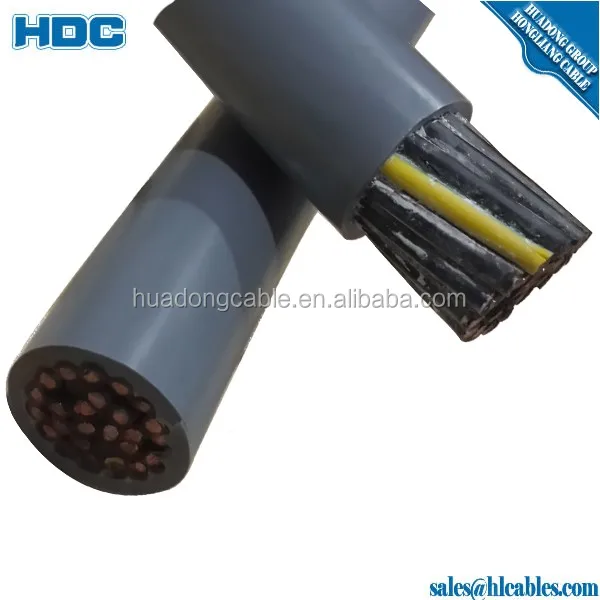

30PAIR X 1.5MM ARMOURED CABLE -ISOS-FLAME RETARDANT instrument cable

FOB Reference Price:Get Latest Price
$1.50 - $26.00 / Meters | 1000 Meter/Meters 30PAIR X 1.5MM instrument cable (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Henan, China (Mainland)
Brand Name:
Huadong
Model Number:
30PAIR X 1.5MM instrument cable
Insulation Material:
XLPE
Type:
Low Voltage
Application:
Industrial
Conductor Material:
Copper
Jacket:
LSHF
Standard:
IEC 60227 standard
Origin:
Henan zhengzhou city
Construction:
Phase conductor-concentic strand etc.
Certification:
ISO:9001:2008
Conductor:
pure copper
insulation:
PVC.
Screen:
Copper Tape Screen/copper wire screen.
Sheath:
Flame Retardant PVC
Core:
30*2CORE
Rated voltage:
450/750V
Supply Ability
Supply Ability:
50000 Meter/Meters per Month 30PAIR X 1.5MM instrument cable
Packaging & Delivery
Packaging Details
30PAIR X 1.5MM ARMOURED CABLE -ISOS-FLAME RETARDANT instrument cablepacked in wooden drums or steel-wooden drums or as your request.
Port
Shanghai, Tianjin,Qingdao
Lead Time :
10-20days 30PAIR X 1.5MM instrument cable

Product Description

30PAIR X 1.5MM ARMOURED CABLE -ISOS-FLAME RETARDANT instrument cable.

1.Application of 1.5mm2 screened flexible cable.
Common applications include connections and control to CNC machines, machine tools, control systems, assembly lines, control panel to machine connections, grinding machines and bottling equipment. Screened cables provide interference-free data and signal transmissions.
2.Character of 1.5mm2 screened RVVP cable.
1.Long-term service temperature of the cable conductor: 70 0C
2. Rated voltage: 450/750V 3. Cable lying temperature ≥0 0C
4. Cores: 2, 3, 4, 5, 6,7, 8, 10, 12, 14, 16, 19, 24, 27, 30, 37, 44, 48, 52, 61
3.Types&specifications of 1.5mm2 screened control cable.

Type

Name

Application Site

KVV/KYJV

Copper conductor, PVC/XLPE insulation, PVC sheath control cable.

For laying doors, in trenches and in ducts, for fixed installation.

KYJ(F)V

Copper conductor, Irradiated cross-linked insulation, PVC sheath control cable.

With flame retardant property and conductor Max. temperature of 90-150°C.

KVV22 KYJV22

Copper conductor, PVC/XLPE insulation, PVC sheath control cable with steel tape armored.

For laying doors, in ground, can withstand heavier mechanical force and for fixed installation.

KYJ(F)V22

Copper conductor, Irradiated cross-linked insulation, PVC sheath control cable with steel tape armored.

With flame retardant property and conductor Max. temperature of 90-150°C, which can withstand heavier mechanical force.

KVVP   KYJVP

Copper conductor, PVC/XLPE insulation, PVC sheath with copper wire braided shield control cable.

For laying doors, in trenches and in ducts, such cable has the stable structure and excellent properties of anti-interference.

KVVP2 KYJVP2

Copper conductor, PVC/XLPE insulation, PVC sheath with copper tape wrapped shield control cable.

For laying doors, in trenches and in ducts, the cable has stable structure and excellent properties of anti-interference also can withstand heavier mechanical force.

KVVP22 KYJVP22

Copper conductor, PVC/XLPE insulation, PVC sheath with copper wire braided shield and Steel tape armored control cable.

For laying in doors, in ground and be able to withstand heavier mechanical force and good anti-interference properties for fixed installation.

KVVP2-22 KYJVP2-22

Copper conductor, PVC/XLPE insulation, PVC sheath with copper tape wrapped shield and Steel tape armored control cable.

For laying in doors, in ground and be able to withstand heavier mechanical force and good anti-interference properties for fixed installation.

KVV32 KYJV32

Copper conductor, PVC/ XLPE insulation, PVC sheath control cable with steel wire armored.

For laying doors, in ground, able to withstand heavier mechanical force and for fixed installation.

KVVP32 KYJVP32

Copper conductor, PVC/XLPE insulation, PVC sheath/ copper wires braided shield and steel wire armored control cable .

For laying doors, in ground, able to withstand heavier mechanical force and for fixed installation.

KVVP2-32

Copper conductor, PVC insulation, PVC sheath with Copper tape wrapped shield and steel wire armored control cable .

For laying doors, in ground, able to withstand heavier mechanical force and for fixed installation.

KVVR

Copper conductor , PVC insulation and PVC sheath flexible control cable.

For laying doors, connecting movable devices which can be used for movable installation.

KVVRP

Copper conductor, PVC insulation and PVC sheath flexible control cable with copper wire braided shield.

For laying doors with good property of shielding and anti-interference, for movable installation but can’t withstand external mechanical force.

KVVRP2

Copper conductor, PVC insulation and PVC sheath flexible control cable with copper tape wrapped shield.

For laying doors with good property of shielding and anti-interference, for movable installation but can’t withstand external mechanical force.

NH-KVV

Copper conductor, PVC insulation and PVC sheath fire-resistance control cable.

Excellent property of flame-retardance and applies to high requirements of fire-fighting situation.





Packaging & Shipping

30PAIR X 1.5MM ARMOURED CABLE -ISOS-FLAME RETARDANT instrument cable.

1. Packing length:100 to 1,000m reeled in carton drum or according to customers' requirement

2. By standard wooden drum or roll.
3. Drum size:1100mm*1100mm*1100mm or as your reques.

Our Services

30PAIR X 1.5MM ARMOURED CABLE -ISOS-FLAME RETARDANT instrument cable.

Advanced connectors & assembly cables machines and testing equipments.

Large production capacity, short delivery.
Strict QC checking before delivery.
OEM/ODM service available, help you on designing.
Prompt quotation for your inquiry.
More than 10 years experiences in cable and wire field.
Professional connector and cable manufacturer, with good quality and competitive price.
free samples are available for further evaluation and you are highly welcome to visit our factory anytime!!

Company Information

Henan Huadong Cable Co., Ltd is a joint stock enterprise integrated incable production, research & development,and domestic& international trade.

Established year: 1988

Total asset: USD 32 million

Plant area: 30000 m2

Number of staff: 380

Engineer:20

Laboratory Inspector: 18

Production line: 18

Testing machine:25

Producing capacity each year: 320000 km.

30PAIR X 1.5MM ARMOURED CABLE -ISOS-FLAME RETARDANT instrument cable Standard:

Our products are produced according to the standards of GB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS, CSA and so on. Meanwhile we  can produce based on customers' requirements and specifications.

30PAIR X 1.5MM ARMOURED CABLE -ISOS-FLAME RETARDANT instrument cable Certificate:

The company has passed ISO90012008 quality certification, CCC China Compulsory Certification, National Electrical Product Safety Certification, State Construction and Project Commitee Recommended Manufacturer of the Transformation of Urban and Rural Power Grid Construction.

FAQ

1.what is our payment term ?

  Our payment term is usually T/T 30% in advanced, the balance before picking up the goods or L/C at sight.

2.what is the lead time ?

  The lead time usually is 10 - 30 working days.

3.what is the package of the cable ?

  The package is usually wooden drum or steel wooden drum or coil.also according to customer’s requirment.

4.Could we provide the free sample for customer ?

  Sure, we provide the free sample for customer to checking.
