32 channel Hot Selling Good quality curtain controller wifi smart curtain switch remote control

  • 1-9 Sets
  • 10-49 Sets
  • 50-99 Sets
  • >=100 Sets
- + Sets available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
5 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
Model Number:
Electromagnetic Relay
Protect Feature:
Contact Load:
High Power
Product name:
curtain controller remote control
Security Channels:
communication port:
Network control mode:
LAN (Local:Withour Internet) OR WAN
Provide control sample source code:
C++, VB, Delphi, Python, iOS, Android
Provide communication protocol documents:
Supporting Programmable Control Mode:
Technical Support Mode:
Email, Telephone,Teamview
wifi curtain control system for home automation
Relay Control Channels:

Packaging & Delivery

Selling Units:
Single item
Single package size:
34X16X7 cm
Single gross weight:
1.000 kg
Package Type:
carton or according to your requirement. Remote Control Power Switch
Lead Time :
Quantity(Sets) 1 - 50 >50
Est. Time(days) 5 To be negotiated
Video Description
Products Description
curtain controller remote control

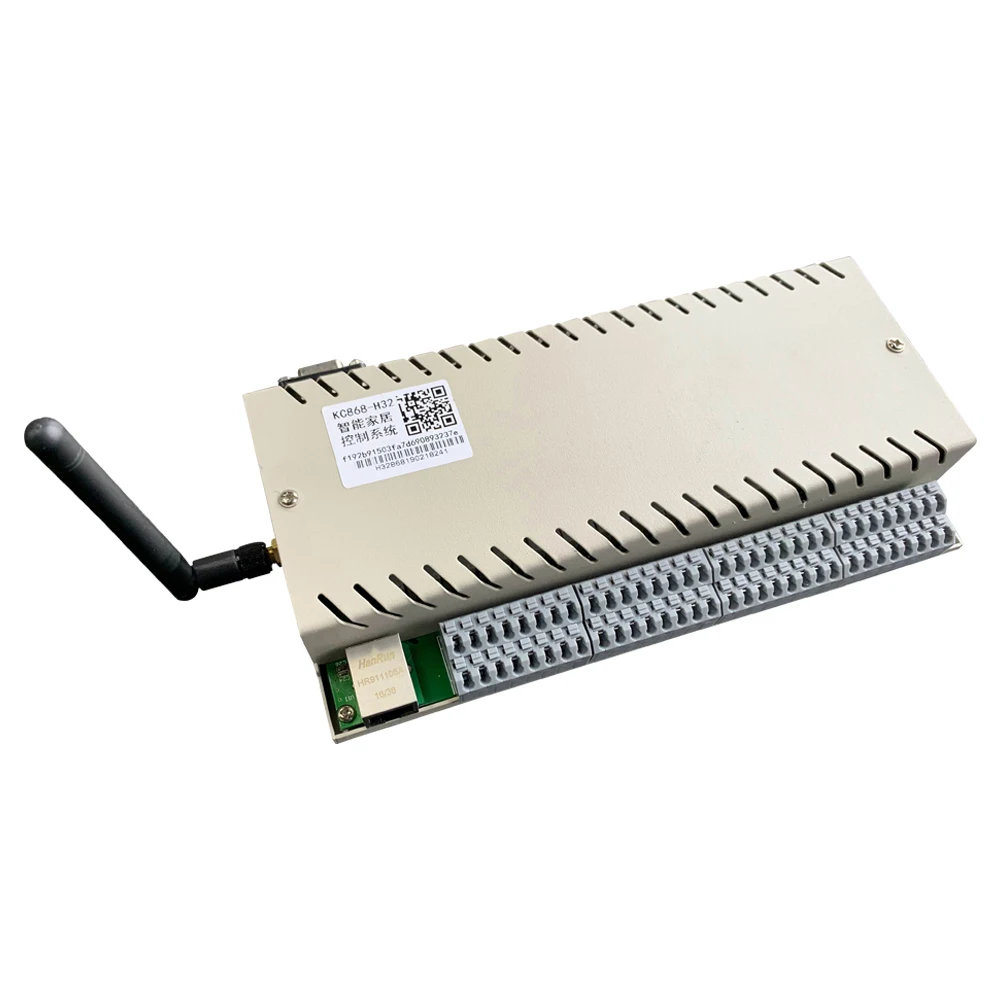

1. KC868-H32W is a 32-gang switch and 6-gang security alarm smart home system with DIN rail mounting. 32-gang switch supports to connect  and control 32 electrical appliances. Which can be turn ON/OFF separately by extended manual control panel or iOS/Andorid APP or PC  software.

2. You can check real-time devices status for each device on App. If you need a specific number of channels, you can use some KC868-H32W   and KC868-H8W together. Such as KC868-H32W:1pcs + KC868-H8W:1pcs that control channel is 32+8=40. All controller in one APP window.
3. A DIN rail is a metal rail of a standard type widely used for mounting circuit breakers and industrial control equipment inside   equipment racks.
4. KC868-H32,KC868-H32W,KC868-H8,KC868-H8W,KC868-G,KC868-S Controller belongs to KC868 family by KinCony , These controller all use the   same software. The difference is that different number of security channels , control channels and ways of networking
5. These product have CE/FCC/RoHS Certified.
wifi curtain control system for home automation

1.Remote ON/OFF – Turn electrical devices ON/OFF from anywhere


2.APP/PC Support– Free iOS and Android mobile App and PC software

3.Independent control - Control each gang separately
4.DIN Rail Mounted – Great for industrial control
5.Sync Status –Real-time device status provided to App
6.Share Control – Share your account with your family to control your smart home
7.Timing – Set scheduled to turn ON/OFF at specified regular time
8.Scene – Turn ON/OFF some specific switch of devices with one tap
9.Smart Scene – Can be triggered ON/OFF by kinds of sensor (Need support by sensor)
10.Supporting secondary development for programmer.
11.Network control methods for KC868-H32 controller:
              a. Mobile phone APP remote control, PC local or remote control
              b. Local Control: PC software; Control by yourself for programmer(For engineers:use controller communication protocol)
              c. Remote Control: PC software;Mobile APP; Control by yourself for programmer(For engineers:Mode A: http www web command  Mode B:coding by yourself according your app account to login)
Products Features:
1. Using ARM processor,industrial stability and good anti-jamming.
2. Control channel up to 32 and sensor channel up to 6.
3. Support LAN and Internet, It can also be used without internet.
4. Free Mobile app and PC software.
5. Support multilingual customization.
6. Each device name supports self-modification.
7. Each device icon supports supports self-modification.
8. Software Title Name Information supports self-modification.
9. For Engineer: Provide the controller's communication protocol, which can be redeveloped.
switch remote control



Working Voltage

DC 12V


Fire resistance ABSmetal shell

Working Temp


Working Humidity

20%RH ~ 80%RH

Output Load

each 250V/10A

Communication mode


Input port qty

6 ports

Output port qty

32 ports

Product packaging
Installation Instructions

smart switch relay

The newest Andorid Software , Download form our webpage(not in Google Play):

This is KC868-H32's PC software of remote control version, It support rename and change ICO file by yourself. Also support kinds of languages of different countries.

This is Config window. Set device name and ON ICO and OFF ICO file.

This is main window. All device can be controled.


new software support CCTV (only use for KinCony's ipcamera product). When you see the video control the relay switch. 2 cctv screen.

4 cctv screen.

If you connect with "KC868 Voice Assistant" module, controller can control voice control by Amazon Alexa or Google Home Speaker or Amazon Alexa or Google Home phone APP.


KC868-G/KC868-S/KC868-H8/KC868-H32 Mobile Phone APP download :



KC868-H32 Interface Definition Diagram

KC868-H32 Application Solution -- Smart Lighting Control


If the load is larger than 700W, the power expansion can be achieved by using solid state relay. Its working principle is as follows:

Security and Intelligent Linkage Control Solution


Intelligent Remote Pumping & Irrigation Solution

Servers Restart Remote Controlling Solution


Power Strip Intelligent Controlling Solution

Cameras Restart Remote Controlling Solution

Remote Access Controlling Solution


Intelligent Power Distribution Box Solution

Every KC868-Hx's input can remote control every KC868-Hx's output

Products Usage Instructions

Wiring and Installation

1. Connecting network line or RS232 serial port

2. Connecting the lamp and power into the corresponding output pole, according to below diagram.

3. When need to control one group or groups lights, connecting the line into the corresponding output poles.

4. Connecting the 12V power adapter to charge

5. When the detection sensors are available, connecting them into the input port.

This is our client's successful application case of smart power box used by KC868-H32 controller and manual control board.

Follows are our demo video on youtube can help you :

KC868-H32 Control Building Model by PC's video:

KC868-H32 Control in LAN by PC demo video:

KC868-H32 Remote Control by APP video:

Manual Control Board work with KC868-H32 video:

How to use web browser send http string control relay video:

How to use PC software remote control KC868-H32  video:

How to DIY Smart Power Distribution by KC868-H8:

How to Produce KC868-H32's PCB:

Some Smart Control application cases used by KC868-Controller

Remote control AC380V power for pump

Use 4G/3G GPRS connect with KC868 Controller

Remote control 6 channel AC220V & 2 channel AC380V power

Remote control 1 channel AC380V power

32 Channel Relays control

32 Channel Relays control


Following is the introduction and solutions of KC868-H8/KC868-H32 controller which we plan to introduce in January-December 2019 on "Radio Magazine" in China. There are only Chinese language,but some of them will be translated into English language. You can visit our website for viewing.We will continue to update.

This is a sample code for Turn ON/Off 's Hello World demo.

This is anlysis KC868-H32&KC868-H8 Controller's communication protocol

how to remote control relay by http string

This is smart lighting control system implementation case

We also writed some kinds of Smart Home DIY books to help people learn IOT knowledge.

Software Operation (For Engineer Development)

1. Opening the network debugging tool to detect the IP address and port of the device (see below figure)


2. Clicking【Device】, see below figure

3. Double clicking 【the Name】, set up the network parameter of the device

4. Choosing the working mode, TCP is for local area network setting or secondary  development; UDP is for APP controlling.

5. Opening 【Relay】software, inputting IP address and port, clicking 【connecting】(see below figure)


6. It’s 8 ways, choosing 8 output is ok.


Secondary Development Communication Protocol & Secondary Development Program Toolkit

We supply complete source program Toolkit of VS2005(Microsoft Visual Studio 2005) , and we give the controlling examples through RS232 serial port and Ethernet socket,to help customers carrying on the secondary development.

The PC software can control the relay switch and also show the input state.Details showed from below screenshots.


We can supply the DEMO code of C++Builder, Delphi, VB.Net, Python and iOS versoins.

More documents,APP&PC software and tools for download :

Videos List on YouTube:

KC868-H32 Remote Control by phone APP via ethernet WAN
KC868-H32 Local Control by VB PC software via LAN
KC868-H32 Remote Control by web browser send http string via ethernet WAN
KC868-H32 Remote Control by PC software via ethernet WAN
KC868-H8 Remote Control Building model by phone APP via ethernet WAN
KC868-H8 Remote Control Building model by PC via ethernet WAN
KC868-H32 Remote Control Building model by PC via ethernet WAN
KC868-H8/H32 Local control by manual keyboard or wire switch panel or remoter
KC868-H8W & KC868-H32W network WiFi Config
How to DIY Smart Power Distribution by KC868-H8
Smart Power Switch Distribution Box phone APP control demo
Home security CO Gas Sensor Carbon Monoxide Poisoning Alarm Detector work with KC868-H8
Home security Door & Window Sensor Alarm Detector work with KC868-H8
Home security Pir Sensor Alarm Detector work with KC868-H8
Home security Water leak sensor Alarm Detector work with KC868-H8
Home security light sensor Alarm Detector work with KC868-H8
Home security smoke sensor Alarm Detector work with KC868-H8
Home security Power Failure Monitor Sensor Alarm Detector work with KC868-H8
DIY Home security Water level sensor Alarm Detector Monitor work with KC868-H8
KinCony wall touch switch of ZigBee wireless smart home solution
KinCony wall touch dimmer of ZigBee wireless smart home solution
How 2-3 Zigbee Light Switch Panels control one light
How to Produce KC868-H32's PCB

PDF Documents List on webpage:

 0-KC868-H8&H32 Overall operation manual.pdf


 1-KC868-H8&H32 UDP&TCP mode setting(Vircom tool).pdf


 2-KC868-H8&H32 APP User Manual.pdf


 3-KC868-H8&H32 relay User manual(Demo tool).pdf


 4-KC868-H8 Product Parameter and Installation.pdf


 5-KC868-H32 Product Parameter and Installation.pdf


 6-KC868-H8 Comminucation Protocol for Secondary development.pdf


 7-KC868-H8 NetRelay Control User manual(Demo tool).pdf


 8-KC868-H32EXE User manual.pdf


 9-KC Demo-AccountControl User manual.pdf


















Software Tools List on webpage:


VirCom4.88_en (WAN and LAN config tool)


Relay.rar (KC868-H8/KC868-H32 LAN Control DEMO EXE)


Net_Relay_Control (KC868-H8 Local & Remote Control Demo ExE )


KC868-H32_EXE.rar (EThernet_remote_control_demo)


KC-Demo_account_control.rar (KC868-G,KC868-S,KC868-H8,KC868-H32 Remote Control By App Account)


Demo Sample Source Code List on webpage:


KC868-H8_H32_LAN_local_control_demo_source_code_VB2005.rar (relay.rar's source code)


KC868-H32_EThernet_remote_control_demo_source_code_BCB10.2.3.rar (C++Builder 10.2.3)


KC-Demo_Remote_Control_By_App_Account_demo_source_code_VB2017.rar (KC-Demo's source code)


KC868-H8-relay-control-hello-world-demo-source-code-delphi.rar (Delphi 10.2.3)


KC868-H8-relay-control-hello-world-demo-source-code-python.rar (PyCharm IDE 2018)


KC868-H8-relay-control-hello-world-demo-sample-source-code-android.rar (Android Studio3.2)


KC868-H8-relay-control-hello-world-demo-sample-source-code-ios (Xcode)


Controllers Specification Parameters






Relay Control

Wired Sensor








Embedded IR





Cloud Storage

Self Program

Sample Code

Technical Support







ZigBee Device





ZigBee Amplifier






KC868-G/KC868-S/KC868-H8/KC868-H32 Mobile Phone APP download :



The following are FCC and RoHS certificates


A. Before Sale Service

Q1. How many applications can the device KC868-H32 control?

Answer: 32 ways applications


Q2. How many inputs are there in the device KC868-H32?

Answer: 6-way input


Q3. How many inputs are there in the device KC868-H32?

Answer: You can add 2pcs kc868-h32 in app. Then you can control 64 relays. Also if you add 3pcs of kc868-h32, then you can control 96 relays.and so on. All controllers will be add in one app account , not need to change app account to login and control device.


Q4.what is the maximum load per channel for the device kc868-h32?

Answer: 250V/5A each channel


Q5.What if the load power is greater than the rated power?

Answer: if it is overloaded, the external high power AC relay can be connected to crease the total load power


Q6.What type of equipment can be connected to the input of the kc868-h32 control box?

Answer: the equipments with switching value signal output


Q7.What is the size of the kc868-h32 control box? What are the fixed installation methods?

Answer: 272x117x40mm; to fix by hanging on the rail directly or to fix by screw


Q8.What is the interfaces the kc868-h32 control box supports?

Answer: support RS232 and Ethernet interface


Q9. Is there the version of Ethernet?

Answer: Yes. It’s the KC868-H32.


Q10. What are the network control methods for KC868-H32 control boxes?

Answer: Mobile phone APP remote control, PC local or remote control


Q11.What kind of software and user manuals can be provided?

Answer: Network configuration tool, Demo software, Or Instructions and Secondary development protocol etc. For more details, pls visit to download

              Local Control: PC software; Control by yourself(use controller communication protocol)
              Remote Control: PC software;Mobile APP; Control by yourself(Mode A: http www web command  Mode B:coding by yourself according your app account to login)

Q12. When there is no internet, how to remote control the device KC868-H32?

Answer: under local network, using the PC to achieve local remote control; or using the wireless internet router to provide wired network or Wi-Fi signals to achieve controlling.


Q13. Where the mobile phone APP software can be easily downloaded from?

Answer: For IOS, log in to Apple app store, searches 【Kincony smart home】 to download;  for Android, log in Google app store, searches【Kincony smart home】 to download or visit the official website to scan the QR for downloading


B. Development By Yourself

Q1. Is it supporting the users to write their own programs to control the device?

Answer: Yes, supporting. And the related program example is avialble.


Q2. Is it supporting to control the device through a browser?

Answer: Yes, supporting. And one relevant case can be provided.


Q3. What are the ways to remote control the device when the users program themselves?

Answer: the PC software, the browser for controlling.


Q4. Is it provided the source code of the secondary development package example?

Answer: Yes, providing the detail information.


C. After sale service

Q1. Where to download the relevant information after purchasing?

Answer: From the Chinese website

And the English website

Details Images
