345 degree precision rotary alps potentiometer WDD35D4

FOB Reference Price:Get Latest Price
$7.00 - $15.00 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
HR
Model Number:
WDD35D4
Type:
Rotary Potentiometer
Technology:
Carbon Film
Resistance:
1K,2K,3K,5K,10K
Resistance Tolerance:
±15%
Rated Power:
2W
Max. Operating Voltage:
< 24 V
Operating Temperature:
-55℃~+125℃
Indepedent linear degress:
0.1%, 0.2%, 0.3%, 0.5%, 1.0%
Supply Ability
Supply Ability:
1000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
1 pcs / box; 12 boxes/ carton
Port
SHANGHAI/NINGBO
Lead Time :
15-30 Days



Product Description

The precision conductive plastic angular displacement sensor adopts a hard antirust aluminum case and molded integrated conductive plastic base. Imported precious metal brush and current collecting parts, stainless steel shaft with high-speed bearing ensure high linearity, long mechanical life, high resolution, less dynamic noise and convenient and reliable installation.







Potentiometer specifications

Electrical:


Nomianl Resistance1K, 2K, 3K, 5K, 10K (Ω)
Resistance Tolerance±15%
Independent Linear degrees0.1%,0.2%,0.3% 0.5%, 1.0%
Theory electrical corner345°±2°
Power Rating2W ( @70°C )
Resist. Temperature Coefficient Of Wire  ±400 P.P.M/°C
Insulation Resistance≥1000MΩat 500V.D.C
Dielectric Strength1 minute at 1000V(AC.RMS)
Output Smoothness≤±0.10%
Mechanical:
Mechanical Travel360°(Endless)
Starting Torque (MAX.)≤10x10-4N.M
Bearing2 Pairs Ball Bearing
ShaftStainless Steel
Housing CaseAluminum alloy
Environmental:
Life ExpectancyApprox. 50,000,000(Shaft Revolutions)
Operating Temperature-55°C~ +125°C
Vibration15G 2000Hz
Shock50G 11ms

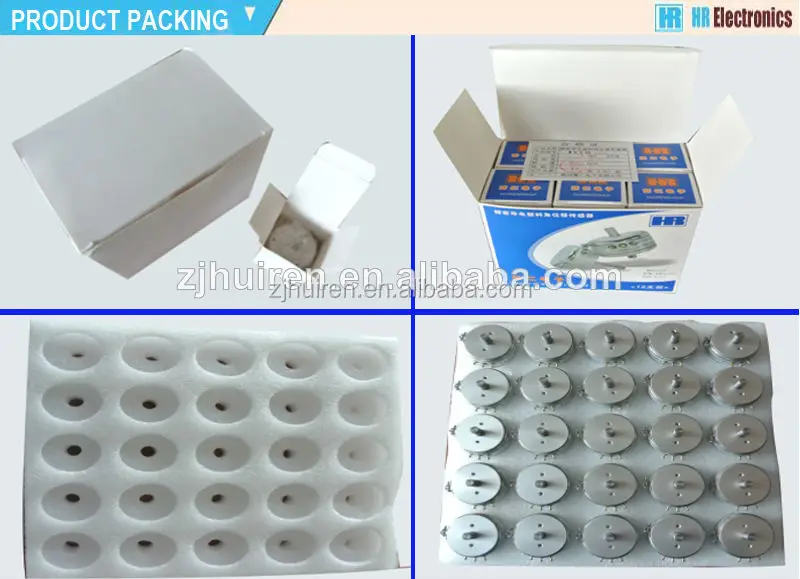

Packaging & Shipping





Company Information



Zhejiang HuiRen Electronic Limited Company is located in the center of the city Huzhou (Zhejiang, China) which is known as the pearl of South Taihu Lake. HuZhou has a facilitated transportation, with a number of National Roads, highways, railways, and waterways running across the city, it is conveniently connected to Shanghai, Hangzhou, Wuxi and Suzhou.

Our company is specialized in sophisticated electric eonducted plastic products such as precision angular-displacement sensors, precision linear displacement sensors and precision conductive plastic potentiometers. The products are widely used in the field of automation control and servo, such as military affairs, aviation, automobile, oil industries, machinery and mediacal instruments and so on.

Our company focuses on management in all aspects, adhering to the principle of satisfying customers and faithfully serving all customers.

We will provide you with our best products and services. Welcome!
