3702 Sperm Analyzer semen analyzer machine

FOB Reference Price:Get Latest Price
$2,000.00 - $3,000.00 / Sets | 1 Set/Sets (Min. Order)
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 10 Negotiable
Report Suspicious Activity
Overview
Quick Details
Type:
Clinical Examination Aids
Brand Name:
MSL
Model Number:
MSL3702
Place of Origin:
Guangdong, China (Mainland)
Instrument classification:
Class II
PC brand:
Lenovo
PC RAM:
4G
PC cpu:
Celeron 3900 CPU
PC monitor:
Songren 21.5 inches
Microscope Nosepiece:
Nosepiece
Microscope Eyepiece:
Wide Field Eyepiece WF10x,P16 x
Camera Effective Pixels:
3 Million
Camera Chip size:
1/2"
Camera Pixel size:
3.2μm*3.2μm
Camera A/D conversion:
8bit
Supply Ability
Supply Ability:
10000 Set/Sets per Month
Packaging & Delivery
Packaging Details
Standard packing
Port
Guangzhou,Shenzhen,Foshan,ect.
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 10 To be negotiated
Product Description

3702 Sperm Analyzer semen analysis machine

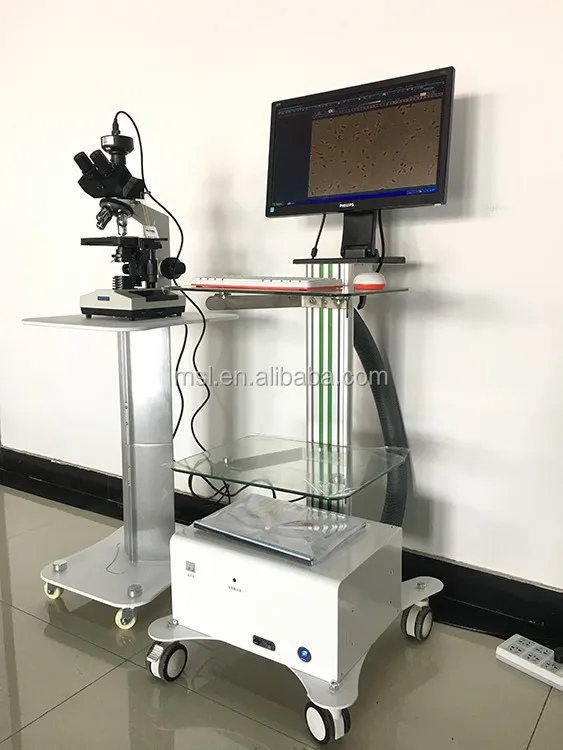

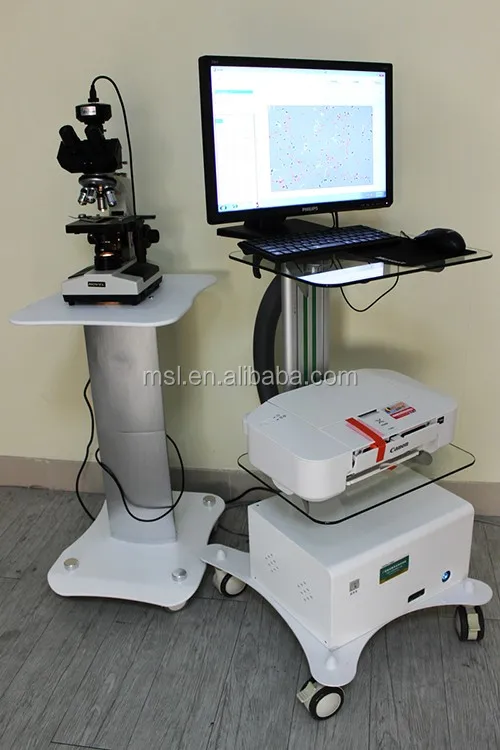

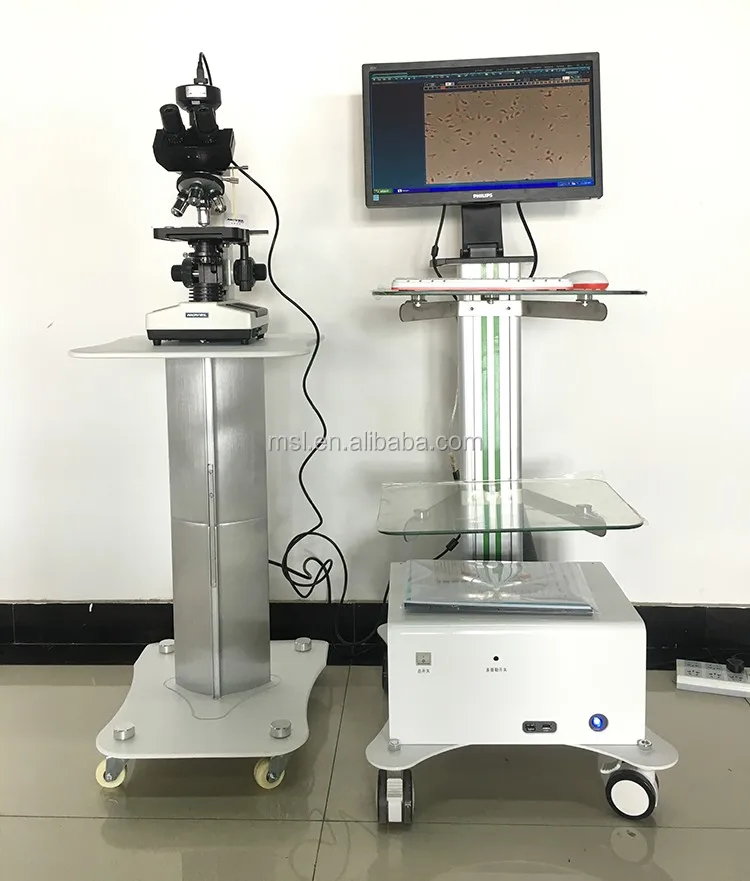

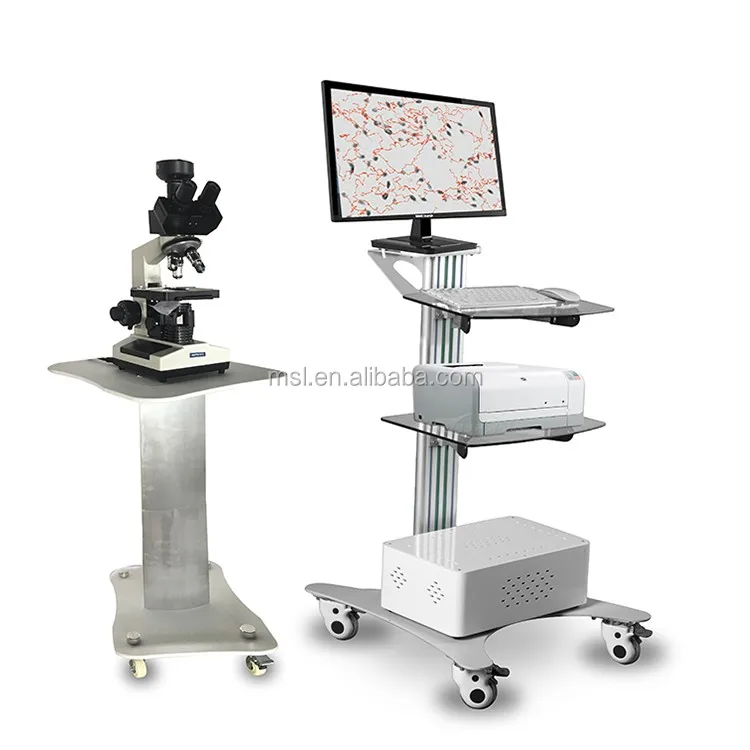

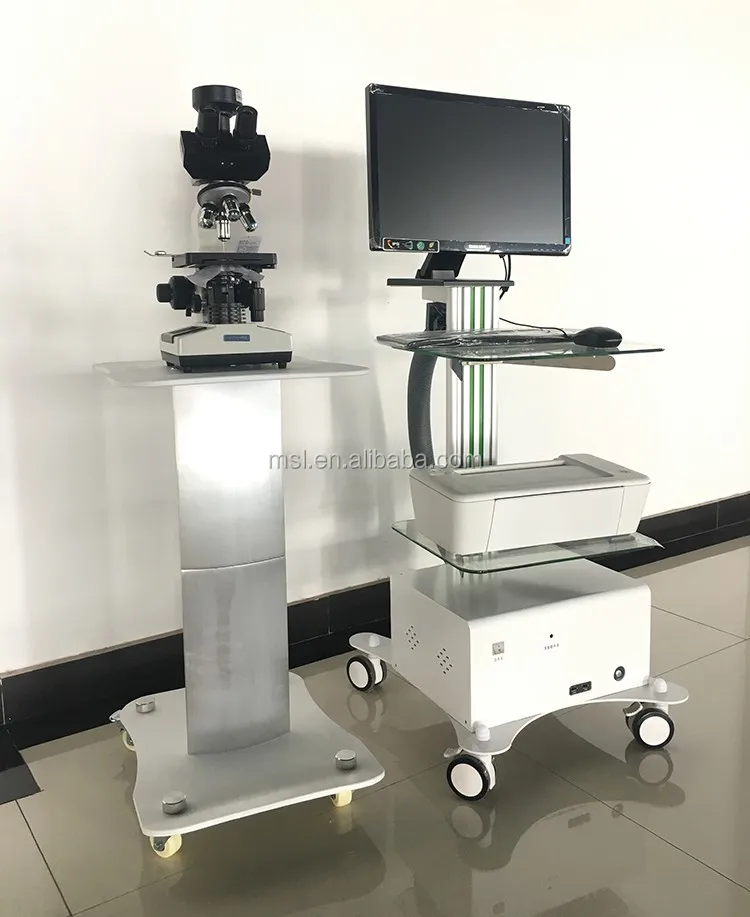

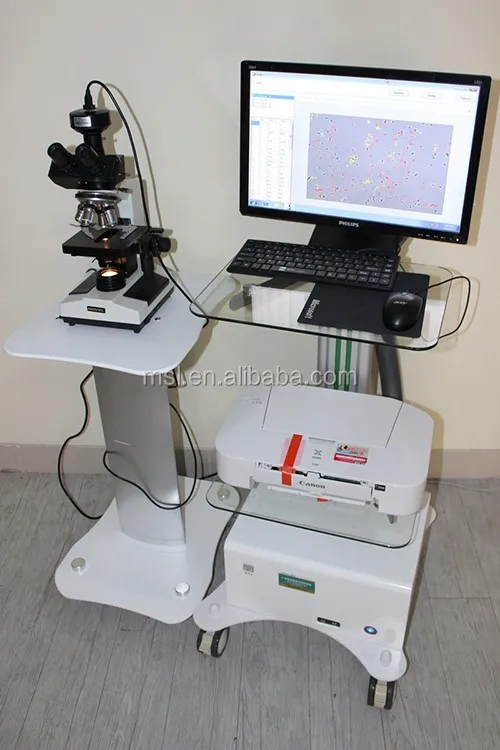

MSL-3702 Sperm Analyzer

1).PC Specification

Brand: Lenovo

RAM : 4G

CPU : Celeron 3900 CPU

Hard disk : 500G

Monitor: Songren 21.5 inches

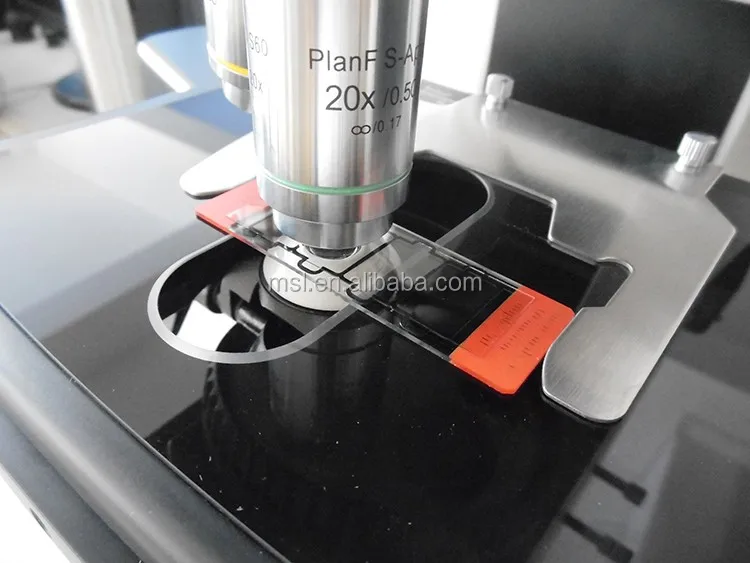

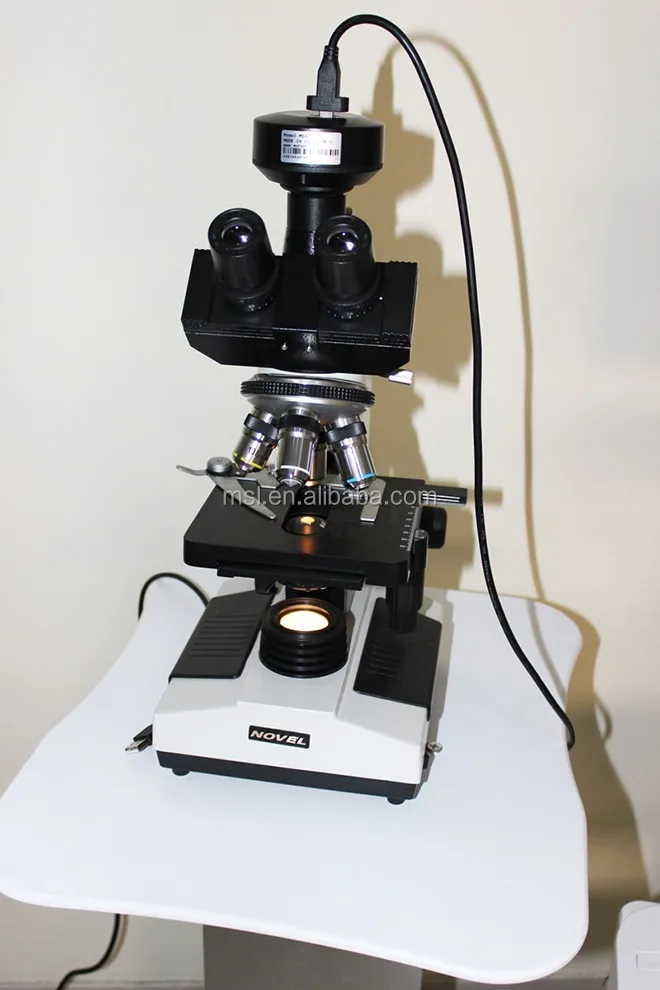

2). Microscope Specification
Viewing Head
Trinocular Head for Video Camera      (C Mount)
Eyepiece
Wide Field Eyepiece WF10×,P16 ×
Objective
Achromatic Objective 10×,20×,40×(S),100×(S, Oil)
Nosepiece
Quadruple Nosepiece
Stage
Double Layer Mechanical Stage 140×140mm/ 75×50mm
Focusing
Coaxial Coarse & Fine Adjustment, Moving Range 28mm, Fine Division 0.002mm
Condenser
Abbe NA 1.25 with Iris Diaphragm & Filter
Illumination
S-LED Illumination,Brightness Ajustable
Plan-concave Mirror
3). Camera Specification
Items
specification
Effective Pixels
3 Million
Chip size
1/2"
Pixel size
3.2μm×3.2μm
Resolution and frame rate
Resolution
Frame rate
2048×1536
12FPS
1920×1080(ROI)
18FPS
1024×768(ROI)
40FPS
1024×768(2x2BIN)
33FPS
640×480(ROI)
84FPS
Any resolution ROI
Scanning method
Progressive scan/continuous output
Shutter type
Electronic shutter shutter
Exposure time
47μs ‒ 3s
Effective gain
1 ‒ 8x
Spectral response
380 ‒ 650nm
A/D conversion
8bit
Image Cache
32Mb
Trigger mode
Soft trigger
Exposure function
Manual Exposure / Auto Exposure / Area Exposure
White balance
Auto white balance / One-touch white balance / White area balance
Image format
TIF,BMP,JPG,RAW
Software interface
DirectShow / TWAIN
Software development
Support SDK development
operating system
Windows XP 32bit;Windows 7/8/10 32/64bit
Data interface
USB2.0 B interface,480Mb/s
Camera interface
C interface
power supply
USB 5V
working environment
Working temperature:0 ‒ 50℃;working Humidity:10% ‒ 90%RH(non-condensing)
physical dimension
Ø76mm × 48.7mm
Related Products
Packing & Delivery
Packing
Size
56*65*109CM
Weight
65.5KG
FAQ

1).How to order your product?

When you are ready to order, please contact us to confirm current prices, payment arrangement, availability, and delivery time of your medical equipment or accessories. Whenever possible, we request a hard copy purchase order to ensure that your order is processed properly.

2).What's your product guarantee?

Normally we offer 24 months warranty, and lifetime maintenance. We can also extend the warranty time per client's request.

3).Does your product has any certificate?

Almost all our medical equipment is CE, ISO approved, and some of them has FDA certificate.

4).What's your payment terms?

We can accept T/T,Western Union, Money Gram, Paypal, Alibaba Trade Assurance, L/C,cash etc

5).What's your product lead time?

Normally all our medical equipment are in stock, so we can deliver goods within 3 workdays after receipt payment.

6).How to maintenance the product if it has problem?

We have professional engineers,they will solve your problem by communicating with skype or phone. If the machine is totally broken and can not work, send it back to us and we will send a new one to you.

7).What's your training policy?

Medsinglong offers free product training for clients.Clients can choose video,voice,email,skype for online training.Moreover, Medsinglong has client training courses every year, client can visit Medsinglong for face to face training.Meanwhile,Medsinglong support training in client's office as required.
