37m 38m 42m engineering used schwing concrete pump truck with competitive prices

FOB Reference Price:Get Latest Price
$163,905.00 - $178,805.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
JW5190THB-37m
Power(W):
220KW
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 10 Negotiable
Report Suspicious Activity
Overview
Quick Details
Dimension(L*W*H):
10000*2500*3700mm
Weight:
22000kg
Warranty:
1 Year
After-sales Service Provided:
Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Free spare parts, Online support
Condition:
New
Power Type:
Diesel
Place of Origin:
Shandong, China (Mainland)
Brand Name:
JinWang
Certification:
ISO9001,CE,
Product name:
Concrete Pump Truck
Emission standards:
EU standard
Engine:
Yuchai/Weichai
Chassis model:
Dongfeng/Shaanxi Automobile
Control power supply:
24V
Maximum travel speed:
83km/h
System work pressure:
35.0 Mpa
Rotation Angle of each arm:
90°/180°/270°/360°/240°
Tire specifications:
11.00R20 18 layer
Maximum vertical height of boom:
36.7m
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
1)Standard export packaging by container, which should be applicable to international requirement.
2)Big size equipment will be fixed by steel wire, while small ones together with spare parts will be packed into wooden boxes.
3)Standard configuration: FR or Bulk for concrete boom pump truck.
Port
Qingdao port or Tianjin port
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 10 To be negotiated

37m 38m 42m engineering used schwing concrete pump truck with competitive prices

Product Description

Jinwang small concrete pump truck produced has advanced design, convenient operation, good reliability, high efficiency, low fuel consumption and low noise. It is the international advanced concrete pump equipment, which fills the gap in rural housing and bridge construction and has a revolutionary breakthrough.

Technical parameters of 37m double bridge concrete pump truck

Name

JW5190THB-37m concrete pump truck

Machine parameters

Overall length of the vehicle

10000 mm

Overall width of the vehicle

2500 mm

Overall height of the vehicle

3700 mm

Wheelbase Vehicle quality

22000 kg

Boom system

Maximum vertical height of boom

36.7 m

Boom horizontal fabric radius

33.4 m

The depth of the fabric

24.9 m

First arm length

7188 mm

Second arm length

6170 mm

Third arm length

5810 mm

Fourth arm length

5820 mm

Fifth arm length

6100 mm

Rotation Angle of each arm

90°/180°/270°/360/240°

Boom control mode

Load sensitive proportional control

Boom folding method

R/Z type

Turret rotation angle

360°

Front leg spanning distance

6000 mm

Rear leg across the distance

7000 mm

Front and rear leg longitudinal distance

6300 mm

Leg opening method

X

Tail hose length

3000 mm

Concrete pipe diameter

125 mm

Electrical control system

Control power supply

24 V

Control module brand

Siemens, Germany

Operating Voltage

24 V

Intermediate electrical appliance brand

Omron

Wireless remote control brand

Sany Heavy Industry

Hydraulic drive system

Hydraulic system type

Closed hydraulic system

System work pressure

35.0 Mpa

Main hydraulic pump brand

Rexroth,Germany

Main oil pump model

Rexroth A4VG125

Main electro-hydraulic reversing valve brand

Import

Suction and return oil filter element brand

Xugong

Boom multi-way valve brand

Harvey, Germany

Boom balance valve brand

US SUN

Boom oil pump brand

Import

Outrigger multi-way valve brand

Italy

Safety valve brand

Import

Cylinder hydraulic seal brand

Parker

Hydraulic tank volume

450 L

Hydraulic oil cooling method

Air cooled

Main cylinder

Xieli 1400 mmX80 mmX130 mm

Transfer case brand

Germany STIEBEL

Slewing reducer brand

Import

Hose connector brand

Eaton, United States

Chassis

Chassis model

Dongfeng or Shaanxi Automobile

Emission Standards

EU standard

Engine

Yuchai or Weichai

Wheelbase

5000 mm

Maximum travel speed

83 km/h

Vehicle approach/away angle

24.6°/15.6°

Tire specifications

11.00R20  18 layer

Pumping system

Concrete distribution valve form

S valve

Concrete piston brand

Domestic

Maximum concrete outlet pressure

10.5-20 Mpa

Conveying cylinder inner diameter/stroke

230 mmX1450 mm

Maximum feeding height

1450 mm

Bucket capacity

0.65 m²

Pumpable concrete slump

160--220

Maximum aggregate size allowed

40 mm

Lubrication method

Centralized lubrication

Why choose us

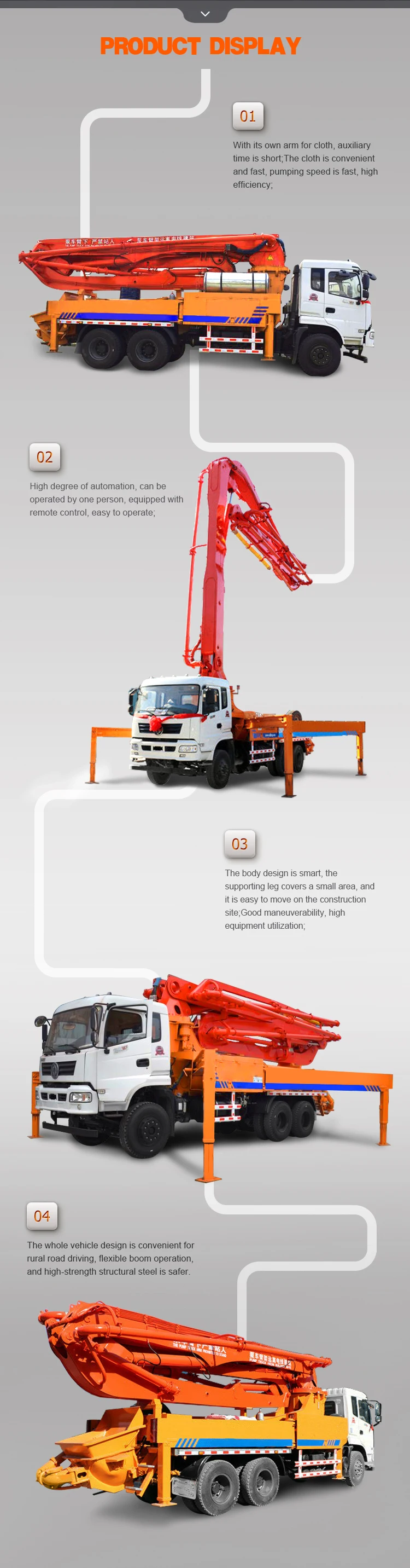

Product Details

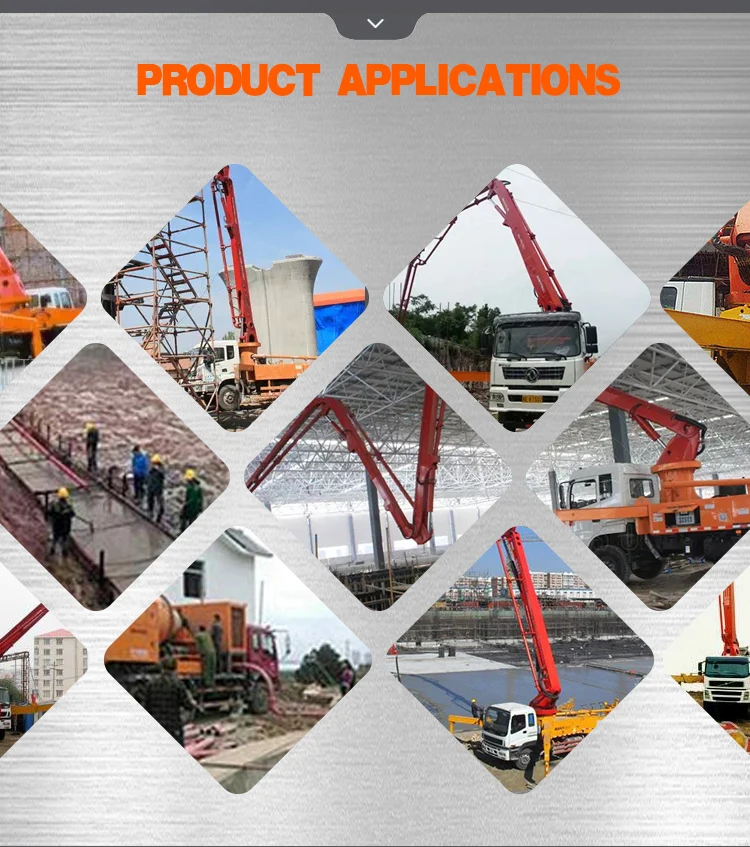

Product Application
Related Products

Packaging & Shipping

1)Standard export packaging by container, which should be applicable to international requirement.

2)Big size equipment will be fixed by steel wire, while small ones together with spare parts will be packed into wooden boxes.

3)Standard configuration: FR or Bulk for concrete boom pum truck.

Company Information

Jining Jinwang Machinery Equipment Co., Ltd. is located in Jining, the capital of the canal, the hometown of Confucius and Mencius, and the ceremonial state. The company is located in the Yadong International Heavy Industry Park of Jining Economic Development Zone. It is a well-known independent design, research and development, production. Manufactured in a comprehensive engineering machinery equipment manufacturer. At present, the main products are small excavator series, mini excavator series, mini excavators and so on. Our products are exported to more than 50 countries and regions overseas.

The company is committed to providing interconnected, efficient and reliable overall solutions for modern agricultural production, urban living construction and resource industries. It is committed to continuously satisfying customers' needs, positioning customers, creating an international talent team, international advanced technology, international The national enterprise that influences the influence of the brand has become the leader in the global machinery and equipment manufacturing industry!

FAQ

Q1. Are you manufacturer or trader?

A: Support field inspection and video inspection. We have many years of production experience and are a set of independent design, research and development, production and manufacturing in one of the comprehensive construction machinery manufacturers.

Q2. Can we accept customization?

A: We have concrete pump trucks of 30 m, 34 m, 37 m, 43 m, 48 m and 52 m.We can customize according to your requirements, including size, appearance, color, etc.

Q3. How about your delivery time?

A:Generally, it will take 7-20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q4.Do you test all your goods before delivery?

A: Yes, We have a strict quality and safety management system. All products are 100% tested by IQC, IPQC, QE and FQC before leaving the factory.

Q5.What is the warranty policy?

A: The warranty period is one year and the parts are provided free of charge within the warranty period. If there is any quality problem, we can send engineers to the customer's place. We can provide Internet or telephone service at any time.

Q6. Our main overseas markets?

A:Our products are exported to more than 50 countries and regions, mainly South America, Africa, southeast Asia and so on.
