3D Pen DC12V 11RPM Right Angle Output Metal Gearbox Micro Gear Motor

FOB Reference Price:Get Latest Price
$2.30 - $4.20 / Pieces | 1000 Piece/Pieces (Min. Order)
Voltage(V):
ODM
Output Power:
ODM
Lead Time:
Quantity(Pieces) 1 - 500 501 - 3000 3001 - 10000 >10000
Est. Time(days) 7 10 15 Negotiable
Customization:
Customized logo (Min. Order: 1000 Pieces)
Customized packaging (Min. Order: 1000 Pieces)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
Shibo
Model Number:
SB-GM12YN20-3DP
Usage:
Boat, Car, Electric Bicycle, Fan, Home Appliance, CD player
Certification:
CCC, CE, ROHS, ISO9001:2015
Type:
Micro Motor
Torque:
1.0kg.cm
Construction:
Permanent Magnet
Commutation:
Brush
Protect Feature:
Explosion-proof
Speed(RPM):
11±10%rpm
Continuous Current(A):
≤40mA
Efficiency:
IE 1
Product Name:
DC12V 11RPM Right Angle Output Metal Gearbox Micro Gear Motor
Production:
Automatic Assembly
Feature:
Compact design
Noise:
30dB Minimum
Size:
Customization
Brush:
Carbon Brush/Precision Metal
Accessories:
Wires, Connector, Encoder.,Etc
Lifetime:
3000 Hours MAX
Components:
Diversified
Technical Data:
Customization
Supply Ability
Supply Ability:
2000000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Carton box
Port
Ningbo/Shanghai
Picture Example:
package-img
package-img
Lead Time :
Quantity(Pieces) 1 - 500 501 - 3000 3001 - 10000 >10000
Est. Time(days) 7 10 15 To be negotiated
Video Description
Product Description

 DC12V 11RPM Right Angle Output Metal Gearbox Micro Gear Motor for 3D Pen

Model
SB-GM12YN20-3DP
Voltage
DC 12V
No load speed
11±10%rpm
Stall torque
2.4kg.cm
No load current
≤40mA
Stall current
≤420mA
Max eff. torque
1.0kg.cm
Speed ratio
298:1
Max eff. current
≤120mA
Direction
CW
Max eff. speed
9±10%rpm
Weight
35g

Features:

The motor adopts micro-dc motor and turbine-worm reducer. The rotation of the motor can change the positive and negative direction of the motor connection (the reverse noise becomes larger).

1. The turbine component is a self-locking worm motor, that is, when the motor has no electric energy, the rotating output shaft does not move, that is, self-locking.

2. The direction of the output shaft of the gear and the motor shaft is arranged vertically. The direction of the motor body of the output shaft is relative to the average deceleration of the engine overspeed.

In the above performance aspect, turbine worm gear motor is widely used in window, door, small hoist and so on.

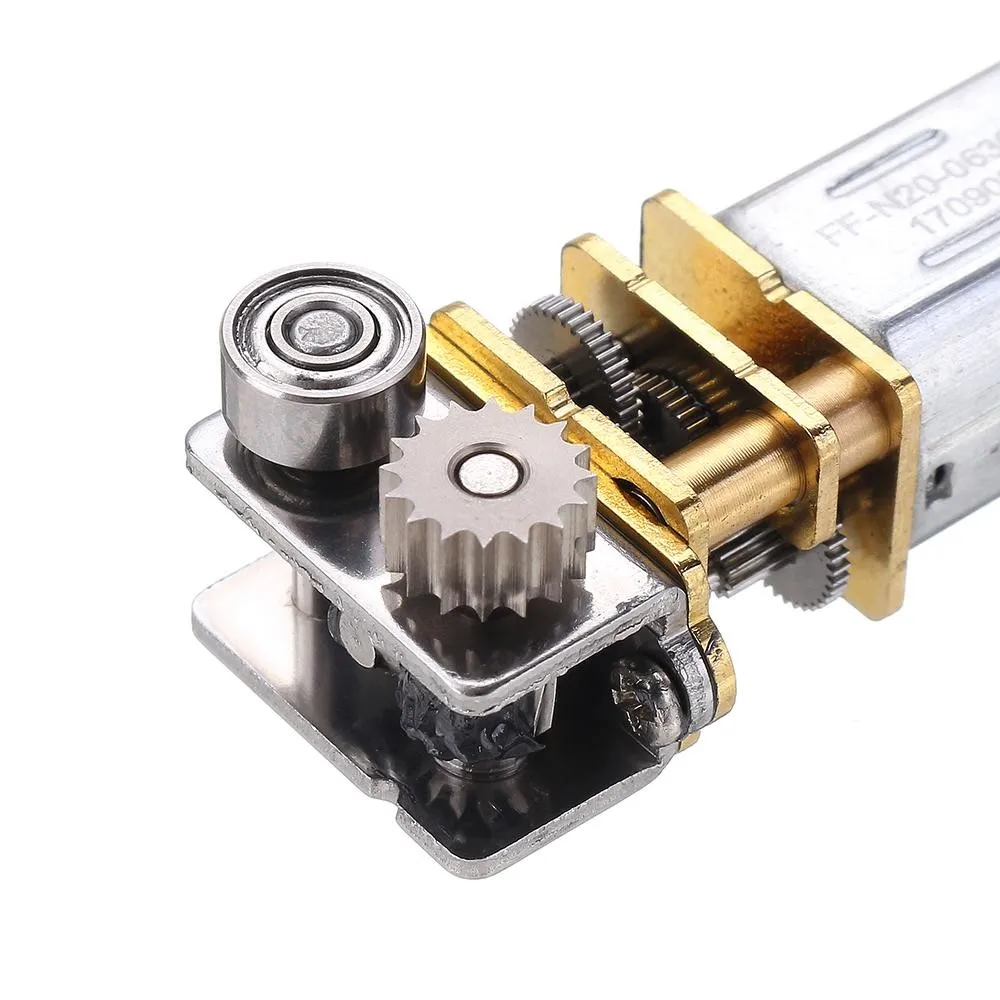

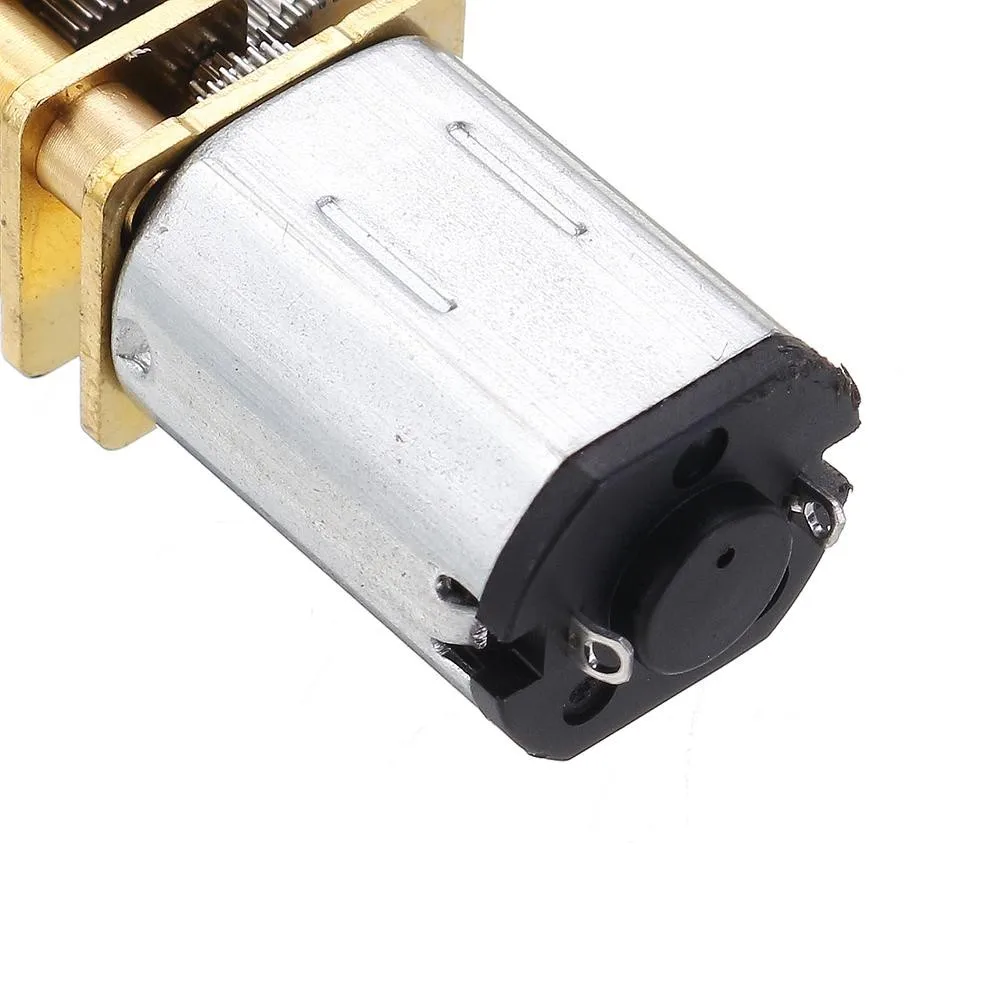

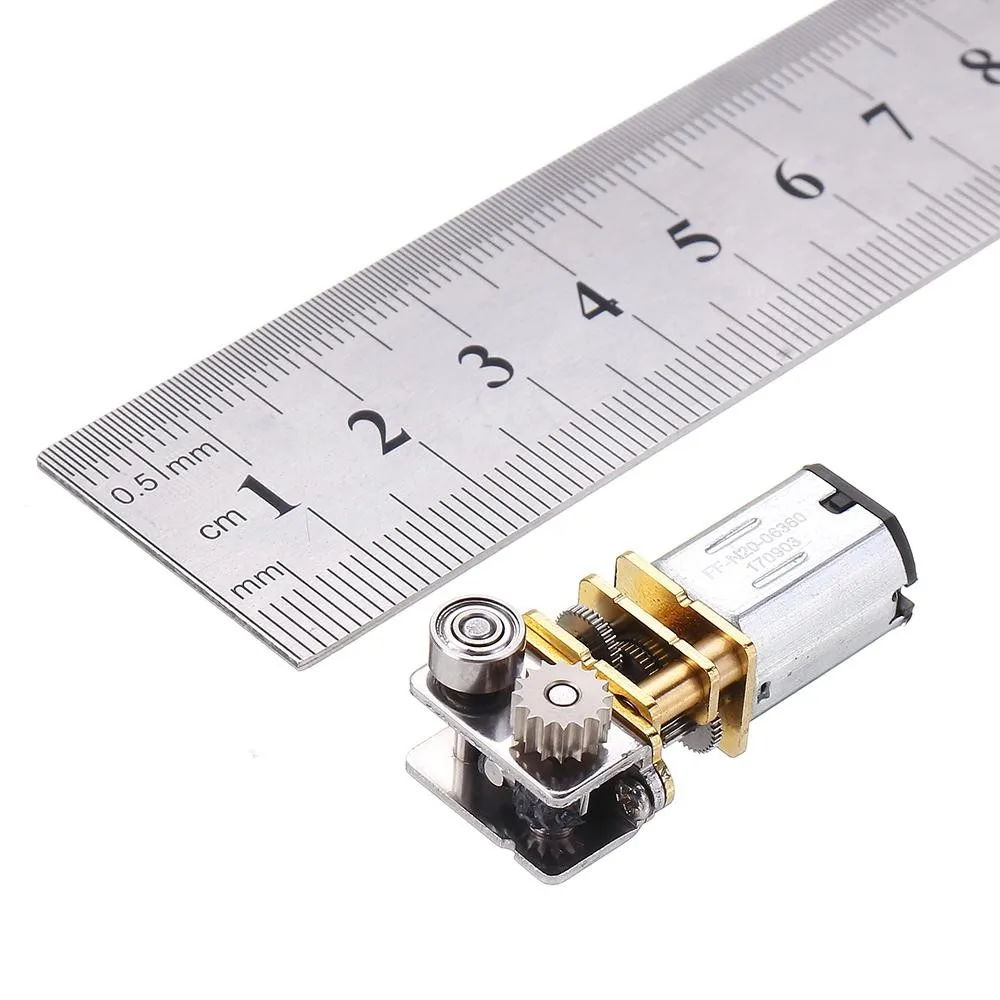

Detailed Images
Why Choose Us
About Us
Work Shop
Delivery and Payment
Payment
100% Trade Assurance for less than $5000.
More than $5000,30% deposit and 70% bill of lading scanned after payment.
It can accept L/C, D/P and other payment methods.
FOB Port
Shanghai, Ningbo,Wenzhou
Shipping
UPS/ DHL/ Fedex/ by Air/ by Sea
Delivery Time
1. in stock : around 25 days
after payment received
2.not in stock : 45 - 60 days,
from the qty we are on making
FAQ

Q:1.What kind of motors you can provide?
A: For now, we mainly provide permanent magnet brushed dc motors (including vibration motors, low voltage dc motors and high voltage dc motors) with diameter range in 6~80mm and also Dia10~80mm size gear motors.


Q:2. Can you send me a price list?
A: For all of our motors, they are customized based on different requirements like lifetime, noise, voltage, and shaft etc. The price also varies according to annual quantity. So it's really difficult for us to provide a price list. If you can share your detailed requirements and annual quantity, we'll see what offer we can provide.

Q:3. What's the lead time for regular order?
A: For orders, the standard lead time is 7-10 days and this time can be shorter or longer based on different model, period and quantity.

Q:4. Is it possible for you to develop new motors if we can provide tooling cost?
A: Yes. Please kindly share the detailed requirements like performance, size, annual quantity, target price etc. Then we'll make our evaluation to see if we can arrange or not.

Q:5. Can I get some samples?
A: It depends. If only a few samples for personal use or replacement, I am afraid it'll be difficult for us to provide because all of our motors are custom made and no stock available if there is no further needs. If just sample testing before the official order and our MOQ, price and other terms are acceptable, we'd love to provide samples.
