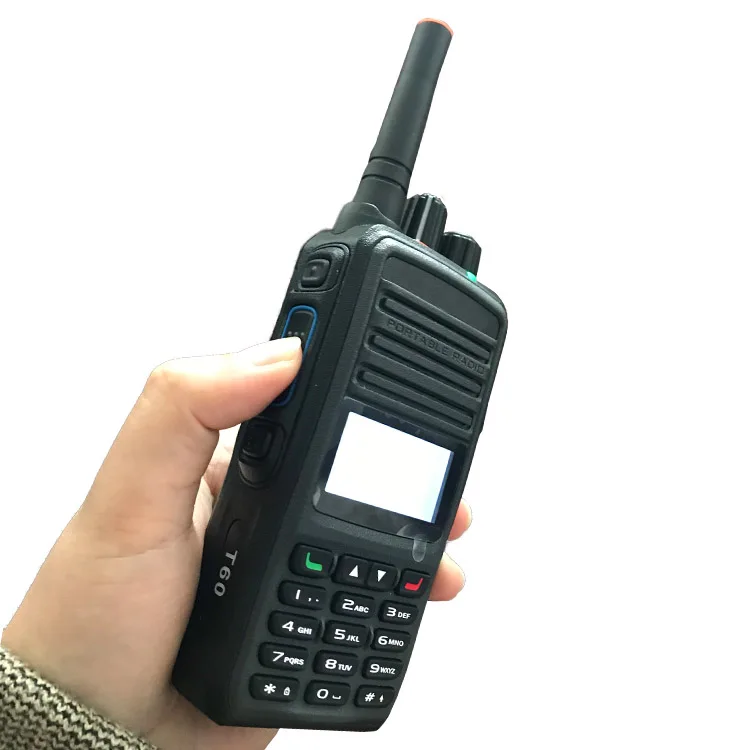

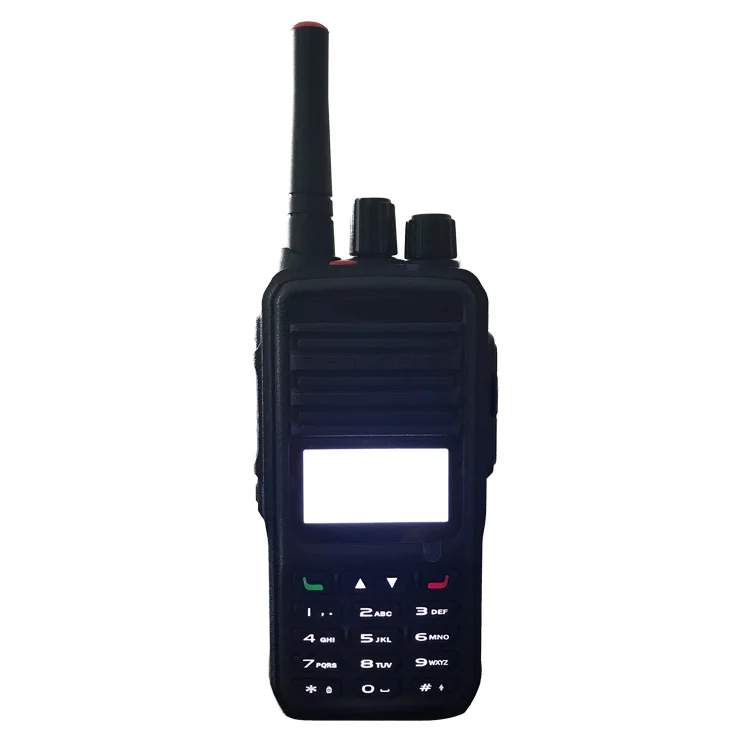

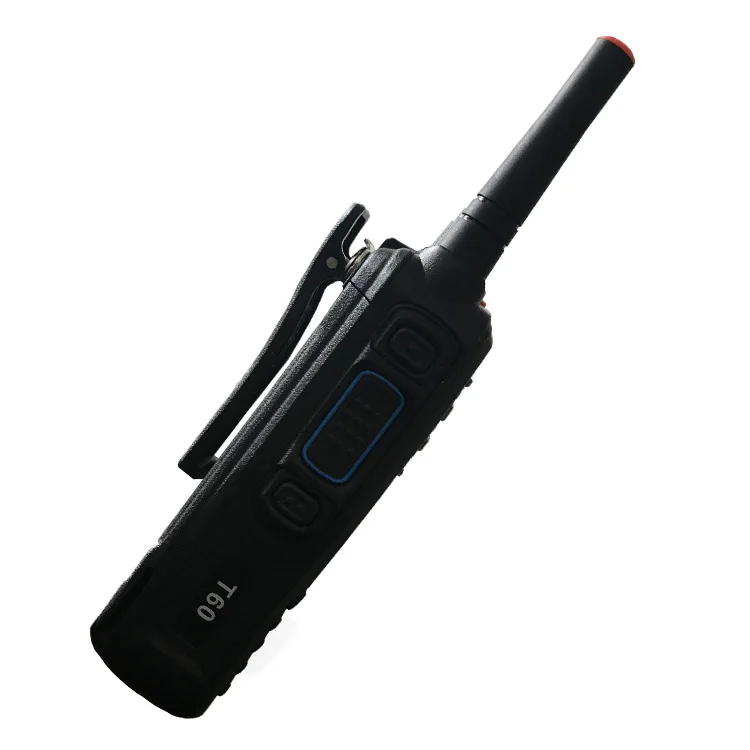

3G 4G wcdma handheld military radio walkie talkie with sim card

  • 1-9 Sets
    $253.30
    $298.00
  • >=10 Sets
    $215.90
    $254.00
15% OFF Discount ends in : : :
Color:
$253.30
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
7 day(s) after payment received
Samples: $298.00 /Set, 1 Set (Min. Order): Buy Samples
Contact Supplier
Samples - $298.00 /Set, 1 Set (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
Ode
Model Number:
T60
Type:
Handheld
Dimensions:
115mm*54mm*30mm
GSM/GPRS:
B2/B3/B5/B8
WIFI:
2.4Ghz/5Ghz
Operating Temperature:
-20℃ ~ + 50℃
Storage Temperature:
-40℃ ~ + 80℃
Power Supply:
DC 3.7V
Dustproof & Waterproof:
IP54
Operation System:
Based on Android 7.0
Frequency Stability:
±0.1 ppm
Audio Distortion:
5% (typical)

Packaging & Delivery

Selling Units:
Single item
Single package size:
10X10X10 cm
Single gross weight:
2.0 kg
Package Type:

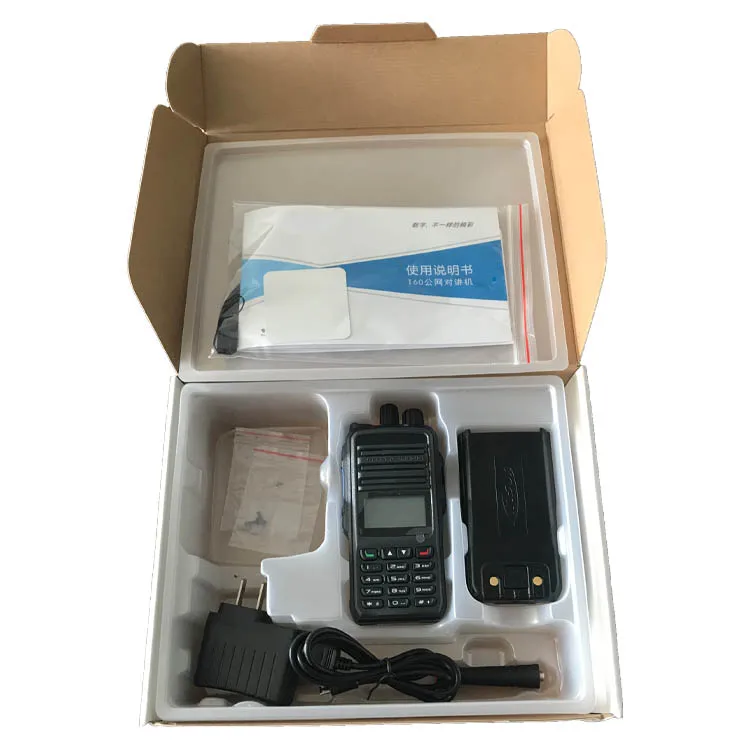

1) each Portable Two Way Radio into one color box; 2) 50pcs Portable Two Way Radio into one export carton;
Lead Time :
Quantity(Set) 1 - 99 >99
Est. Time(days) 7 To be negotiated

Selling points

       1. Global PTT service
       2. 3G/GSM (GPRS) / WIFI transmission
       3. NFC (optional) /Bluetooth
       4. More accurate positioning: A-GPS
       5. Public radio network lower customer OPEX
       6. Remain user operation habits of critical communication
       7. Advanced signaling service

 Specifications

GeneralCommunication Mode & Frequency BandGSM/GPRS: B2/B3/B5/B8
WCDMA/HSPA: B1/B2/B5/B8
FDD-LTE: B1/B3/B5/B7/B8/B20
TDD-LTE: B38/B40/B4
WIFI: 2.4Ghz/5Ghz
Operate Temperature-20℃ ~ + 50℃
Storage Temperature-40℃ ~ + 80℃
Power SupplyDC 3.7V
Battery

3600mAh Li-ion (Standard)

5200mAh Li-ion (Optional)

Dimension (H*W*D) (with battery, without antenna)115mm*54mm*30mm
Weight (with battery and antenna)330g
Display160*128 pixels, monochrome LCD screen
Dustproof & WaterproofIP54
Operation SystemBased on Android 7.0
Transmitter RF Power Output2G: 30dBm ± 2 dBm
3G: 24dBm ± 1/-3 dBm
4G: 23dBm ± 1/-3 dBm
Frequency Stability±0.1 ppm
Audio Distortion5% (typical)
Receiver Frequency Stability±0.1 ppm
Sensitivity2G: BER<0.001 Îor= -106.7(-108)dBm
3G: BER<0.001 Îor=-106.7(-108)dBm
4G: BER<0.001 Îor = -98(-100)dBm
Rated Audio Power1W
Rated Audio Distortion5% (typical)

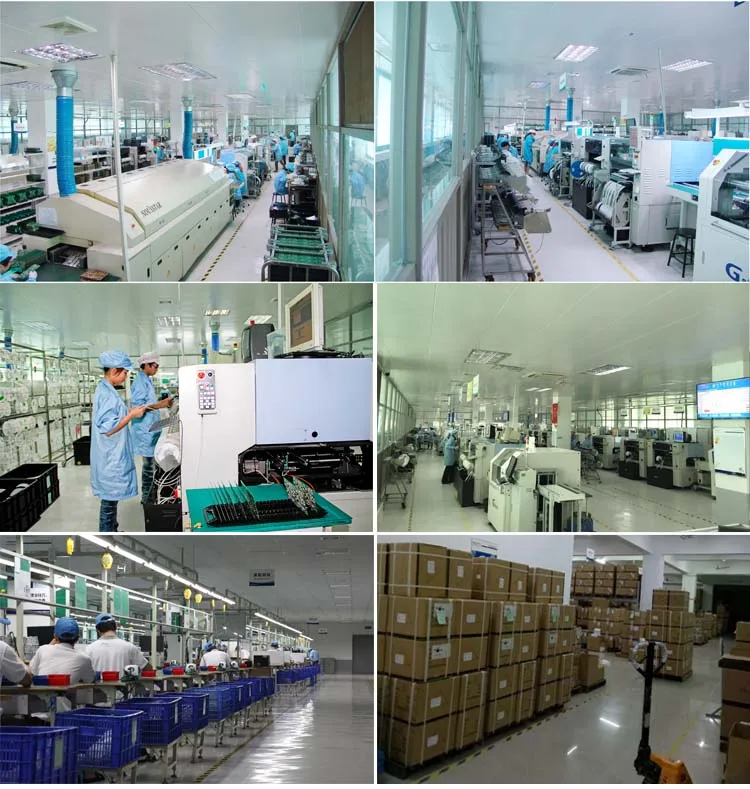

Production line
