3KW 48V MPPT wind solar hybrid charge controller(Boost&Buck)

  • 1-2 Sets
    $579.00
  • 3-9 Sets
    $559.00
  • >=10 Sets
    $539.00
Quantity:
- + Sets available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
7 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Anhui, China
Brand Name:
Ezpower
Model Number:
LHCM3-09/48
Application:
Wind Controller
Maximum Current:
90A
Rated Voltage:
48V
Color:
Write
Product size:
423*450*175mm
Product weight:
16kg

Packaging & Delivery

Selling Units:
Single item
Single package size:
51X51X27 cm
Single gross weight:
17.0 kg
Package Type:
cartoon box
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 1 2 - 3 4 - 10 >10
Est. Time(days) 7 10 15 To be negotiated

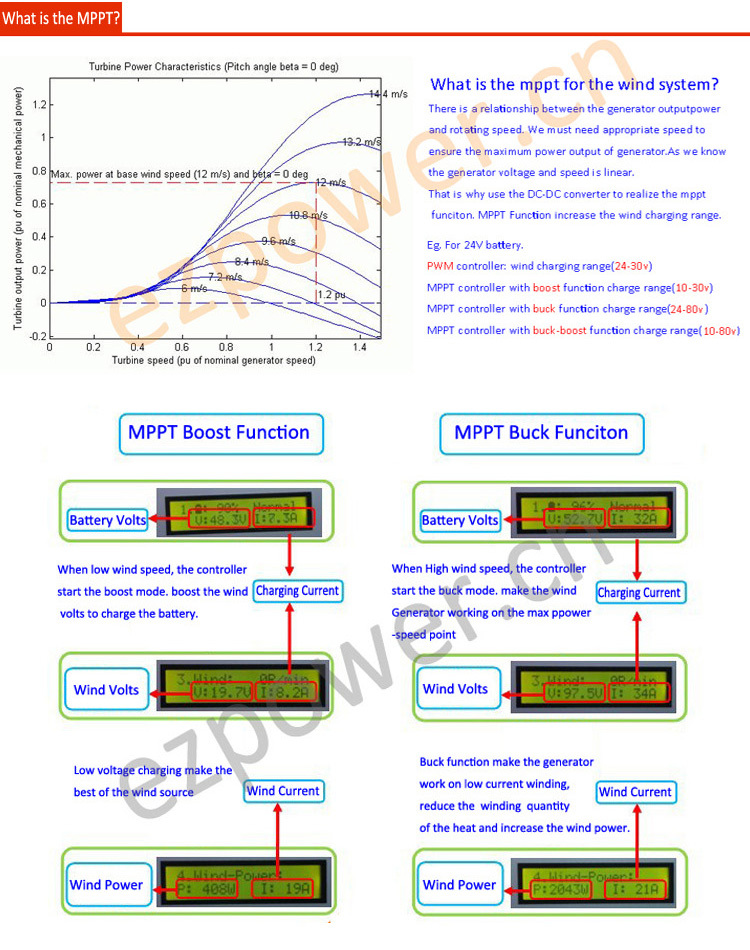

main function.jpg



1) Wide range input with DC-DC converter.

2) Real MPPT funtion, no need setting the power curve, auto tracking.

3) Auto & manual Brake.

4) Error Code Display.

5) Over Rotate Speed limiting, Over Voltage & Over Current limiting.

6) Battery Maximum Charging Current Smart Limiting.

7) Charging enable or disable by manual switch.

8) RS232/RS485 Real-time Communication.

9) Update the firmware by RS232.

10)PC and Controller Both Could Set Parameters.

11) LCD Display Multi-level Menu; Intelligent Button Settings.






ModelLHCM3-09/48
Rated wind power3000W
Rated solar power900W
Nominal system voltage48V
Battery over-discharge limit voltage(Low)40.8V(adjustable)
Battery over-discharge limit recovery voltage(Rlow)46.5V(adjustable)
Battery over-charge limit voltage(Full)58.8V(adjustable)
Battery over-charge limit recovery voltage(RFull)52.8V(adjustable)
Float voltage(Flot)54.0V(adjustable)
Wind dumpload rotate speed(Rota)500R(adjustable)
Wind pole logarithm(Pole)10D(adjustable)
Wind charging rangeDC (20-100)V
Wind start charging voltage(CutIn)     20V(adjustable)
Wind dumpload voltage(Vmax)100V(adjustable)
Dump load control modeOver rotate speed limiting, Over voltage limiting, Over Current limiting, PWM
Wind charging modeMPPT and PWM
Solar charging modePWM
Display modeLCD
Display content

Battery: voltage;charging current; Percentage of battery power.

Wind: voltage; charging current; rotate speed; output current; output power
Solar: voltage; charging current.
System: state; generated energy; error code

Operating temperature & Relative humidity-20~+55°C/35~85%RH(Non-condensing)
Quiescent power drain≤3W
Protection typeBattery: over-discharge protection; over-charge protection; anti-reverse connection.
Wind: Over rotate speed protection, over voltage protection, over current protection.
Controller size423mm*450mm*175mm
Package size510mm*250mm*545mm
Net weight16Kg
Gross weight18Kg
Optional functionRS232
RS485
USB
Anemometer function

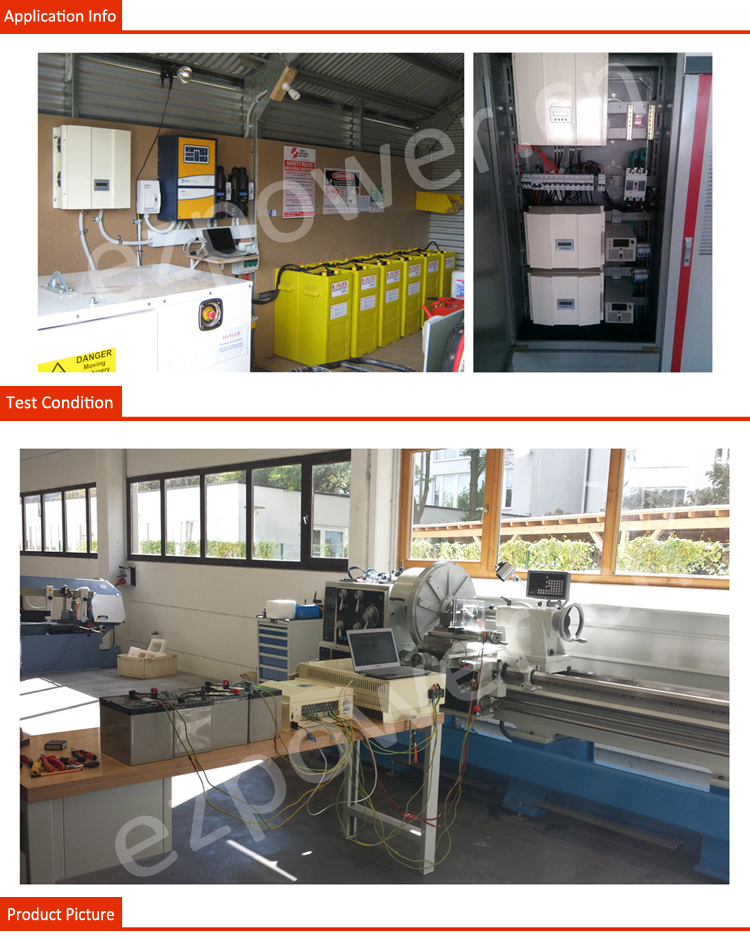

 application info-total.jpg

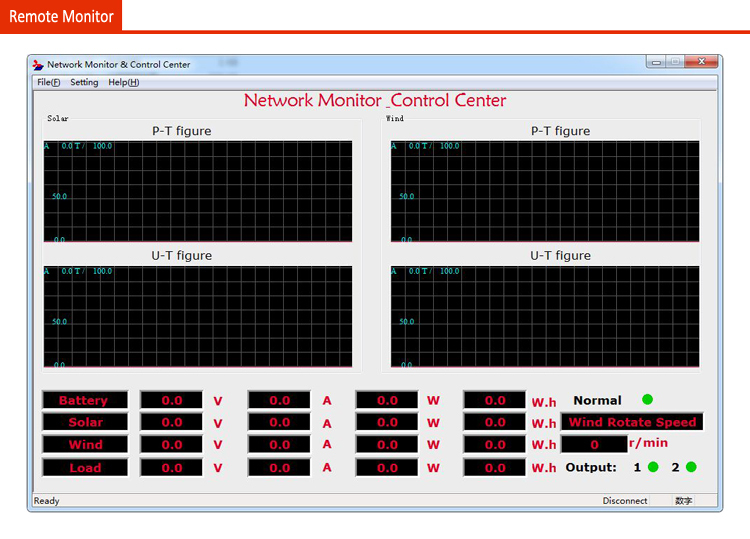

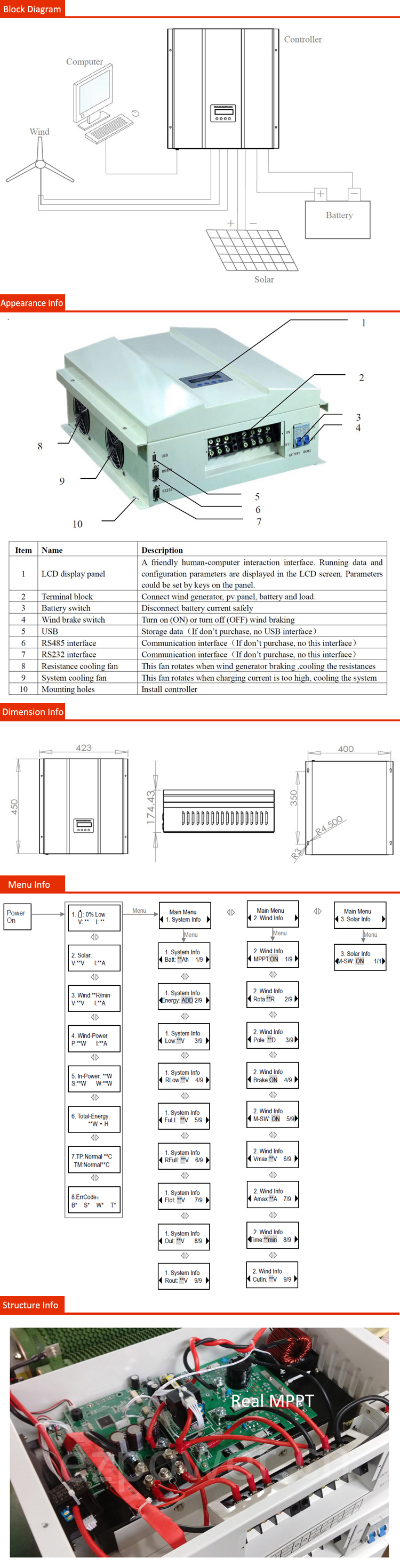

block diagram-total.jpgremote monitor.jpgpackage-big.jpg
