3V DC Eccentric Rotating Mass Vibration Motor for Adult Toys

  • 100-999 Pieces
    $1.35
  • 1000-9999 Pieces
    $1.12
  • >=10000 Pieces
    $0.98
Voltage(V):
3.0 V
Output Power:
0.5 Max
$
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
10 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
INEED
Model Number:
IND-YZ0716L47-3253T
Usage:
Boat, Car, Electric Bicycle, Fan, Home Appliance, sex toy vibration motor
Certification:
ROHS
Type:
Micro Motor
Construction:
Permanent Magnet
Commutation:
Brush
Speed(RPM):
12,000 ± 2,500 rpm
Continuous Current(A):
250 mA Max
Motor Type:
Cylinder Vibration Motor
Direction of Rotation:
CW(CW.is viewed from output shaft side.)
Stall Voltage:
1.0 V Max
Operating Voltage Range:
2.0V~4.0 V DC
Weight:
6 g(Reference)
Axial End Play:
0.05~0.3mm
Motor Diameter:
7.0 mm
Motor Length:
16 mm
Name:
China 7mm 3V DC vibration motor suppliers strong vibrations

Packaging & Delivery

Selling Units:
Single item
Single package size:
34X34X21.5 cm
Single gross weight:
12.0 kg
Lead Time :
Quantity(Pieces) 1 - 100 101 - 1000 1001 - 10000 >10000
Est. Time(days) 10 20 28 To be negotiated
Product Description

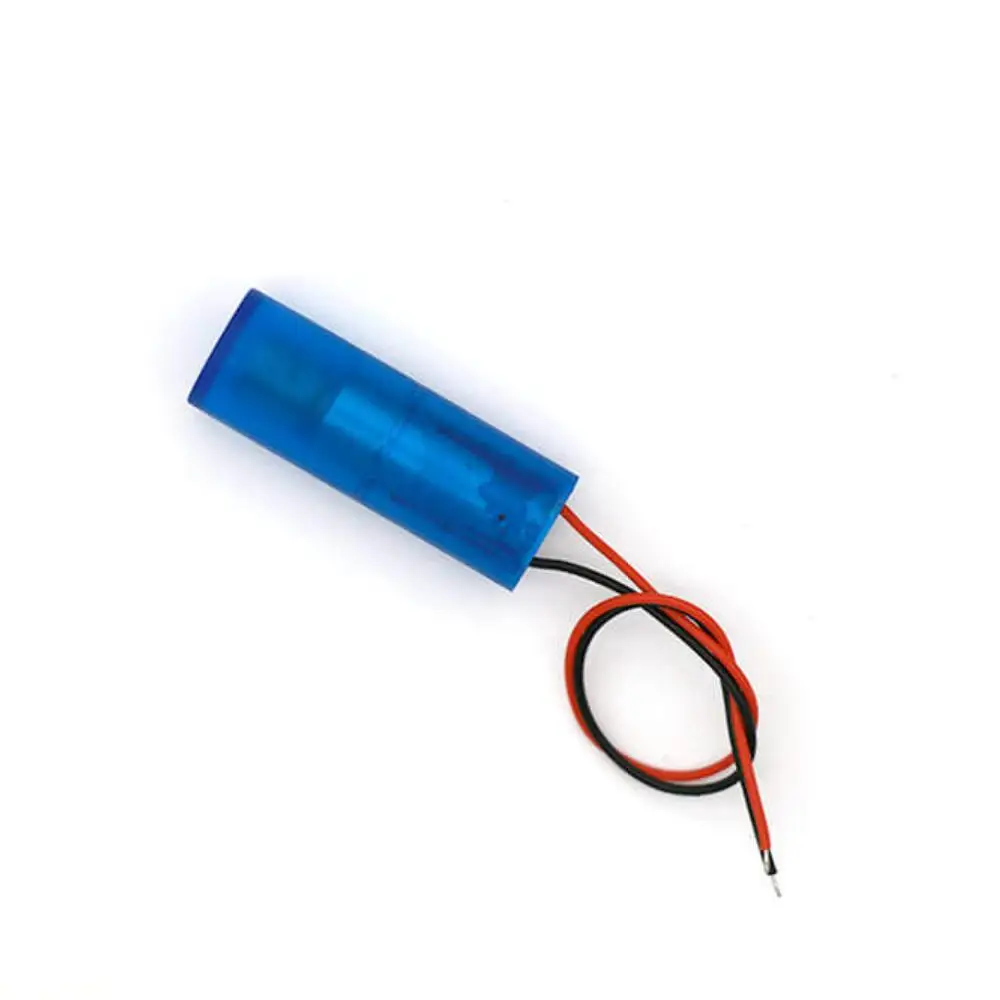

3V DC Eccentric Rotating Mass Vibration Motor for Adult Toys





encapsulated  motor.jpg





                                      1. Specification for 7mm Encapsulated Vibration Motor



Model size

Motor DiammR3.2*5.3
Body lengthmm7.0
Counterweightmm16.0



Main performance            parameters

Rated voltageV DC3.0
Rated speed RPM12,000±2,500
Rated currentmA250 Max



Customize parts

CounterweightmmCustomized
Capsule typePlastic/ MetalCustomized
Wire length/Colourmm/ red, black, whiteCustomized

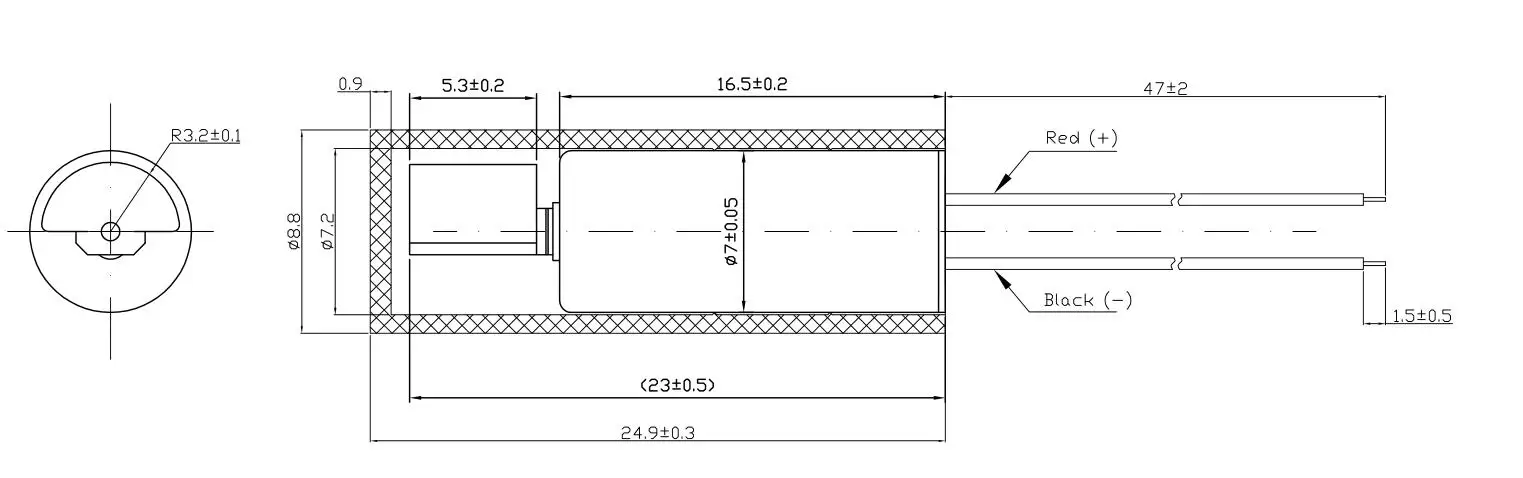

2. Product Drawing:




  Our encapsulated vibration motors have many applications in today's wearable device market. The enclosed vibration motors is based on an erm vibration motor and have no external moving parts. The waterproof vibration motor can be used to give feedback to human interface system where touch is utilized. The enclosed vibrating motors are made with a small size and compact that allow to install them into any application where space is a vital commodity. The quality erm vibration motors can be used in the medical, plastic automotive, and consumer application and product prototype. The encapsulated vibration motors can be used for touch screen feedback, simulations haptic feedback, adult toys, sex toy vibrators......





You also could find the right haptic solution with our below various vibrators:
7-10mm diameter coin type brushed vibration motors.
3-4mm height reflow solderable SMD type vibration motors
4-7mm diameter cylinder type brushed vibration motors.
5-9 diameter coin type brushless vibration motors.
These BLDC Motors have much longer lifetime than the normal brush type motors. At the test mode of 0.5s On 0.5s Off as one cycle, total lifetime can be 1 million cycles.
8-9 diameter coin type linear vibration motors.
V
ibrating in direction Z, vibration force at its peak acceleration value around 1.8G, much stronger than other normal brush type coin motors at 0.6-0.8G usually.

Company Information
Manufacturing all kinds of micro motor for over ten years. These motors are widely used intelecommunication devices and health-care products, medical devices and robotic products. Monthly capacity over 15 million motors.We have been making the best efforts tobecome one of the leading micro motor manufacturers in this industry. By investing ten percent of our annual revenue into R&D as well as advanced facilities, we continue to grow stably.Our mission is to produce cost effective products with good quality to satisfy ourcustomers worldwide. This is the target we aim at now and forever......


1) Competitive Advantages

  • Experienced Staff: average 7-year experience in R&D
  • Competitive Price
  • High Product Performance: Low noise, High efficiency, Long lifespan
  • Small Orders Accepted
  • Short Lead Time 2-3 Weeks
  • International Approvals: ROHS/ISO9001:2015, ISO14001:2015, OHSAS18001:2011


 2) Production workshop (Part)


                               Worshop site 1                                                                                           Worshop site 2




.jpg



   3) Testing equipments

coin flat button vibration motor



4) Packing & Shipping



 Packing Details

100pcs per tray, 20 trays per carton, 2000 pcs per carton
Carton size: 34cm*24cm*22cm
Gross weight: 8.5kgs/ carton
Inner box bubble, then carton. And then reinforced with plastic pallet for outer packing. Or according to client's requirement.

coin flat button vibration motor



Shipping Details

Samples Can be shipped within 10 days.

Mass production order leading time according to the actual situation.



5) After-sales Service

  When order complete,an email will be sent out to confirm the value and shipment methods.Then the shipment tracking number will be shared with email as always.100% strict inspection and test before shipment.Replace in one week once original defective goods found on arrival. Enjoy 1 year free replancement warranty.





6) Contact Information



SHENZHEN INEED YOUNGSUN TECHNOLOGY CO.,LTD.



TEL:+86-0769-2289 1073          FAX:+86-0769-228 1069




CHINA OFFICE:



Room 4-1904, Yuan Meng Ya Ju, Zongbu 3rd Road, Songshanhu North Hi-Tech Park, Dongguan, Guangdong 523808 ,China.



FAQ



1. Can you make the gearbox with custom specifications?

YES. We have strong R&D capability, also a great term of engineers, each of them have many work years experience.

2.Do you provide the samples?

YES. Our company can provide the samples to you.

3.What is your MOQ?

Our MOQ is 1000pcs. But at the beginning of our business, we accept small order.

4. Do you have the item in stock?

I am sorry we donot have the item in stock, All products are made with orders.

5.How to ship to us?

We will ship the goods to you according to the DHL or UPS or FEDEX etc account you provide.

6.How to pay the money?

We accept T/T in advance. Also we have different bank account for receiving money, like US dollors or RMB etc.

7. How can I know the product is suitable for me?

Frist, you need to provide us the more details information about the product. We will recommend the item to you according to your requirement of specification. After you confirm, we will prepare the samples to you. also we will offer some good advances according to your product use.

8. How do contact us ?

 Please send an inquiry .
