3V Small Patch 5V Wireless SMD Magnetic Buzzer With 2731Hz 86dB for mobile phone

FOB Reference Price:Get Latest Price
$0.26 - $1.00 / Piece | 1000 Piece/Pieces (Min. Order)
Lead Time:
Quantity(Pieces) 1 - 10000 10001 - 100000 >100000
Est. Time(days) 7 15 Negotiable
Customization:
Customized logo (Min. Order: 1000 Pieces)
Customized packaging (Min. Order: 3000 Pieces)

More

Graphic customization (Min. Order: 5000 Pieces) Less
Samples:
$0.29 /Piece | 1 Piece (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China
Brand Name:
MANORSHI
Model Number:
SM08ET03A
Type:
Buzzer
Product Name:
SMD Magnetic Buzzer
Rated Voltage:
3v
Operating Voltage:
2~4V
Rated Current:
90mA
SPL:
88dB
Rated Frequency:
2670Hz
Coil Resistance:
16±2.4Ω
Operating Temperature:
-20~+70℃
Storage Temperature:
-30~+80℃
RoHS:
yes
Product Certification certification
CE Certified.
RoHS Certified.
Supply Ability
Supply Ability:
30000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
Export standard packing with Small Wireless SMD Magnetic Buzzer Piezo 3V
Port
China Port
Picture Example:
package-img
Lead Time :
Quantity(Pieces) 1 - 10000 10001 - 100000 >100000
Est. Time(days) 7 15 To be negotiated
Video Description
Product Description
No.
Item
Unit
Specification
Condition
1
Oscillation Frequency
Hz
2731
Vo-p=1/2duty , square wave
2
Operating Voltage
Vo-p
2.5~ 4.5
3
Rated Voltage
Vo-p
3.6
4
Current Consumption
mA
MAX. 100
at Rated Voltage
5
Sound Pressure Level
dB
MIN. 86
at 10cm at Rated Voltage
6
Coil Resistance
Ω
16±2.4
7
Operating Temperature
-20 ~ +60
8
Storage Temperature
-30 ~ +80
9
Dimension
mm
8.5 x 8.5 x H3.0

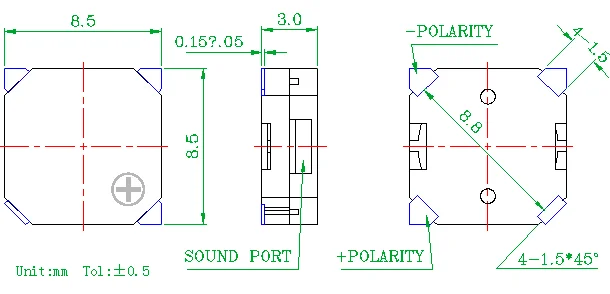

See appearance drawing
10
Weight (MAX)
gram
0.8
11
Housing Material

LCP( Black )
12
Leading Pin
Tin Plated Brass(Sn)
See appearance drawing
13
Environmental Protection Regulation
RoHS
