Overview
Quick Details
- Model Number:
-
HSA-1921YGC
- Place of Origin:
-
Guangdong, China
- Brand Name:
-
Hongsense
- Name:
-

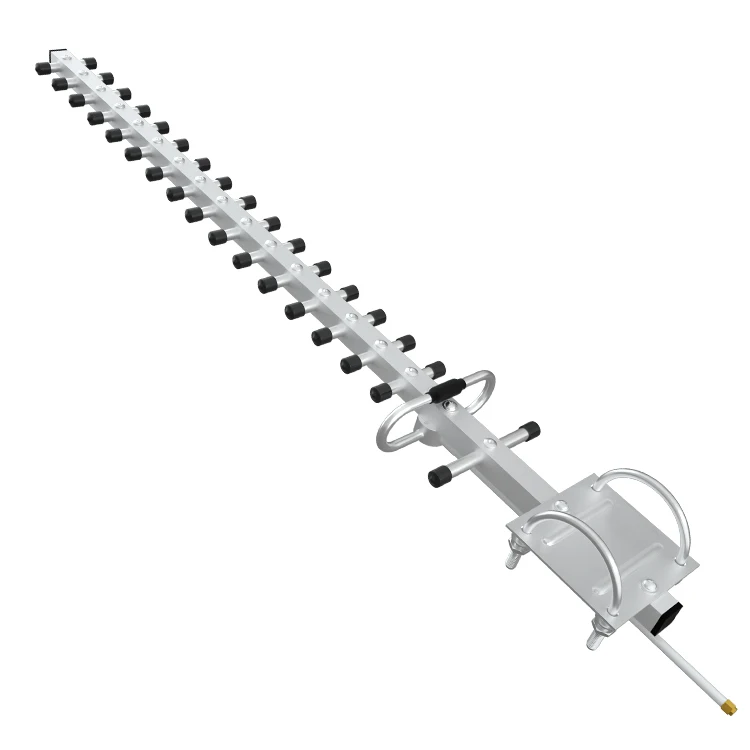

3ghz yagi antenna
- Frequency Range -MHz:
-
1920-2170MHz
- Gain-dBi:
-
18
- VSWR:
-
2
- Polarization:
-
Vertical
- Impedance-Ω:
-
50
- Max. Power-W:
-
50
- Connector:
-
RP-SMA
- Dimension-mm:
-
580*70
- Color:
-
Silver
Product Certification
- RoHS Certified.
- Valid from 2019-11-30 until 2049-12-31
Supply Ability
- Supply Ability:
- 1000 Piece/Pieces per Day
Packaging & Delivery
- Packaging Details
- 1. Each PCS has single Box
2. 20pcs in one carton
3. Package can be as customer request.
- Port
- Shenzhen
- Picture Example:
-
- Lead Time :
-
Quantity(Pieces) 1 - 1000 1001 - 2000 2001 - 10000 >10000 Est. Time(days) 7 10 15 To be negotiated
Product Details
Product Description
Electrical Specifications | ||
Model | HSA-1921YGA | |
Frequency Range-MHz | 1910-2170MHz | |
VSWR | ≦ 2 | |
Gain-dBi | 18DBi | |
Polarization | Vertical | |
Impedance-Ω | 50 | |
Max.Power-W | 50 | |
Mechanical Specifications | ||
Connector | SMA/N-F Or Customize | |

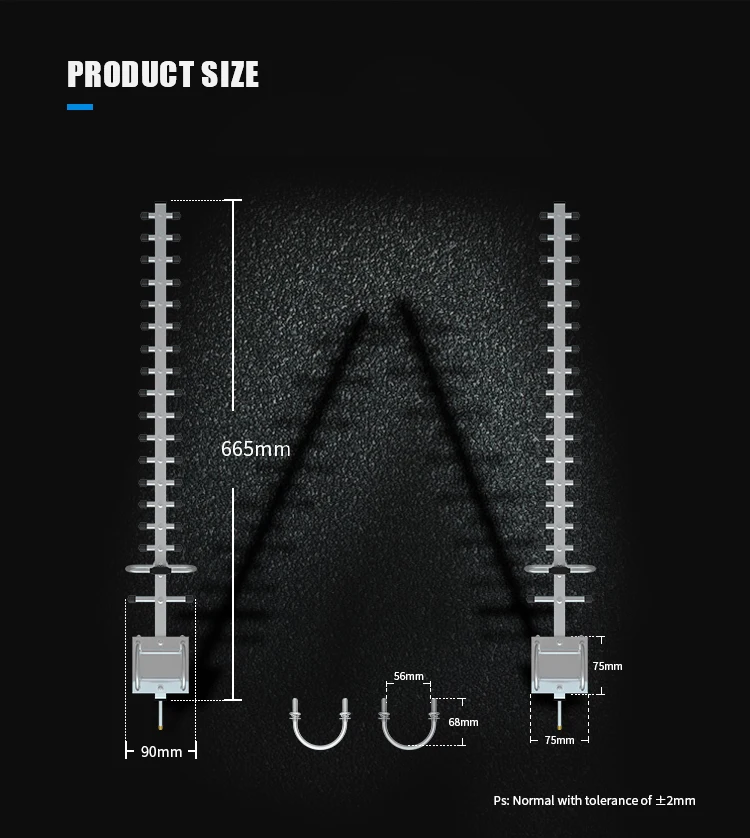

Dimension-mm | 665*75 | |
Cable | 50cm RG58 or customize | |
Net Weight-g | 243g | |
Opration Temerature-℃ | -40-+60 | |
Description: Apply to 3g system | ||
Payment & Shipment
Packing & Delivery
Company Profile
Why Choose us?
FAQ
Q: What type of antenna your company have ?
A: We have different frequencies and gains according to different types of antenna.
Gain: 2dBi, 3dBi,5dBi, 7dBi, 9dBi, 11dBi, 12dBi, 16dBi, 25dBi, ...
Frequency: 315Mhz, 433Mhz, 868Mhz, 900Mhz, 915Mhz, 1575.42mhz, 2.4G,5.8G,
RFID, WIFI, GPS, GSM, 3G, 4G, ... Outlook: Wall mount, Ceiling mount,Yagi, LPDA, Rubber, Patch, Panel, Magnetic...
A: We have different frequencies and gains according to different types of antenna.
Gain: 2dBi, 3dBi,5dBi, 7dBi, 9dBi, 11dBi, 12dBi, 16dBi, 25dBi, ...
Frequency: 315Mhz, 433Mhz, 868Mhz, 900Mhz, 915Mhz, 1575.42mhz, 2.4G,5.8G,
RFID, WIFI, GPS, GSM, 3G, 4G, ... Outlook: Wall mount, Ceiling mount,Yagi, LPDA, Rubber, Patch, Panel, Magnetic...
Q: What's your company MOQ?
A: The MOQ is 50PCS.
A: The MOQ is 50PCS.
Q: Can your company accept customize?
A: Of course. Personalized designs of the products according to customer's requirements are welcomed.For example, we can customize cable length(1M, 2M,3M...)and connectors(SMA serial ,MCX, Fakra, TS9, CRC9...) for you.
A: Of course. Personalized designs of the products according to customer's requirements are welcomed.For example, we can customize cable length(1M, 2M,3M...)and connectors(SMA serial ,MCX, Fakra, TS9, CRC9...) for you.
Q: We want to have several samples for test first,could you offer?
A: Yes, we can.Sample can send out once you ask for it, if the samples cost is higher ,we will ask for a sample fee. At the sametime.The Sample fee will return back in future order. If the samples cost is lower, we can send to you free , but you also need to take the shipping cost.
A: Yes, we can.Sample can send out once you ask for it, if the samples cost is higher ,we will ask for a sample fee. At the sametime.The Sample fee will return back in future order. If the samples cost is lower, we can send to you free , but you also need to take the shipping cost.
Q:How is the cost?
A:We would quote you the EXW price, and we can use your own courier account, such as DHL/UPS/TNT/FEDEX, and if you prefer to use ours and we would also quote you the shipping cost.
A:We would quote you the EXW price, and we can use your own courier account, such as DHL/UPS/TNT/FEDEX, and if you prefer to use ours and we would also quote you the shipping cost.
