Overview
Quick Details
Place of Origin:
Hunan, China
Brand Name:
KILOVIEW
Model Number:
KV-CV240
Input signal type:
SD-SDI(270Mbps),HD-SDI(1.485Gbps), 3G-SDI(2.97Gbps)
input interface:
SDI signal
output interface:
VGA
Power supply:
12V
Status:
stock
sdi to vga converter size:
12*10*3.5(cm)
Shell:
aluminum
sdi to vga converter Weight:
0.34 KG
Warranty:
1 year
OEM&ODM:
acceptable

Packaging & Delivery

Selling Units:
Single item
Single package size:
12X10X4 cm
Single gross weight:
0.34 kg
Package Type:
package by Carton with foam
Picture Example:
package-img
Lead Time :
2
Product Description

SDI to VGA converter KV-CV240 excellence compatibility, best image quality and supporting wide signal formats

KILOVIEW® KV-CV240 SD/HD/3G-SDI to VGA broadcast grade converter is a professional video format converter which could convert HD digital component serial interface SDI signal to HDMI signal.



KV-CV240 is compatible with SD SDI (270M), HD SDI(1.485G) and 3G SDI(2.97G) standard, built-in SDI clock-recovery circuit and circuit equalizer that can recover attenuation and distortion SDI signal after long-distance transmission.

sdi to hdmi converter

SDI to VGA KV-CV240 converter independent R&D, HD losseless, uncompression and low delay


KV-CV240 SDI TO VGA CONVERTER supports many image enhancement and handling technology such as color conditioning, 3D denoise, interlacing/progressive video conversion, video amplification/scale, frame rate convert to guarantee image conversion meet professional quality standards.


Our product KV-CV240 SDI TO VGA CONVERTER supports VGA to UXGA various standard VESA resolution output, also 720p/1080p VGA format. KV- CV240 SDI TO VGA CONVERTER could deal with resolution ratio, frame rate and image scaling of different ports. SDI embed audio can transmit to analog circuit output interface through separating conversion.


KV-CV240 SDI TO VGA CONVERTER supports VGA- DDC function and could self-adaptively output the best mode of VGA. It supports remote control operation and could connect USB with PC for higher setup or firmware upgrading. KV-CV240 SDI TO CGA CONVERTER is equipped with free PC interface management controlling software.



sdi to hdmi converter

Our product KV-CV240 sdi to vga converter is widely applied in multimedia broadcast, program production and edit in broadcasting and television, HD video information release, HD video remote transmission, video conference, multimedia advertisement and video security monitoring and so on.
 sdi to vga converter



Product Features



  • Support any SDI input format:

    SD: 525i @ 59.94Hz, 625i @ 50Hz

    HD: 720p @ 23.98Hz / 24Hz / 25Hz / 29.97Hz / 30Hz

    720p @ 50Hz / 59.94Hz / 60Hz

    1080i @ 50Hz / 59. 94Hz / 60Hz

    1080p @ 23.98Hz / 24Hz / 25Hz / 29.97Hz / 30Hz

    3G: 1080p @ 50Hz / 59.94Hz / 60Hz

  • Support VGA output format 640x480, 800x600, 1024x768, 1280x1024, 1280x720, 1280x768, 1360x768, 1600x1200, 1920x1080, etc.;
  • Support SMPTE 425M,SMPTE424M;SMPTE292M;
  • With 1 CH SDI signal loopback output;
  • VGA audio/analog audio output simultaneously
  • High quality 10bit YUV4:2:2 conversion, keeping color not distortion;
  • Professional image enhancement, denoise, color conditioning, de-interlace and scaling;
  • Support VGA DDC, self-adaptive the best mode of VGA;
  • Support all formats UP/DOWN interconversion;
  • Support Interlace/Progressive interconversion & frame rate convert;
  • Blue screen warning when the signal loss;
  • Support users to choose specified output format by remote-controller and set image output ratio (16:9, 4:3, image cutting).
Product Parameter

Model No.

KV-CV240 sdi to vga converter

Input interface

1×BNC SDI

Input signal type

SD-SDI(270Mbps),HD-SDI(1.485Gbps), 3G-SDI(2.97Gbps)

Support input formats

525i 59.94,625i 50

720p 23.98/24/25/29.97/30/50/59.94/60

1080i 50/59.94/60

1080p 23.98/24/25/29.97/30/50/59.94/60

SDI signal amplitude

0.8Vp-p

SDI impedance

75 Ohm

SDI coupling type

AC

SDI signal jitter(typical)

SD-SDI≤0.1UI HD-SDI≤0.2UI 3G-SDI≤0.4 UI

Maximum output coax length

Belden 1694A:  SD-SDI 400m,HD-SDI 200m,3G-SDI 140m

Notice:transmission distance depends on source quality and coax specification. This parameter is the value that Phabrix SDI tester making signal and transmit through Belden 1694A coax. It may be different in practical application.

SDI loopback interface

1×BNC SDI

VGA output interface

1×VGA

Frequency bandwidth

165MHz/comply standard(VGA 1.3)

Dimensions(cm)

12*10*3.5

Power supply

DC 12V, 1A

Operation temperature

-10°C ~ 60°C

Storage temperature

-30°C ~ 60°C

Relative humidity

20~90% RH (Non-condensation)








Our Services

Providing customers best using experience and satisfactory service is always our ideal and commitment. We own professional after-sale service team that could help solve various problems.



 If any questions, please feel free to contact us. We will try to solve your problems within the shortest time.

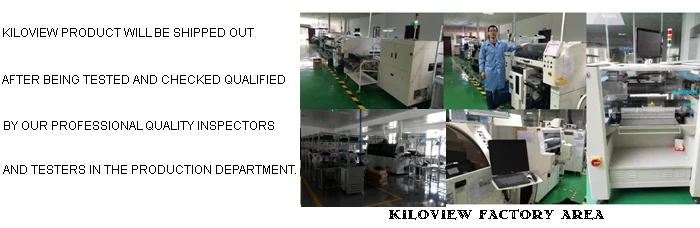

KILOVIEW Electronics Co., Ltd. is a professional high-tech enterprise which engaged in HD audio and video transmission, product R&D control, and providing technology and solutions for digital video. Each product will be shipped out after being tested and checked qualified by our professional quality inspectors and testers in the production department. Our products have been operated continuously for 24 hours, 6 months in clients’ specific project, very stable and without error, getting customers’ affirmation and recognition.
