3hp 2.2kw submersible sewage pump cutting

Feedback Ratings
  • 1-39 Pieces
    $155.00
  • 40-99 Pieces
    $150.00
  • >=100 Pieces
    $140.00
Horsepower:
3hp
Maximum Flow Rate:
6 Cubic meters/h
Maximum Head:
28m
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
10 day(s) after payment received
Contact Supplier
Samples - $280.00 /Piece, 1 Piece (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Sichuan, China (Mainland)
Brand Name:
Caring
Model Number:
ZJ-2.2-50-JN(high head) 220V
Structure:
Single-stage Pump
Usage:
Water
Application:
Sewage/Submersible
Power:
Electric, 2.2kW
Fuel:
Electric
Pressure:
High Pressure
Product name:
3hp 2.2kw submersible sewage pump cutting
Voltage:
220V
Pump casing material:
Cast iron
Outlet size:
pagoda form 25mm/38mm/50mm
Height:
560mm
Max diameter:
270mm
G.w:
31kg
Power line parameter:
3*1.5 Square millimeters*10m

Packaging & Delivery

Selling Units:
Single item
Single package size:
67X25X29 cm
Single gross weight:
31.0 kg
Package Type:
Internal foam packaging, external wooden case packaging.
Lead Time :
Quantity(Piece) 1 - 100 101 - 300 >300
Est. Time(days) 10 15 To be negotiated
Video Description

3hp 2.2kw submersible sewage pump cutting

1.Pumps can be used in more than 30 fields
2.After 40 machining procedures the high-quality national standard water pump is produced
3.All double-knife cutting pumps adopt 2 protection packaging.
4.Pumps are inspected by at least 5 departments from production to storage.
5.The lightest industrial pump, only 56kg,Solve the sewage problem in harsh environment easily
6.Cut 34200 times a minute, greatly reducing the probability of internal blockage.
7.20 years of the production experience and high-quality product manufacturing concept for pump products.
8.The company covers an area of 40,000 square meters
9.We has won more than 30 national invention patents and several provincial honors

Product Description

2.2kw single phase large power double-knife cutting pump with super high lift and large flow performance.It's suitable for farm cesspool with chicken,duck,pig,cattle,sheep and so on,fish pond dredging,industrial sewage; Large flow pump with threeleaf blade and enlarge import cutterhead,cutting is more powerful and blockage probabitity is lower. High lift pump with threeleaf blade and enlarge cutterhead,more times of cutting, enlarge pump casing and impeller.That can discharge medium to higher head place.



2.2kw single-phase large-power double-knife cutting pump can not only meet the needs of rural biogas digester biogas sludge drainage, septic pond drainage, pond silt removal and other needs, because of its special design,it can be used in industrial sewage , municipal sewage engineering and other environments. And widely used in aquaculture, paper industry, chemical industry, municipal sewage, light industry. Solve the sewage problem in harsh environment easily.



Model

PowerVoltageFlowHeadPump casing materialOutlet sizeHeightMax diameter
kWHp
ZJ-1.5-50-JN(high head)1.52220V6m³/h20mcast iron/ stainless steelpagoda form 25mm/38mm/50mm520mm260mm
ZJ-1.5-50-JN(high head)1.52380V6m³/h20mcast iron/ stainless steelpagoda form 25mm/38mm/50mm520mm260mm
ZJ-2.2-50-JN(high head)2.23220V6m³/h28mcast iron/ stainless steelpagoda form 25mm/38mm/50mm560mm270mm
ZJ-2.2-50-JN(high head)2.23380V6m³/h28mcast iron/ stainless steelpagoda form 25mm/38mm/50mm560mm270mm
ZJ-3-50-JN(high head)34380V8m³/h35mcast ironpagoda form 25mm/38mm/50mm650mm385mm
ZJ-4-50-JN(high head)45.5380V8m³/h42mcast ironpagoda form 25mm/38mm/50mm650mm380mm



The first generation impeller with knife has poor cutting effect and easy blockage, on the market in 2008

The second generation reamer type will be easily blocked with a little more impurities on the market in 2011

The third Generation disc cut Type without clogging or jamming on the market in 2014

The fourth Generation Cutting type ,double cut without clogging or jamming on the market in 2016

Caring Electrical Machinery adopts the fourth generation cutting blade.

The cutter head has six cutting points, and the speed of the machine is 2850 revolutions per minute.

2 blades * 6 cutting points * 2850 revolutions = 34200 times

Cutting more than 30,000 times per minute,the cutting effect is better than whirlpool cutting and reamer cutting, which can cut fibers easily.

The design of the built-in blade can clean up the debris better, reduce the possibility of blockage greatly inside of the machine, and make the drainage more smoothly.

The combination of built-in blade and impeller,while cutting the impurities twice can clean up the impurities entering the impeller effectively and reduce the possibility of blockage inside of the machine.

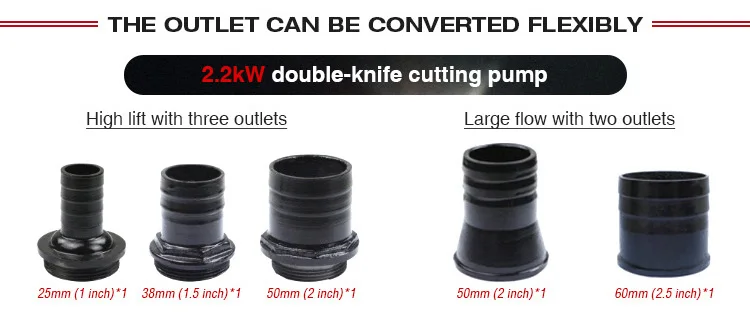

Single-phase 2.2kW high lift with Three Pagoda outlets: 25mm (1 inch)*1, 38mm (1.5 inch)*1,50mm (2 inch)*1.







1. The water intake t is too big to be blocked easily

The tripod machine base saves space and does not block the water intake.

2. Pure copper core power cord and stainless steel screw

Pure copper core power cord, national standard three-core plug. It's safety and durable. The wire length 8-10 meters. The screw is made of stainless steel.

3. Seiko bearings
Antirust and moistureproof abrasion resistance, high-speed operation of the machine is still smoothly and quiet.

4. High-quality stator and rotor

High quality cold rolled silicon steel sheet,high hardness ,strong power high efficiency and long service life,shaft with high frequency quenching.

5. Thermal protector

Lower machine voltage, heavy load or improper use may lead to burning machine, which may cause unnecessary trouble to users. To solve this problem, we add an overheat protector to the machine. If the temperature is too high, the machine will stop automatically.

6. Pure copper core
Pure copper core/machine winding, strong binding, winding using F-grade oxygen-free copper wire, high temperature resistance, long life, not easy to damage, the ordinary enameled wire is not compared with it.



More product







Sichuan Jianeng Mechanical and Electrical Co.,LTD, which is founded in 2011, is a professional manufacturer engaged in the research, development, production, sale and service of small motors and pumps. It is located in Liangfeng village,Sansu township,Dongpo district ,Meishan city,Sichuan province. The company , covering more than 35,000 square meters, has more than 100 employees and many advanced production equipment.
Jianeng’s products includes motor, submersible pump, sewage pump, double - knife cutting pump. All kinds of products are well sold in many cities and provinces around China and have won good praise from all users and dealer for the best quality and service. In addition, Jianeng has passed ISO9001:2015 certification and CCC certification, and obtained more than 10 related patent certificates. What’s more important, in recent years, our company has introduced a series of advanced equipment and has produced more good products to meet the different requirements of different customers. So there's always one kind of product for you. Even though we have our own brand “Caring”, OEM and ODM orders are also welcome.
"High quality, integrity, innovation, and win-win” is our business philosophy, our aim is offer best service and excellent quality products. Jianeng is expecting win-win cooperation with customers from all over the world.







Why choose us



1.Caring has passed the ISO9001 management system certification.
2.Electric motor strictly enforce national standards obtaining the corresponding CCC certification.
3.More than 17 years of industry experience.





FAQ



1.How do you find the most suitable pump?
Please inform us details of the product you require.
1.Medium,medium temperature,viscosity, corrosivity
2.Pump capacity
3.Pump pressure
4.Outlet and inlet diameter.
If possible,please also provide the model you are using now.
If not,we will recommend revelant product for reference.

2.What's your factory main products?
We produce plenty of water pumps especially sewage pump and double-knife
cutter pump, and three kinds of motor.
3.Are you a manufacture or a trade company?
We have our factory and we also cooperate with other companies.
4.How do you sure your after-sale services?
1 year warranty,quick-wear parts and artifical damages are not included.we promise 24 hours action for your problem and send parts for your fix
5.How long would it take to receive your orders?
We will arrange shipment within a week after payment.
6.How do we deal with clients’ quality complaints?
All complaints will be recorded into documents immediately.
Our service engineer will contact you once we find out the problems and help you deal with it finally.
7.Can you do OEM?
Yes, of course. Any OEM are welcome!
7.How can I get more product quotation?
Please click below to contact us and we will reply you within one hour on working time.
