3nh color difference formulas colorimeter NH300 with 8mm measurement aperture

FOB Reference Price:Get Latest Price
$1,500.00 - $1,800.00 / Units | 1 Unit/Units (Min. Order)
Lead Time:
Quantity(Units) 1 - 3 >3
Est. Time(days) 2 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
3nh
Model Number:
NH300
Product Name:
Colorimeter
Color:
White & Black
Weight:
500g
Dimension:
205*70*100mm
Display Size:
TFT 2.8"
Touch-Screen:
No
Battery:
Large Capacity Li-ion Battery
Operating Temperature:
-10℃~40℃
Storage Temperature:
-20℃~50℃
Certificate:
CE & RoHS & TUV & ISO9001
Supply Ability
Supply Ability:
10000 Unit/Units per Month
Packaging & Delivery
Packaging Details
Standard Safety Package
Port
Shenzhen Port
Lead Time :
Quantity(Units) 1 - 3 >3
Est. Time(days) 2 To be negotiated
NH300 COLORIMETER

3nh color difference formulas colorimeter NH300 with 8mm measurement aperture

NH300 colorimeter features with powerful functions, high accuracy and competitive price, which has integrated the advantages of the similar products of the famous international brands. It also goes with our own innovative technology and patents, like illumination locating, built-in white plate automatic calibration at startup.


It is configured with multiple color space systems and color difference formulas, all of which have endowed NH300 with powerful functions to meet the requests of all kinds of color measurements.


Its friendly interface makes operation very simple. And once connected with PC via the software CQCS3 whose complete independent intellectual property right is owned by 3nh, more powerful extension functions will be at hand, like color difference analysis, color difference cumulative analysis, chromaticity index, color sample database management and simulating object color, etc.


It's used to compare color difference in plastic, electronic, painting, coating, ink, texile, garment, printing, dyeing, food, medical, cosmetic industries and institutes, schools and laboratoris.

Detailed Parameters
Name&Model
Colorimeter NH300
Illuminating/Viewing Geometry
8°/D (8° illumination, diffuse Viewing),
Observer
CIE 10° Standard Observer
Measuring Aperture
Φ8mm
Repetitive Error
Standard Deviation within ΔE*ab=0.07
(Calculating Method: Average value of the results of 30 measurements of the standard white plate)
Inter-Instrument Error
Within ΔE*ab=0.4
Color Space
CIE L*a*b*C*h, CIE L*a*b, CIE XYZ
Color Difference Formula
ΔE*ab, ΔL*a*b*, ΔE*C*h*
Measurement Time
1.5s
Measuring Range
L: 0-100
Light Source Type
D65
Light Source Device
LED Blue Light Excitation
Light Source Life
5 years, more than 1.6 million measurements
Sensor
Silicon Photoelectric Diode Array
Data Storage
100 Standards, 20000 Samples
Data Port
USB
Standard Accessory
AC Adapter, Li-ion Battery, Operation Manual, Software CD, USB Cable, White Calibration Cover, Φ8mm and Φ4mm Measuring Aperture
Optional Accessory
Mini-printer, Printer Cable, Powder Test Box, Universal Test Components
Detailed Images

With the configuration of the universal test component and the powder test box, measurements of liquid, paste, powder and particle could be implemented without hesitation.

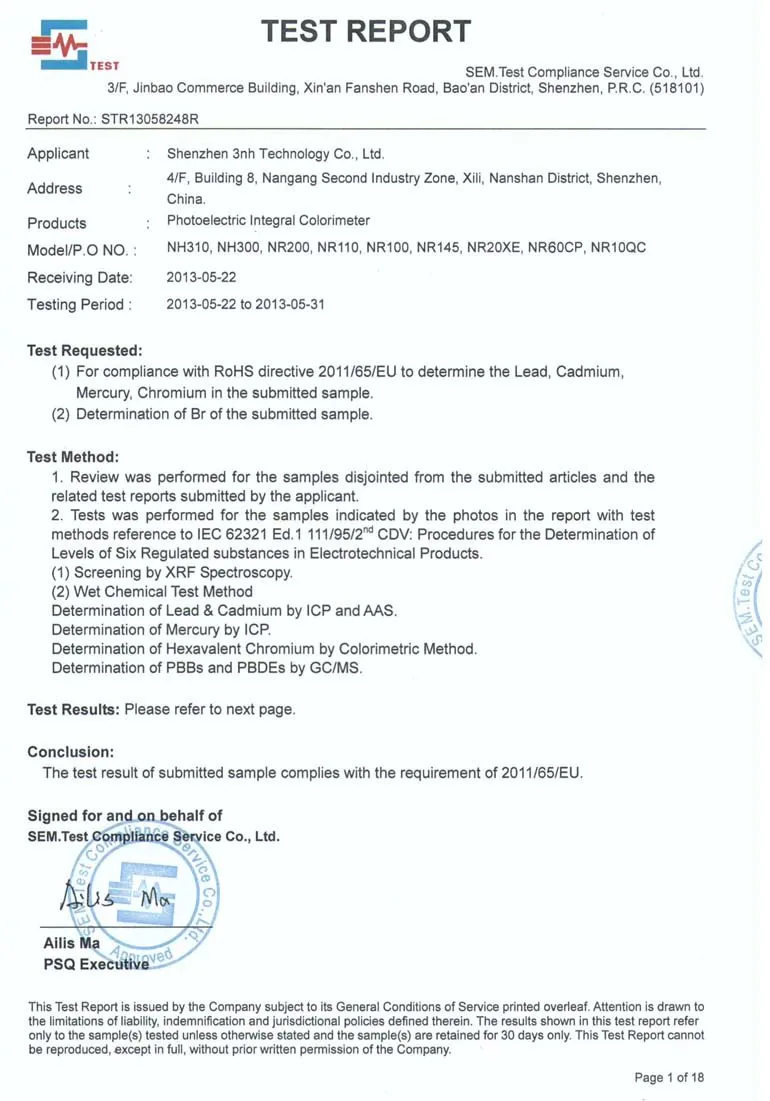

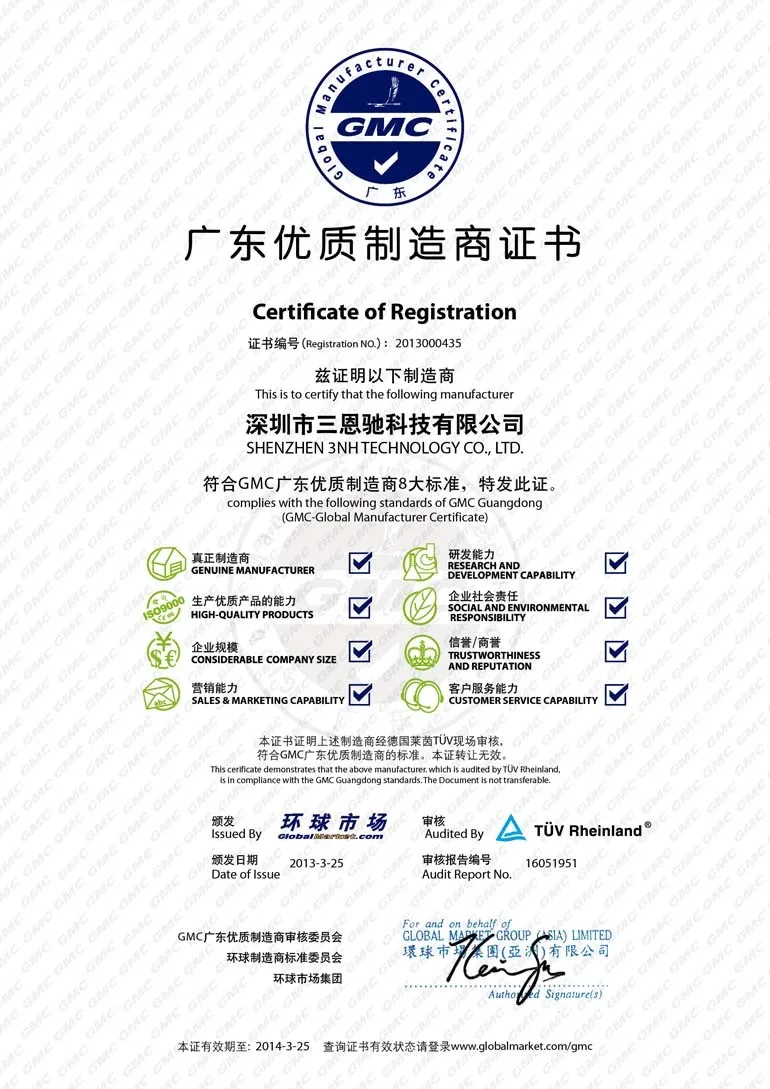

Certifications
Our Customers
After years of cultivation in color management field, we have won our favorable fame by aquiring the acception of some world famous companies which have been purchasing our equipments anually, like HUAWEI, Lenovo, LG, SIEMENS, Colgate, NIKE, PHILIPS, Haier, YOUNGOR, SONY, EMERSON, Power Dekor, etc.
About Us

3nh, headquartered in Shenzhen China, is a professional manufacturer of color management equipment. We have been committed to provide the world innovative color management solution by researching and developping, designing and manufacturing since founded in 1988. By now, we have developped 5 series of products almost covering the whole field of color management. All our products have been qualified by CE, RoHS, ISO9001, TUV. Having been the leading brand and the biggest color management equipment supplier in China, we are now looking forward to cooperating with distributors all over the world.
