3nh ns808 automatic spectrophotometer colorimeter with 45/0 for reflectance film color difference and brightness Yxy

$3,200.00 / Piece | 1 Piece (Min. Order)
Usage:
Paper Testing Instrument
$3,200.00
- +
available
Plastic Testing Machine
$3,200.00
- +
available
Leather Testing Instrument
$3,200.00
- +
available
All 8 Options
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
2 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
3nh
Model Number:
NS808, NS808
Power:
Electronic
Integrating sphere Size:
58mm
Measuring Aperture:
8mm
Observer:
2°/10°
Repeatability:
DeltaE*ab 0.04
Display Screen::
TFT 3.5inch, Touch screen
Data Memory:
1000 Standards, 10000 Sample
Delivery day:
1 working days after payment
Warranty:
2 years
Sample order:
Yes

Packaging & Delivery

Selling Units:
Single item
Single package size:
45X39X26 cm
Single gross weight:
3.000 kg
Package Type:
Standard package
Lead Time :
Quantity(Pieces) 1 - 3 >3
Est. Time(days) 2 To be negotiated
Detailed Parameters
Name&Model
Spectrophotometer NS808
Observer
2°/10°
Illuminating/Viewing Geometry
45°/0 (45° ring illumination, vertical viewing),
Conform to the Standard CIE No.15, GB/T3978, GB2893, GB/T18833.
Integrating Sphere Diameter
Φ58mm
Measuring Aperture
Φ8mm
ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*cmc(l:c), CIE2000ΔE*00, ΔE(h)Repetitive Error
Spectral Reflectance: standard deviation within 0.1%(400~700nm: within 0.2%)
Colorimetric Value: standard deviation within ΔE*ab=0.04 (Measurement Conditions: white calibration plate measured 30 times at 5 seconds intervals after white calibration performed.)
Color Difference Formula
Spectral Reflectance: standard deviation within 0.1%(400~700nm: within 0.2%)
Color Space
CIE LAB, XYZ, Yxy, LCh, CIE LUV, LAB&WI&YI
WI(ASTM E313, CIE/ISO, AATCC, Hunter),
YI(ASTM D1925, ASTM 313),
TI(ASTM E313, CIE/ISO),
Metamerism Index (Mt), Color Strength,
Color Stain, Color Fastness
Wavelength Range
400-700nm
Wavelength Pitch
10nm
Reflectance Range
0-200%
Light Source
D65, D50, A, C, D55, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12
Light Source Device
Combined LED Light
Light Source Life
5 years, more than 1.6 million measurements
Sensor
Silicon Photoelectric Diode Array
Data Storage
1000 Standards, 15000 Samples
Data Port
USB & RS232
Standard Accessory
Power Adapter, Li-ion Battery, Operating Instruction, CD-ROM (containing management software), Data Line, White and Black Calibration Cavity, Protective Cover and Wrist Strap.
Inter-Instrument Error
Within ΔE*ab=0.2 (Average for 12 BCRA series II color tiles)
Display Data
Spectral Value/Graph, Colorimetric Value, Color Difference Value/Graph, PASS/FAIL Result, Color Offset, Color Simulation, Color Index Setting(ΔE*94, ΔE*cmc, ΔE2000), Tolerance Prompt, Reverse Prompt, Time Setting, Language Setting, Restore Factory Setting
Measurement Time
1.5s
Optional Accessory
Universal Test Components, Micro Printer, Powder Test Box

Brief Introduction:

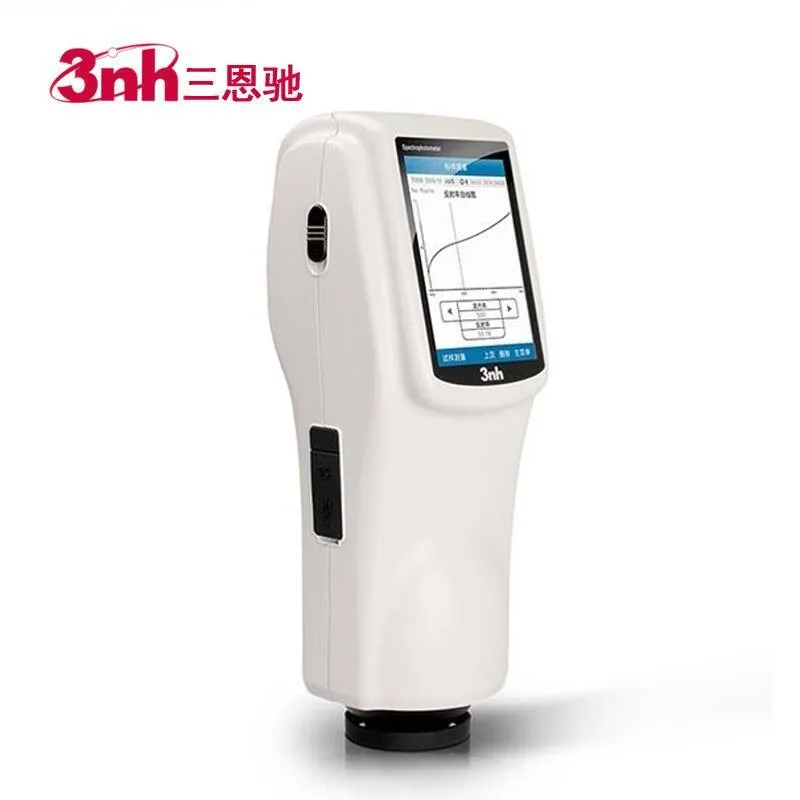

NS808 is a model of spectrophotometer with incomparable accuracy. It features the great performance in the measurements of traffic signs with the help of dedicated PC software CQCT and a ultra-large integrating sphere which can evenly distribute light more effectively, which makes the measurement results more accurate.

The errors of the absolute values of L*ab of the spectrophotometers from USA, Germany and Japan are all ±1.5, while, after careful comparison, the error of L*ab absolute value of our NS series spectrophotometer is only ±1.0.

It is configured with two observer angles, multiple light source types, multiple color space systems and color difference formulas, all of which have endowed NS series spectrophotometer with powerful functions to meet the requests of all kinds of color measurements.

The large touch-screen display makes operation more friendly. And once connected with PC via the software CQCT, more extension functions will be at hand
.

Images

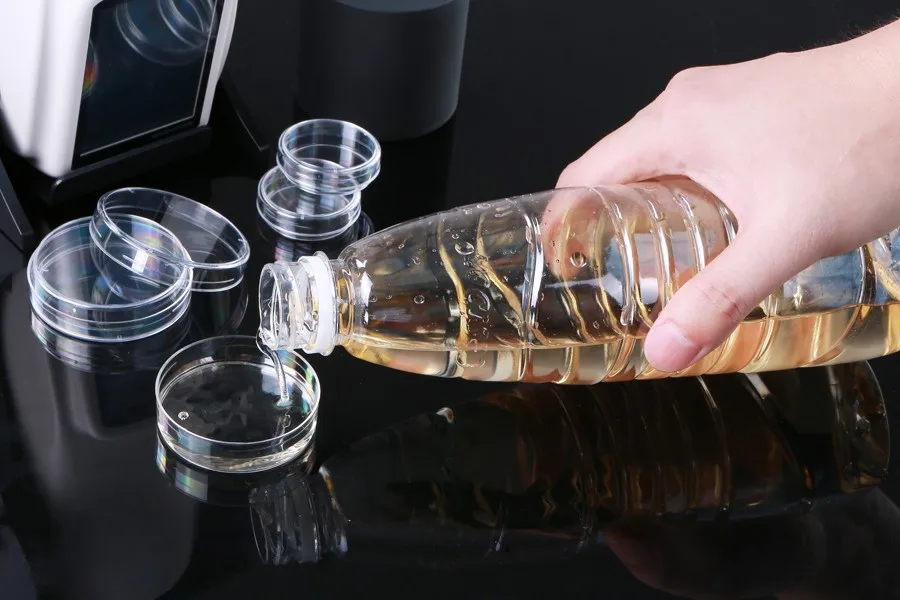

For Liquid Testing

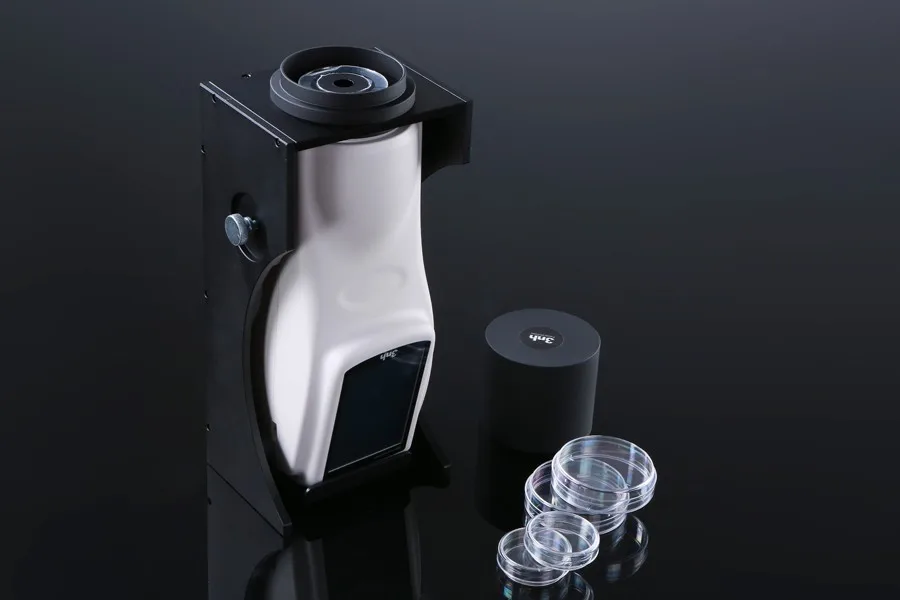

With the configuration of the universal test component and the powder test box, measurements of liquid, paste, powder and particle could be implemented without hesitation.

Company Details

3nh, headquartered in Shenzhen China, is a professional manufacturer of color management equipment. We have been committed to provide the world innovative color management solution by researching and developping, designing and manufacturing since founded in 1988. By now, we have developped 5 series of products almost covering the whole field of color management. All our products have been qualified by CE, RoHS, ISO9001, TUV. Having been the leading brand and the biggest color management equipment supplier in China, we are now looking forward to cooperating with distributors all over the world.
