4-20mA RS485 Relay LED Absolute pressure sensor/Liquid oil water gas pressure sensor

  • 1-19 Pieces
    $28.00
  • >=20 Pieces
    $25.00
Material:
Stainless steel
Accuracy:
0.5%
Type:

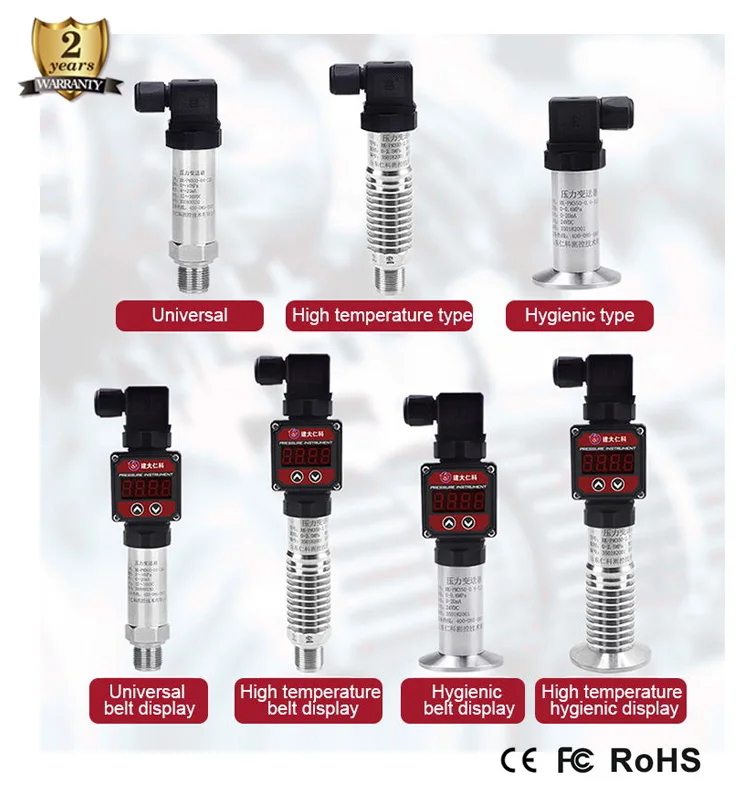

Common use High temperature sanitary High temperature&sanitary
Pressure Range:
-0.1~0Mpa
$
- +
available
0~10Kpa
$
- +
available
0~20Kpa
$
- +
available
All 5 Options
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
5 day(s) after payment received
Customization:
Customized logo (Min. Order: 50 Pieces)
Customized packaging (Min. Order: 50 Pieces)

More

Graphic customization (Min. Order: 200 Pieces) Less
Samples: $33.20 /Piece, 1 Piece (Min. Order): Buy Samples
Contact Supplier
Samples - $33.20 /Piece, 1 Piece (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China
Brand Name:
RENKEER
Model Number:
RS-PM300
Product Name:
LED Absolute pressure sensor/Liquid oil water gas pressure sensor
Accuracy:
0.2%FS
Output signal:
4~20mA/0-5V/0-10V/RS485
Pressure type:
Gauge Pressure Absolute Pressure Sealed Pressure
Power supply:
12-36VDC
Pressure range:
-0.1~+100Mpa (optional)
Material:
Stainless steel
Certificates:
CE ROHS FCC ISO
Warranty:
2years
Medium:
Liquid gas oil

Packaging & Delivery

Selling Units:
Single item
Single package size:
15X2.5X15 cm
Single gross weight:
2.5 kg
Package Type:
Packed with EPE and carton box.
Picture Example:
package-img
Lead Time :
Quantity(Piece) 1 - 20 21 - 50 51 - 200 >200
Est. Time(days) 5 6 8 To be negotiated

4-20mA RS485 Relay LED Absolute pressure sensor/Liquid oil water gas pressure sensor

Technology



Our pressure sensor PM300 uses a high-performance pressure-sensitive chip that combines advanced circuit processing and temperature compensation techniques to convert pressure changes into linear current or voltage signals. The product is small in size, easy to install, and is insulated by a stainless steel case. It is suitable for measuring gas and liquid media compatible with the material of the contact part. It can be used to measure gauge pressure, negative pressure and absolute pressure.
Sanitary pressure sensor detective head is formed with a welded sealing diaphragm structure. Its welded sealing isolating diaphragm device has a variety of different process connection structures, which are widely used in high temperature, high viscosity, crystalline medium and easy to block, and also suitable for pressure measurement in sanitary and medical applications.

Parameter

Measurement range

-0.1~+100Mpa (optional)

Measurement accuracy

0.2%FS, 0.5%FS (default)

Overload capacity

<1.5 range

Temperature drift

0.03% FS / ℃

Power supply

12-36vdc typical 24V

Medium temperature

- 40 ~ 75 ℃/- 40 ~ 150 ℃ (high temperature)

Measuring medium

gas and liquid which are not corroded to the rusty steel

Protection grade

IP65

Load capacity

Current mode on load capacity: ≤500Ω(without display)

                                                   ≤250Ω(with display)



 Output voltage type resistance: ≤510Ω



Production steps

Every pressure sensor we produce with heart



Size




Pressure range No.



No.

Range

No.

Range

No.

Range

No.

Range

01

0-10Kpa

02

0-100Kpa

03

0-0.6Mpa

04

0-1Mpa

05

0-2.5Mpa

06

0-10Mpa

07

0-40Mpa

08

0-60Mpa

09

-100-0Kpa

10

-0.1Mpa-0.1Mpa

11

0-1.6MPa

12



13



14



15



16



17



18



19



20



21



22



23



99

Customized
