4-20ma pressure sensor transmitter

FOB Reference Price:Get Latest Price
$69.20 - $200.20 / Pieces | 1 Piece/Pieces 4-20ma pressure sensor transmitter (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shaanxi, China
Brand Name:
Yunyi
Model Number:
UC800A
Item:
4-20ma pressure sensor transmitter
Range:
-0.1..0..100MPa
Output:
4-20 mA
Power supply:
12-36VDC( standard 24VDC)
Thread size:
1/2npt, 1/4npt, m20*1.5 optional
Industrial application:
industrial water treatment use
pressure type:
differential, gage, absolute, negative
water proof:
IP65,IP66,IP67,IP68 optional
Material:
304 SST, 316L SST optinal
Warranty:
18 months
Supply Ability
Supply Ability:
1000 Piece/Pieces per Month 4-20ma pressure sensor transmitter
Packaging & Delivery
Packaging Details
4-20ma pressure sensor transmitter
Antistatic plastic bags and Corrugated box.
Other package mode also can be customized.
Port
Shenzhen, shanghai, beijing
Lead Time :
5 days
PRESSURE TRANSMITTER
Product Description

Description of 4-20ma pressure sensor transmitter

4-20ma pressure sensor transmitter is intelligent pressure transmitter combine measuring ,display and transmitter together. The pressure sensor can correct the linearity and compensate temperature drift. Pressure transmitter also can adjust the parameter of transmitter by hand-helder, achieve accurate data transfer, local equipment diagnoses and long-distance bidirectional communication . Pressure sensor transmitter with characteristics of high precision, good stability& reliability and easy handle. This pressure transmitter with low price and high quality, widely used in all kinds industry area.

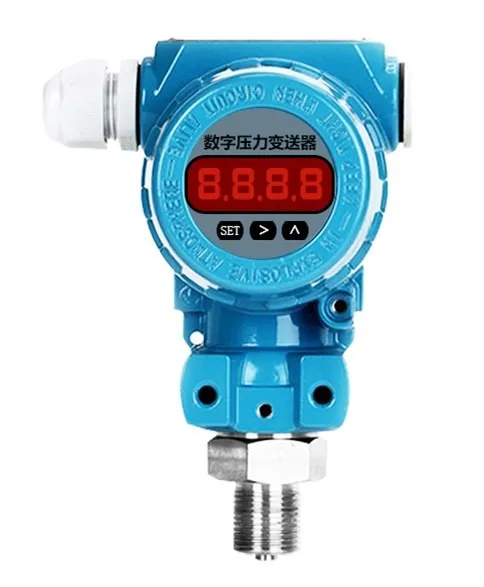

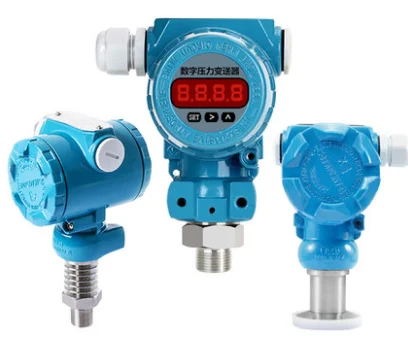

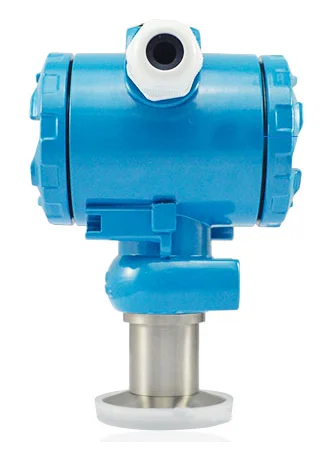

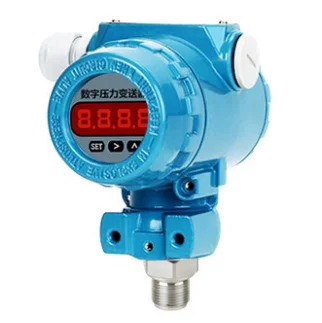

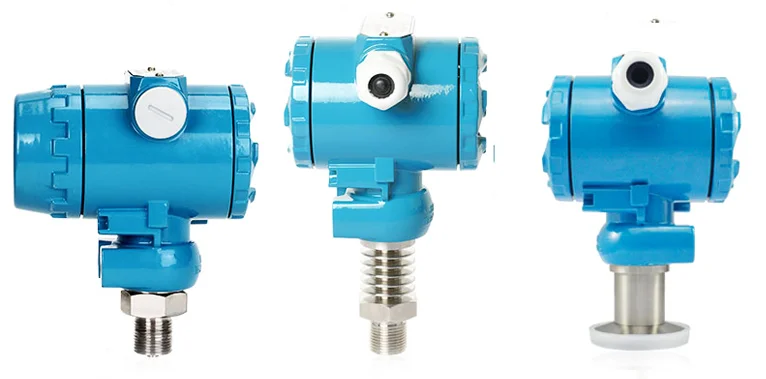

Detailed Images
Specification
Item
4-20ma pressure sensor transmitter
Measurement Range
-0.1...0~0.01...~100MPa
Proof pressure
≤1.5X rated pressure or 110MPa which ever is less
Pressure type
Gauge, absolute ,sealed gauge
Accuracy
±0.1% ±0.25%(Typical)
Stability
±0.5%F.S/year
Temperature Error- Zero
±0.03%F.S/℃(≤100KPa) ±0.02%F.S/℃(>100KPa)
Temperature Error -Span
±0.03%F.S/℃(≤100KPa) ±0.02%F.S/℃(>100KPa)
OperatingTemperatureRange
-20℃~80℃
Power supply
12~30VDC
Output signal
4~20mA 0~10/20mA 0/1~5VDC
Pressure port
M20×1.5 G1/2 or customize
Housing material
1Cr18Ni9Ti stainless steel
Diaphragm material
316L
O-ring
Fluororubber
Protection
IP65
Insulation resistance
100MΩ 100VDC
Features

Features of 4-20ma pressure sensor transmitter


 Wide measurement range, Full stainless steel, various pressure port, High light LCD indicator.
 HART protocol or RS485 protocol
 Marking:ExiaIICT6;
CE certification

Application

Application of 4-20ma pressure sensor transmitter


 Compatible with 316LSS,noncorrosive gases & liquids
 Petroleum industry, chemical industry, metallurgy industry, electric power, hydrology etc.
