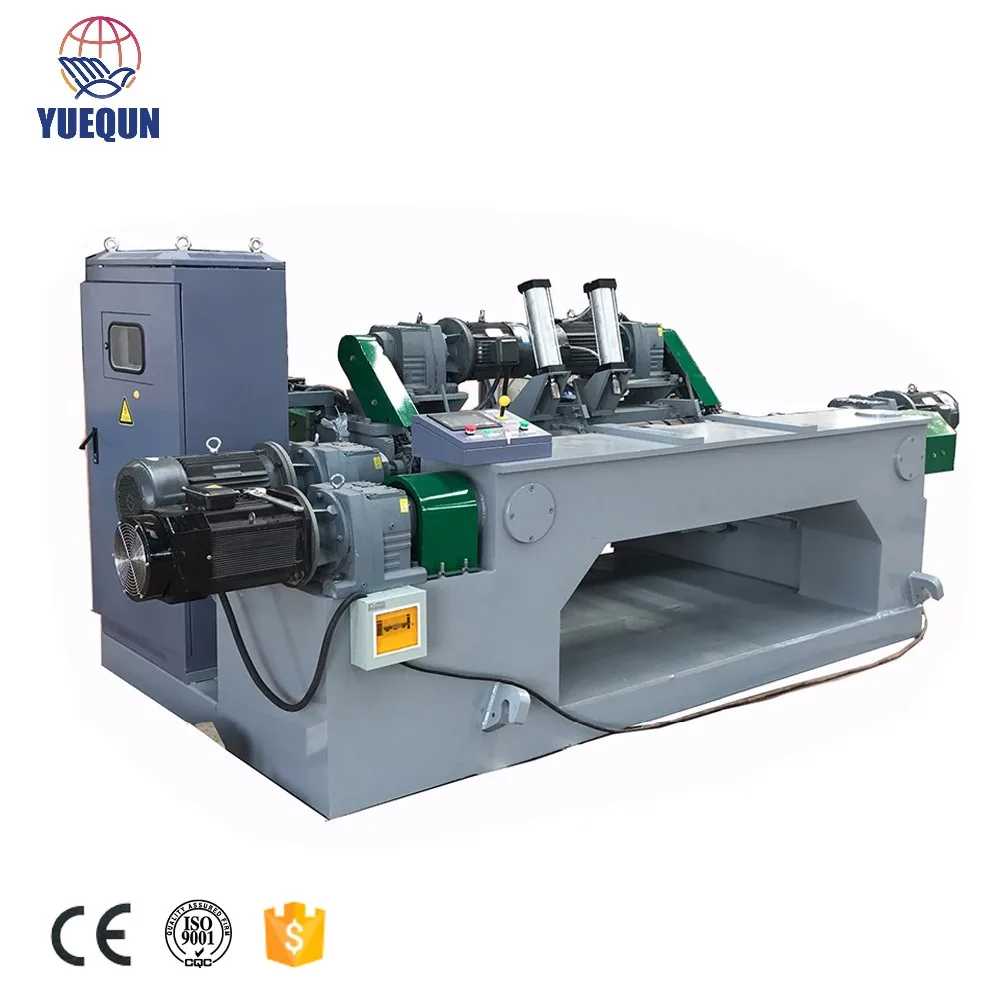

4 Feet Core Veneer Peeling Machine

  • 1 - 2 Sets
    $28,000.00
  • >=3 Sets
    $26,000.00
Type:
Veneer peeling machine
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Shandong, China (Mainland)
Brand Name:
Yuequn
Voltage:
380V/415V
Power(W):
42.9
Dimension(L*W*H):
4900*2000*1600mm
Weight:
6000KG
Certification:
CE Certificate
Warranty:
1 Year
After-sales Service Provided:
Engineers available to service machinery overseas
Name:
Spindleless Veneer Peeling Machine
Thickness range:
1mm-5mm
Linear speed:
40m-80m/minute(adjustable)
Max.peeling length:
1400mm
Max.cutting diameter:
500mm
Clipping knife:
1400*14*12.7mm
Peeling knife:
1500*180*16mm
Diameter and longer of driving roller:
125/1500mm
Diameter and longer of pressure bar:
115/1500mm
Supply Ability
Supply Ability:
1 Unit/Units per Week
Packaging & Delivery
Packaging Details
In nude or follow customer requriement
Port
Qingdao
Product Description

Veneer peeling machine for plywood woodworking machie

Product Application of Best Sale Spindleless Log Veneer Peeling Rotary Machine for Plywood
1. CNC rotary peeling machine
2.Cutting length 1350-2600
3. Veneer thickness 1-5mm

4.Mitsubishi or Siemens CNC system, simple operation.
5. High speed is up to 40- 80 m/min high efficiency.
6. Servo motor and Shanghai Motors.
7. Heavy duty frame, Compact structure.


4Feet Plywood making machine spindleless peeling for face veneer
We have 4f, 6f and 8f to meet different requirement. You can choose it according to your requirements

Model
YQVP1400
Max peeling length
1300mm
Max peeling diameter
Φ500mm
Length of knife
1500mm
Thickness of veneer peeler
1-5mm
Linear speed of host machine
40- 80 m/min(Adjustable)
Diameter and longer of driving roller
125/1500mm
Diameter and longer of pressure bar roller
115/1500mm
Power of double rollers
7.5kw*2
Power of single roller
5.5kw*2
Power of feed
11kw, Servo motor
Cutting power
1*3.7kw, Servo motor
Transporting power
1*2.2kw
Total power
42.9kw
Total weight
5500kgs
Overall dimensions
4400*2000*1600mm
Peeling knife
1500*180*16mm
Clipping knife
1400*140*12.7mm

Main Features

1. It is heavy duty veneer peeling machine , machine weight up to 5000 kg , to guarantee the veneer quality       Suitable for Eucalyptus , Kuring , Mango , Rubber and other hard wood .
2. It is equipped touch screen , very convenient to change thickness and other parameters .
3. Its peeling speed is up to 45- 75 m/min ,adjustble speed, very high efficiency .
4. Its peeling thickness range is 1-5 mm , which can satisfy most of your needs.

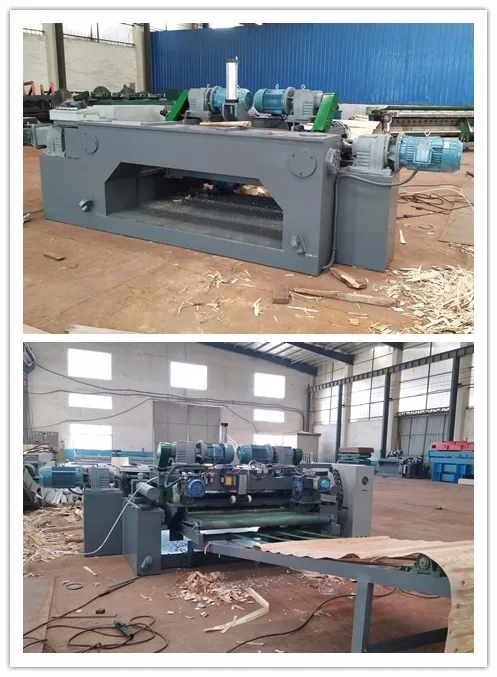

Detailed Images

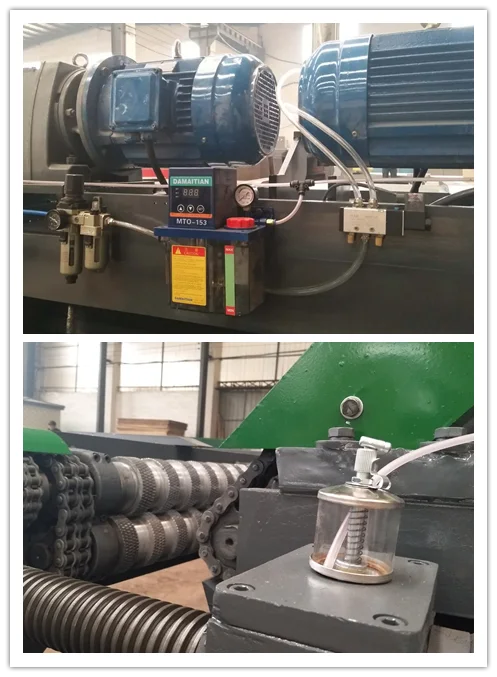

Machine Parts

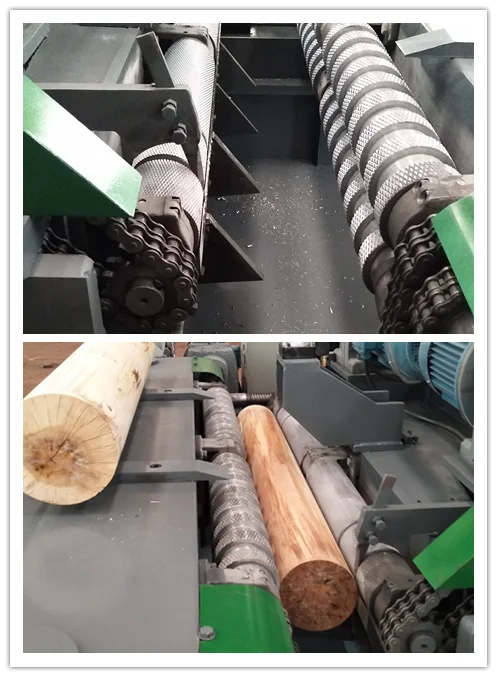

 Chromed surface for the roller surface to make it hard, stronger and long life.

Main Features

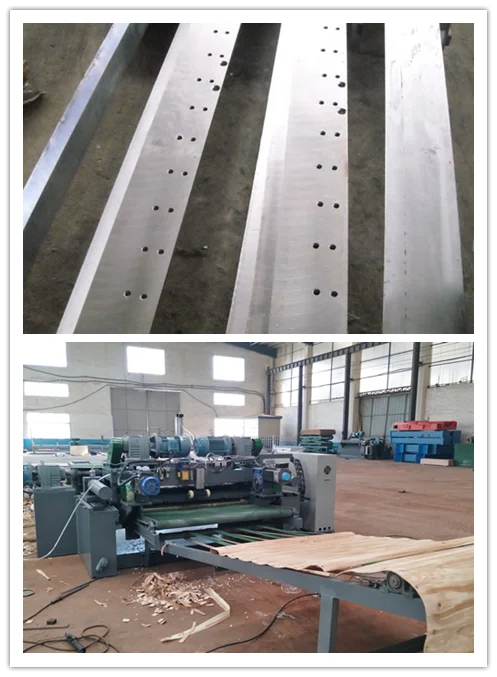

High speed steel knife

Machine Parts

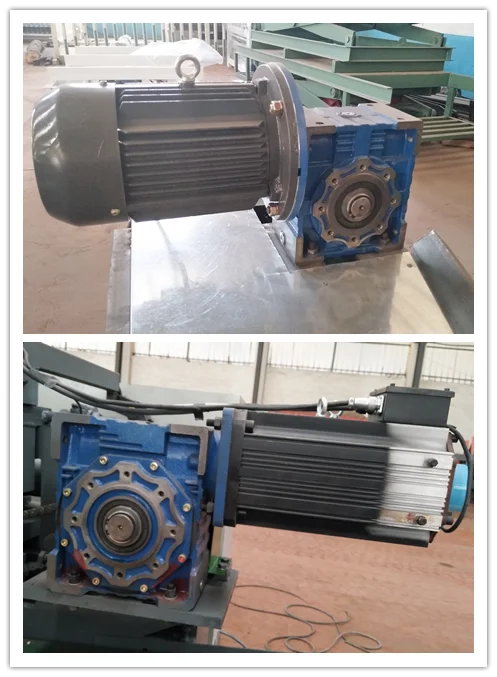

Servo motor turbo gear

heavy duty turbo gear box,servo motor.

Main Features

High Tech spare parts

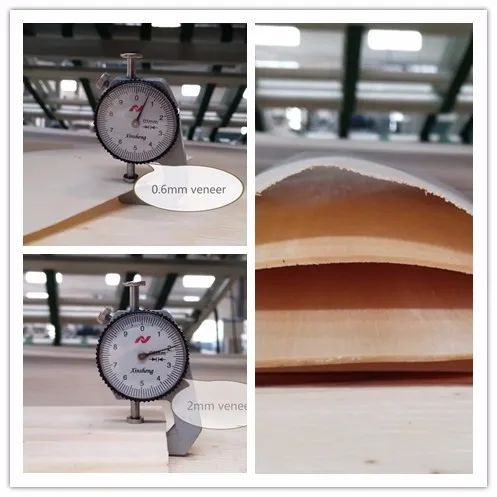

High quality veneer
Related Products

Plywood veneer hot press machine

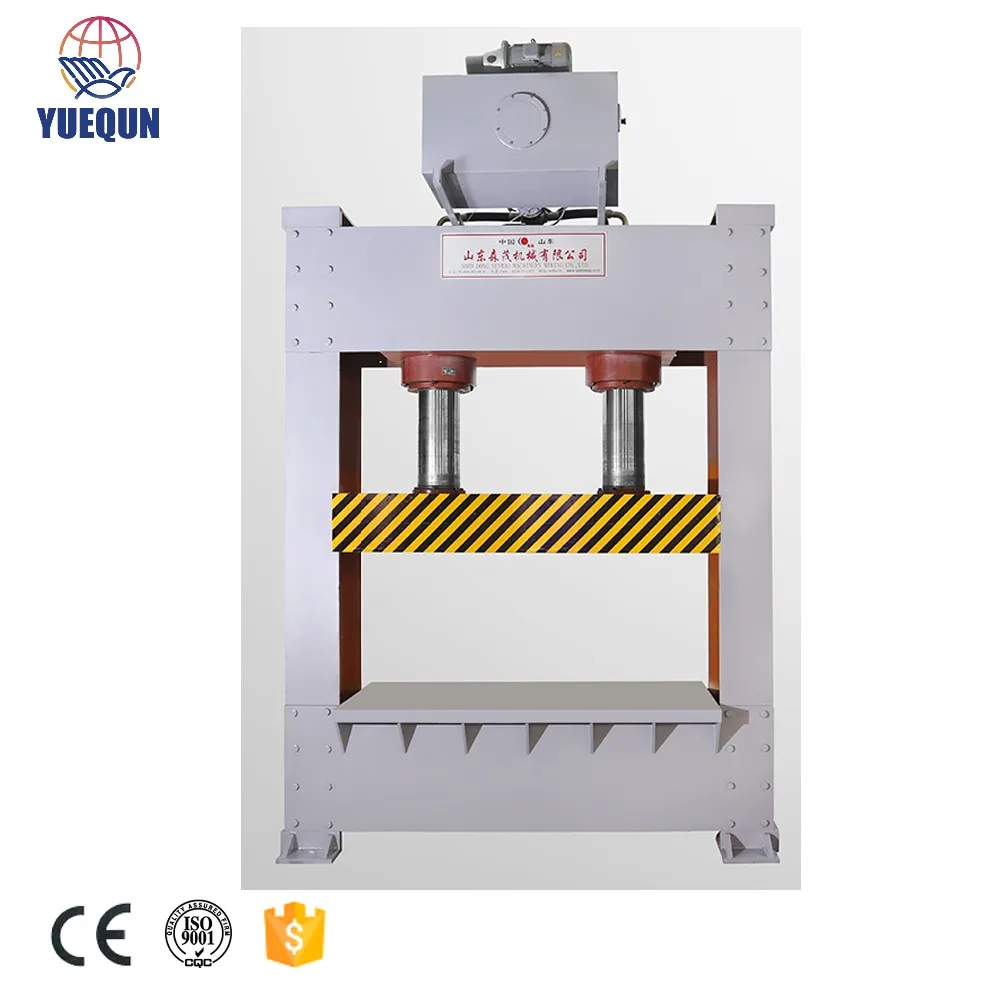

Veneer cold press machine for plywood making

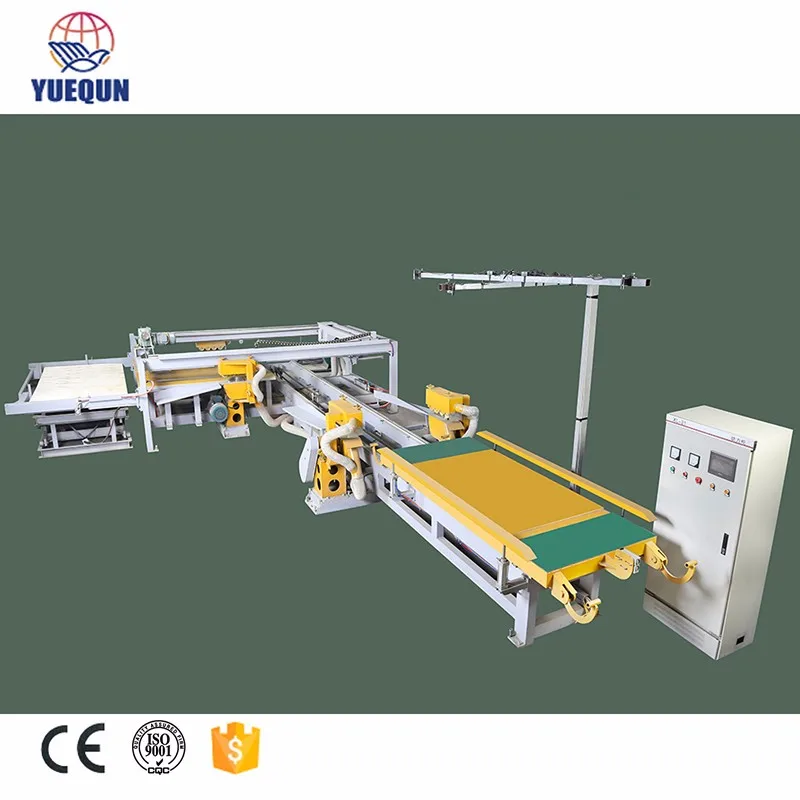

Edge trimming dd saw for plywood machine

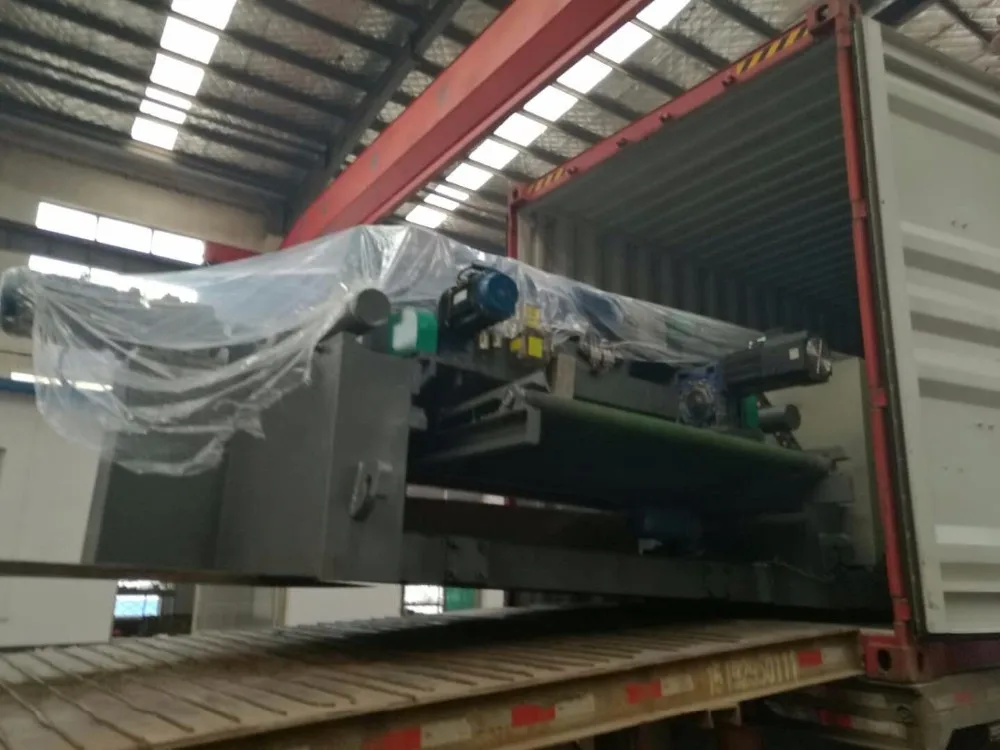

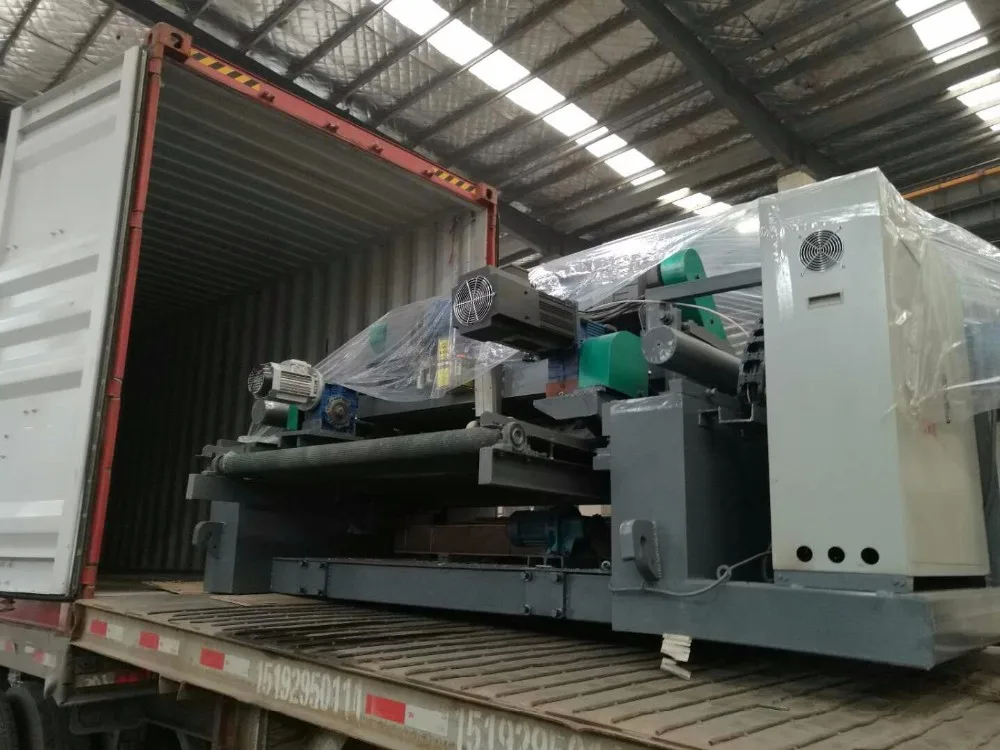

Packing & Delivery
Packaging
Size
4900*2000*1600mm
Weight
5.5T
Packaging Details
The main body is nude, and other spare parts in the plywood box, or according to your requirements.
Packaging
Size
4900*2000*1600mm
Weight
5.5T



Packaging Details
The main body is nude, and other spare parts in the plywood box, or according to your requirements.

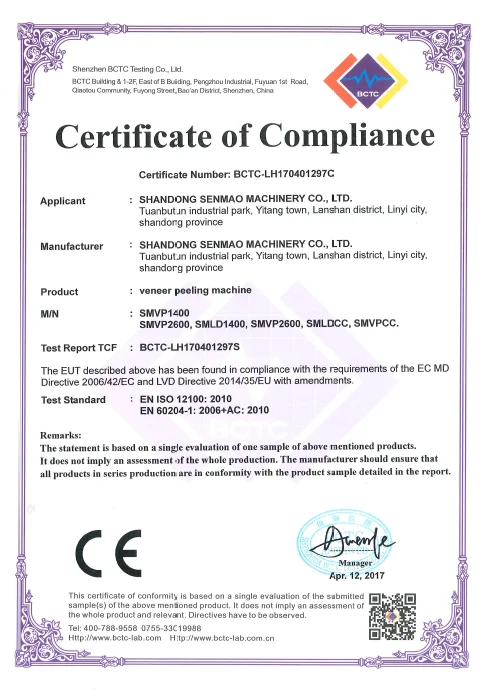

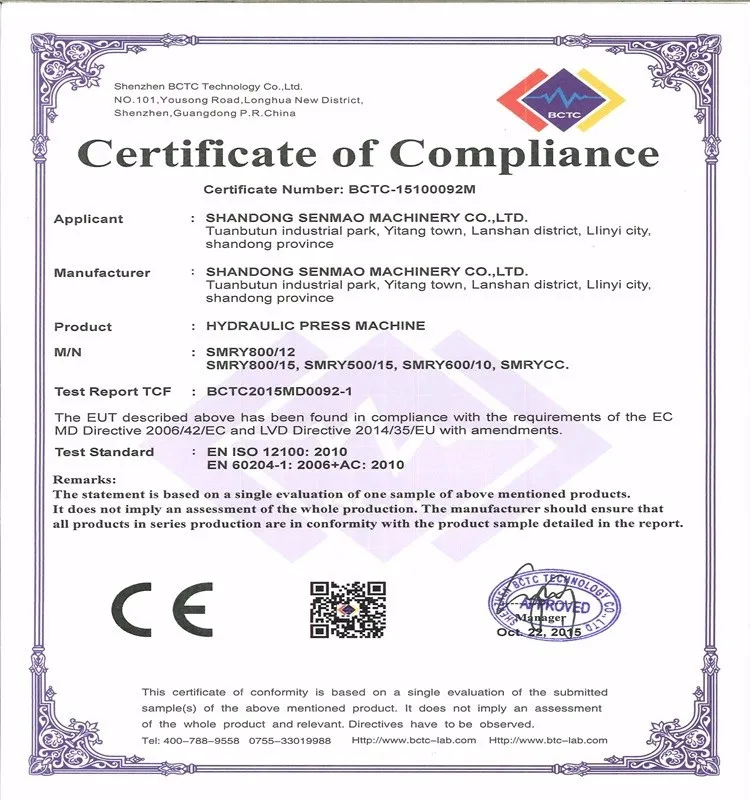

Certifications
Our Service

After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas


Pre-Sales Service

* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
