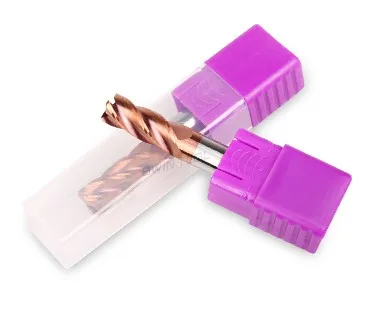

4 Flute HRC55 Diameter 10 mm Mill Cutter Solid Carbide Long Neck End Mills

FOB Reference Price:Get Latest Price
$2.20 - $15.00 / Pieces | 2 Piece/Pieces (Min. Order)
Diameter:
10mm
Overall Length:
100mm
Type:
End Mill
Lead Time:
Quantity(Pieces) 1 - 200000 >200000
Est. Time(days) 3 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
Bwin
Model Number:
10X40X100L HRC55
Material:
Carbide
Coating:
TIAIN Coating
Product Name:
Carbide End mill
HRC:
55
Blade:
4 flute
Suitable for:
copper, stainless steel, alloy steel, tool steel
Application:
Milling Machining
Controlling Mode:
CNC Tooling System
Transport:
DHL, TNT, EMS
Supply Ability
Supply Ability:
1000000 Piece/Pieces per Month carbide end mill
Packaging & Delivery
Packaging Details
1 piece in one plastic box
Port
shenzhen
Lead Time :
Quantity(Pieces) 1 - 200000 >200000
Est. Time(days) 3 To be negotiated
Product Description

1. Fully enables running at rough machining parameters, resulting in finish surface quality.
2. Excellent performance in machining titanium, stainless steel and high temperature alloys.
3. The coating provides longer tool-life or increased cutting-values.
4. Suitable for all types of steel or metal.

Product Name
4 Flute HRC55 Mill Cutter Solid Carbide Long Neck End Mills
Material
Tungsten carbide
Coating
TIAIN
Standard
ISO
HRC
HRC55
OEM
Supply
Machining
Carbon Steel. Mould steel /Stainless steel


Super Raw Material

Item Grade
HRC45
(YG10X )
HRC55
(YL10.2 & WF25)
HRC60
(Germany K44 &K40)
HRC65
(Sandvik H10F)
Details
Grain size 0.7um
Co10%
Flexural strength
3320N/mm2
Grain size 0.6um
Co10%
Flexural strength 4000N/mm2
Grain size 0.5um
Co12%
Flexural strength
4300N/mm2
Grain size 0.5um
Co10%
Flexural strength 4300N/mm2


Super Coating


Coating Classifying and Advantage
Item
Coating Type
AlTin
TiAlN
TiSiN
Naco













Characteristic
Hardness(HV)
3300
2800
4300
42(GPA)
Thickness(UM)
2.5-3
2.5-3
3
3
Oxidation Temp.(°C)
900
800
1000
1200
Friction Coefficient
0.35
0.3
0.25
0.4
Color
Black
Bronze
Bronze and gold
Blue
Advantages
High heat stability
Normally cutting
Suitable for heavy cutting, and high hardness cutting
For high precision cutting
Suitable for high speed, dry cutting
Suitable for cutting mould steel, stainless
steel
Suitable for high hardness cutting, mould steel processing
Most suitable for carbide cutting tools, turning insert

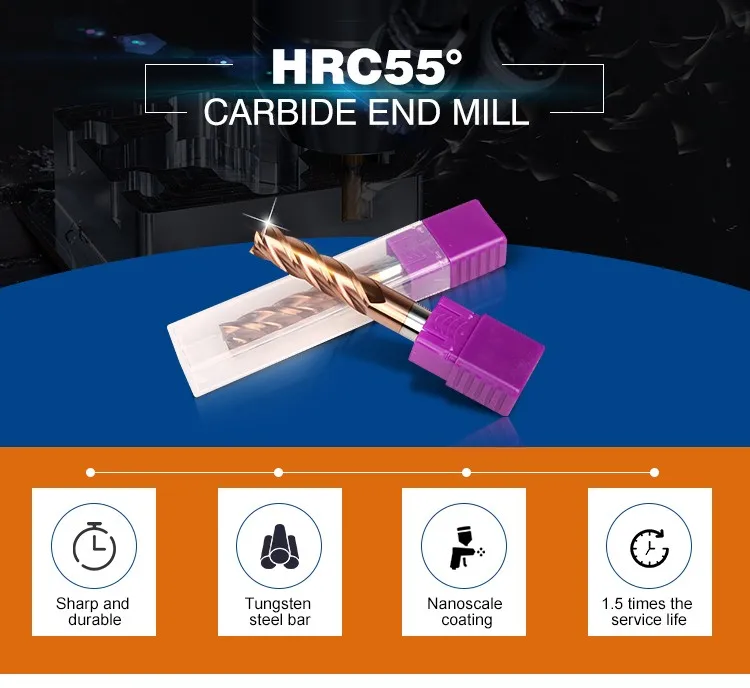

Products Show
Specification
Flute Dia(φ)
Flute Length (C)
Shank Dia(D)
Overall Length(L)
Φ1x3Cx4x50L
1.0
3
4
50
Φ1.5x4Cx4x50L
1.5
4
4
50
Φ2x6Cx4x50L
2.0
6
4
50
Φ2.5x8Cx4x50L
2.5
8
4
50
Φ3x8Cx4x50L
3.0
8
4
50
Φ3.5x10Cx4x50L
3.5
10
4
50
Φ4x10Cx4x50L
4.0
10
4
50
Φ5x13Cx6x50L
5.0
13
6
50
Φ6x15Cx6x50L
6.0
15
6
50
Φ8x20Cx8x60L
8.0
20
8
60
Φ4x20Cx4x75L
4.0
20
4
75
Φ5x20Cx6x75L
5.0
20
6
75
Φ6x20Cx6x75L
6.0
20
6
75
Φ8x25Cx8x75L
8.0
25
8
75
Φ10x25Cx10x75L
10.0
25
10
75
Φ12x30Cx12x75L
12.0
30
12
75
Φ4x25Cx4x100L
4.0
25
4
100
Φ5x25Cx6x100L
5.0
25
6
100
Φ6x30Cx6x100L
6.0
30
6
100
Φ8x35Cx8x100L
8.0
35
8
100
Φ10x40Cx10x100L
10.0
40
10
100
Φ12x45Cx12x100L
12.0
45
12
100
Φ14x40Cx14x100L
14.0
40
14
100
Φ16x40Cx16x100L
16.0
40
16
100
Φ18x40Cx18x100L
18.0
40
18
100
Φ20x45Cx20x100L
20.0
45
20
100

1.Bottom groove

Double edged with 35 degree helix angle design, make end mill more wearable.


2.Blade band.

Double edged with 35 degree helix angle design, make end mill more wearable.

3.Large chipping space

The cutting can be discharged in time and can be processed efficiently.

4.Chamfering

Chamfering is easy to operate,                              Handle with chamfering, easier to clamp.

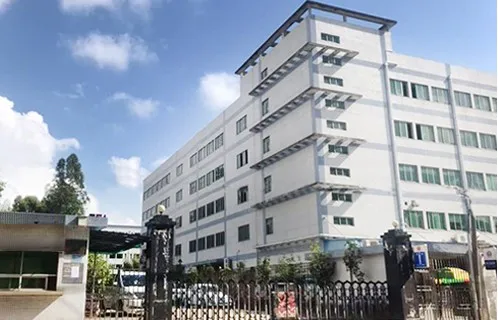

Our Company

BWIN Precision Tools Co.,Ltd is a factory specializing in the designing, producing and Selling of CNC Cutting tools.
mainly produces various of Carbide Inserts ,Turning Tools, Milling Tools,Drill Tools and Tooling Systems.                            All these items are in series of different common sizes.

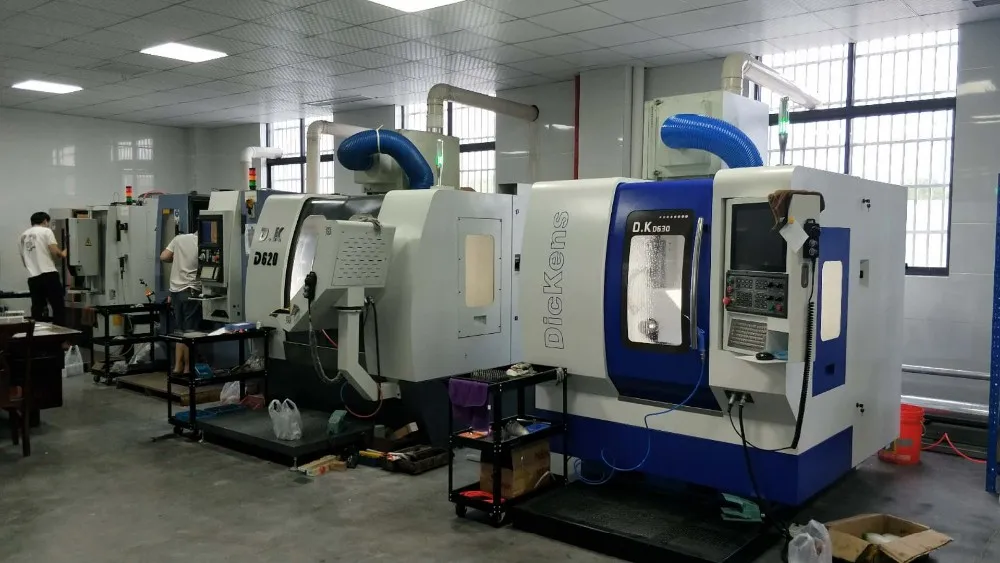

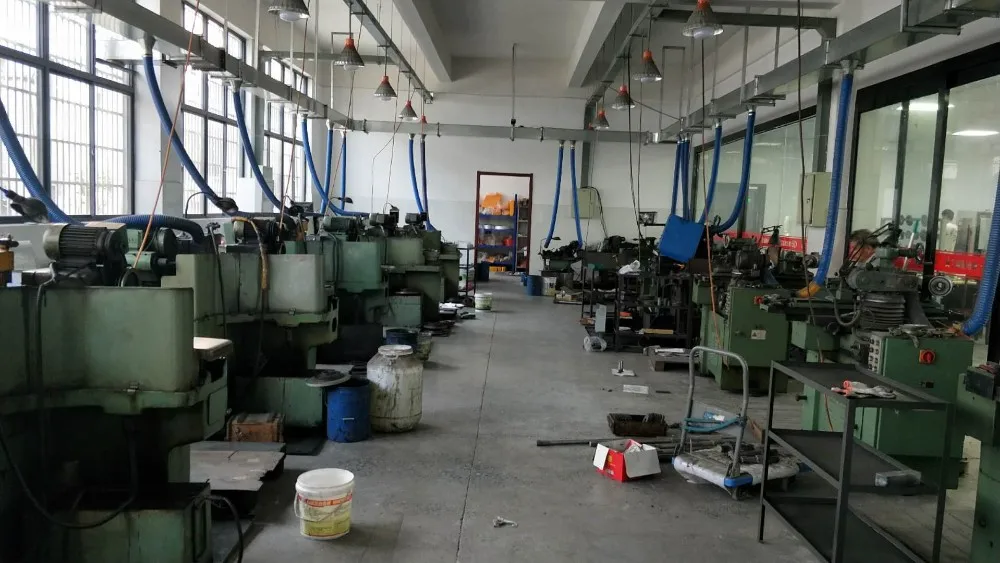

BWIN relies on advanced CNC machining center and complete testing method,Control all aspects of production and operation according to the standard process,we have strong design team ,In accordance with the principle "Quality First,Service Supreme", we have already exported 80% of her annual output to more than 50 countries. We have established long-term friendly cooperation relationships with many customers all over the world.

Packing & Delivery
   Name
4 Flute carbide end mill
Model
10X40X100L HRC55
   Coating
TIAIN Coating
  Weight
0.13kg/piece
   Details
1 piece  in one plastic box
Our Certifications

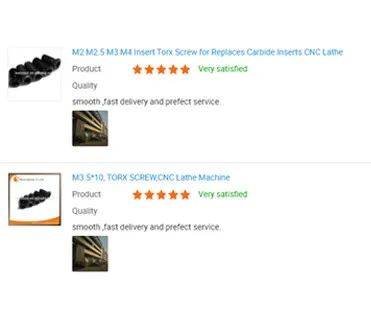

Customer Evaluate
FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 1-2 days if the goods are in stock. or it is 10-15 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
