4 dryers electrical hand car washing machine

FOB Reference Price:Get Latest Price
$13,000.00 - $15,000.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Car Washer
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
G&Y
Model Number:
M8
Size:
7000 * 3100 * 3100mm
Material:
Hot Galvanized Steel, Hot Galvanized Steel
Size::
7000 (L) * 3100 (W) * 3100(H)mm
Max Car Washing Size:
5500L*2000W*2080Hmm
Power Consumptionc:
0.4KWH/Vehicle
Fixed 24KW Drying System:
Optional
Water consumption:
150Liters/Car
Washing speed:
2minutes/vehicle
Shampoo Consumption:
20Liters/300cars
16.5KW Motor:
Germany Siemens
Color:
Customer's Request
Supply Ability
Supply Ability:
900 Set/Sets per Month
Packaging & Delivery
Packaging Details
one set in 20ft. container, nude packing
or as your requirements
Port
Shanghai port
Product Description


Machine Installation Size
L*W*H=7500*3400*3300mm
1set Machine Packing Detail
≥2600Kg; ≥10.5m³
Power Supply Requirement
380V/13Kw-380V/22Kw
Total Main Power
16kw--22kw
Longitudinal Motor Power
370w stepless frequency control
Proportion Motor Power
0.75kw
Drive System
Promise frequency converter
Running Speed
360° a circle 40 seconds
Car Wash Liquid Energy Consumption
20ml-50ml / metering ratio
Colorful Energy Consumption
10ml-40ml
Water Consumption
Standard wash / 94L per car
Power Consumption
Standard wash--0.52 Kw/h per car

Standard Wash Process:
Bottom and Side Washing-High Pressure Washing-Wax and Shampoo Mixture Spraying-High Pressure Washing.


Optional Wash Process:
Bottom and Side Washing-High Pressure Washing-Shampoo Spraying-High Pressure Washing-Wax Spraying-High Pressure Washing
Customized wash process is available. Customers can set waiting time between two liquids.

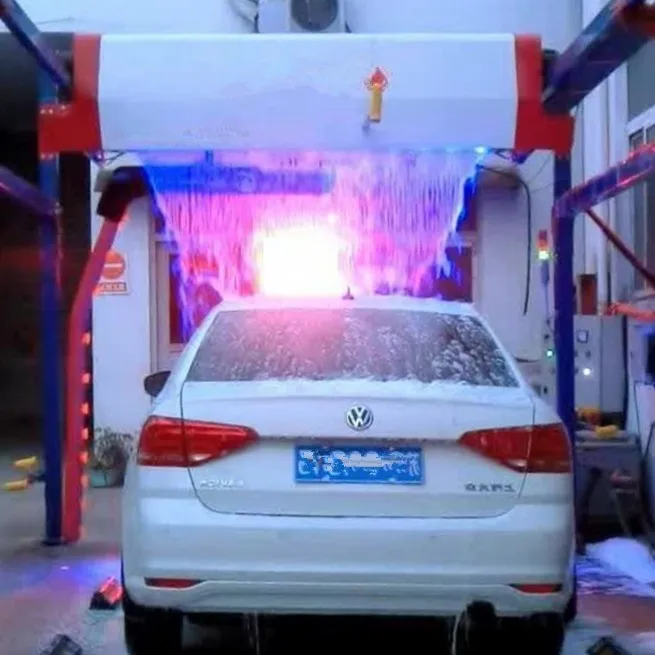

Detailed Images

Features:


1. Ultrasonic Sensor (PEPPERL+FUCHS/Germany)-There are 2pieces ultrasonic sensors on the machine. The front sensor is used to test the width of the car. The back sensor is used to test the length of the car. The L arm rinses the vehicle immediately without wasting time to measure the size of the vehicle. Ultrasonic sensors can go through the high pressure water and measure the size of vehicle directly and precisely.

2. High Pressure Plunger Pump- Italy Interpump high pressure water pump with 16.5KW Siemens motor, Standard washing pressure 70KGS, 10-70KGS water pressure adjustable.Customized water pump is available.
3. Frequency conversion-The inverter can control the voltage and current effectively.The inverter can also adjust the machine speed automatically, 9 types of speed.
4. Omron Sensor-The Omron sensor is used to transfer, manage, store, display, record and control information.
5. The encoder-The encoder is used to edit and switch signal data for communication, transmission and storage. The machine will stop working if there were any problem about software and hardware of the machine.


6. Numerical Control Operation-The movement of the machine is controlled by digital information technology. This guarantees the machine will move smoothly.

7. Manual oil system-The oil pump is connected to all bearings of the machine.
8. Long Life Gear Drive-Gear drive makes machine move smoothly and precisely.

Note


1. Customers need to buy shampoo and wax from local markets.
2. There is no independent wax spraying for standard machine. Independent wax spraying is optional.
3. Machine input voltage must be three phase industrial voltage.
4. Customized brand of high pressure water pump is available.
5. Customers need to prepare a 2Ton clean water tank for machine installation.
6. The drying system is controlled by a small remote control not by touch screen.

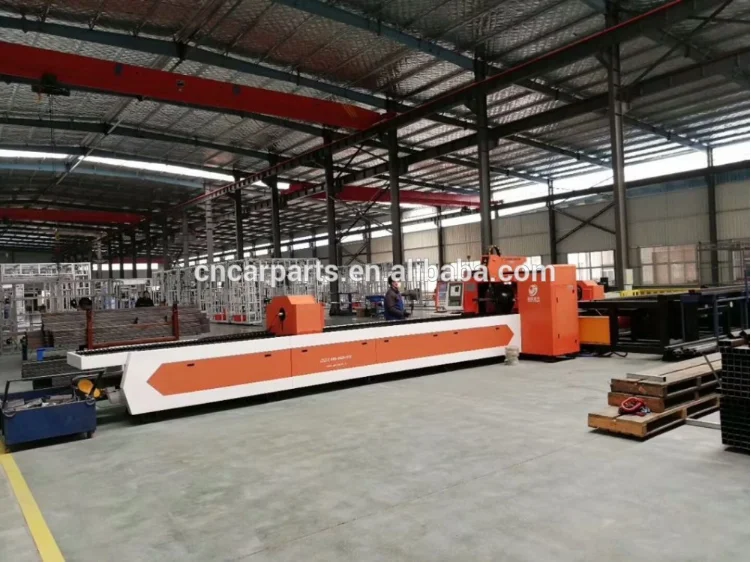

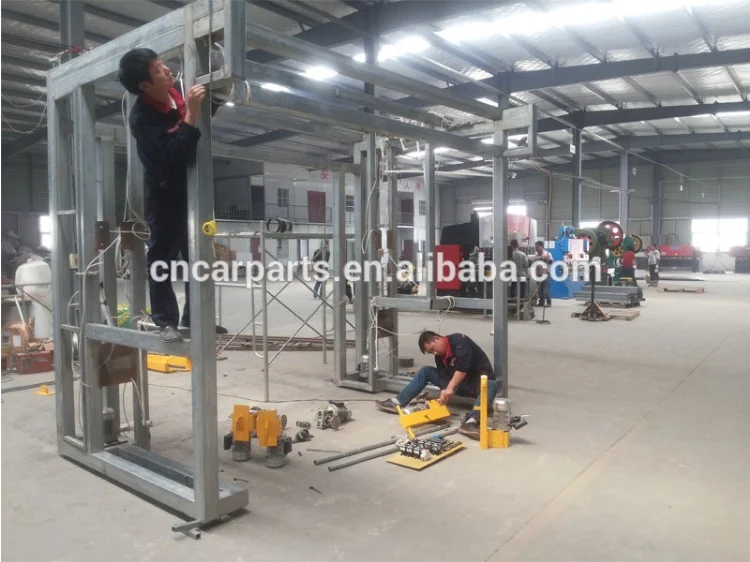

Our Company


Wuxi G&Y Technology Co., Ltd. is a real manufacturer, engaged in portable pressure washer, automatic car wash machine and accessory . The company was established in May 2004,get CE, ISO certificates, has many famous enterprises at home and abroad to establish a long-term friendly business relationship. Our washer and car wash machine can widely use indoor and outdoor domestic applications such as cleaning cars,motorcycle, engineering machinery and agriculture machinery, house,swimming pool, deck and also watering flowers etc. It is indispensable electric appliance for the modern family.


Why choose us
Our Service

1.After-sale service :
Besides the high quality machines, we also offer you professional after-sale service as follows:


2.Installation support:
Our technicians can be sent all over the world where you are to install the machines and guide you daily maintenance .

3.English documents support:
We provide English operating manual document for each machine .It is clear enough and easy for user to operate . It includes how to install ,how to maintain ,how to deal with it when any possible problems occur .

4.Life time technical support:
Our experienced customer support team will help you solve technical problems .We guarantee to respond to your inquiry within 24 hours, whether it comes by phone, mail or fax.

5.Parts support:
Any accessories is available ,we can deliver it to you when you demand it .
