4 inch suction slurry pump Electric driven gold mining slurry pump

FOB Reference Price:Get Latest Price
US $2,870-3,660 / Sets | 1 Set/Sets 4 inch suction slurry pump Electric driven gold mining slurry pu (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hebei, China (Mainland)
Brand Name:
MILESTONE
Model Number:
6X4D-MAH
Theory:
Centrifugal Pump
Structure:
Single Stage Pump
Usage:
Mining Process
Power:
Electric
Standard or Nonstandard:
Standard
Fuel:
Diesel
Pressure:
Low Pressure
Application:
Mineral Process
Product name:
4 inch suction slurry pump Electric driven gold mining slurry pump
Material:
Cr27, Cr15Mo3
Lubrication:
Grease and Oil
Certificate:
ISO9001:2008, CE
Color:
Customer specifications upon request
Suction/Discharge:
6x4inch
Motor power:
max. 300kw
Max. Solid:
44mm
Seal:
gland packing, mechanical seal
Applications:
Mining plant, mineral process, power plant
Supply Ability
Supply Ability:
600 Set/Sets per Month 4 inch suction slurry pump Electric driven gold mining slurry pu
Packaging & Delivery
Packaging Details
Playwood case/Sandwich Plate/As per customer' requirement
Port
TIANJIN or other ports in China
Lead Time :
Quantity(Sets) 1 - 10 >10
Est. Time(day) 15 To be negotiated
Product Description



Electric driven gold mining slurry pump



The MAH slurry pump series are robust state of the art slurry pumps that feature oil

or grease lubrication bearing assemblies and complete interchangeable with other major

brands. The AH can be supplied in either a packed gland version using expeller technology,

or mechanical seal system specifically designed for heavy duty slurry applications.

 001

 Features

  • Choice of piston ring style labyrinth or other new style of water proof
  • Fully interchangeable with the common brand reducing inventory hold requirements
  • A full range of mechanical seal adaptations available upon request
  • Oil lubrication or packed grease
  • Painted to customer specifications upon request



 A complete range of build specifications

  • Rubber lined with rubber impeller
  • Rubber lined with metal impeller
  • All metal lined using white iron chrome alloys
  • Urethane lined with optional urethane impeller for special applications

 e9



 Performance Curves

 slurry pump performance



Spare Parts

 Pump parts

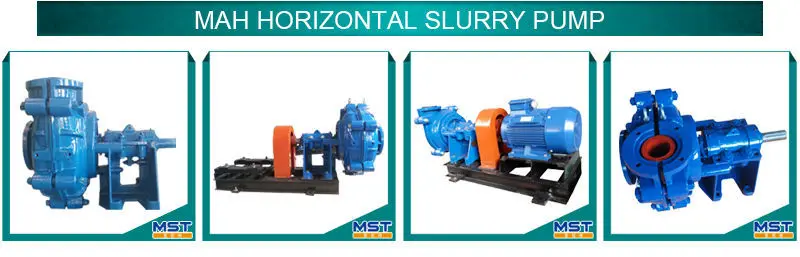

Pump Image

 slurry pumps

Application

 slurry pump application





Selection Chart



Type

Max. power

Capacity

Head

Speed

Max.Eff

NPSH

Impeller Dia.

Max.particle size

(kw)

(/h)

(m)

(r/min)

(%)

(m)

(mm)

(mm)

MAH1.5-1

15

12-28

6-65

1200-3800

40

2-4

150

14

MAH2-1.5

15

32-72

6-58

1200-3200

45

3.5-8

185

19

MAH3-2

30

39-86

12-64

1300-2700

55

4-6

215

25

MAH4-3

60

86-198

9-52

1000-2200

71

4-5

245

28

MAH6-4

120

162-360

12-56

800-1500

68

5-8

365

44

MAH8-6

120

360-830

10-61

500-1140

72

2-9

510

63

MAH10-8

260

612-1368

11-61

400-850

71

4-10

685

76

MAH12-10

560

936-1980

7-68

400-750

82

1-5

760

86

MAH14-12

560

1260-2772

13-63

300-600

77

3-10

965

 90
