4 or 6 plate reflux collumn moonshine distillery copper whiskey still

FOB Reference Price:Get Latest Price
$10,000.00 - $40,000.00 / Units | 1 Unit/Units (Min. Order)
Lead Time:
Quantity(Units) 1 - 1 >1
Est. Time(days) 60 Negotiable
Customization:
Customized logo (Min. Order: 1 Units)
Customized packaging (Min. Order: 1 Units)

More

customerized design (Min. Order: 1 Units) Less
Report Suspicious Activity
Overview
Quick Details
Processing:
Other
Applicable Industries:
Food & Beverage Factory, Food Shop, Food & Beverage Shops, distillery
Condition:
New
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
DYE
Model Number:
DYE_500L
Voltage:
220V
Power(W):
0.75KW
Weight:
500KG
Dimension(L*W*H):
2*1.5*3m
Processing Types:
alcohol
Certification:
CE,PED
Warranty:
1 Year
After-sales Service Provided:
Online support
Name:
alcohol distiller
Working capacity:
500L
Material of pot:
stainless steel 304
material of distillation column:
red copper
No. of bubble plate:
4 red copper plate with bubble caps
size of distillation column:
350mm
dephlegmator:
stainless steel 304
condenser:
stainless steel 304
parrot outlet:
stainless steel 304 with sample valve
Connection type:
tri-clamp
Supply Ability
Supply Ability:
15 Unit/Units per Month alcohol distillation equipment
Packaging & Delivery
Packaging Details
Wooden case or by your needs ( alcohol distillation equipment )
Port
Ningbo or Shanghai
Picture Example:
package-img
Lead Time :
Quantity(Units) 1 - 1 >1
Est. Time(days) 60 To be negotiated
Video Description
Product Description

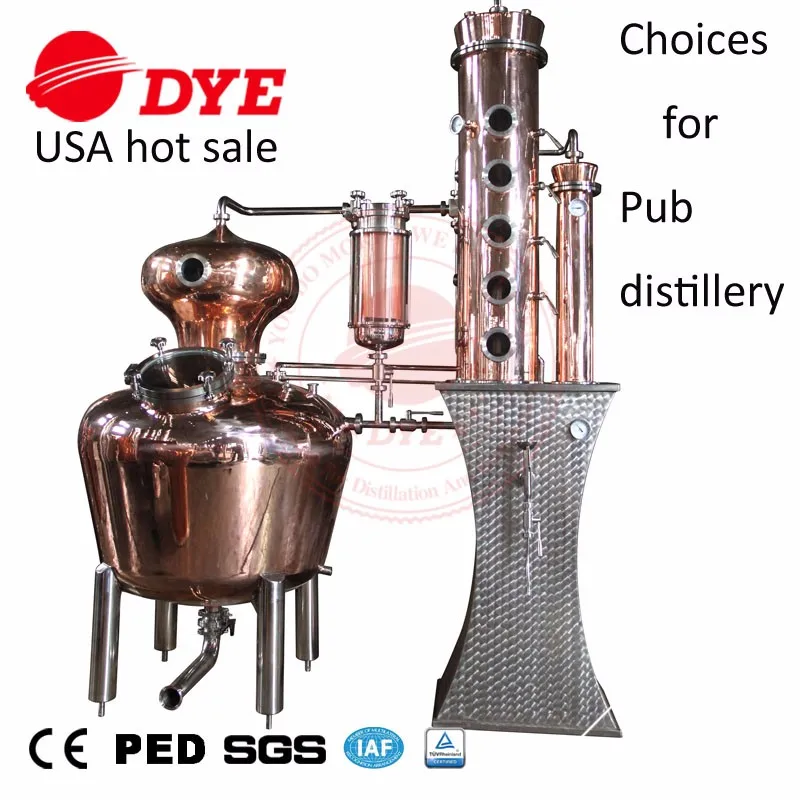

4 or 6 plate reflux collumn moonshine distillery copper whiskey still

We can also supply mash tun,fermenter,spirit storage tank, wine tanks.
product information
still pot:
500L,complete copper made,single walled,full size glass manway
Heating Method:
by 15kw electrical or steam
All connection type:
by tri-clamp and flange;it's easy to installation and clean equipment after a run.
Distillation column:
red copper column with 4 plate red copper bubble caps
Gin basket
Glass shell with copper sieve inside

More details about DYE distiller


whisky helmet

We have different shapes for your option

Gin basket(BOTANICAL BASKET)

Enhance flavor and extended the range of your system.
It is for making Gin, Schnapps, etc.
Material:stainless steel/red copper
Inside with removable filter basket.We have different shape opition

Distillation column

It consist of red copper/Stainless steel column,bubble cap,down comers,bubble plate,red copper screw.We can tailor the height and plate number for your specific application.the max.height of column can reach 2000mm;up to 10paltes with a pair of flanges;all bubble plates integrated within a tightly embedded inner shell;all features so the surface appearance looks smooth and attractive,yet simple and generous.

Bubble caps

It consist of bubble cap,down comers,bubble plate,red copper screw and bubble tee(we have stainless steel 304 and red copper option),

Control Panel

Material of control box is stainless steel 304 or plastic option;

Suitable Voltage:208/220/240V single phase 60Hz,

Which can adjust the heating temperature by module.


We also have commerical distillation system can custom making according to your specail requirement

We design and hand-build commercial alcohol distilling equipment for craft distilleries including batch distilling systems ,pot stills ,column stills,mash tuns and fermenters ;Our systems provide distillers the capacity to produce a full range of spirits ;We also provide delivery,set-up ,and training to ensure the success of distillers who choose a DYE Still ;As a commercial distillery equipment manufacturer ,we are happy to answer any questions you have about our equipment,or the process of starting your distillery ,Our goal is to help you make an informed decision when you buy distillery equipment ;After all;it will be the cornerstone of your distillery ;

Model
Structure
Useage
DYE-Home distiller
50~200L still pot+4~10 plate red copper/
stainless 304/glass distillation column+dephlegmator+condenser+
parrot outlet+control box
Economy for lower budget.Application to small sized plant.Alcohol content 80%±10%,
such as whiskey,brandy,rum and vodka.
DYE-I
still pot+goose neck+4plate distillation
column+dephlegmater+condenser+parrot
outlet
Suitable for low alcohol concentration to get high quality taste spirit.Alcohol content 80%±10%,such as whiskey,brandy,rum etc.
DYE-II
still pot+goose neck+gin basket+4plate
distillation column+dephlegmater+
condenser+parrot outlet
Suitable for low alcohol concentration and available for fruitful flavor with spices to get high quality taste spirit.Alcohol content 80%±10%,such as whiskey,brandy,rum +spices.
DYE-III
still pot+goose neck+gin basket+4plate
distillation column+16~20plates distillation
column+dephlegmater+condenser+parrot
outlet
Alcohol content 80%±15%,such as
whiskey,brandy,rum,gin and vodka.
DYE-IV
still pot+goose neck+4plate distillation
column+16~20plates distillation column +dephlegmater+condenser+parrot
outlet
Suitable for both low and high alcohol
concentration to get high quality taste spirit.Alcohol content .
DYE-H
still pot+4plate distillation column+
dephlegmater+condenser+parrot
outlet
Economy for lower budget.Application to small
sized plant.Alcohol content 80%±10%,such as
whiskey,brandy,rum and vodka.
POT Still
still pot+goose neck+condenser+parrot
outlet
General taste and low alcohol concentration
(usually,using together with column still.Crude distilled spirit≤65%.
Our Service

Pre-Sales Service

1. Free of making offers, craft and technical guidance.
2. We can provide company's qualification certification and the drawings.
3. We can also make customized products according to customer's needs.

After-Sales Service

1. We provide long-term after-sale service.
2. Owing to the quotation of our equipment is FOB price which excluded charges of door-to-door service. Thus, if necessary, we can appoint our technician to debug the machine with air ticket, visa, accommodation and labor cost provided by your party. Or you can send your technician to our company to learn techniques.
3. Meanwhile, you can call or e-mail to consult any relevant questions since we have a special line of after-sale service. Or you can communicate online and solve the problems.
Quality Control

Spectrometer

We have the Spectrometer(from Germany.) and CMM, which ensures the raw and furnace material elements testing, and the precision of machining products. The company has passed the ISO9001.

surface roughometer

Strictly manufacture in accordance with standards Roughness is less than 0.22 μm
Adopt international standards of high quality stainless steel tanks tank 304 stainless steel material, high pressure polyurethane foam insulation, sheath according to customer requirements, can adopt stainless steel polishing, inferior smooth, carbon steel, such as spray form.

thickness measuring meter

thickness of steel plates
super quality with competitive price, adopt the SUS304 as material, CE certificate and ISO certificate.equipment 3 year's warranty, all life service.

Packing & Delivery
Packaging
Size
Customization
Weight
Customization



Packaging Details
The normal package is wooden box. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Packaging
Size
Customization
Weight
Customization



Packaging Details
The normal package is wooden box. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
FAQ

Our company's customer segmentation:

    Our customer segmentation is mainly focused on the Euramerican developed countries such as the USA, Canada, the United Kingdom, Australia and Russia, etc. At present, we have no formal foreign agents but we are looking for superior agents to create a brilliant future.

Will application of distillation equipment continue to expand in the future?

Although the pace of development of distillation equipment is rapid in recent years, there are many problems in the process, such as the enterprises are not many, product quality is not high and so on. These problems will more or less restrict the development of rectifying equipment. Thus seizing the opportunity is very important. If can seize the opportunity, the development space of distillation equipment industry will be great.


Do distillation equipment companies have to expand sales channels to improve the competitiveness?
At present, although the distillation equipment is used widely, high aroma and highly efficient products are not many; and low level of products is also common. Brand marketing lags behind others. To enhance competitiveness, Distillation equipment companies have to expand sales channels and develop high-end products.

What benefits does the network bring to distillation equipment market?
In recent years, the development of network marketing is very quick, also got more and more applications. It mainly exists in the base of network, breaking through the traditional sense of the sale, making sales more effective and also well achieving interactive communication. We can complete the transaction online. It is very convenient.

Is self-positioning very important to capture the distillation equipment market?
Different industries, only giving their products a right position, can better capture the majority of the market share. The development of distillation equipment is no exception. Although having certain development potential, it also needs a good location, thus, it can be in line with the market trends. However, how should we locate the distillation equipment better? Choosing high reputation, excellent product quality enterprises is the right way.
