4 x 10/100/1000Mbps PoE Ports 25W Industrial PoE Switch with 1x1000Mbps SFP Port

  • 1-9 Pieces
    $85.00
  • 10-99 Pieces
    $65.00
  • >=100 Pieces
    $60.00
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
10 day(s) after payment received
Customization:
Customized logo (Min. Order: 50 Pieces)
Samples: $85.00 /Piece, 1 Piece (Min. Order): Buy Samples
Contact Supplier
Samples - $85.00 /Piece, 1 Piece (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China
Brand Name:
E-link
Model Number:
LNK-AF1400GPT-SFP
Fiber Ports:
1000Base-FX ports (SC/ST/SFP optional)
LED indicator:
PWR, SYS, Link/ACT
Connector:
3 bits terminal block
Installation:
desktop
MAC address:
8K
Input current:
0.25A(@110VAC/VDC)
Shell:
IP30protection, metal case
EMI:
FCC Part 15,CISPR(EN55022)class
Warranty:
5 years

Packaging & Delivery

Selling Units:
Single item
Single package size:
18X13X3 cm
Single gross weight:
3.0 kg
Package Type:
4 x 10/100/1000Mbps PoE Ports 25W Industrial PoE Switch with 1x1000Mbps SFP Port Standard export package
Lead Time :
Quantity(Pieces) 1 - 10 >10
Est. Time(days) 10 To be negotiated

4 x 10/100/1000Mbps PoE Ports 25W Industrial PoE Switch with 1x1000Mbps SFP Port



Product Description

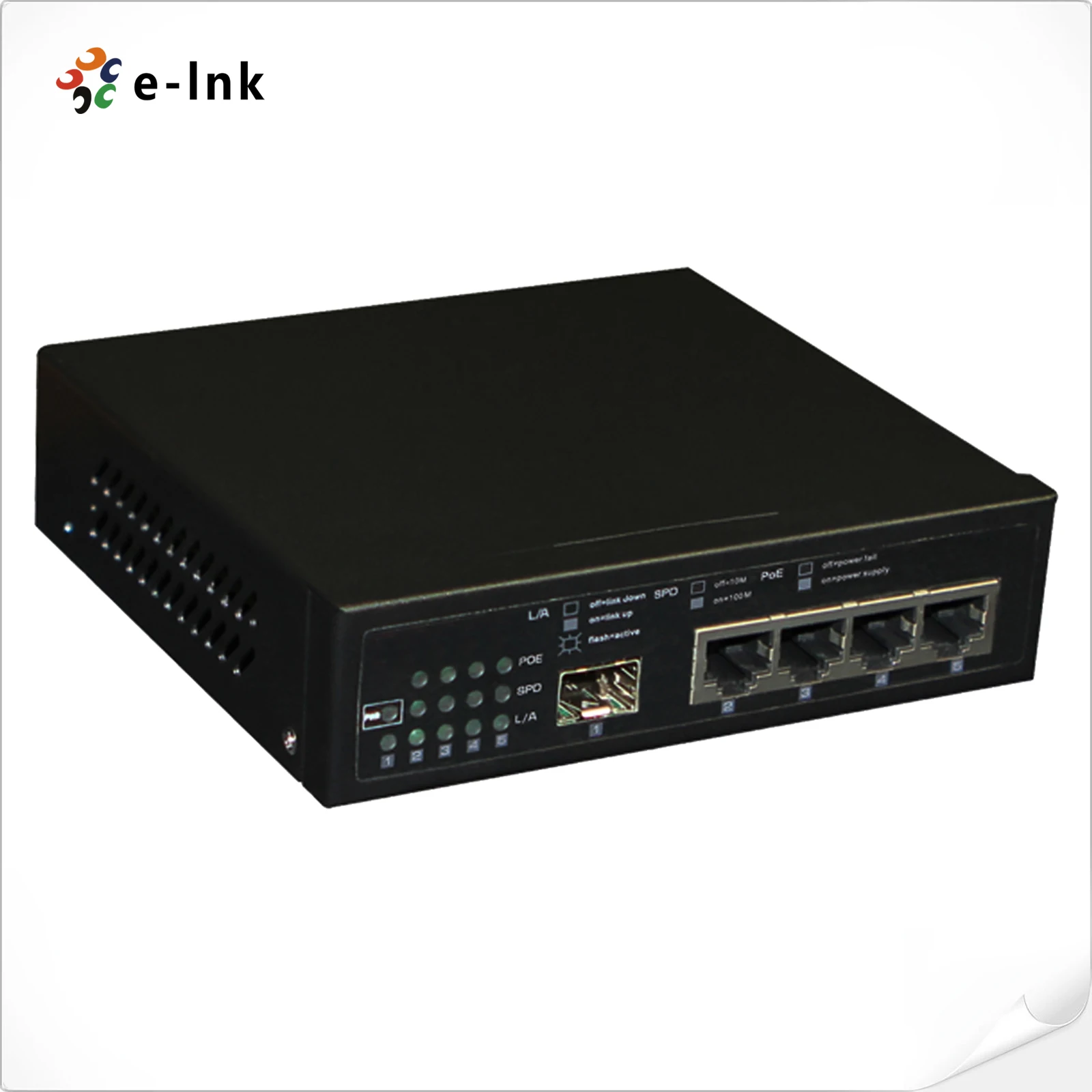

Model: LNK-AF1400GPT-SFP



Overview



LNK-AF1400GPT-SFP is an entry-level 5-port Ethernet switches which supports 4 10/100/1000Base-T(x) + 1 1000Base-FX interfaces. No fan, low consumption and industrial grade design. More steadily work capability. LNK-AF1400G is rated to operate at temperatures ranging from -20 to 60°C, and undergoes a 100% burn-in test to ensure that they fulfill the special needs of outdoor environment.





Features



l   Support 4pcs RJ45 ports and 2pcs fiber ports (SC or SFP)

l   Support IEEE802.3/802.3u/802.3x

l   Broadcast storm protection

l   DC110~220V or AC100~240V 3 bits terminal block power input

l   Plug and Play configuration

l   Supports 9.6 KB jumbo frames

l   Broadcast storm protection

l   Support store and forward transmission

l   Support back pressure flow control

l   No fan, low consumption, EMC-4 grade design

l   All port anti-lighting (6KV)

l   3KV isolation protection

l   IP30 protection, metal shell

l   PoE/PoE+ option







Technical Indexes



Technology

Standard

IEEE802.3, IEEE802.3u, IEEE802.3x

Flow control

IEEE802.3x

MAC address

8K

Interface

RJ45 Ports

10/100/1000M auto connection, Full/Half duplex or force work mode, and support MDI/MDI-X connection

Fiber Ports

1000Base-FX ports (SC/ST/SFP optional)

LED indicator

PWR, SYS, Link/ACT

Power

Input power

110~220VDC(100~300VDC)Or100~240VAC(85~264VAC)

Input current

0.25A(@110VAC/VDC)

Connector

3 bits terminal block

Environmental

Operating Temperature

-20~60℃ (wide temperature optional)

Storage Temperature

-40~85℃

Relative Humidity

5%~95%(non-condensing)

Mechanical

Shell

IP30protection, metal case

Installation

desktop

W×H×D

185mm*134mm*35mm

Warranty

5 years
