40 PV - SPR Elastomer Rubber Acid Resistant Vertical Slurry Pump / bomba de lama vertical

FOB Reference Price:Get Latest Price
US $1,640-9,200 / Set | 1 Set/Sets coal mine slurry pump (Min. Order)
Supply Ability:
500 Set/Sets per Month gold mining slurry pump
Port:
Tianjin, Qingdao, Ningbo, Shanghai...
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hebei, China (Mainland)
Brand Name:
Naipu
Model Number:
40 PV - SPR
Theory:
Centrifugal Pump
Structure:
Single-stage Pump
Usage:
Water
Power:
Electric
Standard or Nonstandard:
Standard
Fuel:
No
Pressure:
Low Pressure
Application:
Sewage
OEM:
Acceptable
Certificate:
CE, ISO9001, SGS
Material:
R26, R55, A05, A07, A49...
Drive style:
BD, DC
Warranty:
1 Year Warranty(except Wearing Parts)
Flow rate:
17.28-39.6 m3/h
Head:
4-26 m
Color:
Customer Required
Type:
Vertical slurry pump
Motor:
Vertical type
Packaging & Delivery
Packaging Details
standard export wooden cases, according to the pumps and customer's request
Delivery Time
Usually within 15 days after get advance payment
Product Description

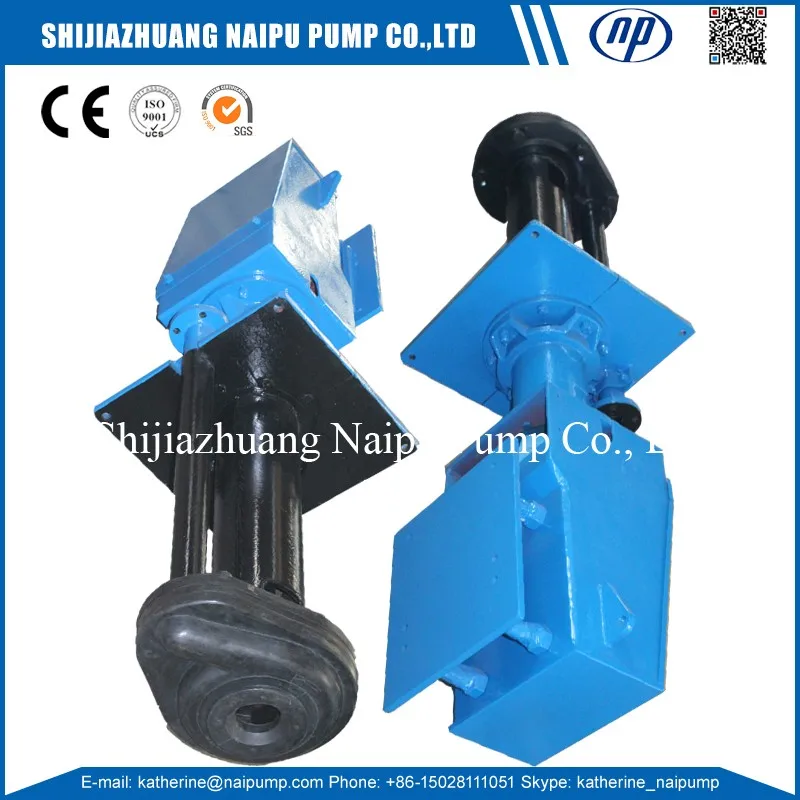

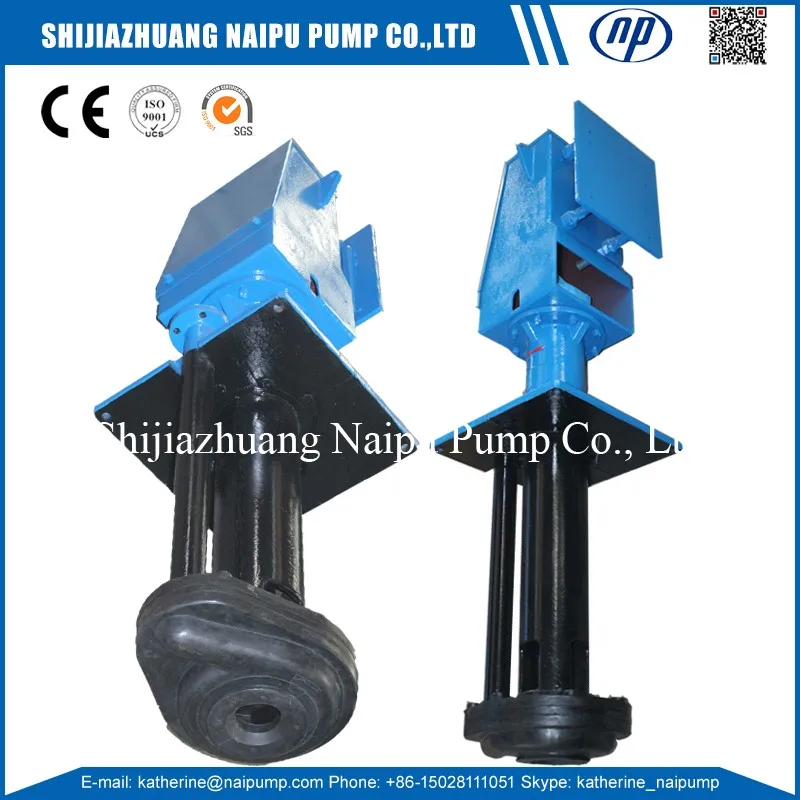

40 PV - SPR Elastomer Rubber Acid Resistant Vertical Slurry Pump / bomba de lama vertical.

Sump Pumps are available in various standard lengths to suit common sump depths. For very deep sumps or where high
shaft speeds limit the length of the pump, a suction extension pipe can be fitted to the bottom inlet to extend the depth of the pump by up to 2 metres.

Pumping is maintained even when the top inlet is not submerged, thus enabling the level of liquid to be lowered right down to the bottom inlet or the bottom of any suction extension pipe.

To suit special requirements other slurry pump wet ends can be fitted to the standard SP pump dry end.

Applications.

The SPR and SP designs, manufactured in popular metric sizes, provide a simple, yet rugged range of sump pumps specially developed for:
Abrasive and/or corrosive slurries
Large particle size
High slurry densities
Continuous or “snore” operations
Heavy duties demanding cantilevered shafts

Type
Allowable Max. Power
(Kw)
Capacity
m³/hr
Capacity
L/S
Head

m
Speed

rpm
Max Efficiency
%
No. of Vanes
Impeller
Diameter
mm
40PV-SPR
15
17.28-39.6
4.8-11
4-26
1000-2200
40
5
188
65QV-SPR
30
22.5-105
6.25-29.15
5.5-30.5
700-1500
51
5
280
100RV-SPR
75
64.8-285
18-79.2
7.5-36
600-1200
62
5
370
Detailed Images
Site Application

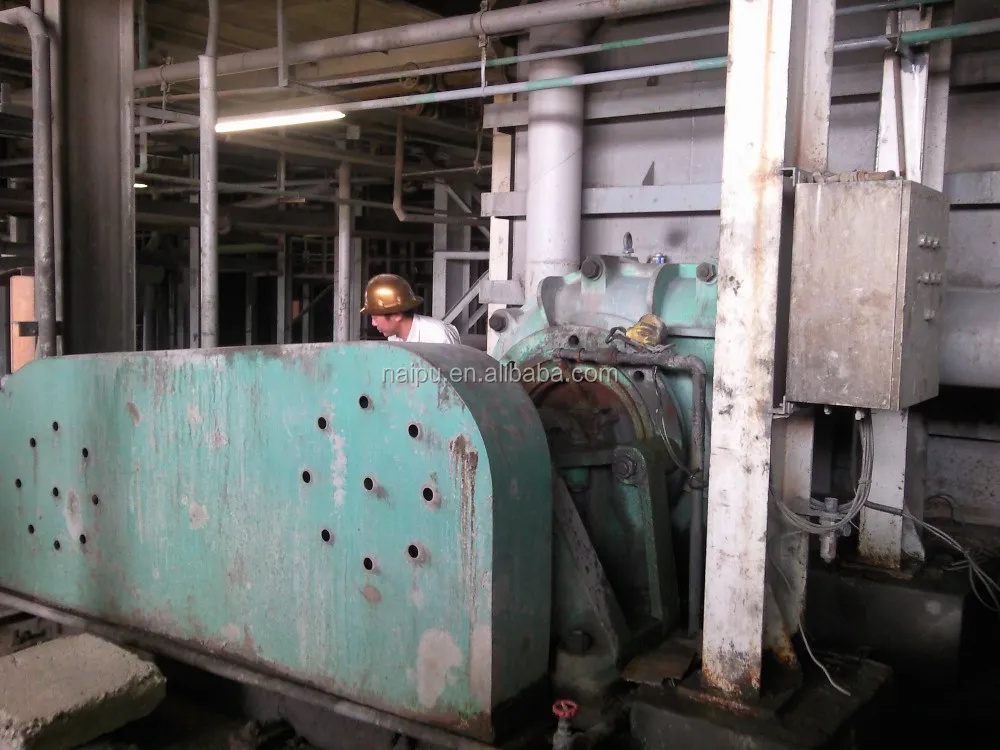

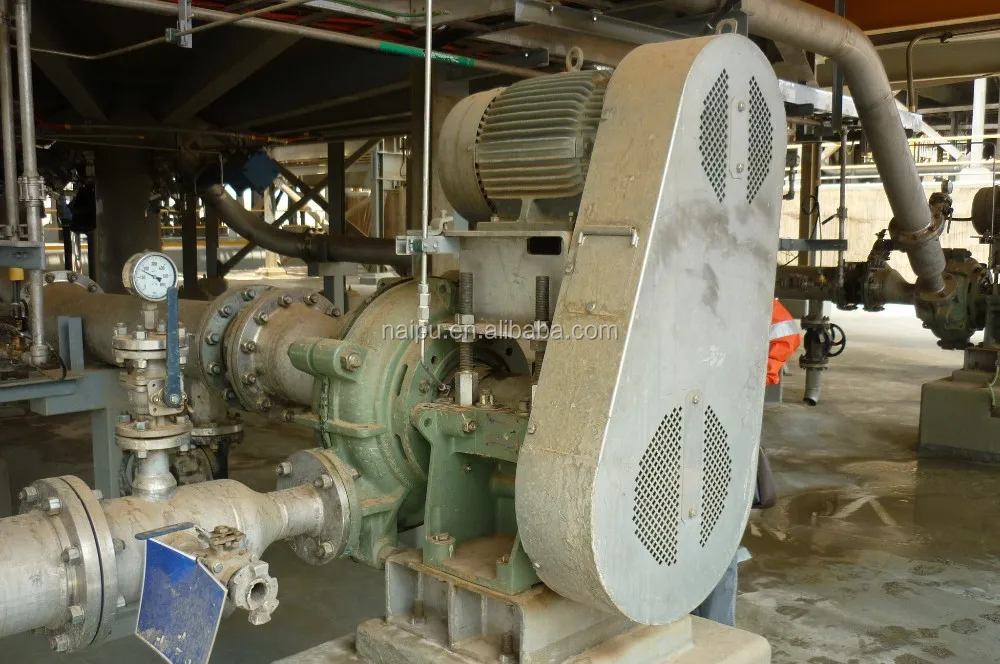

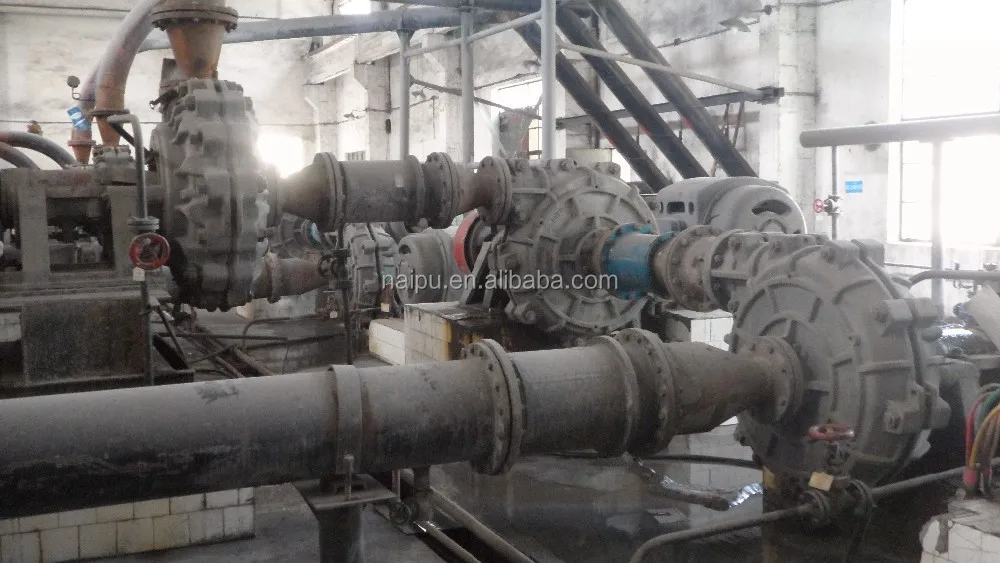

China - Iron ore.

14/12 AH

Flow=2000m3/h, Head=40m, efficiency=76%

Outlet horizontal on the top of the pump, fulley enclosed protection, CRz drive

South Africa - Molybdenum Ore.

6/4 AH

Flow=300m3/h, Head=40.5m, efficiency=66%

Outlet horizontal on the bottom of the pump, fully enclosed protection, CV drive

Canada Lead - Zinc Ore.

8/6 AH

Flow=450m3/h, Head=34m, efficiency=70%

Outlet vertical upward, fully enclosed protection, ZVz drive

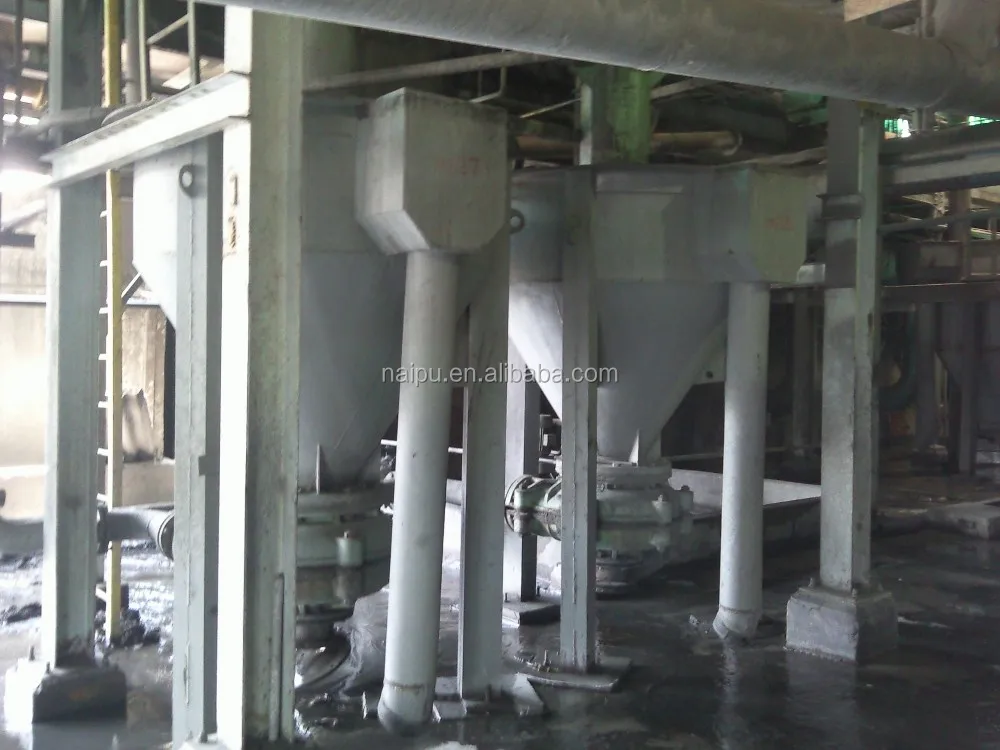

Russia - Copper Mine.

8 SV-AF

Flow=430m3/h, Head=20m, efficiency=52%

Vertical froth pump work for variety of flotation process, Eliminate foam, even in the case of insufficient feeding. BD drive

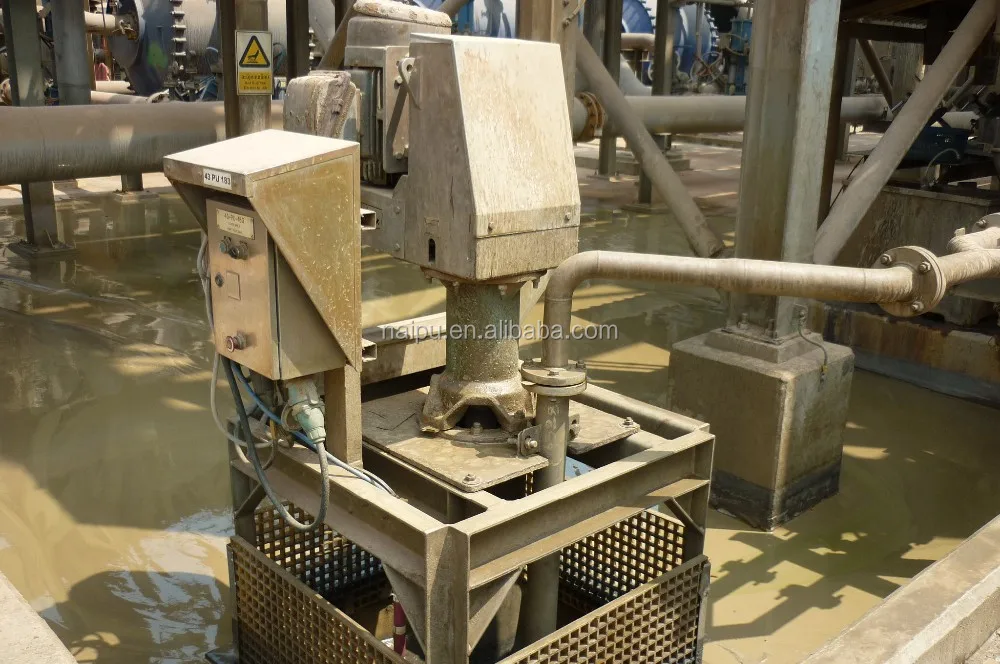

Zambia - Copper Mine.

100 RV-SP

Flow=150m3/h, Head=34m, efficiency=50%

Vertical slurry pump immersed in the pool or pit to work. Wet end parts with metal or rubber material. BD drive

Australia - Aluminum ore.

6 S-H

Flow=600m3/h, Single stage Head=90m efficiency=65%. Three pumps in series, total head 270 m to meet high-head, long-distance transport. Belt drive

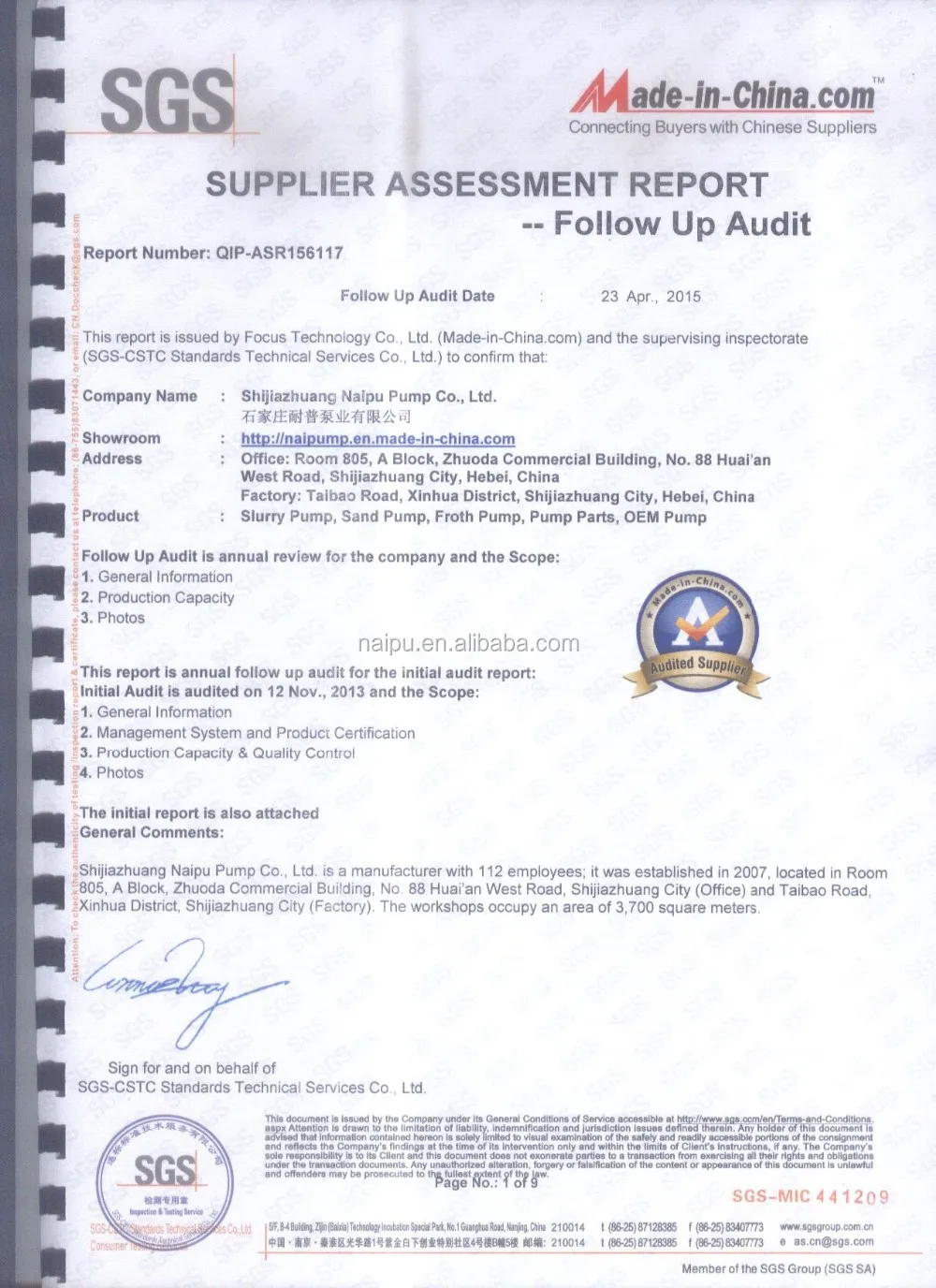

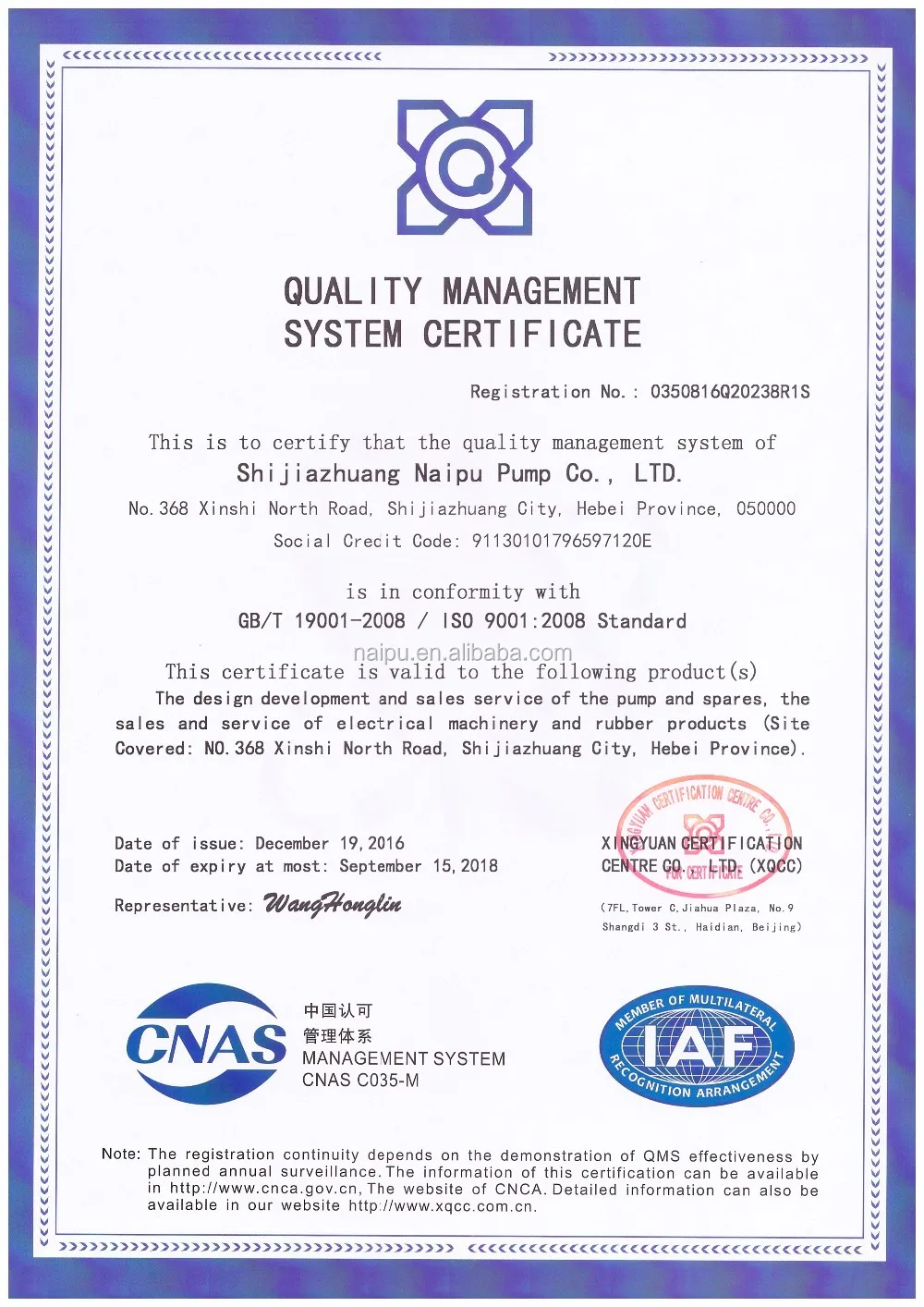

Certifications
Packing & Delivery

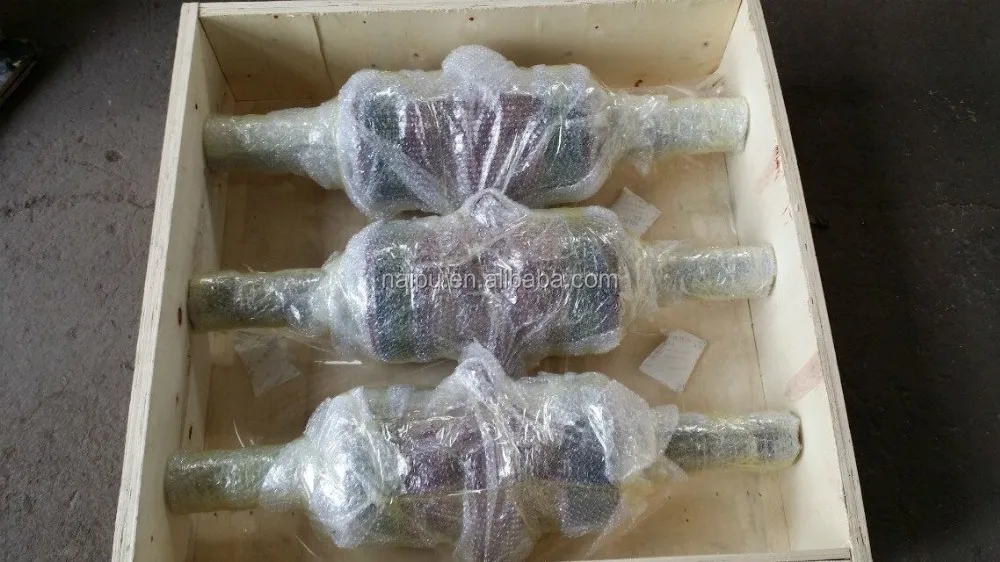

Shock bubble film.

Wood pallet.

Wood Box.

Our Company

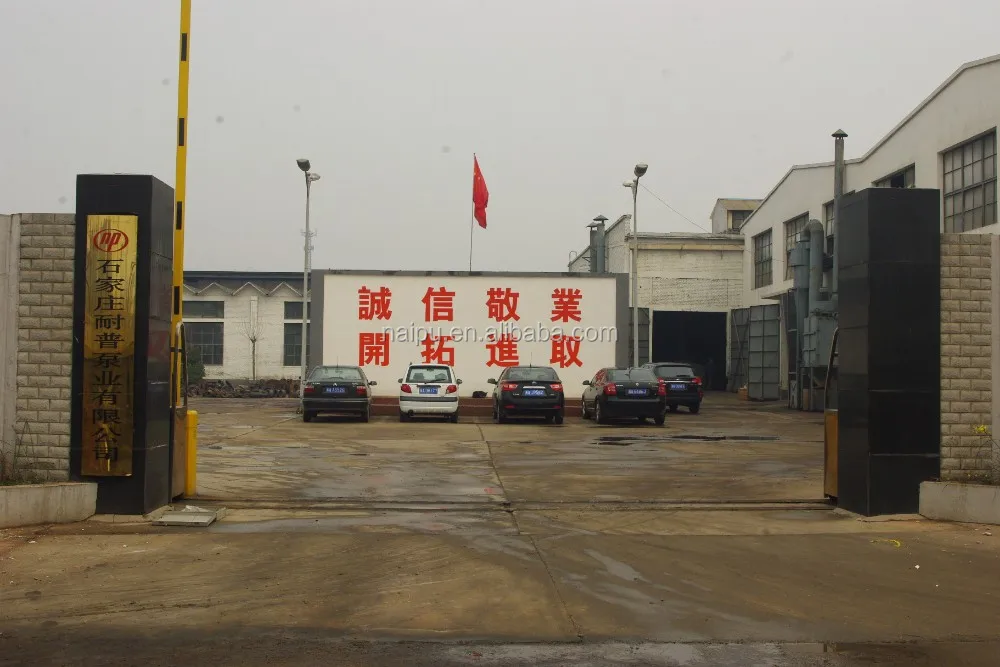

Factory

Shijiazhuang Naipu Pump Co., Ltd

Workshop

Machining Plant.

Warehouse

Finished Slurry Pumps.

Visiting

Custom Visit Naipu Factory.

Related Products

AH Slurry pump

91.8% Response Rate

G Sand gravel pump

91.8% Response Rate

Slurry pump parts

91.8% Response Rate

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory. Factory located in Shijiazhuang, Hebei, China.

Q: What information should be known if I want to get a quotation?

A: Pump Usage, Pump Capacity, Pump Head, Slurry SG and working conditions.

Q: How to gurantee the quality?

 A: All pump and spare parts passed ISO 9001:2008 and CE certificate. Warranty time: 12 months except wet end parts.

Q: How long is your delivery time?

A: Generally it is 7-15 days if the goods are in stock. Special material and OEM production is longer about 30-50 days.
