40 inch manual trim stainless steel butterfly valve

FOB Reference Price:Get Latest Price
$5,831.00 - $6,133.00 / Units | 1 Unit/Units (Min. Order)
Lead Time:
Quantity(Units) 1 - 5 >5
Est. Time(days) 35 Negotiable
Customization:
Customized logo (Min. Order: 1 Units)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Henan, China (Mainland)
Brand Name:
YUDA
Model Number:
D343H-150LB-40"
Application:
General
Material:
Casting, WCB
Temperature of Media:
Normal Temperature
Pressure:
Medium Pressure
Power:
Manual
Media:
Water
Port Size:
40"
Structure:
Butterfly
Business type:
Manufacturer
Certification:
CE/ISO9001
Standard:
API
OEM:
Acceptable
Type:
Flange
Warranty period:
12 months
Operation:
Gear box
Feature:
Triple eccentric design
Name:
40 inch manual trim stainless steel butterfly valve
Standard or Nonstandard:
Standard
Supply Ability
Supply Ability:
300 Unit/Units per Month
Packaging & Delivery
Packaging Details
Export wooden packing
Port
Shanghai/Tianjin/Qingdao
Lead Time :
Quantity(Units) 1 - 5 >5
Est. Time(days) 35 To be negotiated
Product Description

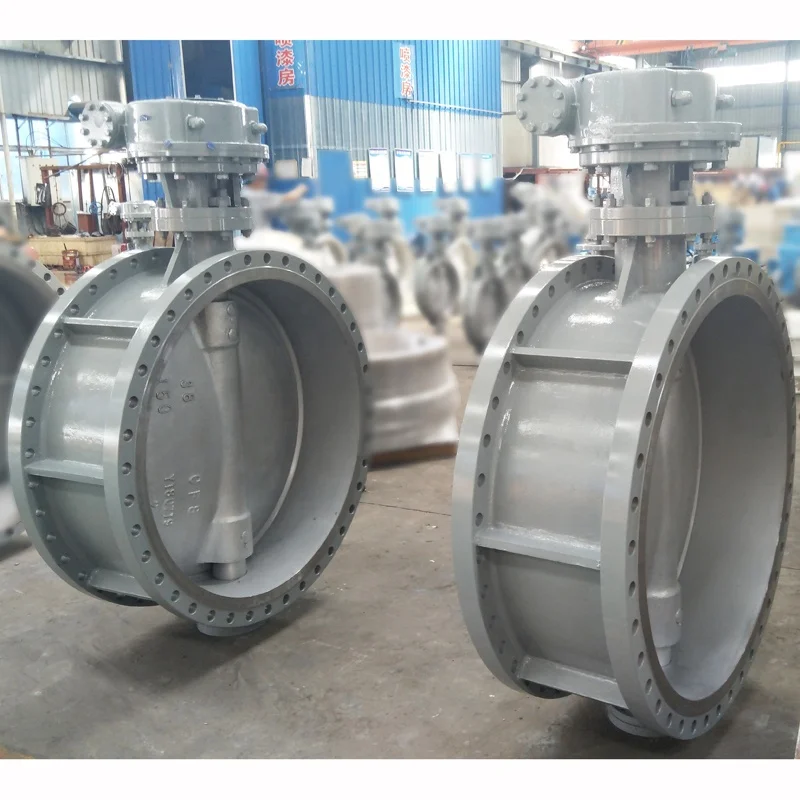

40 inch manual trim stainless steel butterfly valve
Size
40"
Pressure
150LB
Medium
Water
Temperature
-15~280 ℃
Type
Double flange
Standard
Description
Standard
Design and manufacture
API 609
Face to face
ASME B16.10
Flange and drilling
ASME B16.47 series B
Pressure test
API 598
Top flange of bare shaft valve
ISO5210
Main Parts Material
Body
Carbon steel - WCB
Disc
Stainless steel - CF8
Stem
SS304
Disc seat ring
SS304+Graphite
Body seat ring
SS304
Retainer
SS304
Shaft bearing
Self-lubricating
Bolt & nuts
S8.8IR
Coating
Oil paint
Company information

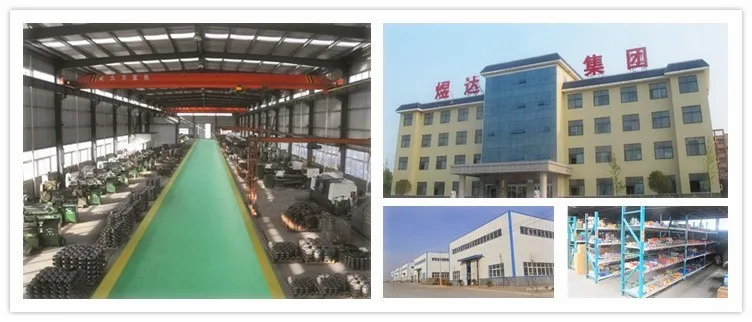

YUDA Brand

Henan Yuda Valve Manufacturing Co., Ltd. is specilized in developing and manufacturing low and middle pressure butterfly valve, and the main manufacturing base of large size butterfly valve in China.

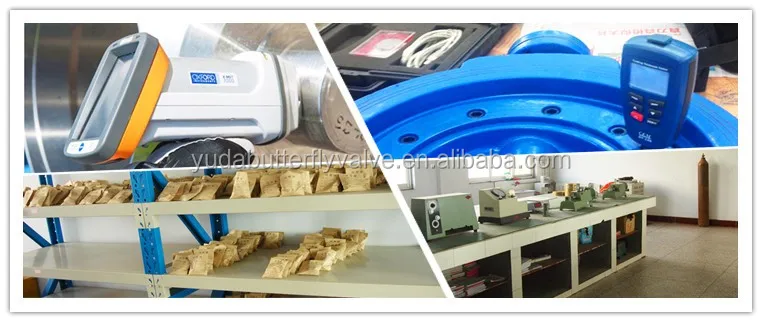

Quality Control

From castings to finished products, more than 30 processes, more than 10 testing equipment, strictly control quality, strictly prevent unqualified products from the factory.

Certifications

 In the 24 years we achieved outstanding results, we have certifications and patents like ISO 9001:2008, CE, OHSAS 18001:2007, ISO 14001:2004, 128 million registered capital, AAA work safety standardization certification, "YUDA" trade mark registration certificate, TS manufacture license of special equipment people's republic of China.

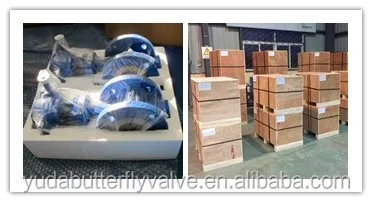

Packing & Delivery

Foam carton, Export wooden & steel frame packing

A variety of packaging to meet the different sizes, a variety of transportation methods, personalized needs of different customers.

Railway, sea & air transportation

Multiple lines, a variety of price, protect our goods safe and rapid arrival.

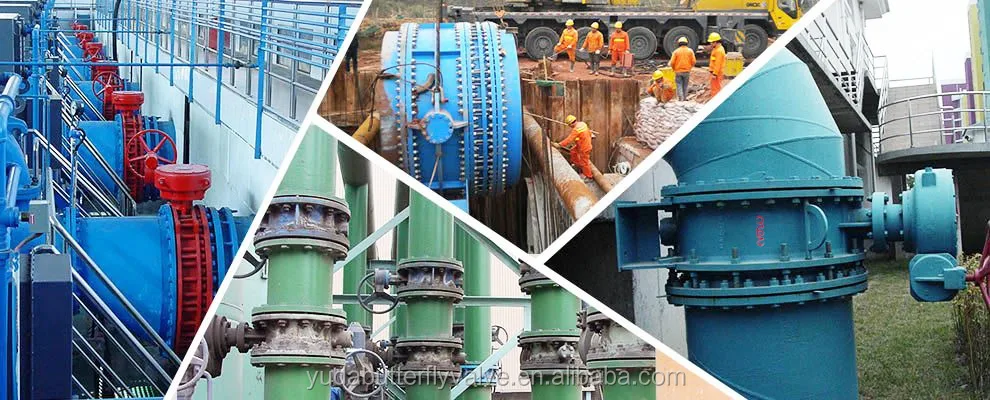

Valve Application

Our valves are exported to more than 30 countries and regions, mainly used in petrochemical industry, water supply and drainage, power, heat pipes and other industrial fields.

Related Products

Lug type concentric butterfly valve, 2205 disc EPDM lined butterfly valve.

6" wafer butterfly valve, gear box triple offset butterfly valve.

CF8 stainless steel butterfly valve. manual flange butterfly valve.

Contact Information

Kevin Li

★ Strong responsibility, professional, sincere, optimistic,

     the father of two children.

★ Title: Technical support manager

★ Email & Skype: kevinyudavalve @ outlook.com

★ What's App: +86-18337599723

★ Tel: +86-375-7232888

★ Fax: +86-375-7067888

★ Website: www.hnydvalve.com

★ Add: Industrial Zone in Ruzhou, Henan, China.
