40W 9V Power Adapter Meanwell USB Adapter GSM40B09-P1J AC/DC Single Output

FOB Reference Price:Get Latest Price
$8.00 - $15.00 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Mean Well
Model Number:
GSM40B09-P1J
Output Type:
DC
Connection:
Desktop
Product:
USB Adapter
Rated Power:
40W
DC Voltage:
9V
Rated Current:
4.45A
Efficiency:
86%
Working Temp.:
-30 ~ +60°C
Warranty:
3 Years
Dimension:
125*50*31.5mm (L*W*H)
Protections:
Short circuit / Overload / Over voltage
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
0.29Kg ; 40pcs / 12.6kg / 1.05CUFT (USB Adapter)
Port
Shanghai / Ningbo / Shenzhen



Product Overviews

40W 9V Power Adapter Meanwell USB Adapter GSM40B07-P1J AC/DC Single Output

Features:

  • Meanwell USB Adapter
  • Universal AC input / Full range
  • 2 pole AC inlet IEC320-C8
  • High efficiency up to 91%
  • Low leakage current <50μA
  • Protections: Short circuit / Overload / Over voltage
  • Fully enclosed plastic case
  • Medical safety approved (2 x MOPP between primary to secondary)
  • Class II power ( without earth pin)
  • LED indicator for power on
  • No load power consumption < 0.1W
  • ErP step2 compiant (level V)
  • Meet EISA 2007 (Energy Independence and Security Act)
  • 100% full load burn-in test
  • Optional lock type DC plug
  • 3 years warranty

Applications:

  • Mobile clinical workstation
  • Oral irrigator
  • Portable hemodialysis machine
  • Breath Machine
  • Medical computer monitor

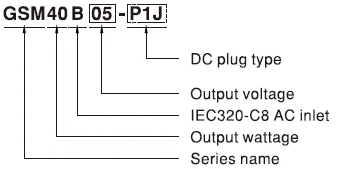

Model Series:


GSM40B05-P1J / GSM40B07-P1J / GSM40B09-P1J / GSM40B12-P1J
GSM40B15-P1J / GSM40B18-P1J / GSM40B24-P1J / GSM40B48-P1J

Detailes:



ORDER NO.GSM40B09-P1J
OUTPUTSAFETY MODEL NO.GSM40B09
DC VOLTAGE                       Note.29V
CURRENT RANGE4.45A
RATED CURRENT0 ~ 4.45A
RATED POWER (max.)40W
RIPPLE & NOISE (max.)     Note.3100mVp-p
VOLTAGE TOLERANCE    Note.4±5.0%
LINE REGULATION            Note.5±1.0%
LOAD REGULATION    ±5.0%
SETUP, RISE TIME             Note.61000ms, 30ms / 230VAC 1500ms, 30ms / 115VAC at full load
HOLD UP TIME (Typ.)50ms/230VAC 15ms/115VAC at full load
INPUTVOLTAGE RANGE    80 ~ 264VAC         113 ~ 370VDC
FREQUENCY RANGE47 ~ 63Hz
EFFICIENCY (Typ.)86%
AC CURRENT1A / 115VAC 0.5A / 230VAC
INRUSH CURRENT (max.)30A / 115VAC  65A / 230VAC
LEAKAGE CURRENT (max.)Touch current less than 50µA/264VAC
PROTECTIONOVER LOAD    105 ~ 160% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE9.45 ~ 12.15V
Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATUREShut down o/p voltage, re-power on to recover
ENVIRONMENTWORKING TEMP.-30 ~ +60°C (Refer to derating curve)
WORKING HUMIDITY20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY-40 ~ +85°C , 10 ~ 95% RH
TEMP. COEFFICIENT±0.03%/°C (0 ~ 50°C)
VIBRATION10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC (Note. 7)SAFETY STANDARDSANSI/AAMI ES60601-1 / ES60601-1-11, TUV EN60601-1 / 60601-1-11 approved
WITHSTAND VOLTAGEI/P-O/P:4KVAC O/P-FG:SHORT
ISOLATION RESISTANCEI/P-O/P: 100M Ohms / 500VDC / 25°C / 70% RH
EMC EMISSIONCompliance to EN55011(CISPR11) class B, EN61000-3-2,3, FCC part15 class B
EMC IMMUNITYCompliance to EN61000-4-2,3,4,5,6,8,11, EN55024, EN60601-1-2, EN6204-3 medical level, criteria A
OTHERSMTBF740Khrs min. MIL-HDBK-217F (25°C )
DIMENSION125*50*31.5mm (L*W*H)
PACKING0.29Kg ; 40pcs / 12.6kg / 1.05CUFT
CONNECTORPLUGStandard type P1J: 2.1 * 5.5 * 11mm turning fork type, center positive for stock ; Other type available by customer requested
CABLESee page2; Other type available by customer requested
NOTE1. All parameters are specified at 230VAC input, rated load, 25°C 70% RH ambient.
2. DC voltage: The output voltage set at point measure by plug terminal & 50% load.
3. Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1uf & 47uf capacitor.
4. Tolerance: includes set up tolerance, line regulation, load regulation.
5. Line regulation is measured from low line to high line at rated load.
6. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
7. The power supply is considered as an independent unit, but the final equipment still need to re-confirm that the whole system complies with the EMC directives.
