40m wireless transmission distance electric mpg handwheel

FOB Reference Price:Get Latest Price
$1.00 - $249.00 / Pieces | 1 Piece/Pieces electric handwheel (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
CALT
Model Number:
AWGP01-4A-2
Usage:
Position Sensor
Theory:
Resistance Sensor
Output:
Digital Sensor, differential output
Wireless effective distance:
40M
Standard Size:
214*103*56MM
Resolution:
100ppr
Protection Class:
IP50
Axis:
4 axis
Quick Stop:
Without quick stop
keys:
2 consecutive keys
Application:
CNC machine tools, milling machine, milling machine, large Longmen
Supply Ability
Supply Ability:
5000 Piece/Pieces per Day lathe handwheel
Packaging & Delivery
Packaging Details
Standard Strong Export Carton Box
According To Your Needs
Port
Shanghai
Lead Time :
Shipped in 5 days after payment
Product Description

Application:

The product is NC machine supporting the use of manual pulse generator (manual pulse generator), has been widely used in CNC machine tools, CNC lathes, CNC engraving and milling machine, machining centers, and other fields.
This product adopts the wireless transmission technology, eliminating the need for traditional spring wire connection, reduce the equipment failure caused by cable, replacing the cable drag, viscous oil pollution, the operation is more convenient.


Suitable for operating system:

The Japanese Mitsubishi MELDAS (MELDAS M64; M65 electronic handwheel; E60 system for the DC12V power output, DC5V)
The Italy SELCA system
The Japanese FANUC FANUC system
The Taiwan Digiwalker TNC
Taiwan necto (HUST) series
The domestic such as aerospace CNC, CNC, Guangzhou nuoxin, Emperor Kaine KND series
It is suitable for PC_BASE system, the typical system such as: POUYUEN M600 M500 M520i T300 Taiwan Baoyuan ELC-1000 series
The new generation of SYNTEC system in Taiwan
The German PA system such as: Head Au Higerman, Hanak HANUC, Guangzhou GSK CNC CNC CNC system, open
The foreign system: Siemens, NUM, FAGOR (NEW 8055I, Spain Fage) etc.

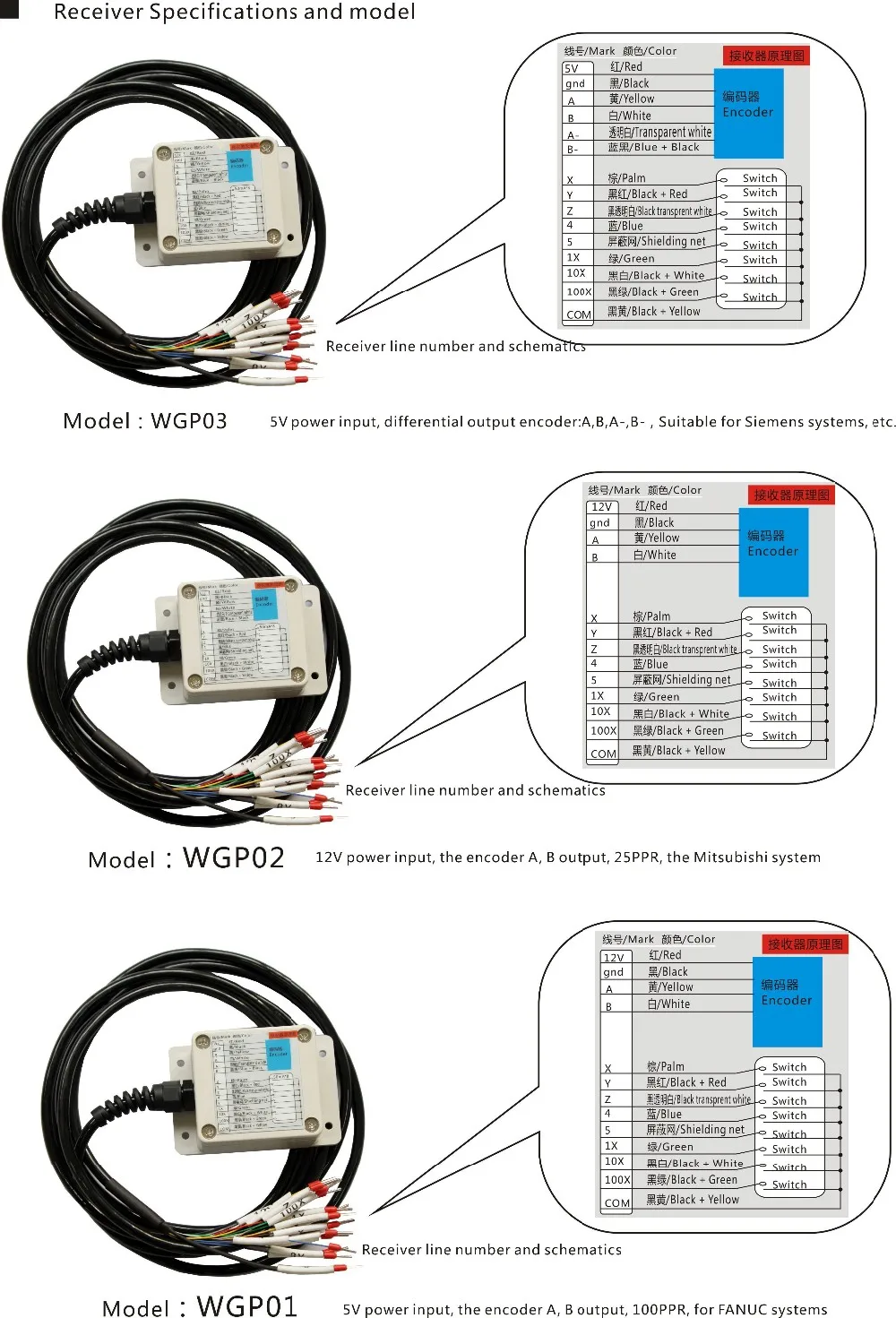

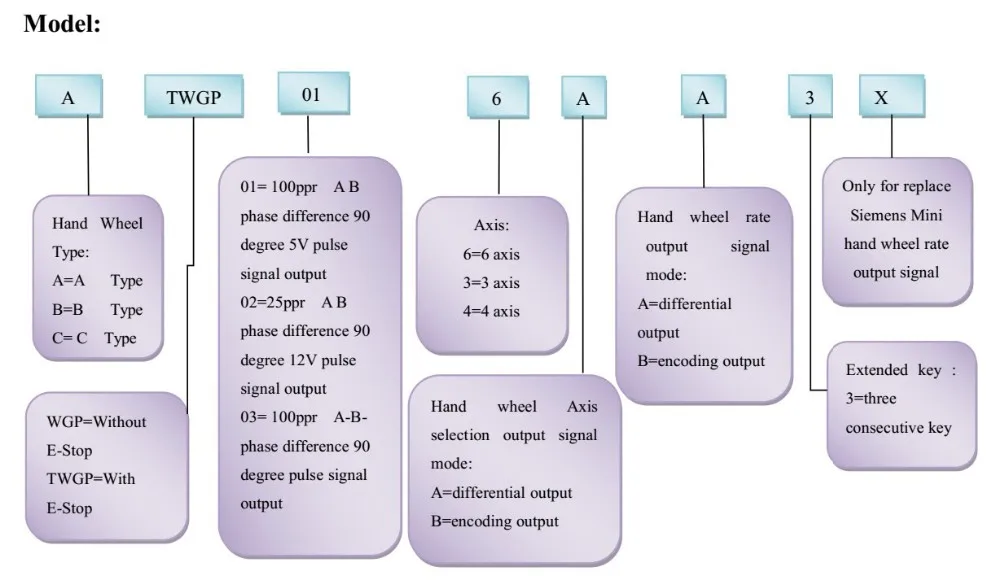

Specific Product Model:

AWGP0X-4A-2 (four axis, with clear, points in the key, with LCD display, differential output);
AWGP0X-6A-2 (six axis, with clear, points in the key, with LCD display, differential output);
AWGP0X-4B-2 (four axis, with clear, points in the key, with LCD display, encoding output);

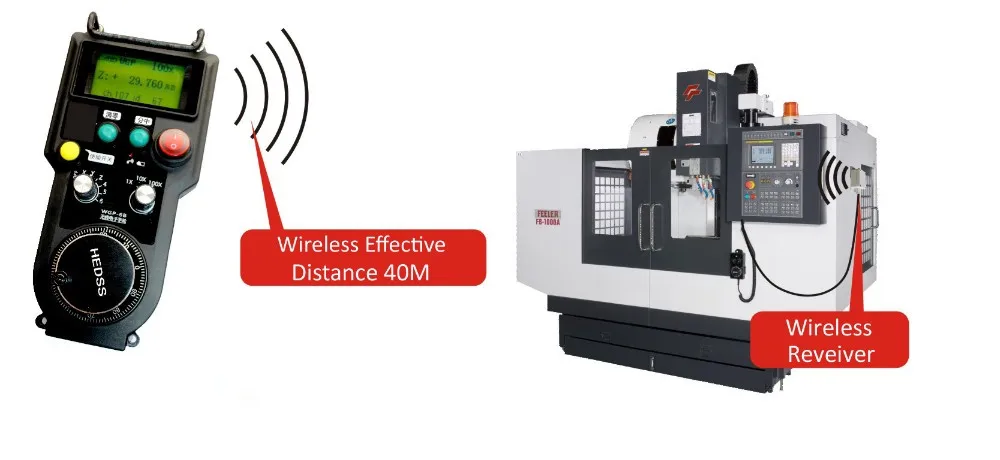

Working Principle Diagram:
Using wireless transmission technology, convenient operation, eliminating the traditional spring wire connection, reduce the failure rate of cable and remove cable drag and viscous oil pollution.
Wireless electronic handwheel (manual pulse generator), the receiver through 16 core line spring is connected with a machine tool, electronic handwheel, manual pulse generator) through wireless transmission technology and the receiver are connected to the news, the operator can hand handwheel, get rid of the line spring join irreducible, to move around freely, easy to operate, freedom, stable and reliable, reduce the failure rate (because the traditional cable wheel, you need to connect with the line, a long time, spring line inside the cable easily broken, causing failure to operate). For large-scale Longmen milling, large numerical control lathe, large-scale machine tool and other applications, but also brings great convenience, improve work efficiency.

ATTENTION:

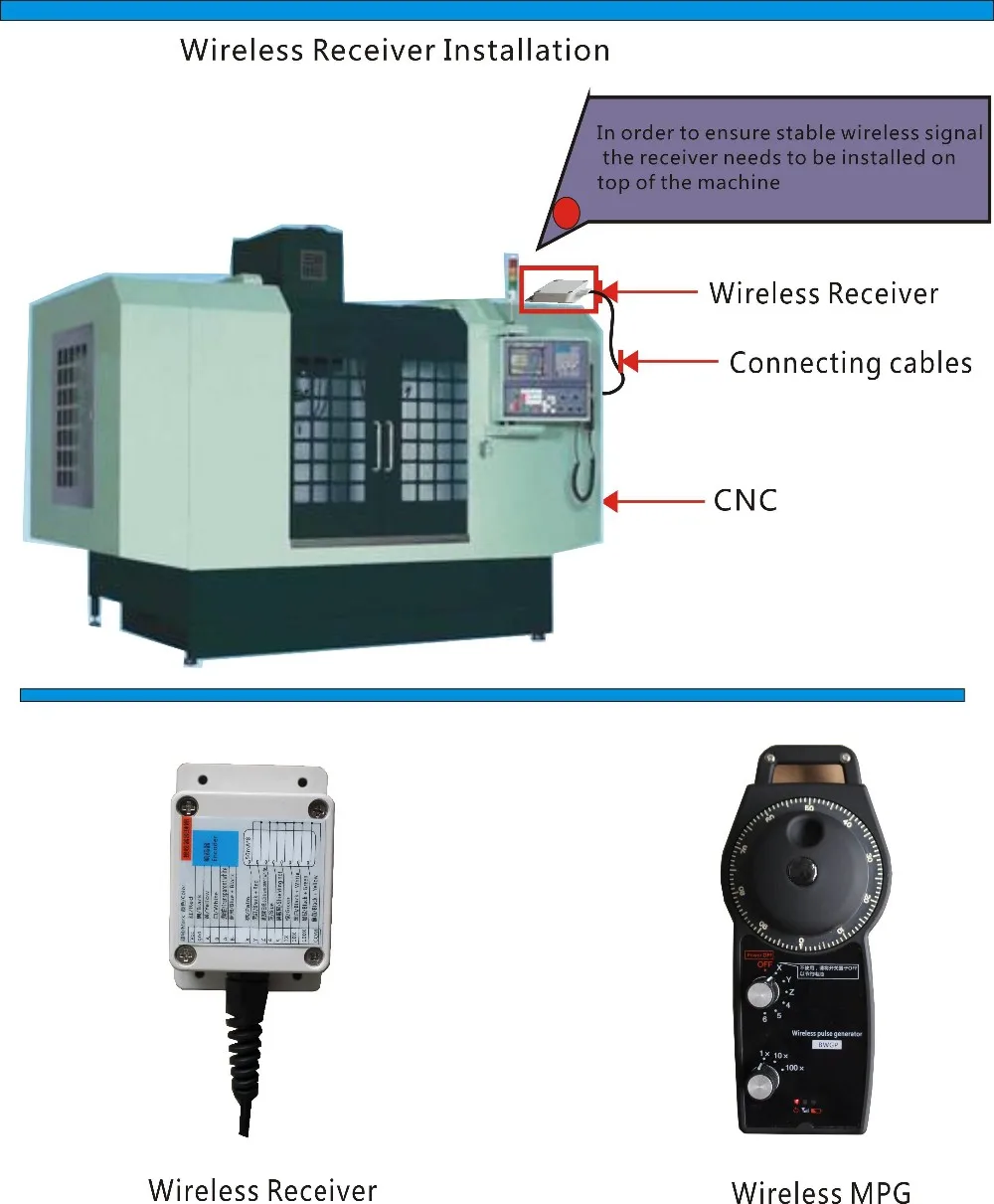

In order to receive a stable signal, please put the receiver out of the motor.

Products Show
Related Products

Solid shaft type GHS38 Series.

Widely used in automatic control, automatic measurement, as the angle and speed sensors.


ASIC devices internal, good reliability, long life, anti-jamming performance. Stainless steel shaft has a higher stability and protection.Metal shell is more solid and anti-impact. Bearing load heavy, anti-oil and water

Servo-motor Encoder GSM48 Series.

Widely used in the field of automatic control AC servo unit, particularly suitable for use in servo motor supporting.


Internal ASIC devices, high reliability, long life, strong anti-interference. Wide range of resolutions, and does not require signal conditioning.  With A, B, Z and U, V, W six-channel signal output can be connected with standard line driver (26LS31) RS422, can provide 12 output signal, and is compatible with TTL

Hollow Shaft Type GHH38 Series.

Used in automatic control, measurement, robot X-Y working platform, printing and packaging.

Internal ASIC devices, high reliability, long life, strong anti-interference. more solid metal housing could anti-shock. Outlet end metal interface sets of waterproof protection.

Hollow Shaft Type GHH100 series.

Used in automatic control, measurement, robot X-Y working platform, printing and packaging.

Internal ASIC devices, high reliability, long life, strong anti-interference. more solid metal housing could anti-shock. Outlet end metal interface sets of waterproof protection.

Manual Pulse Generator TM1469 series.

For CNC machine origin correction and signal split.


 Full plastic housing, high dielectric strength, the axis transfer switch and Oil Pollution Prevention seal design.

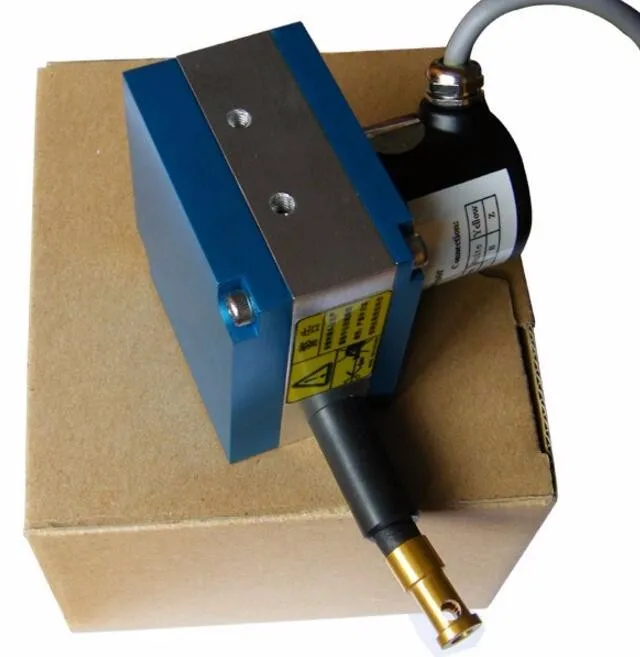

Draw-wire Position Sensor CESI series.

compact size, rugged construction, easy to install

economic cost, and cost savings for customers
Various signals output optional: push-pull, TTL, open collector and so on


The cylinders, testing machines and other industry has achieved large-scale applications, reliability

Our Factory

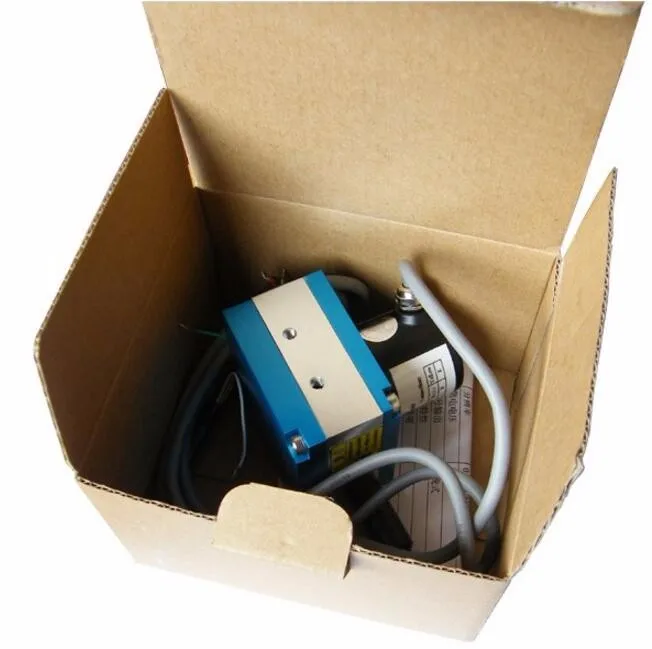

Packing & Delivery
