47-860MHz Analog RF Modulator 16 channels

FOB Reference Price:Get Latest Price
  • 1 - 19 Sets
    $989.00
  • >=20 Sets
    $789.00
Lead Time:
Quantity(Sets) 1 - 5 >5
Est. Time(days) 5 Negotiable
Customization:
Customized logo (Min. Order: 10 Sets)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Sichuan, China
Brand Name:
Jiexiang
Model Number:
JX-16AM
Product name:
Rf Modulator 16 Channels
Frequency:
47~860MHz
Output Level:
≥100dBμV
Output Level Adj.Range:
0~-20dB (Adjustable)
A/V Ratio:
-10dB~-30dB (Adjustable)
Output Impedance:
75Ω
Weight:
8kg
Dimension(W*L*H):
53mm*31mm*25mm
MOQ:
1 set for Rf Modulator 16 Channels
Warranty:
5 Years
Supply Ability
Supply Ability:
200 Set/Sets per Month For Rf Modulator 16 Channels
Packaging & Delivery
Packaging Details
Carton Case
Port
Chengdu, Shenzhen, Shanghai, etc.
Lead Time :
Quantity(Sets) 1 - 5 >5
Est. Time(days) 5 To be negotiated

47-860MHz Analog RF Modulator 16 channels

Technical Indicators



Product Overview



Jiexiang JX-16AM 16 in 1 frequency agile modulator, it will be up to 16 audio and video signals into a road with 16 TV channels RF signals. The product is widely used in hotels, hospitals, schools, electronic teaching, factories, security monitoring, VOD video on demand and other places of entertainment, especially for digital TV analog conversion, and centralized monitoring system.



Technical specification



Frequency

 47~860MHz

Output Level

 ≥100dBμV

Output Level Adj.Range

 0~-20dB (Adjustable)

A/V Ratio

 -10dB~-30dB (Adjustable)

Output Impedance

 75Ω

Spurious Output

 ≥60dB

Frequency Accuracy

 ≤±10KHz

Output Return Loss

 ≥12dB(VHF); ≥10dB(UHF)

Video Input Level

 1.0Vp-p(87.5% Modulation)

Input Impedance

 75Ω

Differential Gain

 ≤5%(87.5% Modulation)

Differential Phase

 ≤5°(87.5% Modulation)

Group Delay

 ≤45 ns

Visual Flatness

 ±1dB

Depth Adjust

 0~90%

Video S/N

 ≥55dB

Aduio Input Level

 1Vp-p(±50KHz)

Audio Input Impedance

 600Ω

Audio S/N

 ≥57dB

Audio Pre-emphassis

 50μs

Rack

19 Inch standard



Welcome to inquiry for more details!

Skype:Alina_jxdvb

Advantages

  • Stable and reliable;
  • 16 of each channel is completely independent, channel configuration flexibility;
  • Picture high frequency and RF local oscillator MCU technique are used, frequency stability and high accuracy;
  • The function of each integrated circuit chips are used, the whole high reliability;
  • High-quality power supply, 7x24 hour stability.

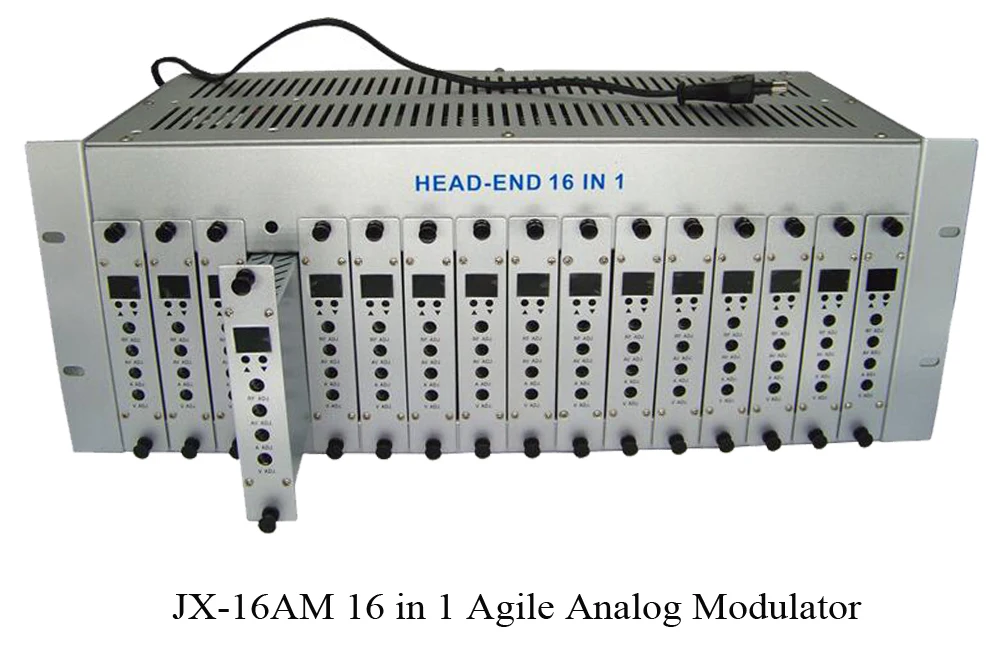

Product Show
