48 Inch 20 Watt 4000 Lumens Waterproof Linear LED Plants Grow Lights Bar Strip for Thailand Growing Orchids Lettuces Microgreens

  • 1 - 199 Pieces
    $11.76
  • 200 - 1999 Pieces
    $9.80
  • 2000 - 4999 Pieces
    $9.51
  • >=5000 Pieces
    $9.22
Emitting Color:
Blue Changeable Green RGB Red White Warm White Cold White Other
Wattage:
17W (Type A) 18W (Type A) 19W (Type A) 17W (Type B) 18W (Type B) 19W (Type B)
Lead Time:
Quantity(Pieces) 1 - 10 11 - 200 201 - 2000 >2000
Est. Time(days) 10 15 25 Negotiable
Customization:
Customized logo (Min. Order: 500 Pieces)
Customized packaging (Min. Order: 500 Pieces)

More

Graphic customization (Min. Order: 500 Pieces) Less
Samples - $11.76 /Pieces, 1 Pieces (Min. Order): Buy Samples
Loading...
Report Suspicious Activity
Overview
Quick Details
Input Voltage(V):
AC100-240
Lamp Luminous Flux(lm):
2695
CRI (Ra>):
89
Working Temperature(℃):
-30 - 40
Working Lifetime(Hour):
25000
Lamp Body Material:
Plastic case with aluminum sheet
IP Rating:
IP64
Certification:
CE, Energy Star, ETL, FCC, RoHS, UL
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Koray
Model Number:
RX-PT5-900-90D-A-6K7R1
Light Source:
LED
Dimension (mm):
900*22*25
Net Weight (g):
180
LED Quantity (pcs):
74
Color Temperature (K):
5700
PPFD (umol/m^2/s):
151 @ 0.2m
PPF (umol/s):
40.8
PAR (mW):
8943
Recommended Hanging Height (m):
0.2~0.5
Application:
Vertical Farming
Warranty (y):
2
Item Type:
Grow Lights
Lamp Luminous Efficiency(lm/w):
158.53
Product Certification Verified
CE Certified.
RoHS Certified.
Valid from 2017-06-08 until 2049-12-31
Supply Ability
Supply Ability:
1000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
Packaging Details:
M: 99*5*5cm (Inner pearl wool+export carton)
QTY: 1pcs
GW: 400g
++++++++++
Standard Packaging:
M: 99*28*25cm (Inner pearl wool+export carton)
QTY: 30pcs
GW: 11.5kg
Port
Zhongshan / Shenzhen / Hong Kong

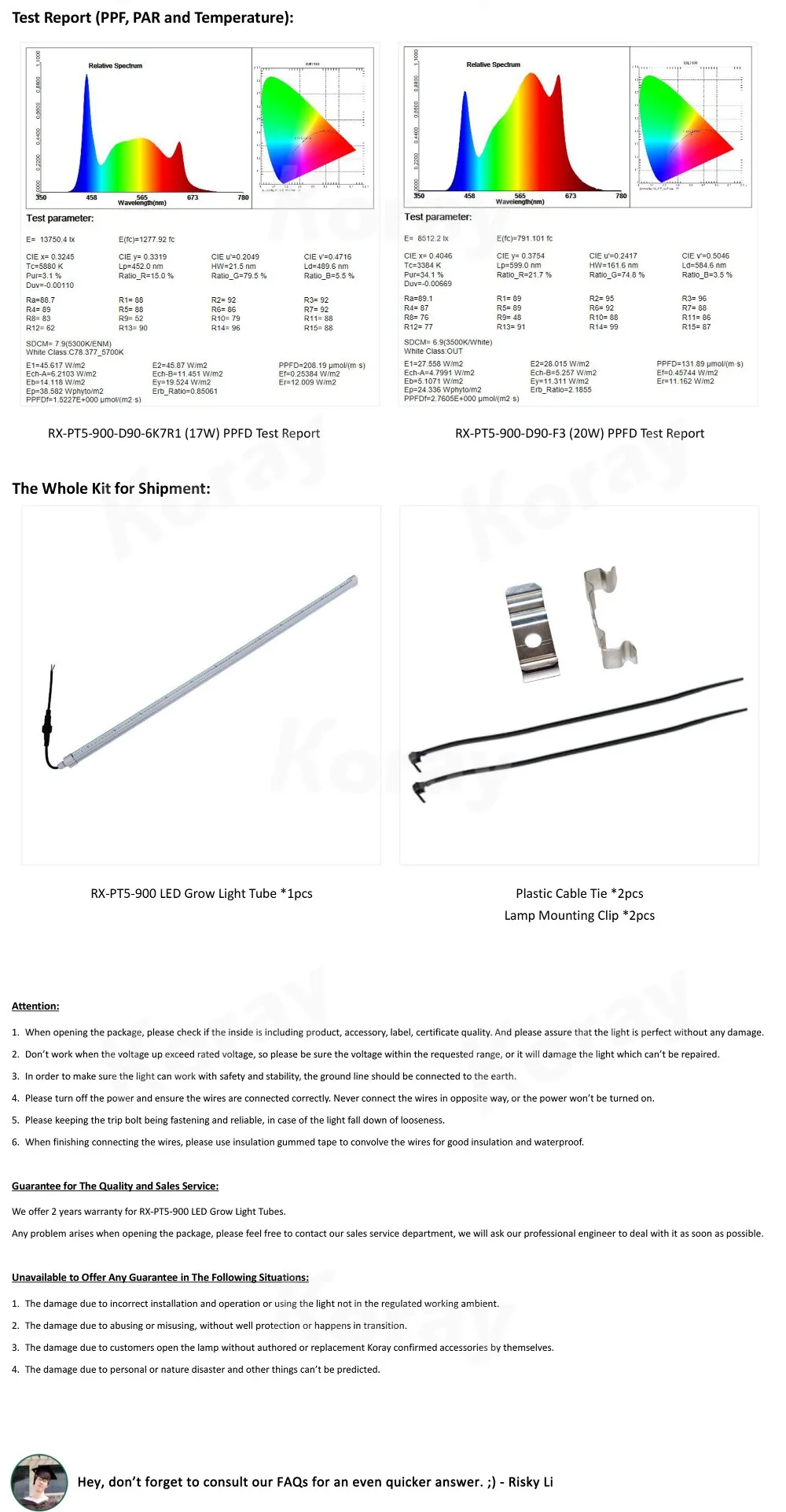

Picture Example:
package-img
Lead Time :
Quantity(Pieces) 1 - 10 11 - 200 201 - 2000 >2000
Est. Time(days) 10 15 25 To be negotiated
Video Description
Specification
Description
Model Number
RX-PT5-900-90D-6K7R1
Demension
900×22×25mm
Net Weight
180g
Actual Power
17W
PPF
40.8umol/s
PAR
8943mW
PPFD
151μmol/m²/s @ 0.2m
Lifetime
25,000hrs
Product Description

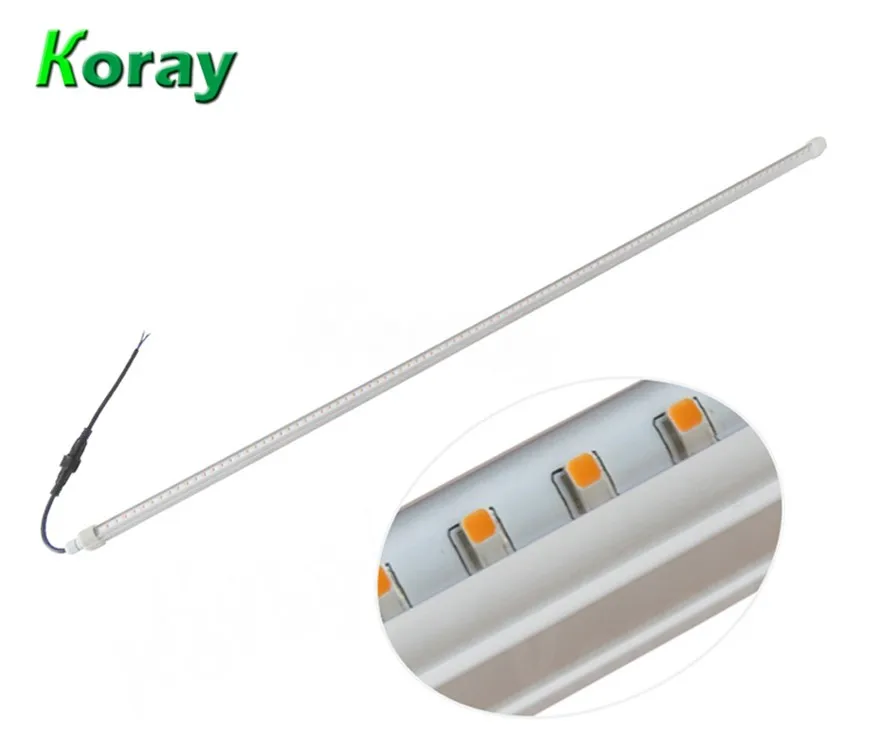

RX-PT5-900 Waterproof LED Grow Light Tube: Created for multi-layer structure plant factories. Waterproof IP64 for safer operation. Integrated lens design for up to 70% higher efficiency than common T5/T8 LED grow light tubes, saving 41% power for lower production cost. RX-PT5-M will be an economical choice for vertical farms cultivation of seedlings, tissue cultures, vegetables, fruits, flowers, herbs, etc.

1. Unique design from Koray. Patent No.: ZL201820677848.
2. Integrated lens design with 70% higher PPFD than common T5/T8 LED grow tubes.
3. Optional beam angle 90D-type (for seedings) and 60D-type (for vegetative growth).
4. 25mm ultra-slim lamp body, saving space for vertical farms cultivation.
5. Waterproof IP64, providing safer operation for longer lifetime.
6. Input Voltage: AC100~240V; Rated Power: 18W; PF>0.9.
7. Lifetime: 25,000hrs; Warranty: 2 years.
8. CE RoHS FCC.

Model
RX-PT5-900-90D-6K7R1
RX-PT5-900-90D-F3
RX-PT5-900-90D-G1
Dimension
900×22×25mm
Net Weight
180g
CRI & CCT
Ra89 5700K
Ra90 3000K
Ra12 9000K
PPFD
(µmol/m²/s)
151/0.2m
131/0.2m
83/0.2m
94/0.3m
81/0.3m
56/0.3m
47/0.5m
39/0.5m
27/0.5m
Illuminance
(Lx)
10006/0.2m
8512/0.2m
2350/0.2m
6224/0.3m
5194/0.3m
1495/0.3m
3115/0.5m
2513/0.5m
704/0.5m
Efficiency
Lumen: 2695Lm
PPF: 40.8umol/s
PAR: 8943mW
Lumen: 2242Lm
PPF: 35umol/s
PAR: 7292mW
Lumen: 729Lm
PPF: 25umol/s
PAR: 5206mW
Wattage (at 230V)
17W
18W
19W
Comment
For seedlings, tissue cultures, nurseries, rhizome plants and aquarium lighting
For most kinds of plants
For leafy vegetables production
Surface Temperature Rise: Tc23K; Operating Temperature: -30°C~40°C; Lifetime: 25,000 hrs (Ta≤25°C).
Tolerance Range for Optical and Electrical Data: ±10%.
Beam Angle: 70°. Recommended Irradiation Distance: 0.2~0.5m( tissue cultures and nurseries); 0.1~0.3m (plants production).

*The above data is for reference only.

Koray All-Star

TOP1: DC Type LED Grow Light Bars - Lens + reflector cup + waterproof IP65. Provide 100% higher efficiency and 50% more uniform lighting for plants growth. Click here>>>

TOP2: GWB-108 Hydroponic Grow System - Hydroponic channels + LED grow light bars for automatic cultivation, more healthy foods and more delicious taste. Click here>>>

TOP3: GK Series UFO LED Grow Lights - Lens + waterproof IP65. Optional OSR horticulture LEDs with 424μmol/m²/s @ 1m high PPFD. Greenhouses & grow tents grower's best choice. Click here>>>

TOP4: Z Series LED Grow Light - Lens + reflector cup + waterproof IP65. Provide 100% higher efficiency and 50% more uniform lighting for medicinal plants cultivation. Click here>>>

TOP5: T-LED Grow Light Tubes - Integrated lens + waterproof IP65. Increase 100% higher efficiency with cheap price for vertical farming. Click here>>>

TOP6: AC Type LED Grow Light Bars - Lens + reflector cup + waterproof IP65. Provide 100% higher efficiency and 50% more uniform lighting for seedlings. Click here>>>

TOP7: DC Type LED Grow Light Module - Lens + reflector cup + waterproof IP65. Provide 100% higher efficiency and 50% more uniform lighting for plants all-stage cultivation. Click here>>>

TOP8: Multi-Head LED Grow Lights - Dual/Triple-head with 360-degree flexible goosenecks + clamp, easy adjustment for beam angle to place to anywhere. Click here>>>

TOP9: X Series LED Top Lightings - Lens + reflector cup + waterproof IP65. Provide 100% higher efficiency and 50% more uniform lighting for greenhouses year-round cultivation. Click here>>>

TOP10: PAR Series LED Grow Light Bulbs - High efficiency lens design. Ideal for family cacti & succulents growth. Click here>>>

TOP11: Flood LED Grow Lights - Reflector cup + waterproof IP65 for indoor walls ornamental plants supplimental lighting. Click here>>>

TOP12: Fan-Cooling Grow Lights - Traditional low temperature rise design with double-chip LEDs structure, ideal for grow tents cultivation. Click here>>>

Do You Know That

Do plants need high Lumen/Lux?

Lumen/Lux is only for human eyes perceiving, not for plants growth. So if someone tell you to choose high Lumen/Lux grow lights, please tell them 'It's cool', then walk away XD. What's plants really need is enough PPFD.


What's the PPFD?
PPFD (Photosynthetic Photon Flux Density) is a measure of the number of photons in the 400-700nm range of the visible light spectrum (Photosynthetic Active Radiation or PAR) that fall on a square meter of target area per second.

Full Spectrum=Simulated Sunlight?

Not all wavelengths are good for plants. In general,  red+blue is enough for plants growth. Adding little green with be pleasant for human eyes, but High CRI ≠ High Efficiency. Red (660nm) should be strengthen when green added.

What's LCP?
LCP
(Light Compensation Point) is the lowest photosynthesis demands of PPFD. Plants start to grow only when PPFD exceeds LCP.


What's LSP?
When PPFD reaches a certain intensity, the photosynthetic rate will no longer be increased. That called LSP
(Light Saturation Point).
