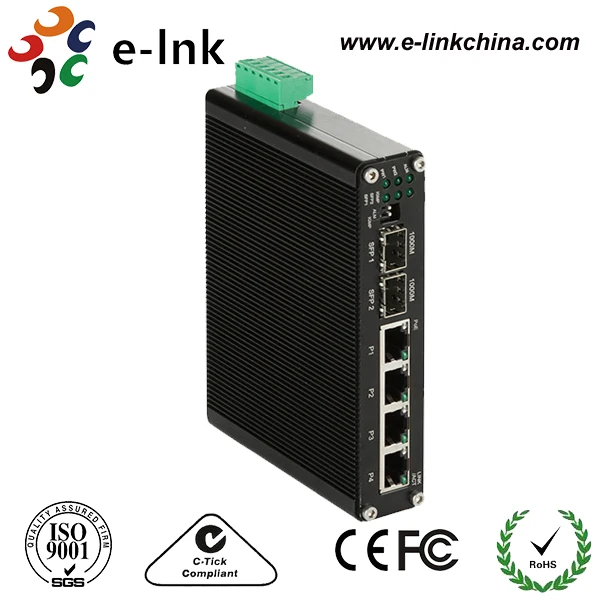

48VDC Power Input 4-port 10/100/1000M BASE-T to 2-port 1000BASE-F 30W Industrial PoE Switch

  • 1-9 Pieces
    $200.00
  • 10-99 Pieces
    $180.00
  • >=100 Pieces
    $160.00
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
5 day(s) after payment received
Customization:
Customized logo (Min. Order: 20 Pieces)
Customized packaging (Min. Order: 100 Pieces)

More

Graphic customization (Min. Order: 20 Pieces) Less
Samples: $200.00 /Piece, 1 Piece (Min. Order): Buy Samples
Contact Supplier
Samples - $200.00 /Piece, 1 Piece (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
E-link
Model Number:
LNK-IMC2400GP-SFP Series
Product Name:
48VDC Industrial PoE Switch
Connector:
4 x RJ45
Optical Port:
2 x SFP 1000Base-X
Standard:
IEEE802.3at
IEEE802.3at:
30W Max per port (Alternative B Mode)
Processing Type:
Store-and-Forward
Packet Buffer Memory:
1M bits
Operating Temperature:
-40°C to 80°C (-40°F to 176°F)
Input Power:
2x48~57VDC
Warranty:
5 Years

Packaging & Delivery

Selling Units:
Single item
Single package size:
10X10X10 cm
Single gross weight:
2.0 kg
Package Type:
48VDC Industrial PoE Switch Standard Packaging: Carton packaging(Support customer Logo)
Lead Time :
Quantity(Pieces) 1 - 10 >10
Est. Time(days) 5 To be negotiated

48VDC Power Input 4-port 10/100/1000M BASE-T to 2-port 1000BASE-F 30W Industrial PoE Switch

Product Description









Overview



The LNK-IMC2400GP-SFP product is a Self-Configured Hardened Ethernet switch which provides 4 port 10/100/1000Base-TX + 2x1000Base-FX SFP port. The 10/100/1000Base-TX ports supports PoE+ (Power Sourcing Equipment) and compliant with IEEE 802.3at.

Comply with IEEE 802.3 10Base-T, IEEE802.3u 100Base-TX/FX, IEEE 802.3x, and IEEE802.3at. The product will provide PoE power to any IEEE802.3at/af compliant network device. It supports IGMP snooping which significantly saves the network bandwidth and reduces network load. With its reliable design and ease of use, the product is a great choice for integrating networks consisting of network devices such as IP cameras and wireless access points between remote locations.



Features

  • Automatically support IGMP (Multicasting)
  • Supports 10/100/1000Mbps-Full/Half-duplex,
  • Auto-negotiation, Auto MDI/MDI-X
  • Supports external 1000BASE SFP
  • Supports Daisy-Chain connection
  • Supports IEEE 802.3at PoE+(30W per port)
  • Supports Light Hardware IGMP V1, V2, V3
  • Supports Broadcast Storm Control
  • Supports Relay output for power failure
  • 1M bits frame buffer memory
  • Supports 9K Bytes Jumbo Frame
  • Supports Energy Efficient Ethernet IEEE802.3az

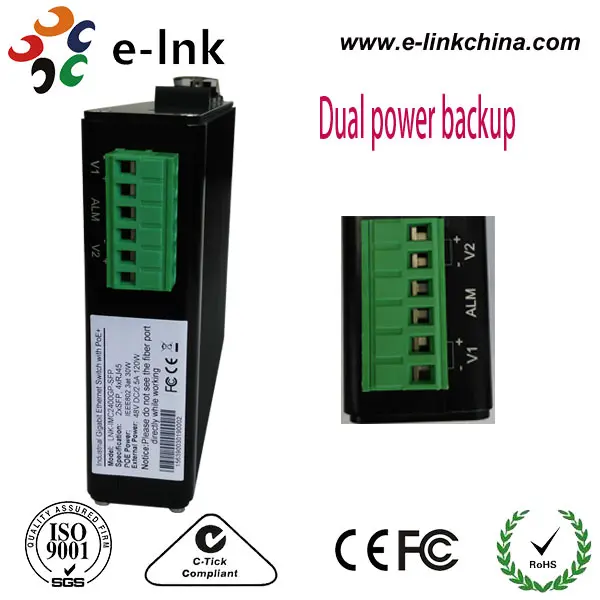

  • Redundant Power Inputs
  • Supports Wall-mount and DIN-Rail installation
  • Environmentally hardened -40°C to 80°C
    (-40°F to 176°F) operating temperature

Warranty

  •  5-Year Warranty



Technical Indexes

Ethernet

Standards:

IEEE802.3 10BASE-T

IEEE802.3u 100BASE-TX/FX

IEEE802.3ab 1000BASE-T

IEEE802.3z 1000BASE-X

IEEE802.3af Power over Ethernet

IEEE802.3at Power over Ethernet

Forward & Filtering Rate:

14,880pps (10Mbps)

148,800pps (100Mbps)

1,488,000pps (1000Mbps)

Packet Buffer Memory:

1M bits

Processing Type:

Store-and-Forward

Max Packet Length:

9K Bytes Jumbo Frame

Address Table Size:

2048 MAC Addresses

Connector:

4 x RJ45

Optical Port:

2 x SFP 1000Base-X

Environmental

Operating Temperature:

-40°C to 80°C (-40°F to 176°F)

Storage Temperature:

-40°C to 85°C (-40°F to 185°F)

Relative Humidity:

5% to 95% non-condensing

Electrical and Mechanical

Input Power:

2x48~57VDC (Terminal Block)

Power Consumption:

135W Max. 2.8A@48VDC (PoE in use)

5W Max. 0.1A@48VDC (PoE not in use)

Standard:

IEEE802.3at

PoE:

Port:

RJ45 Port 1 ~ Port 4

Max. Power per Port:

30W Max per port (Alternative B Mode)

Protection:

Power Input Overload:

Automatic Resettable

Reverse Polarity:

Present

LED Indicators:

Power:

Power Status

Ethernet(Per Port):

Link/Activity

SFP:

Link/Activity

Dimensions (WxDxH):

148 x 120 x 31 mm

Weight:

0.5Kg

Casing:

Metal Case

Mounting Options:

DIN-Rail / Wall-mount

Regulatory Approvals

ISO9001

EN55022 Class A, FCC part 15 Class A

Surge Protection:

RJ45: 1KV

Power: 500W
