4CH AHD CCTV NVR Cheap Home Surveillance Security System,4 Pcs Outdoor Cctv Camera kit

FOB Reference Price:Get Latest Price
$71.99 - $149.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Woshijia
Model Number:
ST-WIFI KIT4-10L-1M
IR:
24pcs ir leds
Camera chip:
HI3518E+OV9732
type:
camera security system
LENS:
3.6mm HD 3MP Lens
FPS:
25FPS 720P
DVR CHIP:
Embedded Linux OS
Video Output:
1*HDMI/1*VGA
Video input:
720p 1080p
Main function:
no need cables and router
Keyword:
2018 Security camera system outdoor wifi 4ch IP wifi wireless NVR kit
Supply Ability
Supply Ability:
6000 Piece/Pieces per Week work overtime for large order
Packaging & Delivery
Packaging Details
Special KITS Package
Port
Shenzhen/Hongkong

 4CH AHD CCTV NVR Cheap Home Surveillance Security System,4 Pcs Outdoor Cctv Camera kit

Product Description

Model: ST-WIFI KIT4-10L-1M camera security system
No need network cable , WIFI Code auto match when camera and nvr power one.

4CH WIFI NVR
*. 1SATA HDD / 4TB Max
*. 4CH 720P recording & playback
*. support smart phone view

720P WIFI IP Camera :
*. Chip :Hi3918E+1145
*. Resolution : Max : 720*1280
*. IR Led : 24pcs IR Led
*. Lens : 3.6mm HD 3MP Lens
*. With IR CUT
*. P2P , ONVFI




Specifications:

Wireless NVR Specification
 Operating SystemEmbedded Linux OS
AV(audio/video)inputNetwork Video4CH
Network video input broadbank 20Mbps
AUdio Bitrate 64Kbps
AV (audio/video) outputHDMI output1ch,resolution:1024x768,1366x768,
1440x900,1920x1080
VGA output1ch,resolution:1024x768,1366x768,
1440x900,1920x1080
AV CODEC SpecificationVideo Resolution1080p/720P/960P
synch-playback4CH
Video ControlVideo/Capture modeMaual,Time,Motion,Alarm
Playback modeReal time,Routine,Event
BackupUSB backup
AlarmAlarm Input 4ch (optional)
Alarm Output 1ch (optional)
Hard DiskType1*SATA interface
Max Capacity4 TB at most for each
External InterfaceNetwork Interface1 adaptable RJ45 10M/100M, 1 WIFI interface
USB Interface2 USB 2.0
 ProtocolUPnP (play&plug)/SMTP (email survice)/PPPoE (dial-up)
DHCP (Automatically obtain an IP address), etc…
Network Control
OthersPower SupplyDC12V3A EU PSU
Power Consumption (W) ≤12W(Without HDD)
Operate Temperature (°C) -10℃~+55℃
Working Humidity (%) RH10%~90%
Size340mm(W)×180mm(V)×270mm(H)
Weight(excluding HDD)≤3.3Kg
IPC  Specification
 Sensor1/3”& 1/4" Progressive Scan Sensor
Signal SystemPAL/NTSC
Resolution1280*720  16 : 9 High Defination
Minimum illuminationColor: 0.1 Lux;  B/W: 0.01 Lux
Shutter1/25s to 1/25,000s
Lens2PCS DOT IR
OSDDate Time & Title
White BalanceAuto
Day&NightAuto / Color / BW
3D-DNRAuto
Mirror/FlipOn / Off
Frame SpecificationThree Streaming at the Same Time:
H.264 128x720@20fps or below
H.264 640x480@15fps or below
S/N> 39.1 Db
InterfaceRJ45 / WIFI 802.11b/g/n
General Specification Anti-thunder LevelStandard IEC61000-4-5
Working Temperature/Humidity -10℃ to +50℃ / 30% to 80% RH
Working Temperature/Humidity -20℃ to +60℃ / 20% to 90% RH
Power InputDC12V-1A
Power consumption ≤6W
Size205(L)×70(W)×55 (H)mm
Weight500g
Level of ProtectionIP66

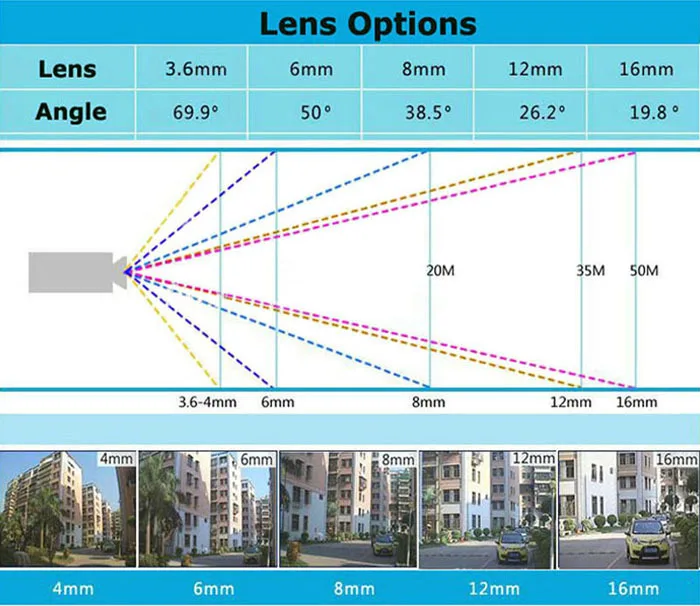

Lens Options
Packaging & Shipping

 Packaging

Shipping



Hot Products



Our Services

 OEM service



1. Free sticks with your company logo and model No. on the products and box, no MOQ limit.

2. Free print your own label according to your demand and sticks on products and box, no MOQ limit.

3. Free silk screen your own LOGO on the products on the basis of MOQ50 pcs per model .

4. Customized products are accepted (color, design, material, etc.)
Company Information





FAQ

Q: What's the MOQ?

A: 1pc for sampe,  at least 10pcs after sample order.



Q: How long is thedelivery time

A: Sample order 3-5 working days, bulk order 7-15 working days.



Q: What's the warranty?

A: 2 Years warranty for repair.



Q: Why do you choose us

A:  Choose WOSHIJIA Co., Ltd; Choose a qualified CCTV Products manufacturer!



We will try our best to find the products you need, we will provide you with the most satisfactory serviceIf you want to learn moreYou can contact usWe also welcome you to visit our factory in Shenzhen.
