4mm 6mm 10mm 16mm twin solar cable

  • 500-999 Meters
    $1.35
  • >=1000 Meters
    $1.12
Quantity:
- + Meters available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
10 day(s) after payment received
Customization:
Customized logo (Min. Order: 10000 Meters)
Customized packaging (Min. Order: 10000 Meters)

More

Graphic customization (Min. Order: 10000 Meters) Less
Contact Supplier
Samples - $1.35 /Meter, 1 Meter (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China
Brand Name:
Hongsheng
Model Number:
Solar cable PV1-F
Insulation Material:
XLPE
Type:
Low Voltage
Application:
Solar energy system, Solar station and solar energy system
Conductor Material:
Tinned Copper
Jacket:
XLPE
Conductor:
Tinned Copper
Insulation material:
Polyolefin copolymer electron-beam cross-linked
Outer Sheath material:
Polyolefin copolymer electron-beam cross-linked
Sheath color:
Black/Red/Blue or as per customer's request
Range of cross-sectional area:
1.5mm2- 25mm2
Rated voltage::
AC600/1000V ,DC1000V/1800V
Ambient temperature:
-40℃---+90℃
Certificate:
TUV 2PGF 1169/08.2007 PV1-F
Service time:
25 years

Packaging & Delivery

Selling Units:
Single item
Single package size:
0.36X0.36X0.4 cm
Single gross weight:
0.08 kg
Package Type:
100/200/500 meters per coil; Can be packed in coil, reel, drum; Outer packaging: paper cartons, pallet.
Lead Time :
Quantity(Meter) 1 - 5000 5001 - 100000 >100000
Est. Time(days) 10 20 To be negotiated
Video Description
Product description

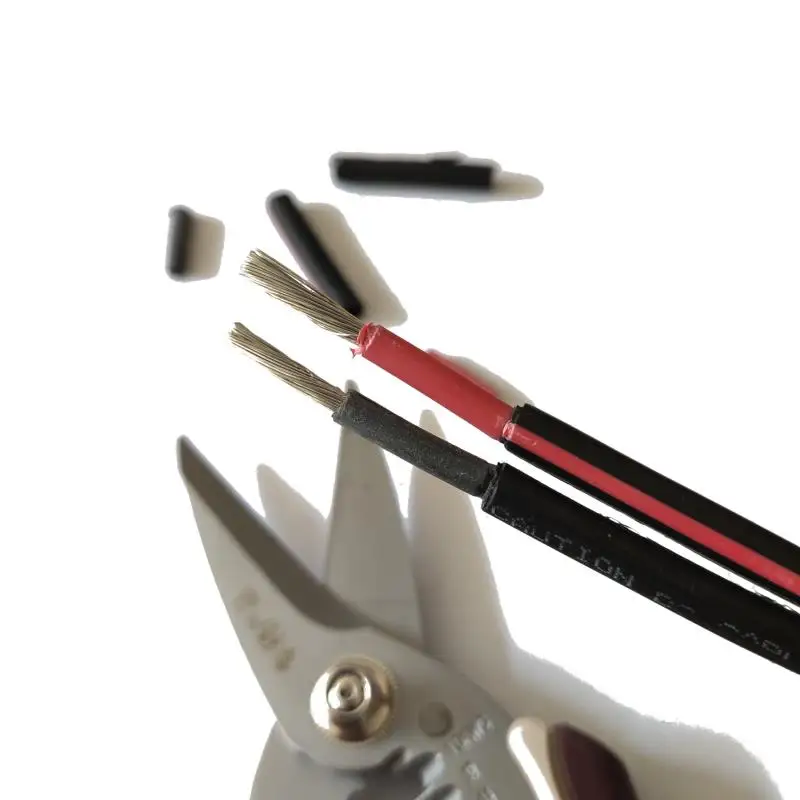

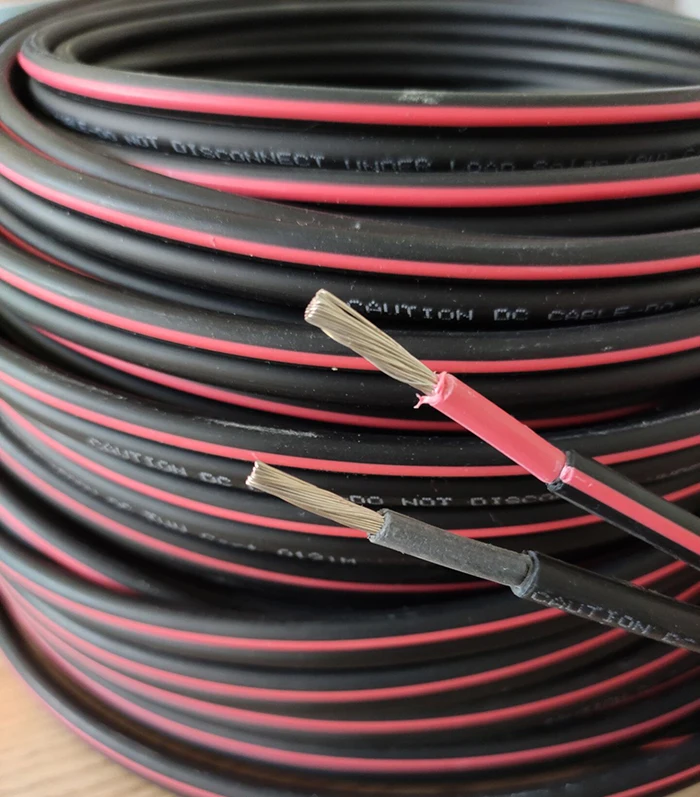

4mm 6mm 10mm 16mm twin solar cable

Technical parameter

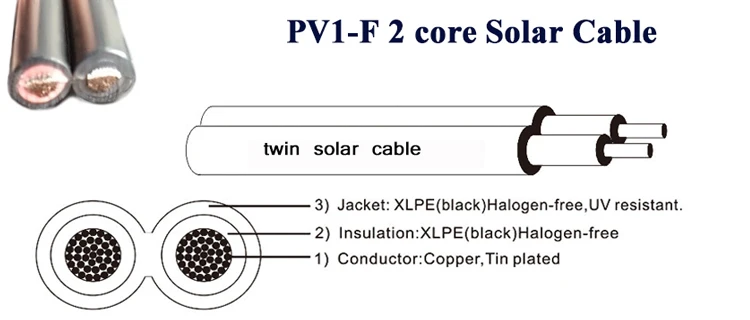

Construction
Conductor Construction
Insulatihion Thickness
Sheath Thickness
Outer
Resistance Max.
Current Carrying Capacity
Approx Weight
(n * mm2)
(n/mm)
(mm)
(mm)
(mm)
(Ω/km)
(A)
Kg/Km
2* 1.5
30/0.25
0.7
0.8
8.3±0.2
13.3
30
72
2 * 2.5
50/0.25
0.7
0.8
9.2±0.2
7.98
41
94
2 * 4.0
56/0.30
0.7
0.8
12..0±0.2
4.75
55
142
2* 6.0
84/0.30
0.8
0.9
13.5±0.2
3.39
70
200
2* 10.0
142/0.30
0.9
1.1
17.6±0.2
1.95
98
290
2* 16.0
228/0.30
1.1
1.1
19.8±0.2
1.24
132
430
Our Company

Shanghai Hongsheng Wire & Cable Co.,Ltd.

Established in 1998, Shanghai Hongsheng Wire & Cable Co., Ltd. is a national high-tech enterprise specializing in R&D, design, production and sales of special wire and cable. Based on technology and the first productivity, the company has been long committed to the research and operation of three fields of construction cables, new energy cables, and industrial equipment automation cables. After years of development, wire and cable in various fields have been recognized by the industry. Universal recognition and good market reputation. Up to now, the company has a number of invention and utility model patents, has passed the ISO9001 quality management system, 14001 environmental management system, 180001 occupational health and safety management system, China Quality Certification Center CCC, EU CE, Germany TUV and many other certifications.

Product packaging
Test and certificate

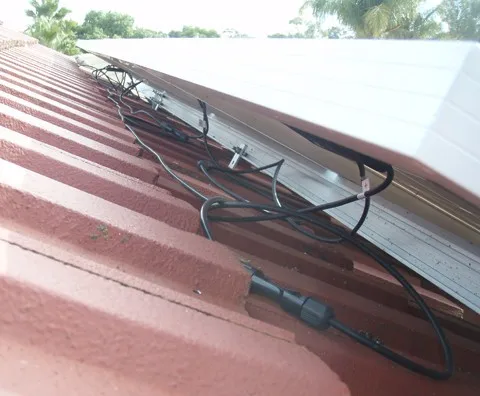

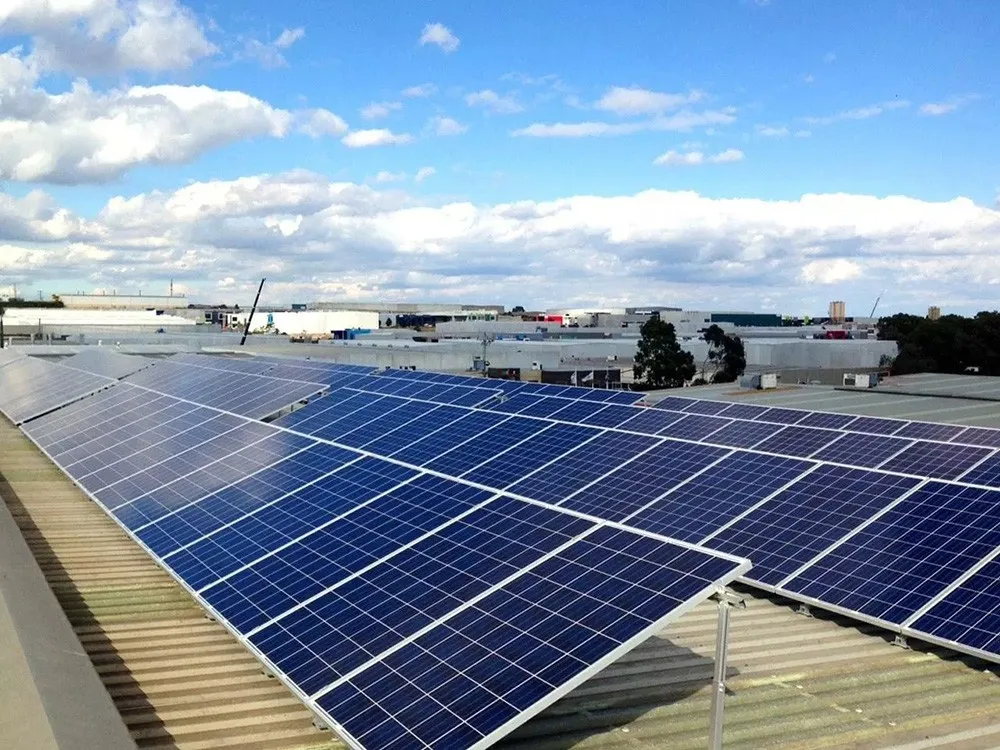

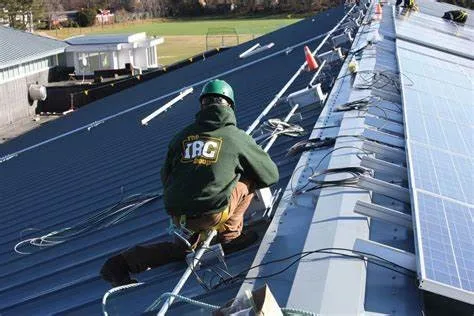

Cable application
FAQ

Q1. What is your terms of packing?

A: As per customer's request.

Q2. What is your terms of payment?

A:T/T 30% as deposit, and 70% before delivery.

Q3. What is your terms of delivery?

A: EXW, FOB, CFR, CIF

Q4. How about your delivery time?

A: Generally, it will take 10 to 20 days after receiving your advance payment.

The specific delivery time depends on the items and the quantity of your order.

Q5. Can you produce according to the samples?

A: Yes, we can produce by your samples or technical drawings.

Q6. What is your sample policy?

A: We can supply the free sample if we have ready parts in stock
