5.8Ghz 900M Outdoor CPE 5km Long Range Point to Point Wireless Router Bridge

  • 2-99 Pairs
    $78.00
  • >=100 Pairs
    $75.00
Quantity:
- + Pairs available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
7 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Model Number:
BLY-CPE510
Brand Name:
BLIY
Place of Origin:
Guangdong, China
Device Type:
wireless bridge
Condition:
100% Brand New
Fiber port:
IEEE802.11n IEEE802.11a IEEE802.3u
Ethernet port:
5.8G
Connector Type:
900Mbps
Fixed Port:
10/100Mbps, LAN*2
MAC table size:
Max 5KM without obstacles situation
Warranty:
1 year
Dimensions (W x D x H):
246*88*62mm
Keywords:
wireless bridge

Packaging & Delivery

Selling Units:
Single item
Single package size:
31X10X8 cm
Single gross weight:
1.2 kg
Package Type:
Packing for 5.8Ghz 900M 5km long range point to point wireless router bridge: 1) 1 pair of wireless bridge 2) 2 power adapter Carton with protective EPE foam padding. Carton size is 31*10*8cm per piece; weight is 1.2kg. Due to different quantity and extra packing for a safer shipping, the carton size and weight are actually increased to some extent.
Picture Example:
package-img
Lead Time :
Quantity(Pair) 1 - 2 >2
Est. Time(days) 7 To be negotiated
Video Description
Product Description

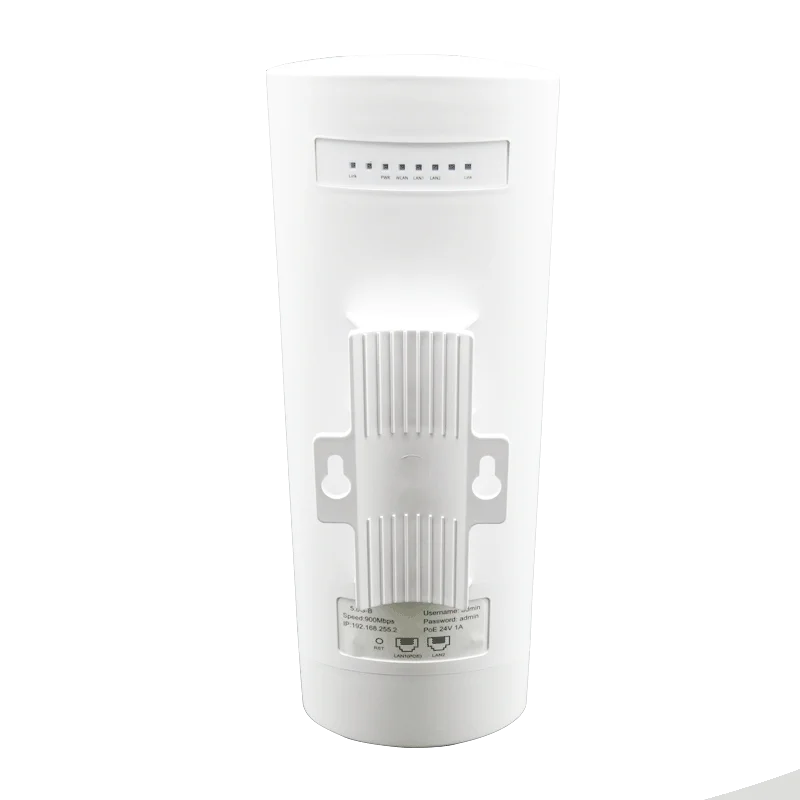

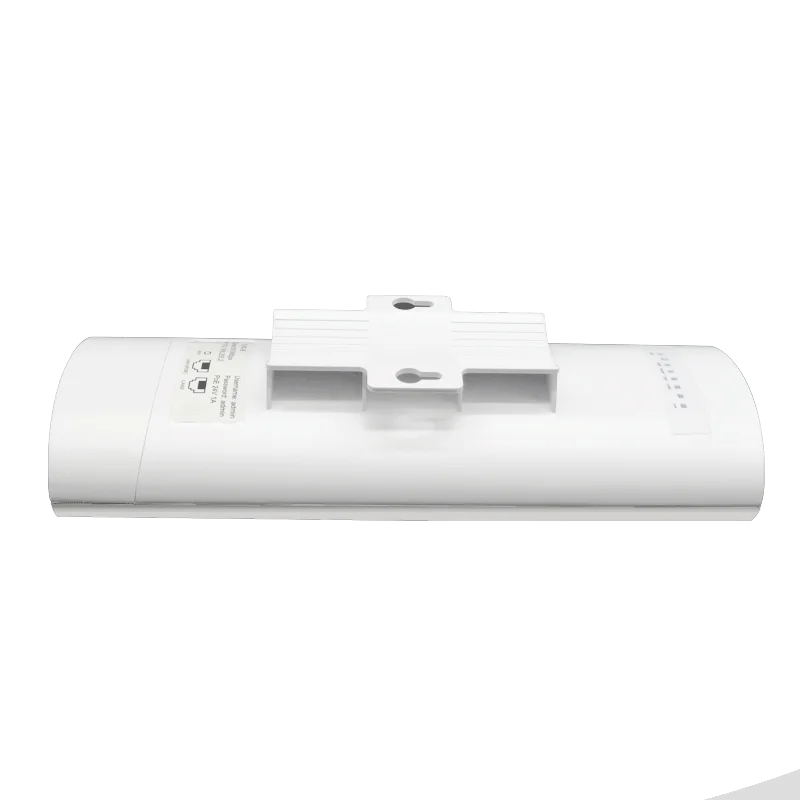

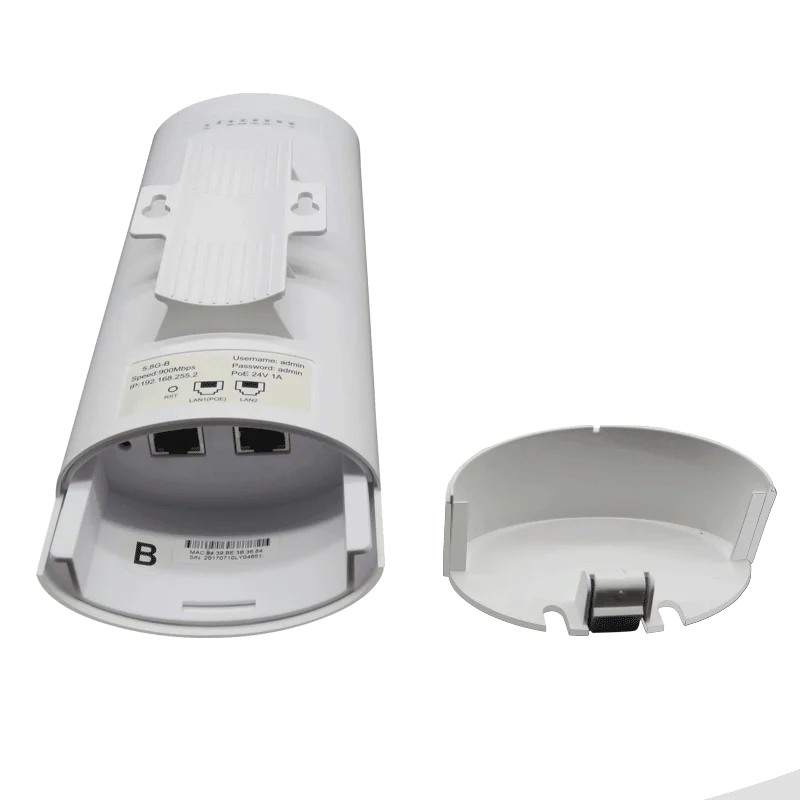

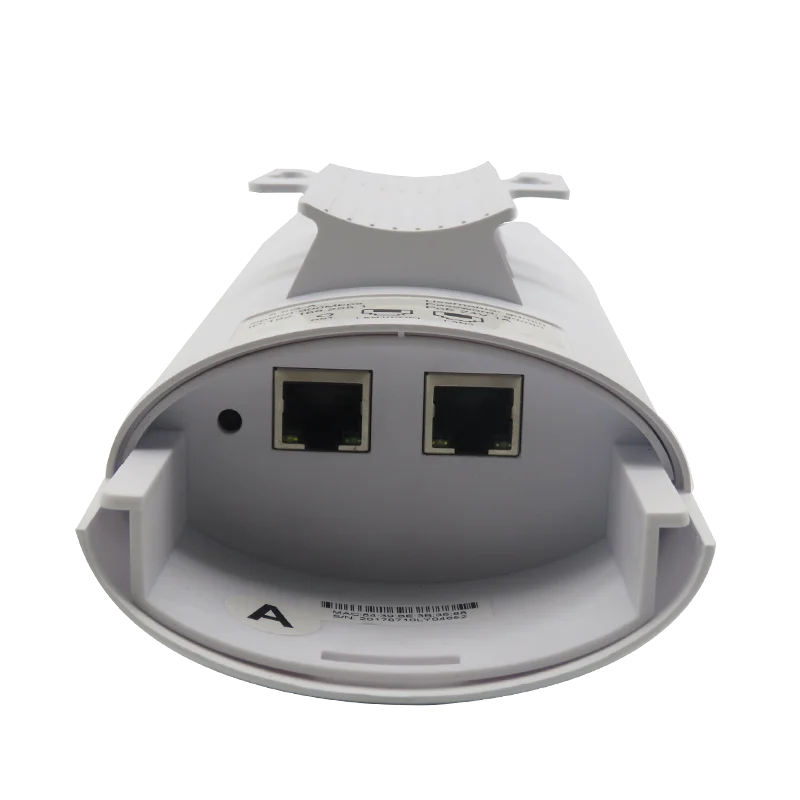

CPE510 Series Wireless Bridge

5.8Ghz 900M 5km long range point to point wireless router bridge

The BLY-CPE510 is a 5.8G Hz 900M long-distance wireless transmission device. It’s adopted with wiress technology and transmit data with air as medium. Long distance point to point or point to multipoint connectivity is accompanished with this technology and the longest transmission distance can be up to 5KM.

SPECIFICATIONS FOR CPE510 Series Wireless Bridge




Standards
CSMA/CA
TCP/IP
IPX/SPX
NetBEUI
DHCP
NDIS3
NDIS4
NDIS5

Protocols
IEEE802.11n
IEEE802.11a
IEEE802.3u


  Modulation Mode
OFDM/BPSK/QPSK/CCK/DQPSK/DBPSK

           Transmission Mode
DSSS(Direct Sequence Spread Spectrum)

                 Management
WEP, Telnet, Serial

                  Ethernet Ports
10/100Mbps,LAN*2
Antenna System
Frequency Range: 4900~6100MHz
Polarization: vertical
Gain: 10DBi
Power
POE 24V1A(as default); 48V0.5A(optional)
Power consumption≤3W
Environment
Storage Temperature: -50~80℃
Operating Temperature: -30~65℃
Relative Humidity: ≤95% ( no condensation)
Color
White
Physical Characteristics
Dimension: 246×88×62mm
Weight: 0.35kg
Color: White

Main Features

Strong Interference resistance.
5.8GHz band is with more channels, higher frequency, stronger interference resistance and more stable transmission.
Requires no configuration.
Automatic pairing, plug and play, easy and convenient to use.
Optimized video transmission protocol.
The video transmission protocol optimization ensures dynamic burst, high-speed video transmission, no lagging or disconnection.
The optimization of the underlying wireless drivers, strengthens the anti-interference ability as well as stability;
Energy saving and environmental friendly.
Low-power, high-performance design, with RF indicators, radiation levels fully compaliance with various standards.
Dynamic MIMO power saving mode (DMPS) and automatic power-saving delivery (APSD) are both available.
It’s enabled with the intelligent identification of performance needs of terminal equipment. In this way it improves the deployment of Terminal hibernation queues and the bi-directional power between the AP and client so as to reduce the energy consumption;
Low cost with less wiring.
It lower the cost of wiring setting and its maintanance and siganificantly shorten the construction period.
Simple construction.
No need wiring when long-distance wireless networkconnection is needed.
The installation can be fast and flexible, and also very simple. And the equipment can be reused with relocation.
Simple installation.
24V POE power supply is supportive, which is easy for the debugging and installation of the equipment.
It simplifies the construction; in the meanwhile it’s safe and reliable.




Certifications
Our Factory
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* 1 year warranty for commercial switch; 5 year warranty for industrial switch.

* Engineers feedback available for problems during usage.

Packing & Delivery
Packaging
Size
31 (L) *10 (W) * 8 (D)
Weight
1.2KG



Packaging Details
Packing for 5.8G 900M long range CPE 5.8G 900Mbps access point LAN POE wi-fi Ethernet wireless bridge WIFI signal booster CPE:
1) 1 pair of wireless bridge
2) 2 power adapter


Packaging
Size
31 (L) * 10 (W) * 8 (D)
Weight
1.2KG



Packaging Details
Carton with protective EPE foam padding.
Carton size is 31*10*8cm per piece; weight is 1.2kg.
Due to different quantity and extra packing for a safer shipping, the carton size and weight are actually increased to some extent.
