5 KVA 4 KW Inverter 220V DC 380V AC SPWM Sine wave power inverter (1 - 30 KVA )

FOB Reference Price:Get Latest Price
$950.00 - $1,150.00 / Sets | 2 Set/Sets (Min. Order)
Output Power:
>1000KW
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China (Mainland)
Brand Name:
JETPOWER
Model Number:
ND220-3050
Output Type:
Single
Size:
550x480x980
Weight:
31KG
Input Voltage:
220VDC
Output Voltage:
380VAC
Type:
DC/AC Inverters, Tower type
Output Frequency:
50Hz/60Hz±0.5
Output Current:
0-30A
Product name:
Power Inverter
DC Input range:
180~260VDC
Out wave form:
True Sine Wave
Capacity:
5KVA/4000W
Power Source:
Electric Power
Application:
Computer, office, air conditioning, servers, railway etc.
CoolinHumidityg Method:
Forced air-cooling with temperature control
Communication Interface:
Dry Relay
Supply Ability
Supply Ability:
1000 Set/Sets per Day power Inverter
Packaging & Delivery
Packaging Details
Plywood cases & Pallet
Port
Qingdao

Power inverter supply 5KVA 220VDC input 380VAC output Electric power inverter

Snapshots:
Model: ND-220-3050
Capacity: 5KVA/4000W
DC Input Vol: -220V
Bypass AC Input Vol:380VAC (Optional)
AC output: 380VAC
ND SERIES VDC inverter Features:

1. SPWM technology, pure sine wave output

2. With output isolation transformer

3. 100% Non linear load ability

4. DC input reverse polarity protection

5. CPU control, advanced anti-interference technology, good electromagnetism compatibility

6. User friendly LCD+LED display, easy to operate.

7. Comprehensive protection: Over voltage, low voltage, short circuit, over load protection and etc

8. Optional three working modes: AC mains first, DC inverter first, pure DC inverter

9. 19 inch rack

10. 2 sets reduntant parallel function



Application: Computer, office, air conditioning, servers, railway etc.



Product picture



 Techinical Specifications





Model

ND220

-3020

ND220 -3030

ND220

-3050

ND220

-3100

ND220

-3150

ND220  -3200ND220  -3300ND220 -3400

ND220

-3600

ND220 -31000ND220 -31250ND220 -32000
DC input
Rated Input Voltage 220 VDC
Rated Input Current10.1A15.2A25.3A49.4A74.2A99A148.5A185.25A296A496A620A988A
DC Input Voltage Range180~260Vdc
Bypass Utility Input
AC Input Voltage 380Vac±15%
Bypass Transfer Time ≤4 ms
AC Output
Rated Capacity2KVA3KVA5KVA10KVA15KVA20KVA30KVA40KVA60KVA100KVA125KVA200KVA
Rated Output Power1.6KW2.4KW4KW8KW12KW16KW24KW32KW48KW80KW100KW160KW
Rated Output Volt&Frequency380VAC/220VAC, 50/60Hz(3phase, 4wire)
Output Voltage Regulation380Vac ±3%
Output Frequency Regulation50/60Hz±0.05Hz
THD≤2%
 3 Phase Unbalanced≤100%
Dynamic Response                         (Load 0←→100%)5%
Power Factor0.8
Overload>125%, 1min; >150%, 200ms
Crest Factor3:01
Efficiency at Rated Load91%92%
Environment
Insulation Strength                  (Between Input & Output)2000VAC, 1min
Noise (1m)≤40dB
Temperature-10℃~+50℃
Humidity0~90%, no condensation
Altitude (m)≤2000
Physical
W* D * H, mm550×480×980550×485×1200800×600×2260 1070*900*1630
Weight (kg)3045601601802002503005808609001000
ProtectionDC input reversely protection, DC input under voltage, overload, short circuit, over temperature

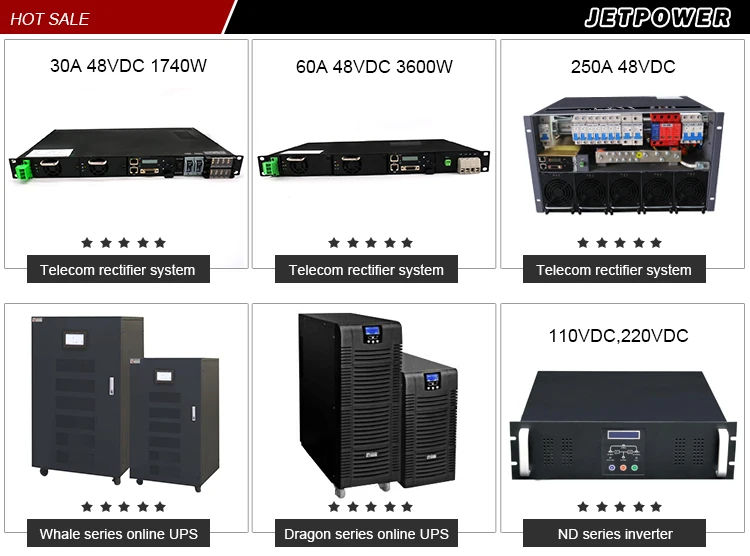

HOT SALE
