5 hp 10 hp 12hp 15 hp 18hp 20hp 25hp 3 Phase Irrigation High Pressure Electric Submersible Pump

FOB Reference Price:Get Latest Price
US $236-13,576 / Units | 1 Unit/Units (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
weihu submersible pump
Model Number:
7 inch series submersible well pump
Theory:
Centrifugal Pump
Structure:
Multistage Pump
Usage:
Water
Power:
Electric
Standard or Nonstandard:
Standard
Fuel:
Electrci
Pressure:
High Pressure
Application:
Sewage
Product name:
5 hp 10 hp 12 hp 15 hp 18 hp 20 hp 25 hp submersible pump
Voltage:
380V to 480V
Material:
casr iron, 30/316/316L SS
Impeller:
casr iron, 30/316/316L SS
Motor:
100% Copper Wire
Feature:
submersible well pump
Warranty:
One Year
Supply Ability
Supply Ability:
9000 Unit/Units per Month
Packaging & Delivery
Packaging Details
Standard export packaging (packaged according to your design or designed for your brand as needed)
Port
Shanghai, Tianjin, etc
Lead Time :
Within 3 days after receiving payment
Video Description

5 hp 10 hp 12 hp 15 hp 18 hp 20 hp 25 hp 3 Phase Irrigation High Pressure Electric Submersible Pump

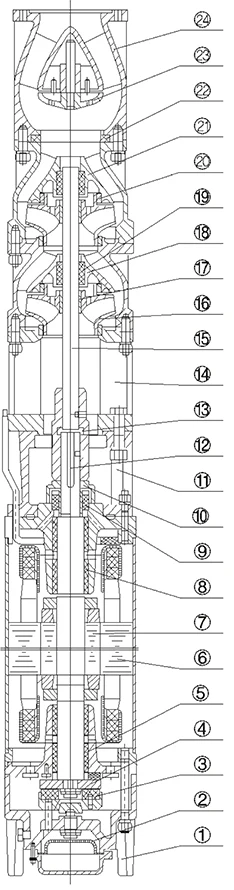

Structure of submersible deep well pump:

1_03 NOName Material
1    Base  Cast iron, 304/316/316 SS
2    Regulating membrane  Rubber
3    Thrust bearing race  M202B
4    Thrust plate                 3Cr13
5    Low gaide braring  M202B
6    Stator component
7    Rotor component
8    Upper gaide braring  M202B
9    Framework oil seal   Rubber
10    Rejection of sanding  Engineering Plastics
11    Coupling end  HT2000
12    Flatkey  Steel
13    Coupling   35#steel
14    Inlet section  HT200
15    mpeller shaft  35#hard chromium
16    Impeller  Cast iron, 304/316/316 SS
17    Conical socket  45#steel
18    Blower inlet casing  Cast iron, 304/316/316 SS
19    Rubber bearing   Rubber
20    Sealing ring  HT200
21    Diversion shell  Cast iron, 304/316/316 SS
22    Bumper  Rubber
23    Check value  Steel
24    Non-return value body  Cast iron, 304/316/316 SS







Product Show




Submersible deep well water pumps:

Pump dia

7”,8”,10”,12”,14”,16”,18”

Outlet diameter

Φ32mm to Φ203mm

Pump material

Cast iron HT200/Cast iron HT250/ Ductile iron/SS304/SS316/SS316L

Pump discharge

DN50/DN65/DN80/DN100/DN150/DN200

Capacity

30 m3/hr to 1500m3/hr

Lift head

20m-600m

Power

2.2kw to 410 kw

Voltage

3phase/380V/440V/460V/480V

Frequency

50HZ/60HZ

Temperature

<40℃

Warranty

one year warranty and lifelong maintenance

Specialized in customized, any special requirements, we done for you.



 Note:

Our factory not only produces 10 inch stainless steel submersible pumps, but also 7 inch submersible pumps, 8 inch submersible pumps, 12 inch submersible pumps, 14 inch submersible pumps, and 16 inch submersible pumps. In order to meet the needs of customers, the material is divided into 304/316/316L stainless steel and cast iron.



High Quality Material

Let you use peace of mind

















Factory Advantage

We make the material from the raw material to the finished product







Our Manufacturing Process:




Working Mode:











Installation Method










Buyers Notices

Technical selection:Our professional technicians help you choose the right pump for your mining industry free of charge. Describe in detail the usage scenarios, details of your required flow, head, power and extracted media.



About after sales:

In order to creat a famous brand, we seriously promise you the most favorable price, the most considerate service and the most reliable product quality as floows:



1.Product quality commitment:

Quality records and testing data on product manufacture and testing are avaliable. We will pack and deliver the goods after it is confirmed qualified.



2.Product price commitment:

Under equal competitive conditions, we sincerely offer you the most favorable price,not at the cost of reducing technical performance of the product or replacing product components.



3.Delivery time commitment:

We will follow customer requirement as far as possible;if you have special requirement and want us to finish producing it ahead of time, we can arrange extra time for production and installation in particular. We will try our best to

satisfy customer needs.



4.After sales commitment:

If the equipment breaks down, whether under warranty period or not, our maintenance man will come to maintain it within 24 hours since we receive your notice.







 Packing details

   PP bubble bag wrapped, export standard seaworthy plywood case outside

  One 10 inch stainless steel deep well submersible pump for sea water pumps , one case;

 Shipping port  Tianjin, Shanghai, Qingdao or other port
 Delivery time  10-15 workdays depending on the type of pumps availability



Contact Us

If you have questions about the submersible pump, please do not hesitate to contact us. Our factory can be customized, you have special needs, please send us an inquiry.
